Amana
Top-Mount Refrigerator

Model # TR518IT-P1170501W Official Amana top-mount refrigerator

Here are the diagrams and repair parts for Official Amana TR518IT-P1170501W top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

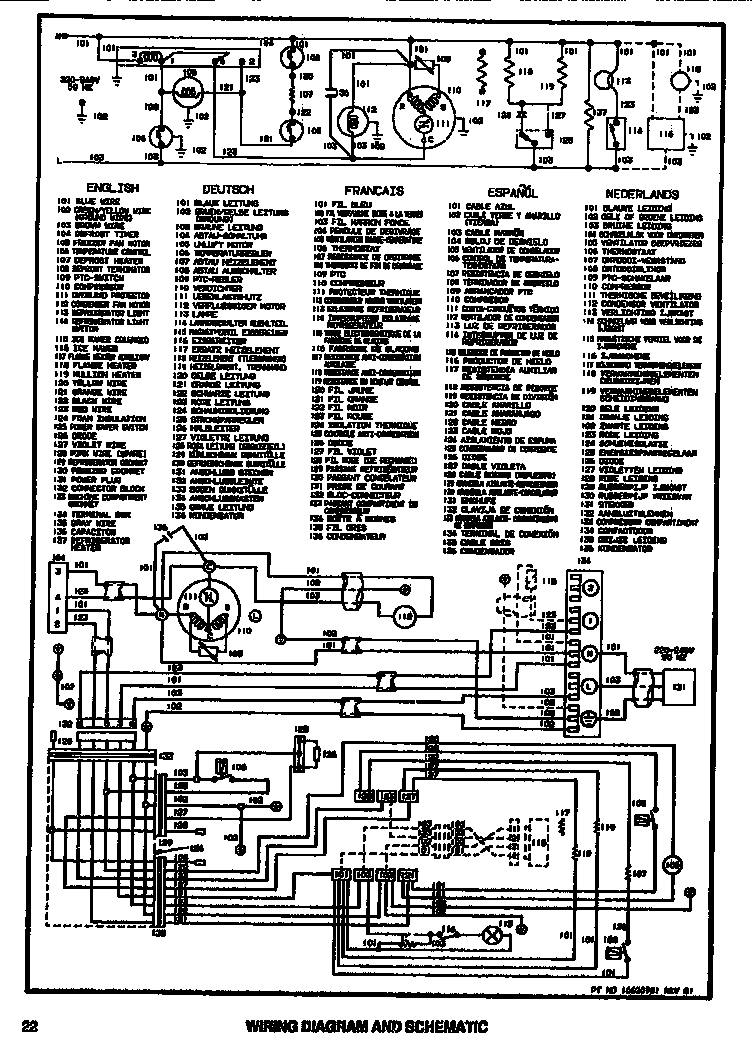

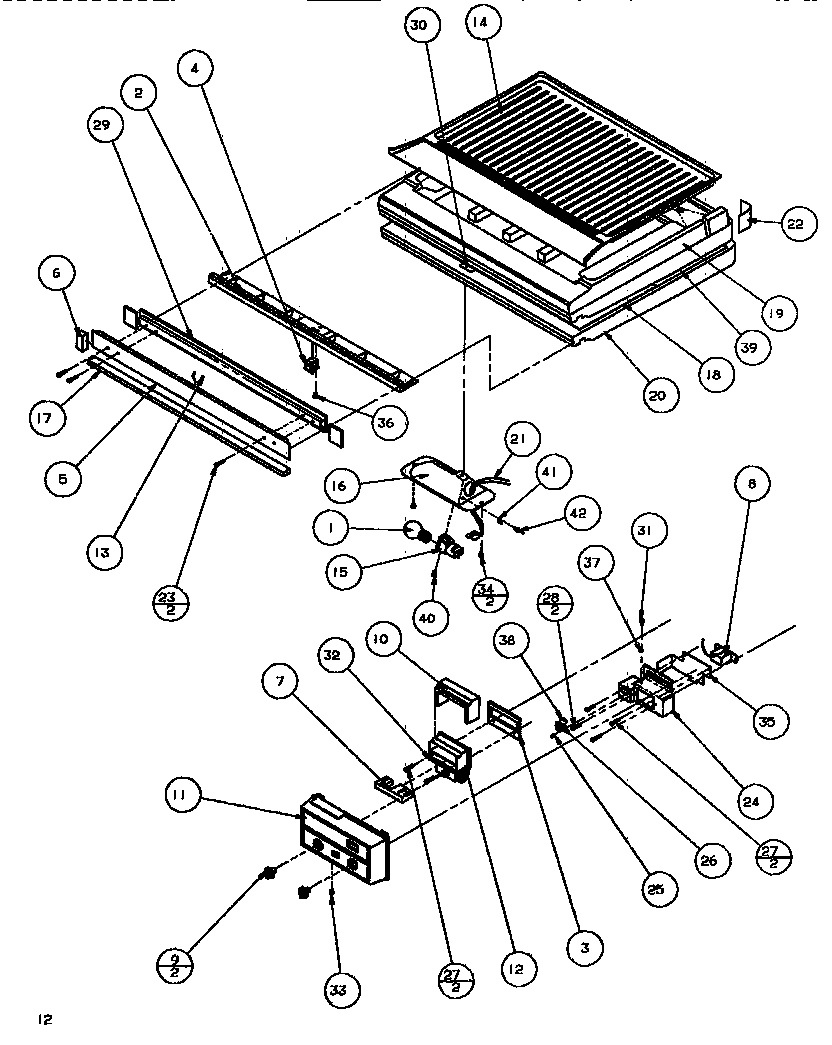

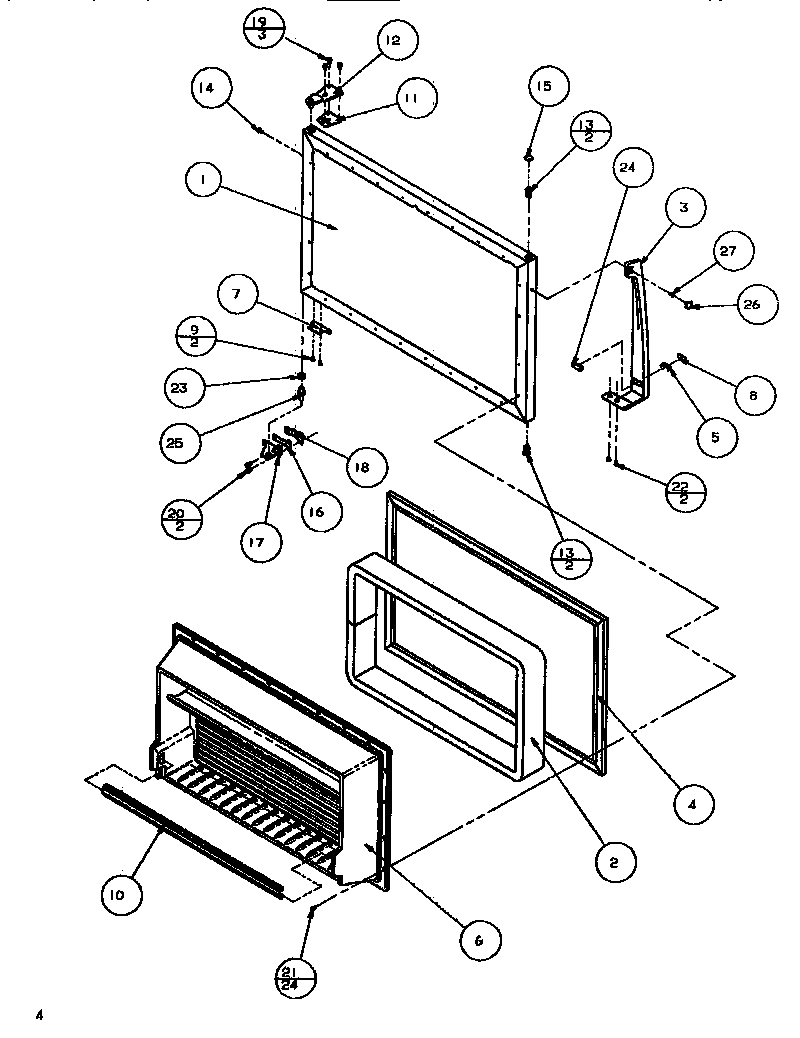

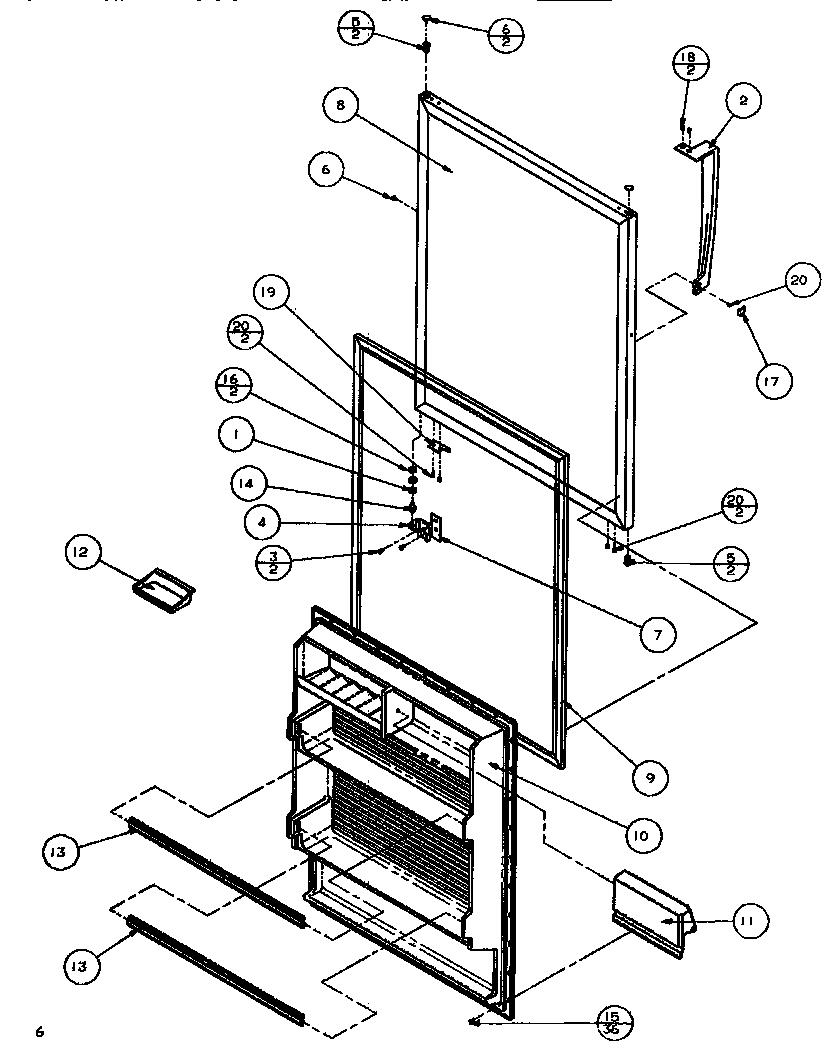

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Drier B2150502
#8

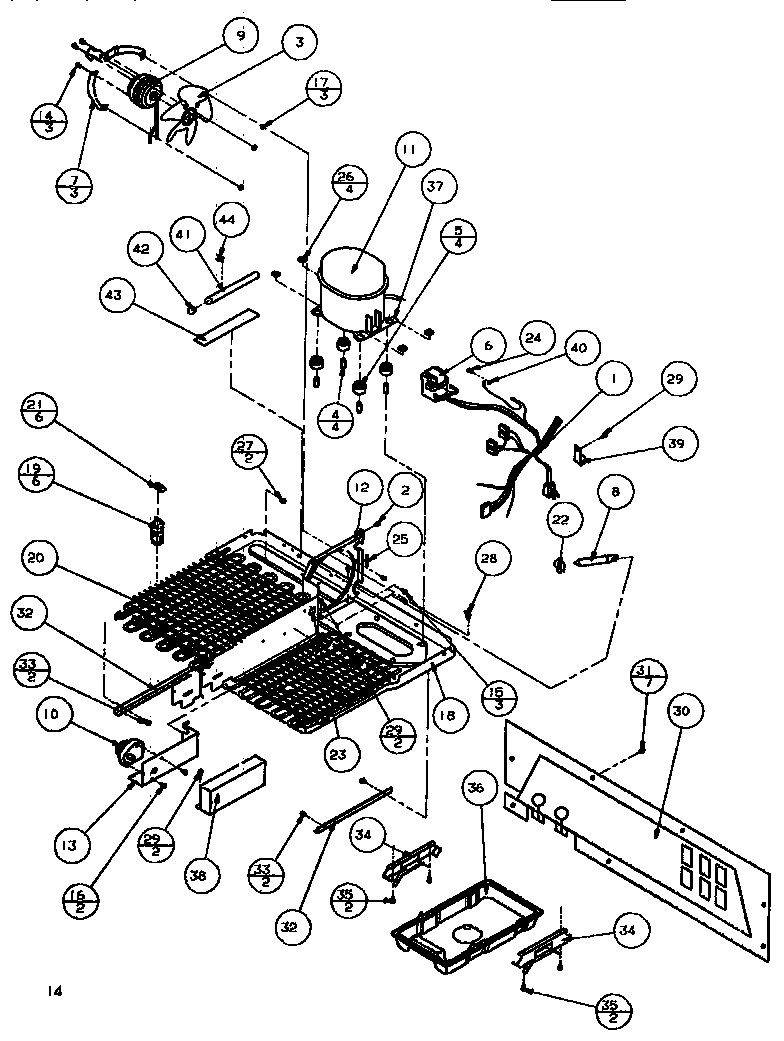

Compressor diagram

Drier

Part #B2150502

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Screw M0220617
Refrigerator screw

Part #M0220617

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0220617. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0214931
#10

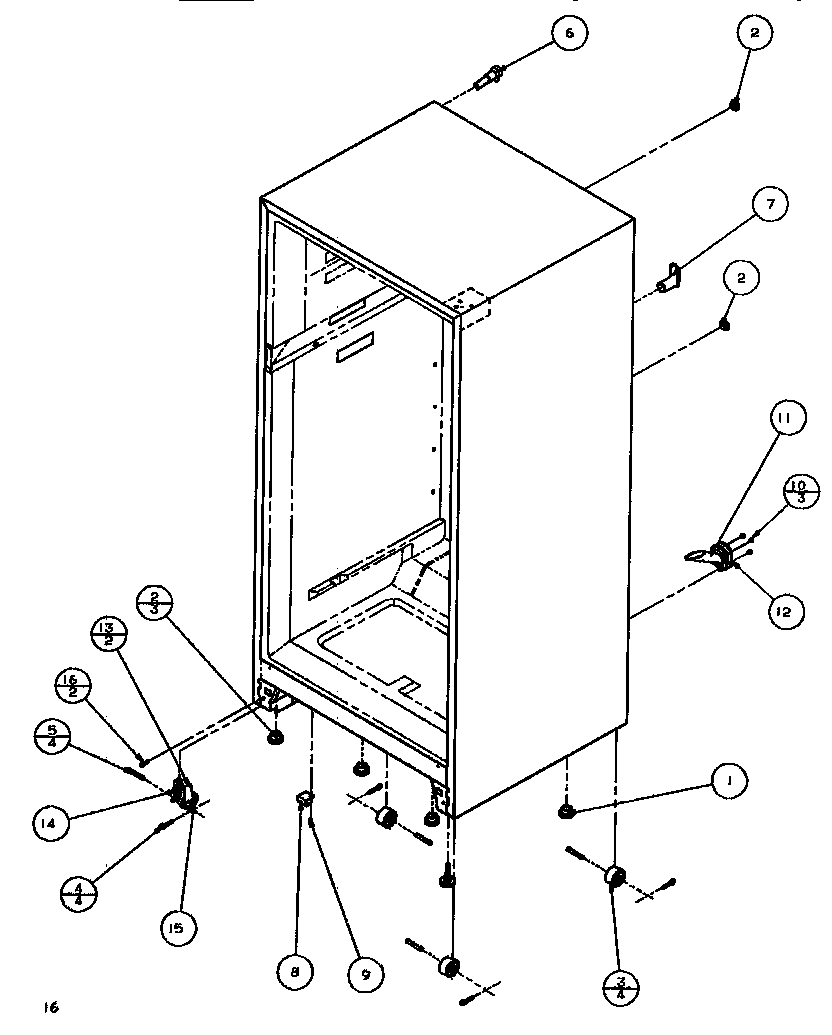

Cabinet bottom & back diagram

Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Grommet A1017202
#3

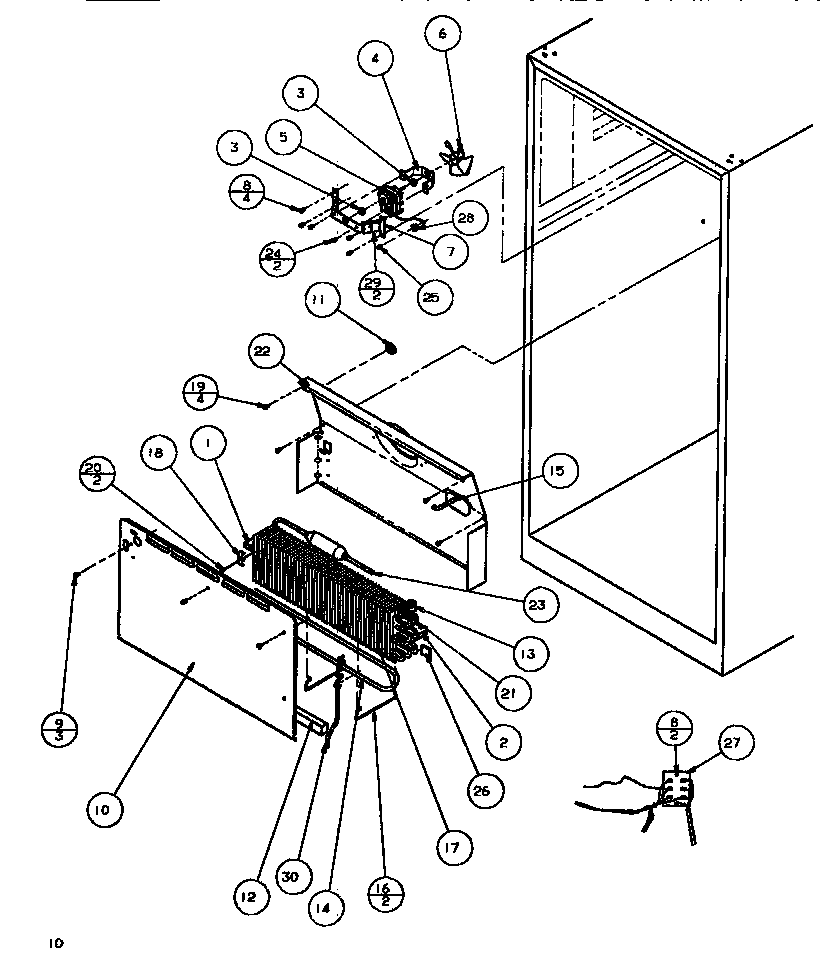

Evaporator area diagram

Refrigerator grommet

Part #A1017202

Replaced by #WP2264462

?
Manufacturer substitution
This part replaces A1017202. Substitute parts can look different from the original.
This item is not returnable
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Screw M0211217
#8

Evaporator area diagram

Screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Ice Tray D7725401
#6

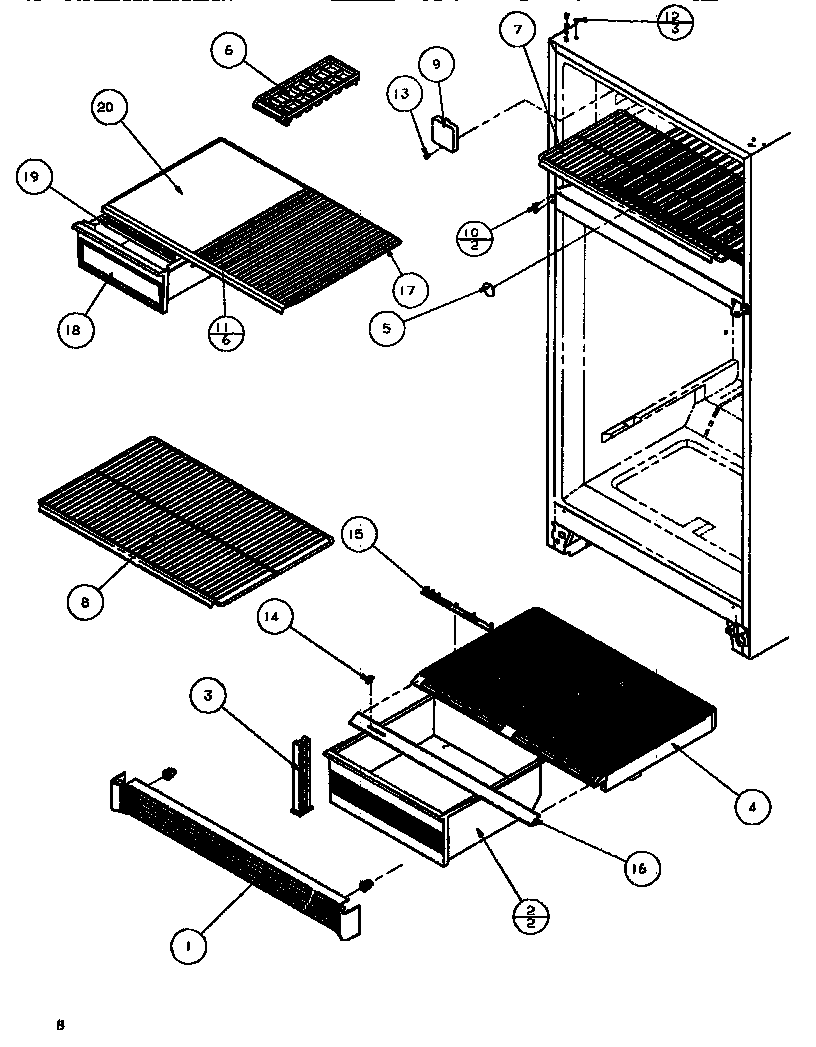

Cabinet shelving diagram

Refrigerator ice tray

Part #D7725401

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces D7725401. Substitute parts can look different from the original.
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Refrigerator Screw M0219704
#31

Compressor diagram

Refrigerator screw

Part #M0219704

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0219704. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Roller M0520102
#3

Cabinet bottom & back diagram

Refrigerator roller

Part #M0520102

The manufacturer no longer makes this part, and there's no substitute part

Plug (white) M0310701
Plug (white)

Part #M0310701

Replaced by #WP67001130

?
Manufacturer substitution
This part replaces M0310701. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Plug M0310305
#5

Cabinet shelving diagram

Refrigerator plug

Part #M0310305

Replaced by #WP67001130

?
Manufacturer substitution
This part replaces M0310305. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
