Model # 580323601 Official Craftsman ac generator

Here are the diagrams and repair parts for Official Craftsman 580323601 ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

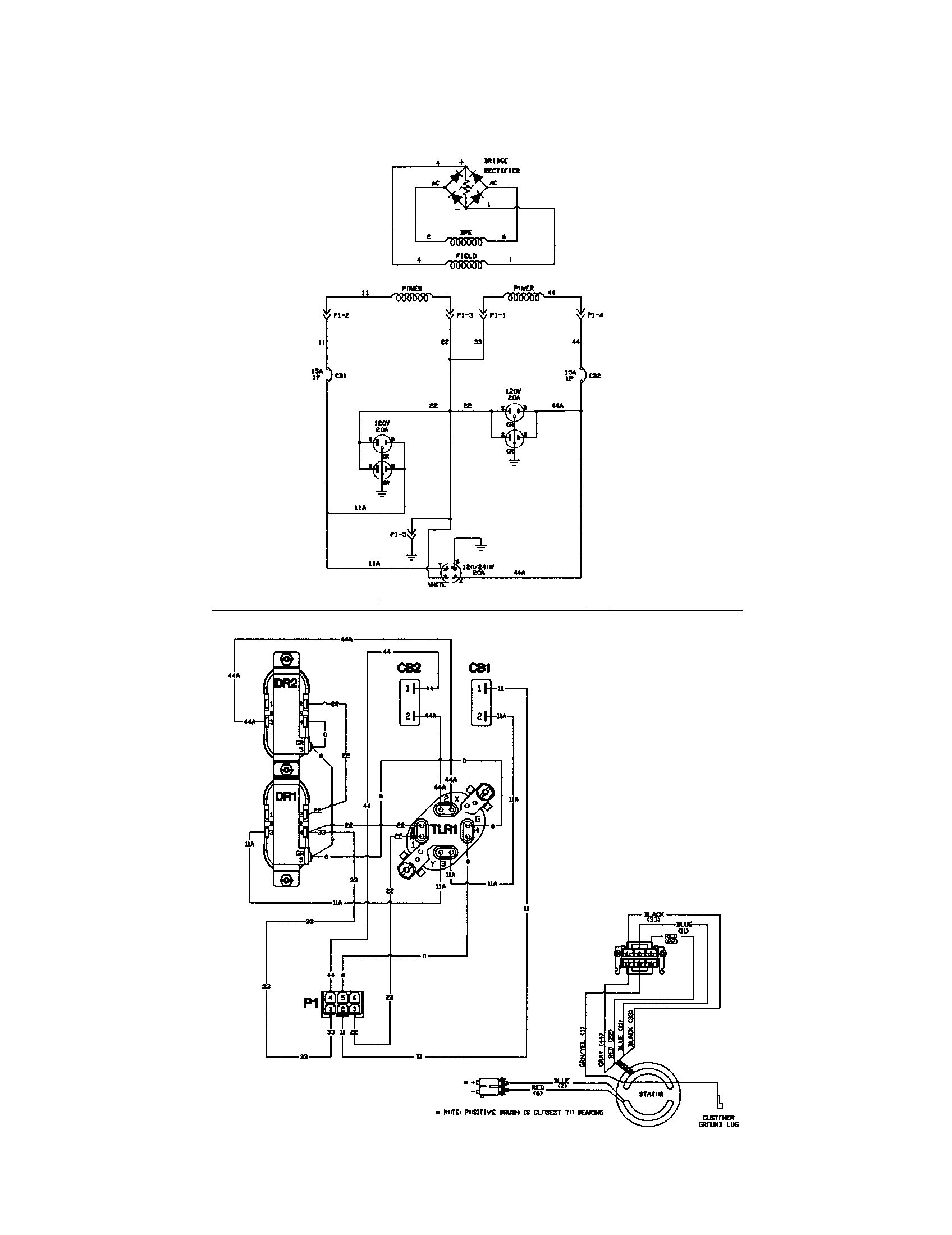

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Snapper Generator Fuel Tank Cap With Gauge (replaces 85134) B4363GS
#39

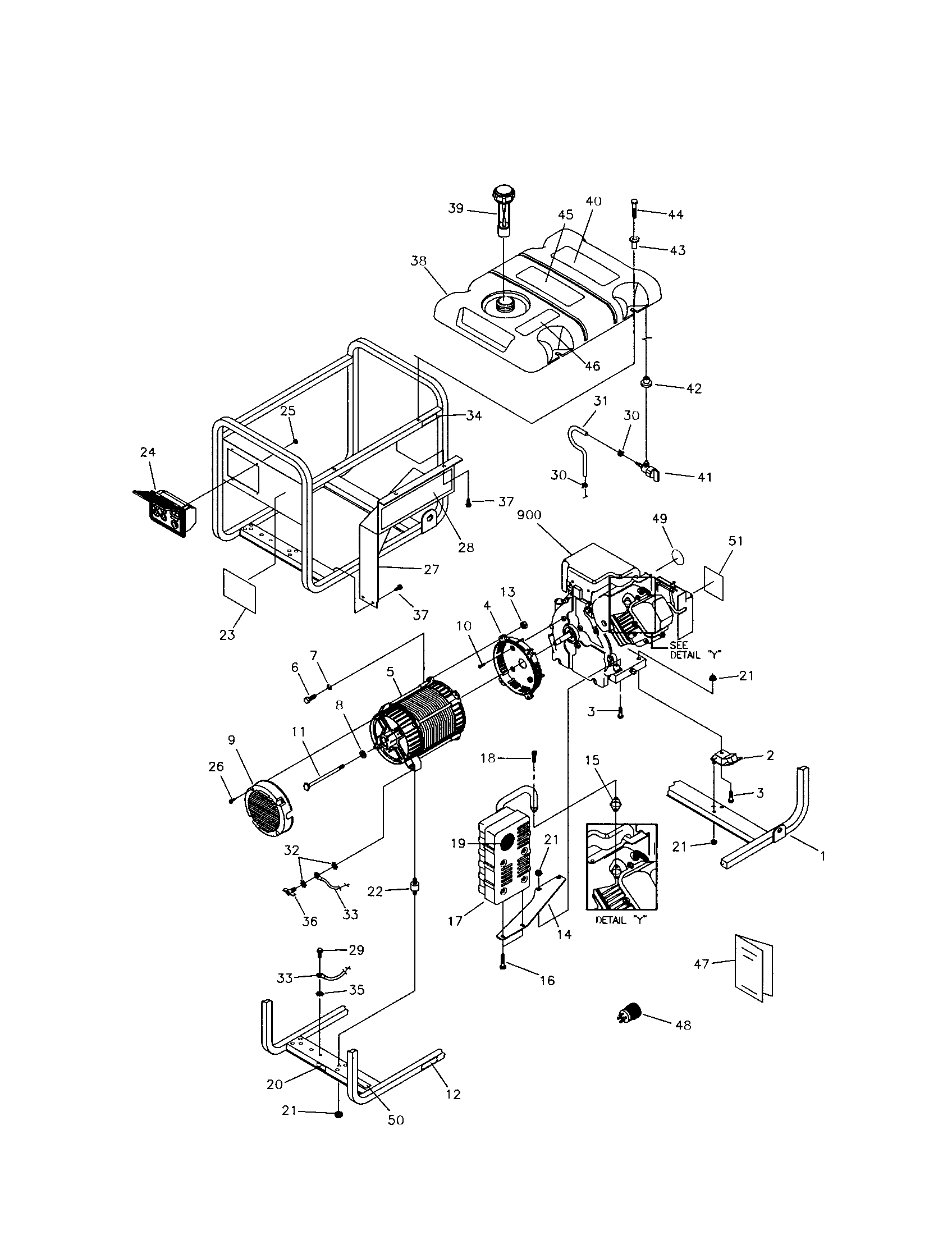

Main unit diagram

Snapper generator fuel tank cap with gauge (replaces 85134)

Part #B4363GS

$55.19
10% OFF Phone Price : $61.19
In Stock
Generator Brush Holder And Rectifier Assembly 91825GS
#6

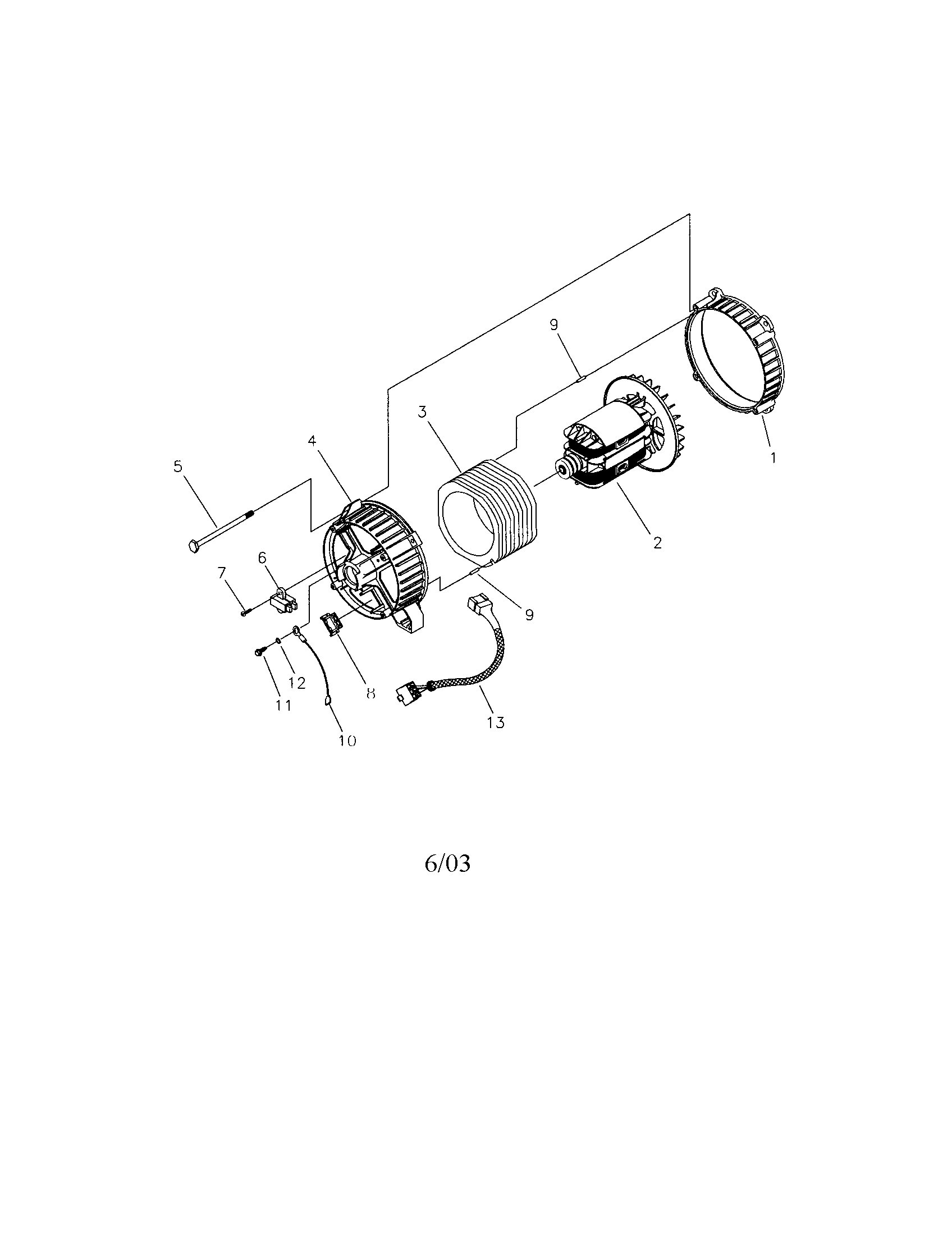

Alternator diagram

Generator brush holder and rectifier assembly

Part #91825GS

$68.63
8% OFF Phone Price : $74.63
In Stock
Briggs & Stratton Generator Circuit Breaker 75207DGS
#9

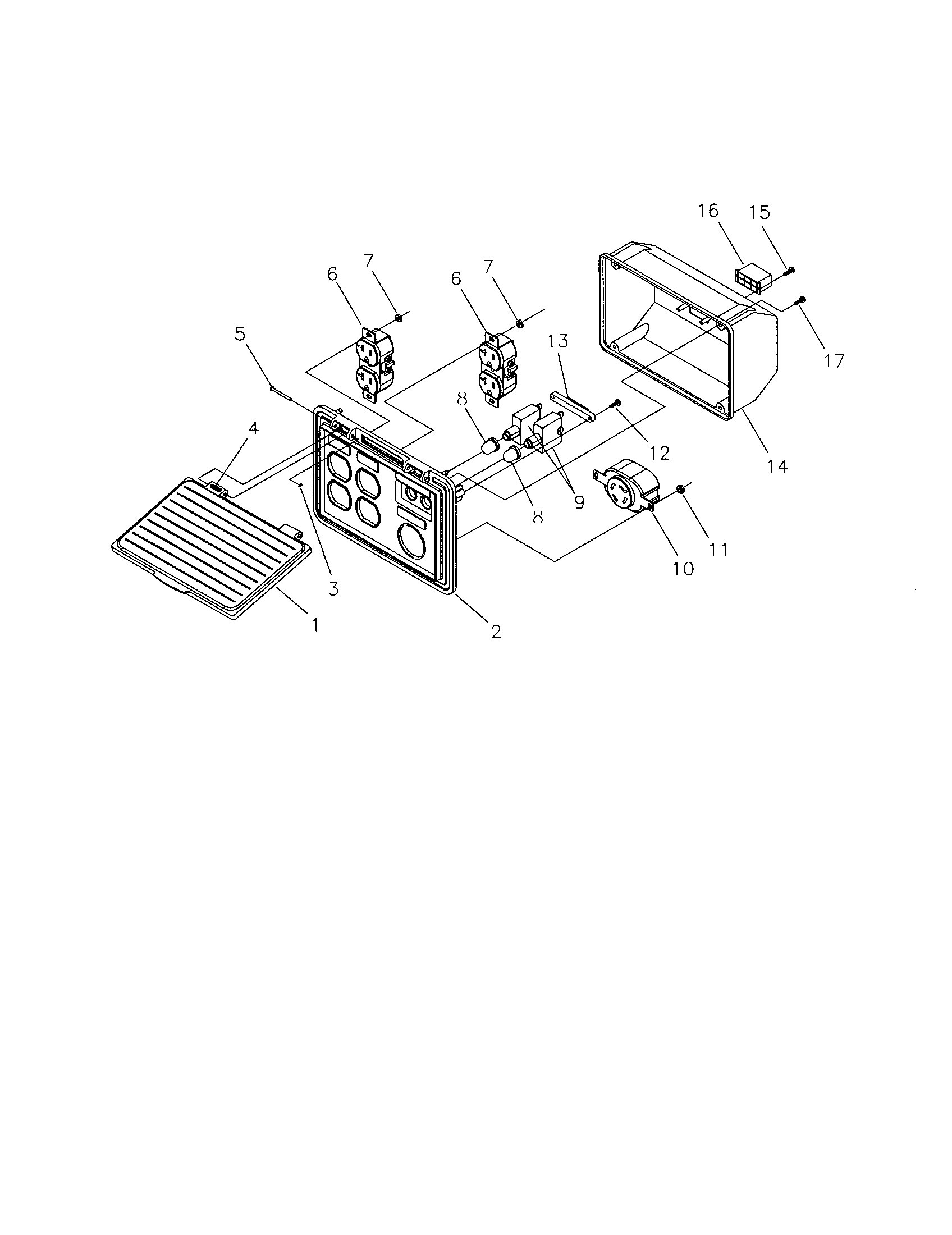

Control panel diagram

Briggs & stratton generator circuit breaker

Part #75207DGS

This item is not returnable
$20.96
22% OFF Phone Price : $26.96
In Stock
Generac Generator Spark Arrestor 83083GS
#19

Main unit diagram

Generac generator spark arrestor

Part #83083GS

This item is not returnable
$13.49
13% OFF Phone Price : $15.49
In Stock
Craftsman Lawn & Garden Equipment Engine Exhaust Gasket 692237
#15

Main unit diagram

Craftsman lawn & garden equipment engine exhaust gasket

Part #692237

This item is not returnable
In Stock
Wheel 87280GS
#6

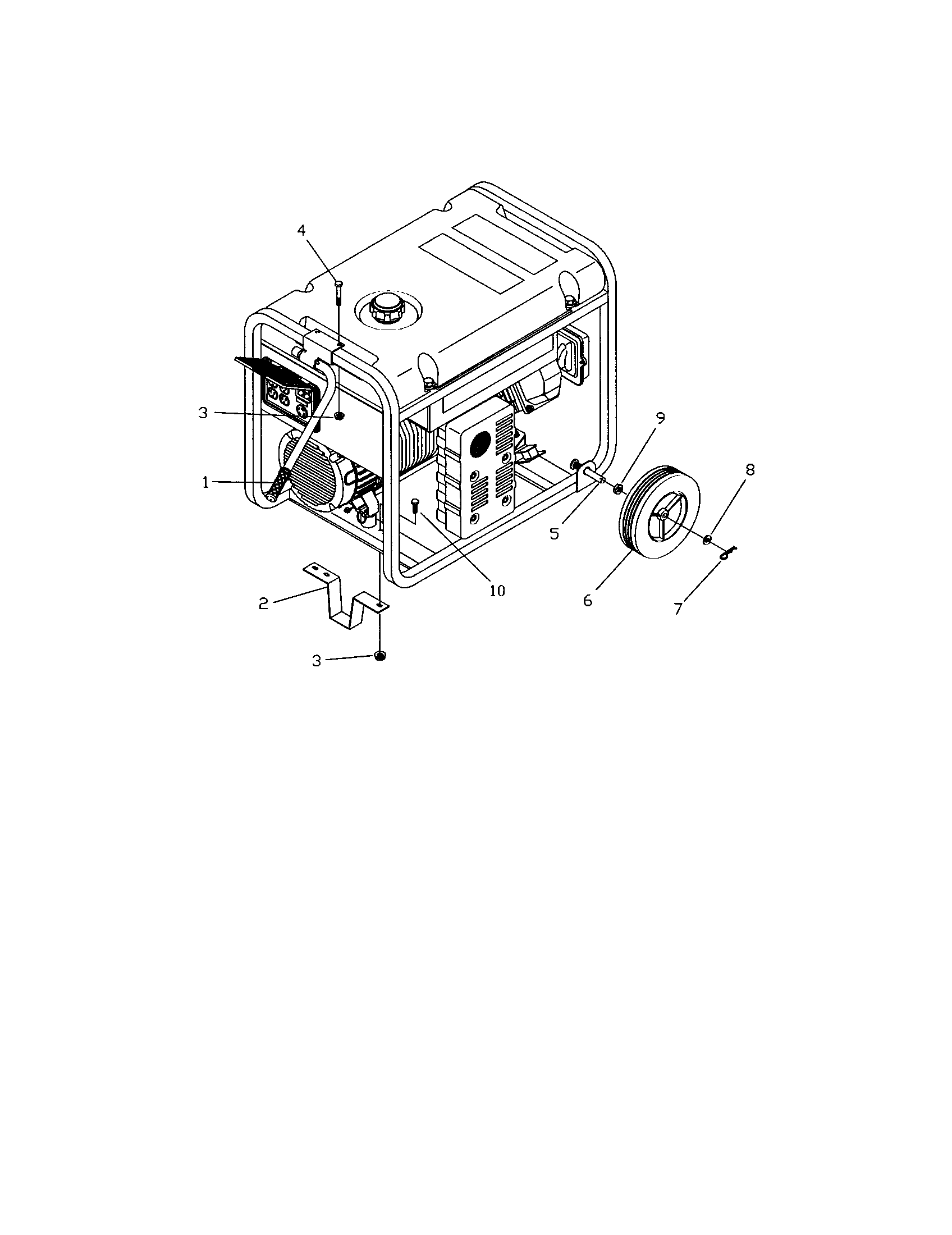

Wheel kit diagram

Wheel

Part #87280GS

Replaced by #197061GS

?
Manufacturer substitution
This part replaces 87280GS. Substitute parts can look different from the original.
$34.02
15% OFF Phone Price : $40.02
In Stock
Generator Clamp 48031CGS
#30

Main unit diagram

Generator clamp

Part #48031CGS

Replaced by #691038

?
Manufacturer substitution
This part replaces 48031CGS. Substitute parts can look different from the original.
This item is not returnable
In Stock
Snapper Decal 191436GS
#12

Main unit diagram

Snapper decal

Part #191436GS

In Stock
Washer 23762GS
Washer

Part #23762GS

This item is not returnable
In Stock
Snapper Panel 188889AGS
#2

Control panel diagram

Snapper panel

Part #188889AGS

In Stock
