Model # 107249210 Official Craftsman 2-bin bagger

Here are the diagrams and repair parts for Official Craftsman 107249210 2-bin bagger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

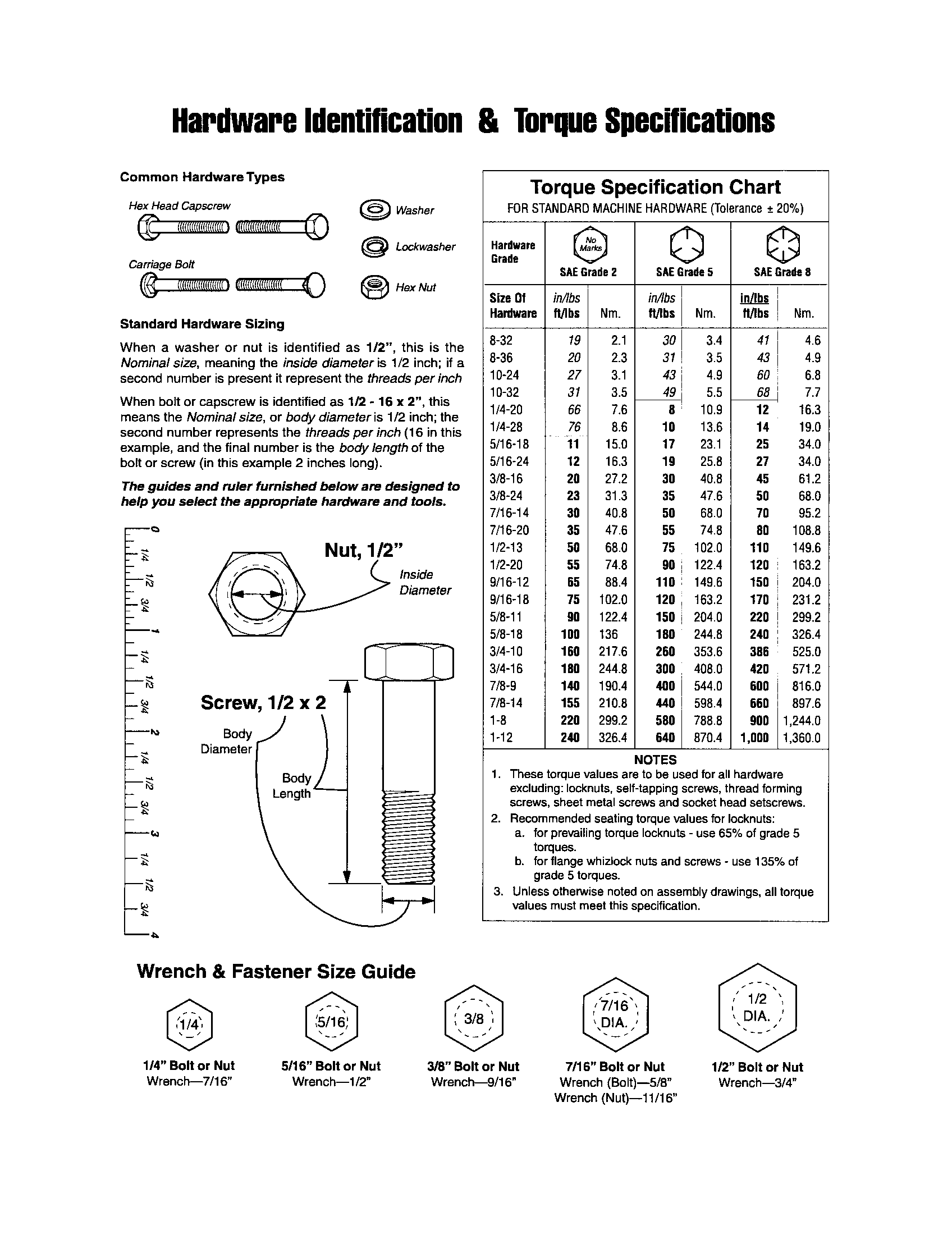

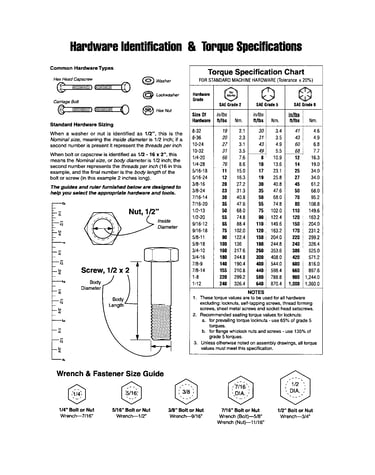

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Clip Hair Pi 1960074SM
#42

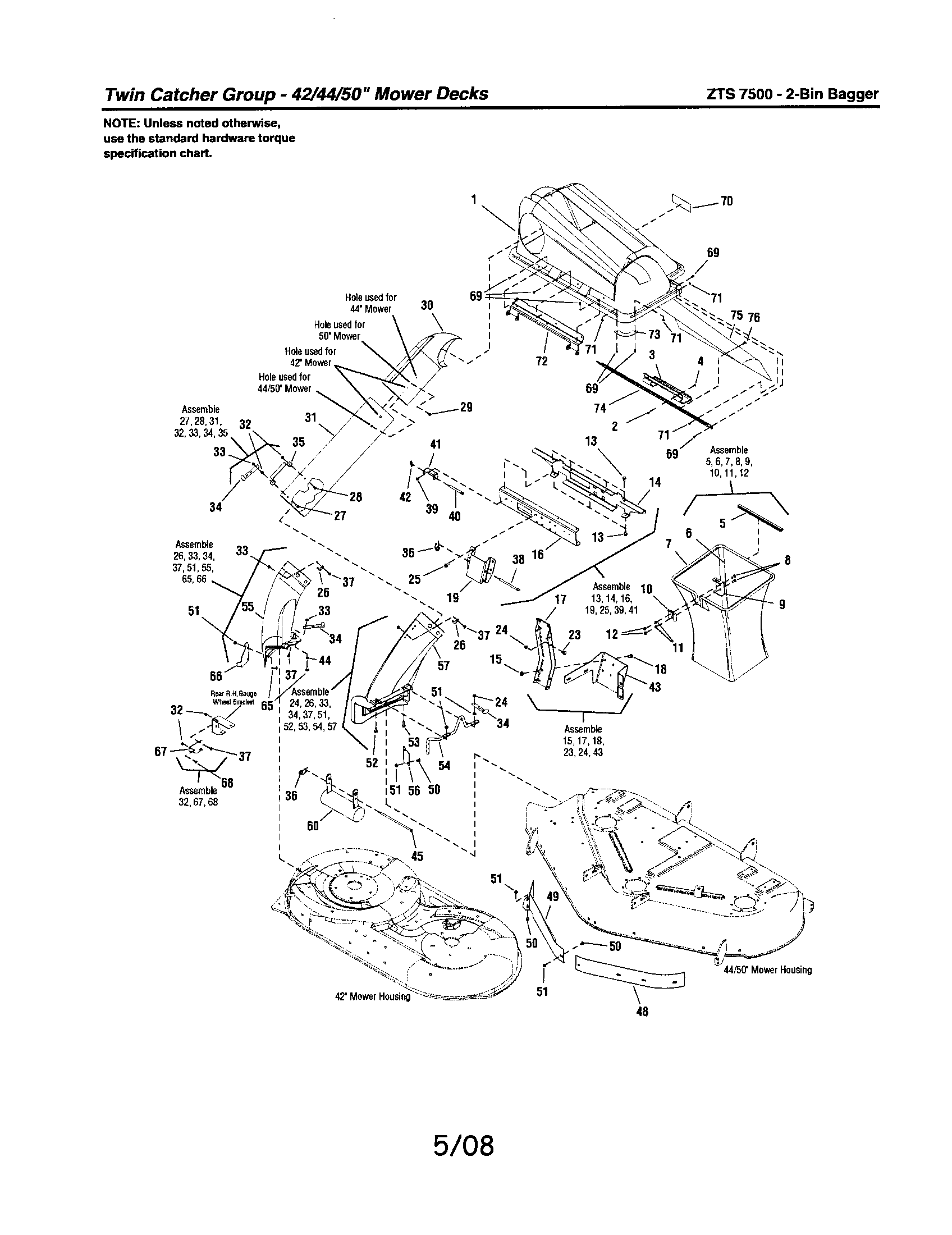

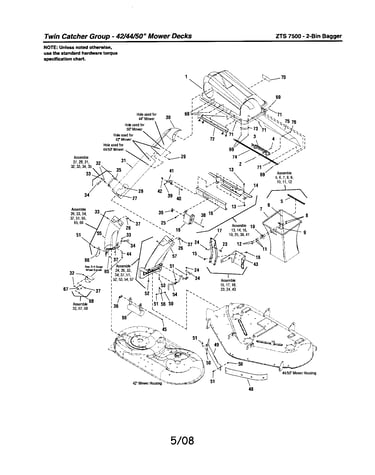

Grass catcher diagram

Clip hair pi

Part #1960074SM

Replaced by #703300

?
Manufacturer substitution
This part replaces 1960074SM. Substitute parts can look different from the original.
This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Hex Jam Nut 1917372SM
#12

Grass catcher diagram

Hex jam nut

Part #1917372SM

Replaced by #7091511SM

?
Manufacturer substitution
This part replaces 1917372SM. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Briggs And Stratton Strap,hood,black Rubb 2171600SM
#34

Grass catcher diagram

Briggs and stratton strap,hood,black rubb

Part #2171600SM

Replaced by #2171600SM

?
Manufacturer substitution
This part replaces 2171600SM. Substitute parts can look different from the original.
This item is not returnable
$12.77 |
14% OFF Phone Price : $14.77
In Stock
Lock, Washer, Spring 5/1 1917356SM
#11

Grass catcher diagram

Lock, washer, spring 5/1

Part #1917356SM

Replaced by #703116

?
Manufacturer substitution
This part replaces 1917356SM. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
Lawn & Garden Equipment Hex Cap Screw 1927187SM
#25

Grass catcher diagram

Lawn & garden equipment hex cap screw

Part #1927187SM

$7.77
In Stock
Craftsman Washer, Rivet, 3/16 1910531SM
#71

Grass catcher diagram

Craftsman washer, rivet, 3/16

Part #1910531SM

This item is not returnable
$7.09
In Stock
Craftsman Pivot Hinge 1733504ASM
#41

Grass catcher diagram

Craftsman pivot hinge

Part #1733504ASM

$29.80
In Stock
Craftsman Chute Plate 1726578ASM
#56

Grass catcher diagram

Craftsman chute plate

Part #1726578ASM

$46.00
In Stock
Craftsman Lawn & Garden Equipment Screw 1960371SM
#52

Grass catcher diagram

Craftsman lawn & garden equipment screw

Part #1960371SM

$10.03
In Stock
Craftsman Rod Boot Module 1733946SM
#54

Grass catcher diagram

Craftsman rod boot module

Part #1733946SM

$58.42
In Stock
