Roper
Gas Range

Model # 1416*1A Official Roper slide-in range

Here are the diagrams and repair parts for Official Roper 14161A slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Range Oven Light Bulb 111257
#36

Body diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 311484
#4

Body diagram

Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 327320
Screw

Part #327320

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces 327320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Main 330677
#2

Body diagram

Main

Part #330677

$38.49
In Stock
Ge Screw 120855
#18

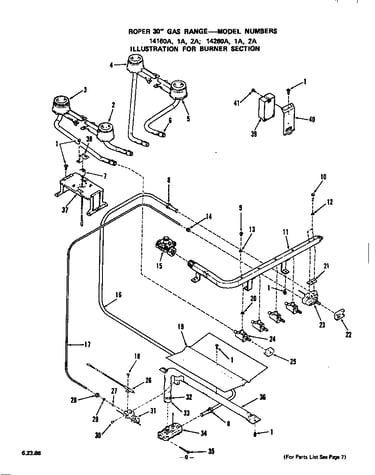

Burner diagram

Ge screw

Part #120855

This item is not returnable
$7.14
In Stock
Extension 331815
#51

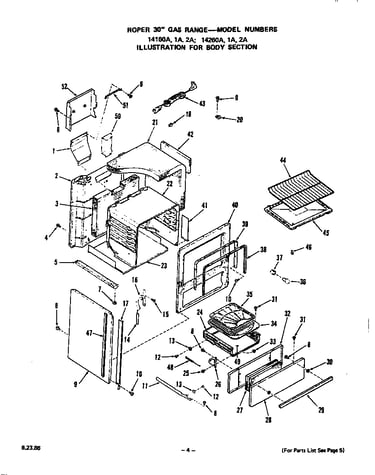

Body diagram

Extension

Part #331815

This item is not returnable
$2.29
In Stock
Instructions 331389
#5A

Wire harness and options diagram

Instructions

Part #331389

This item is not returnable
$2.29
In Stock
End Cap 330339
#2

Wire harness and options diagram

End cap

Part #330339

Replaced by #WB36K5046

?
Manufacturer substitution
This part replaces 330339. Substitute parts can look different from the original.
$8.57
In Stock
Gas Valve 324482
#24

Burner diagram

Gas valve

Part #324482

The manufacturer no longer makes this part, and there's no substitute part

Bracket 335161
#6

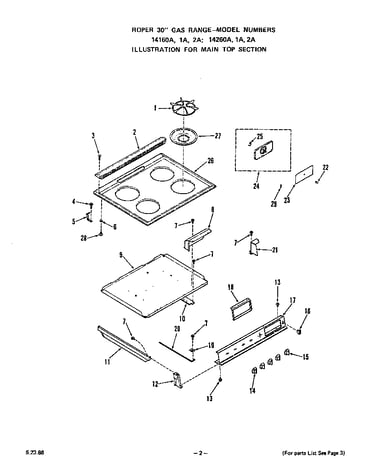

Main top diagram

Bracket

Part #335161

Replaced by #WB10X255

?
Manufacturer substitution
This part replaces 335161. Substitute parts can look different from the original.
$7.27 |
12% OFF Phone Price : $8.27
In Stock
