Tappan
Electric Wall Oven

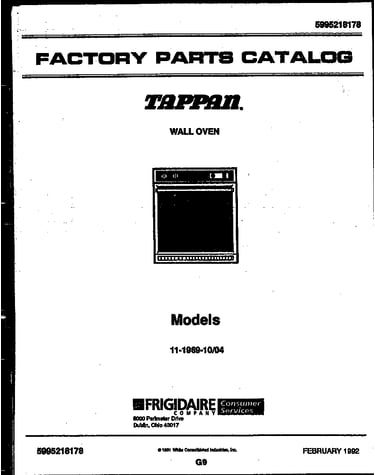

Model # 11-1969-00-04 Official Tappan wall oven - 5995218178

Here are the diagrams and repair parts for Official Tappan 11-1969-00-04 wall oven - 5995218178, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Range Oven Light Bulb 5303013071
#4

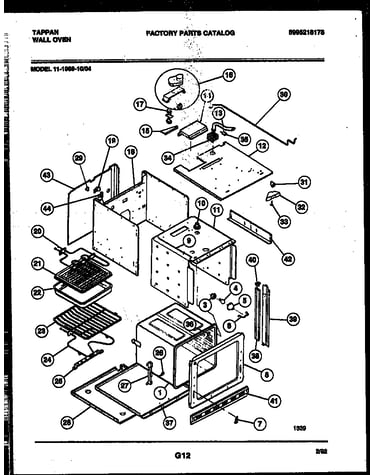

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5306563359
#22

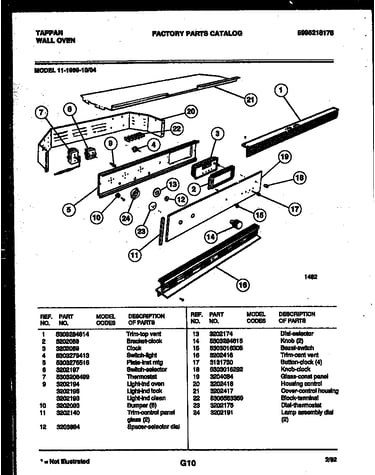

Control panel diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Element 3202440
#24

Body parts diagram

Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$136.96 |
8% OFF Phone Price : $148.96
In Stock
Receptacle 5308011085
#3

Body parts diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616

#NI

All parts diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Seal 3205189
#10

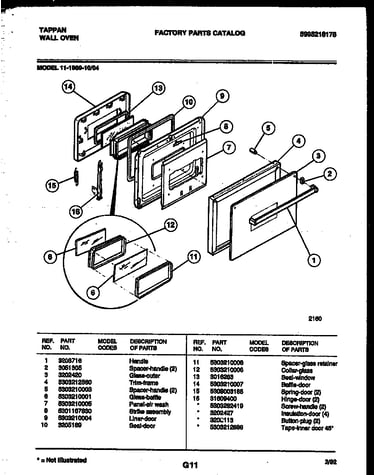

Door parts diagram

Seal

Part #3205189

Replaced by #318178801

?
Manufacturer substitution
This part replaces 3205189. Substitute parts can look different from the original.
$171.66 |
7% OFF Phone Price : $183.66
In Stock
Range Broil Element 5303016247
#20

Body parts diagram

Range broil element

Part #5303016247

$163.62 |
7% OFF Phone Price : $175.62
In Stock
Wall Oven Door Hinge Receiver 3201631
#27

Body parts diagram

Wall oven door hinge receiver

Part #3201631

$114.40
In Stock
Liner 5303210004
#9

Door parts diagram

Liner

Part #5303210004

$39.99
In Stock
Switch 5303279413
#4

Control panel diagram

Switch

Part #5303279413

Replaced by #5303275789

?
Manufacturer substitution
This part replaces 5303279413. Substitute parts can look different from the original.
$153.50
In Stock
