Frigidaire
Countertop Microwave

Model # MC860L1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC860L1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

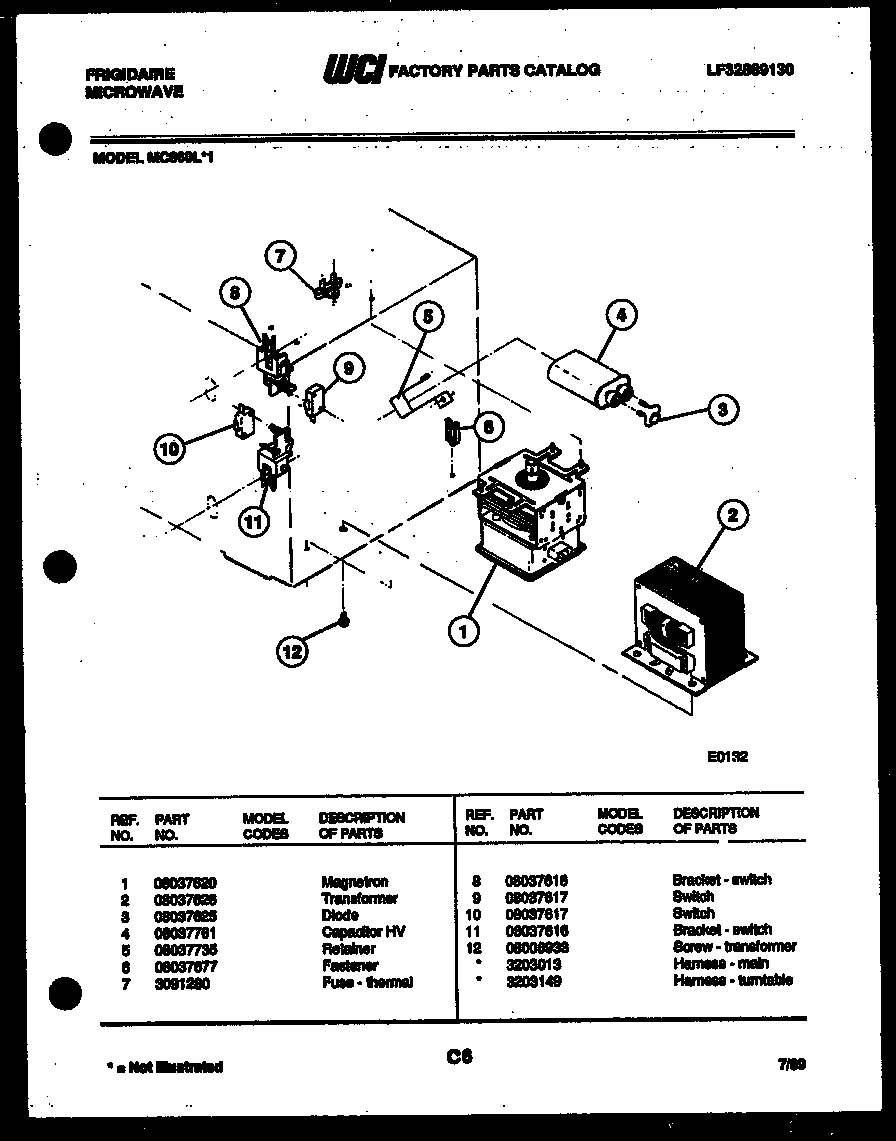

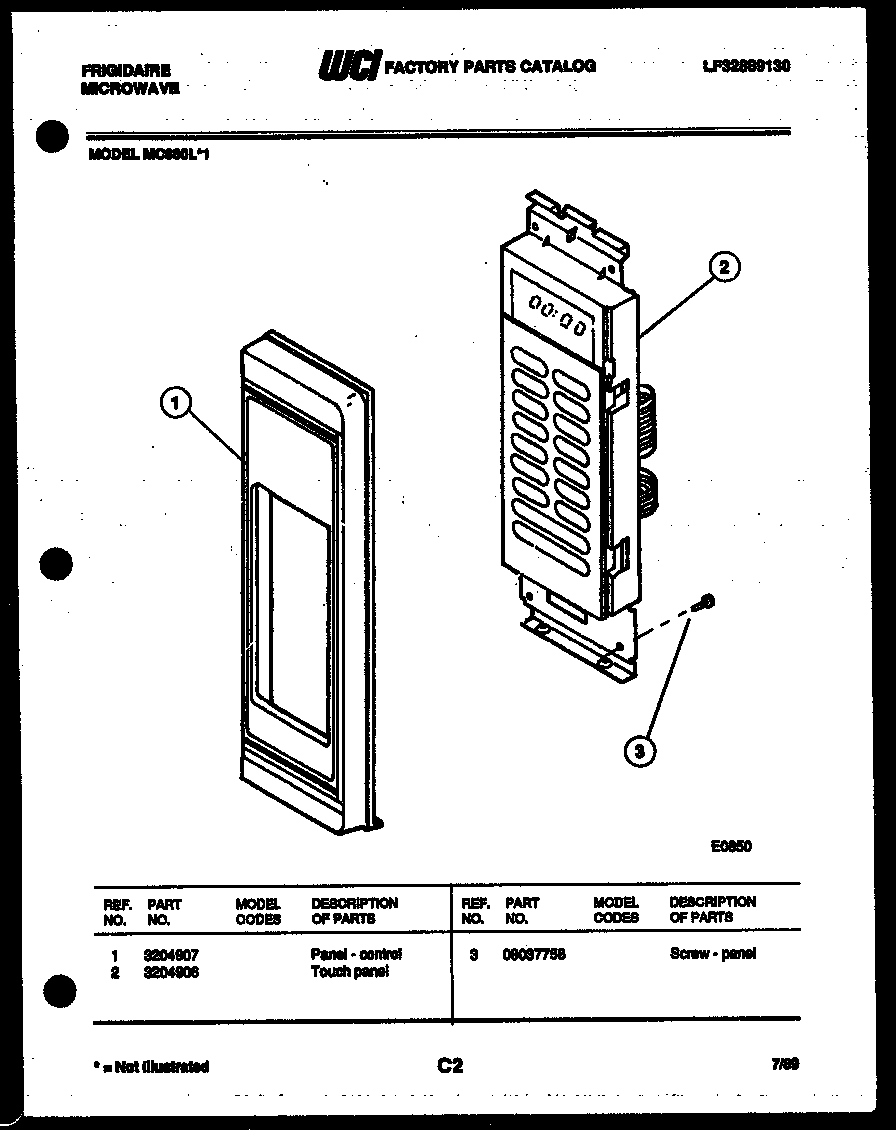

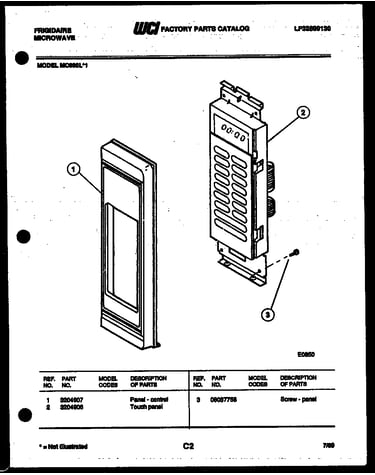

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Paint White 3203187

#NI

All parts diagram

Paint white

Part #3203187

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 3203187. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Paint White 3203124

#NI

All parts diagram

Paint white

Part #3203124

$8.99
In Stock
Seal (1/2 X 3/4) 3017865
#23

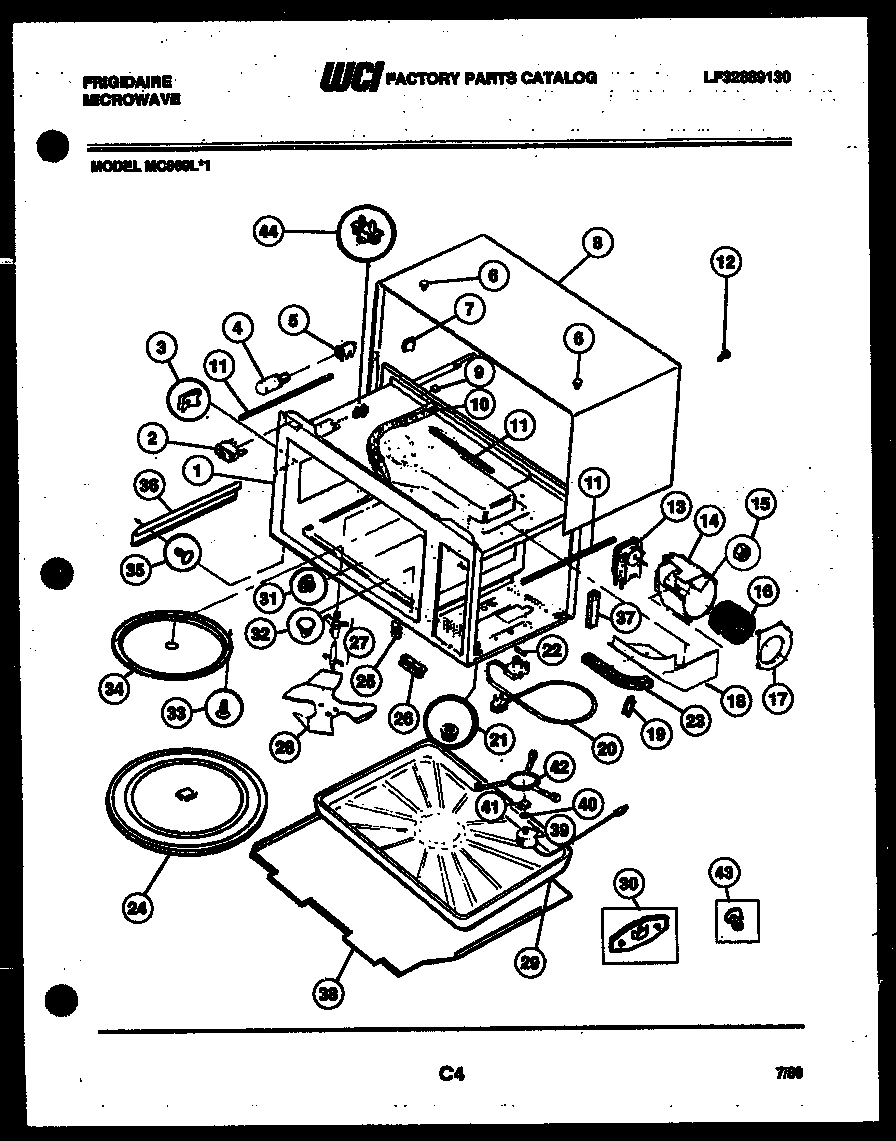

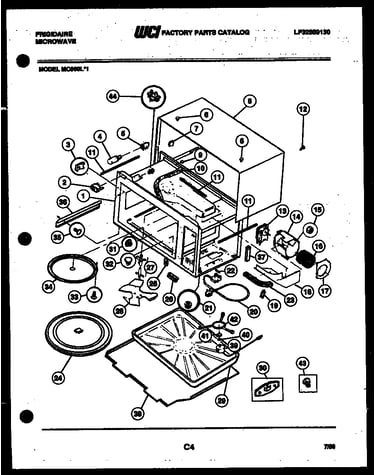

Body parts diagram

Seal (1/2 x 3/4)

Part #3017865

The manufacturer no longer makes this part, and there's no substitute part

Bushing 3203148
#41

Body parts diagram

Bushing

Part #3203148

The manufacturer no longer makes this part, and there's no substitute part

Glass Tray 08037759
#29

Body parts diagram

Glass tray

Part #08037759

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 08037733
#16

Body parts diagram

Blower wheel

Part #08037733

The manufacturer no longer makes this part, and there's no substitute part

Main Harness 3203013

#NI

All parts diagram

Main harness

Part #3203013

The manufacturer no longer makes this part, and there's no substitute part

Screw 3013960
#10

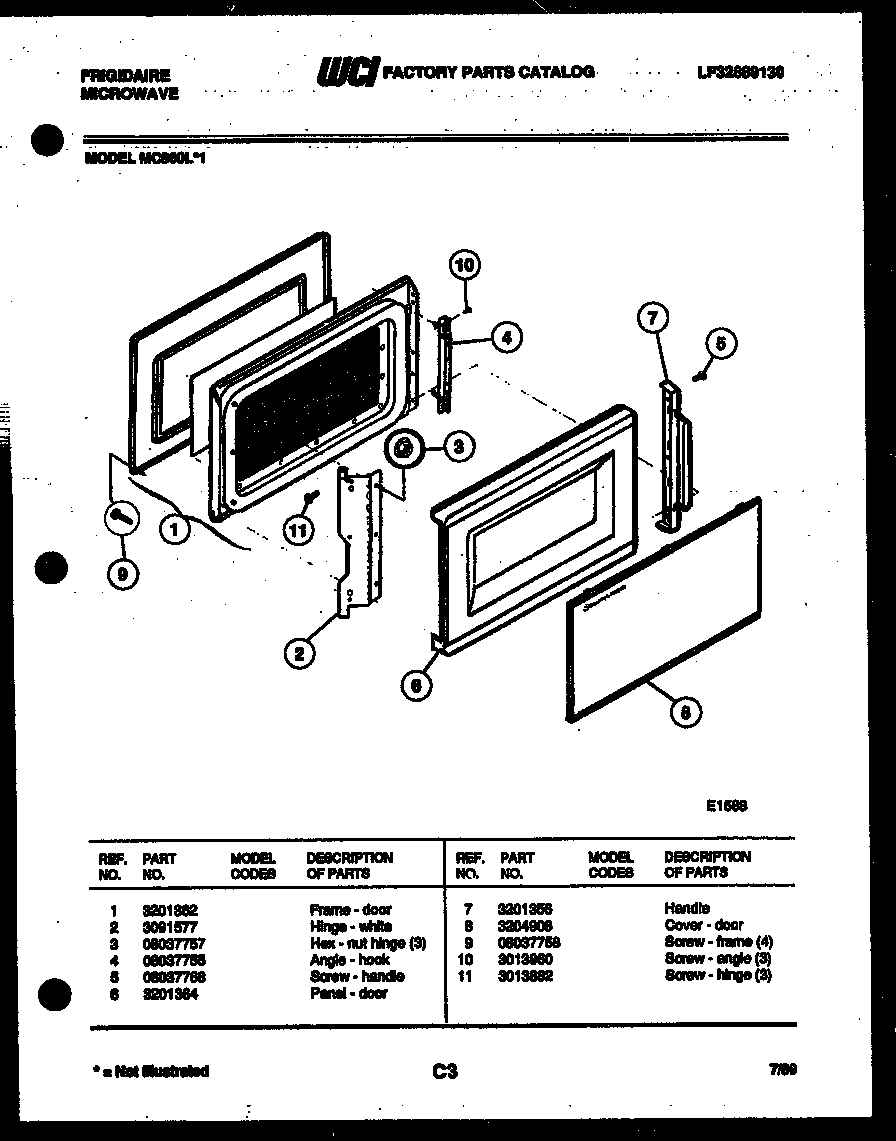

Door parts diagram

Screw

Part #3013960

The manufacturer no longer makes this part, and there's no substitute part

Wrapper - White 08037809
#8

Body parts diagram

Wrapper - white

Part #08037809

The manufacturer no longer makes this part, and there's no substitute part

Hex - Nut (2) 08008922
#15

Body parts diagram

Hex - nut (2)

Part #08008922

The manufacturer no longer makes this part, and there's no substitute part
