Whirlpool
Bottom-Mount Refrigerator

Model # GB9SHDXPS12 Official Whirlpool bottom-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool GB9SHDXPS12 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

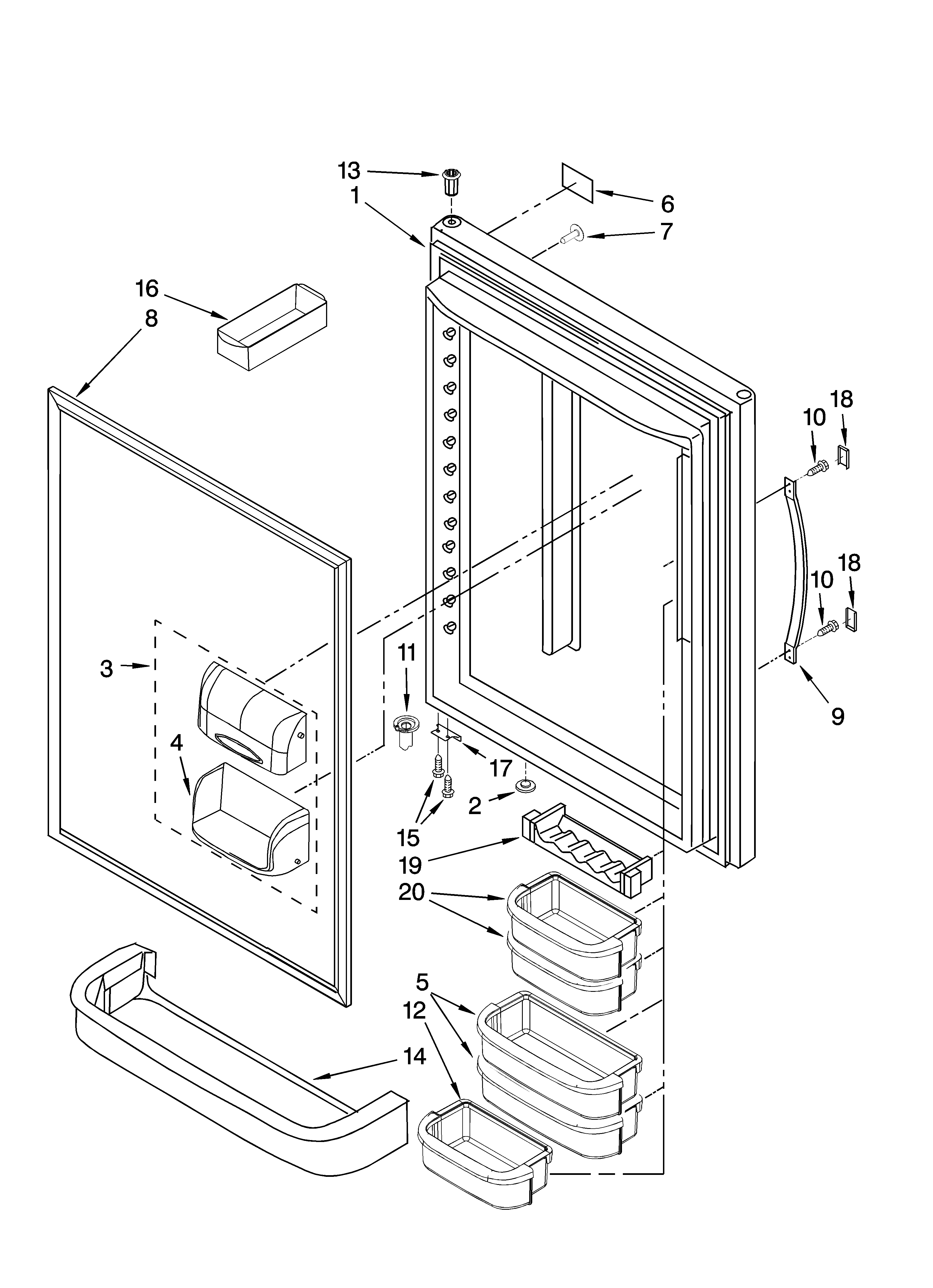

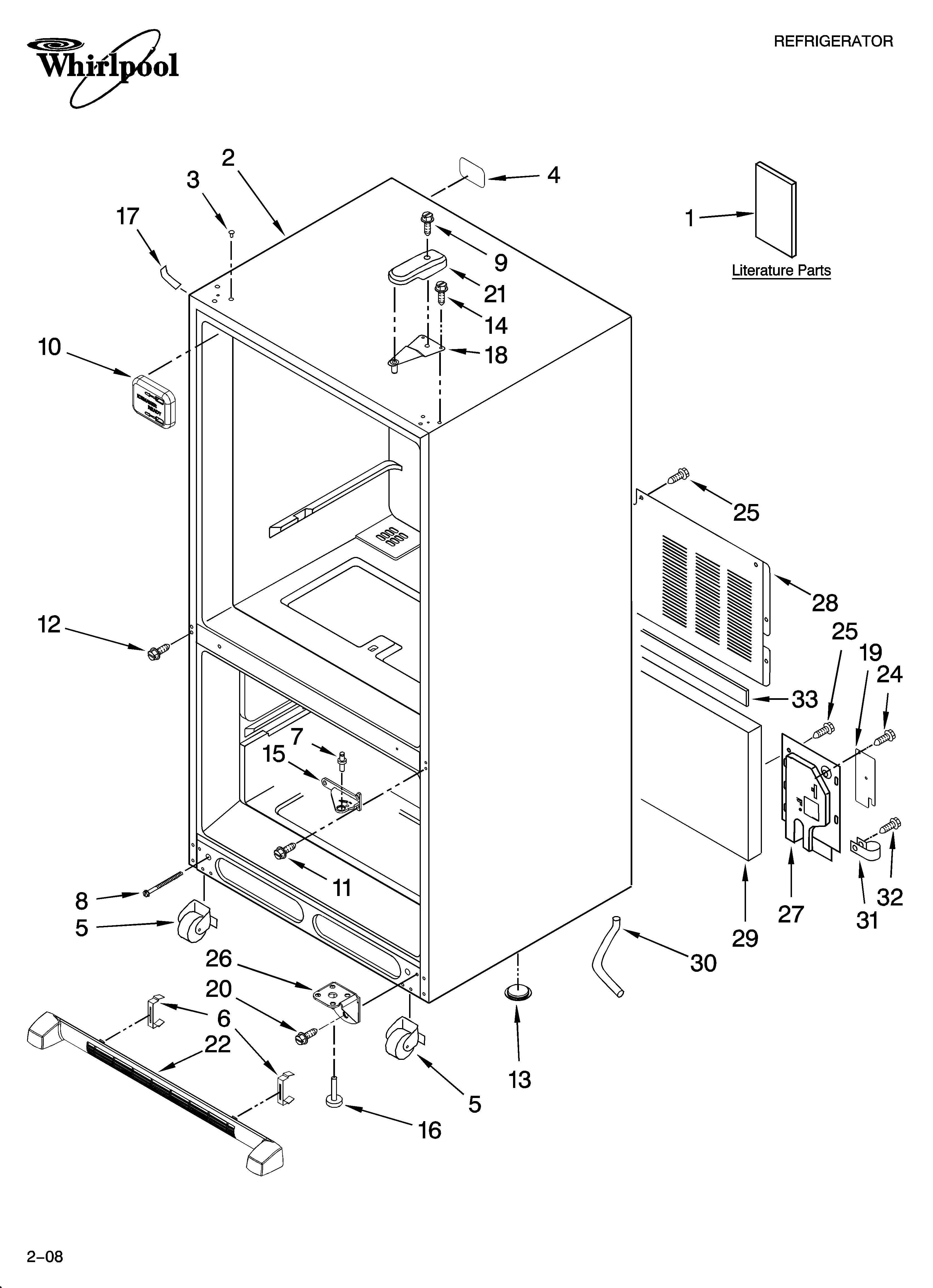

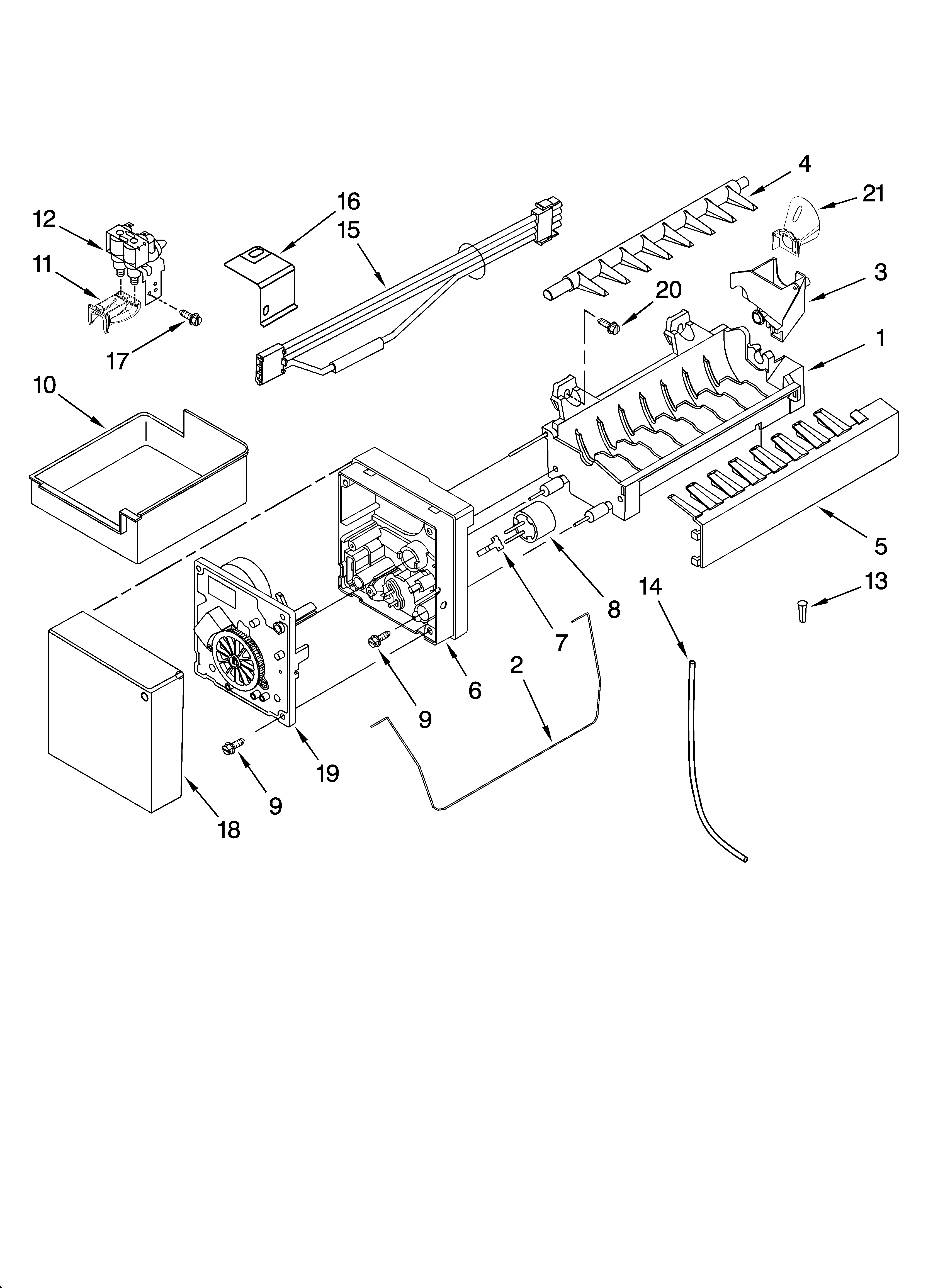

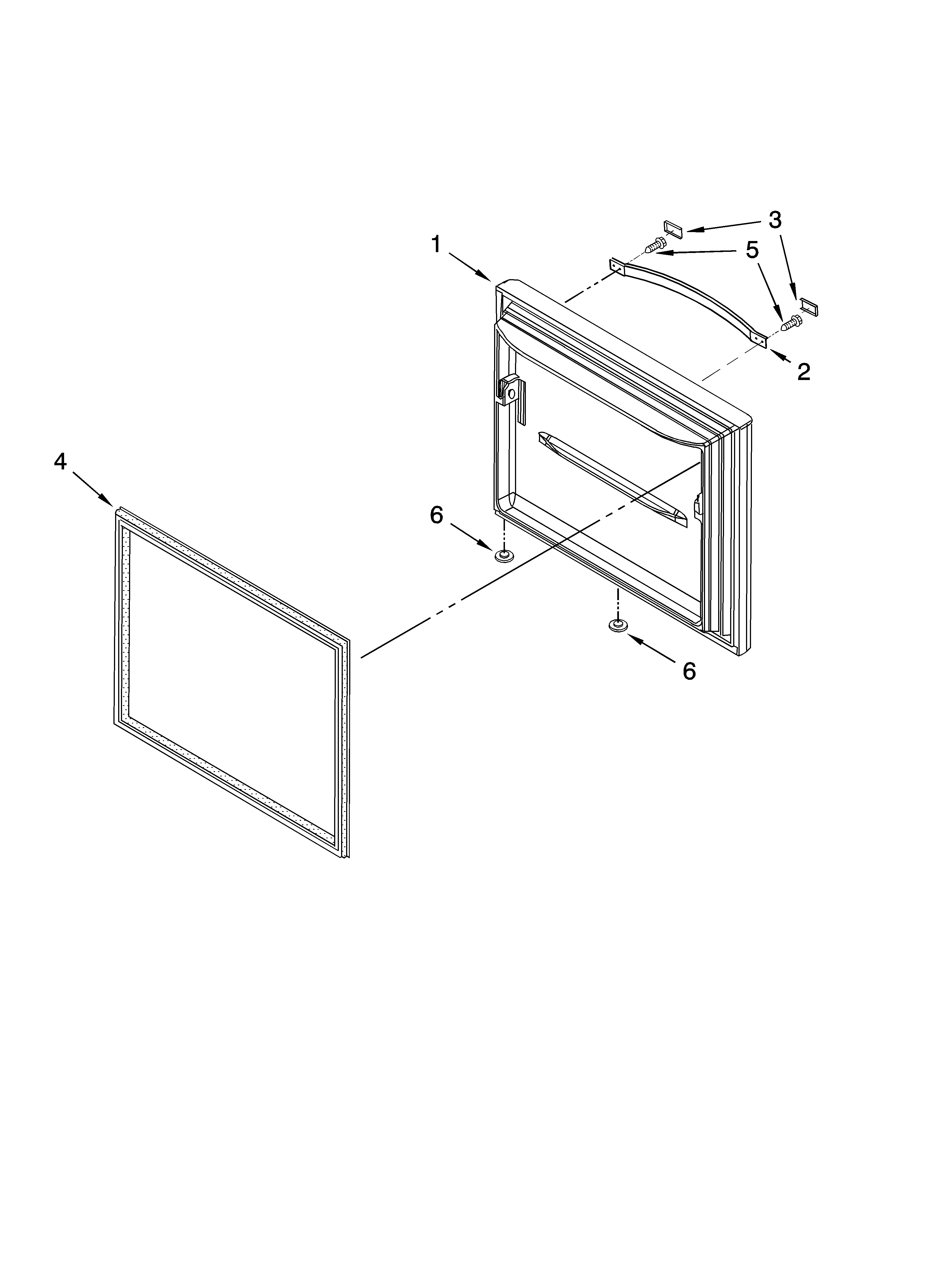

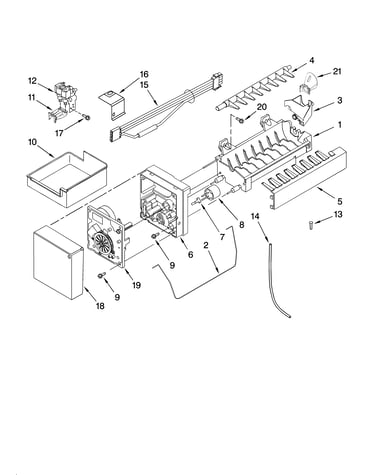

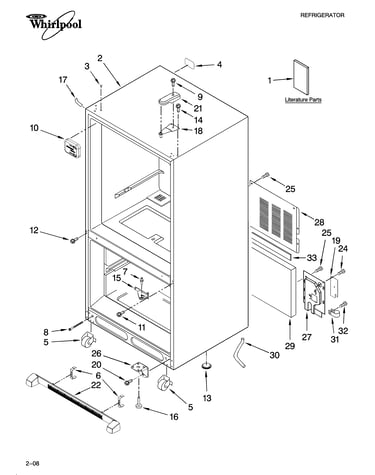

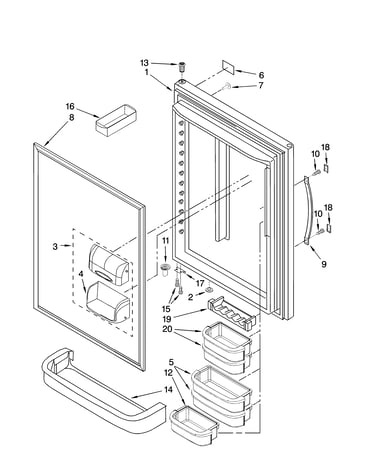

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680310
#6

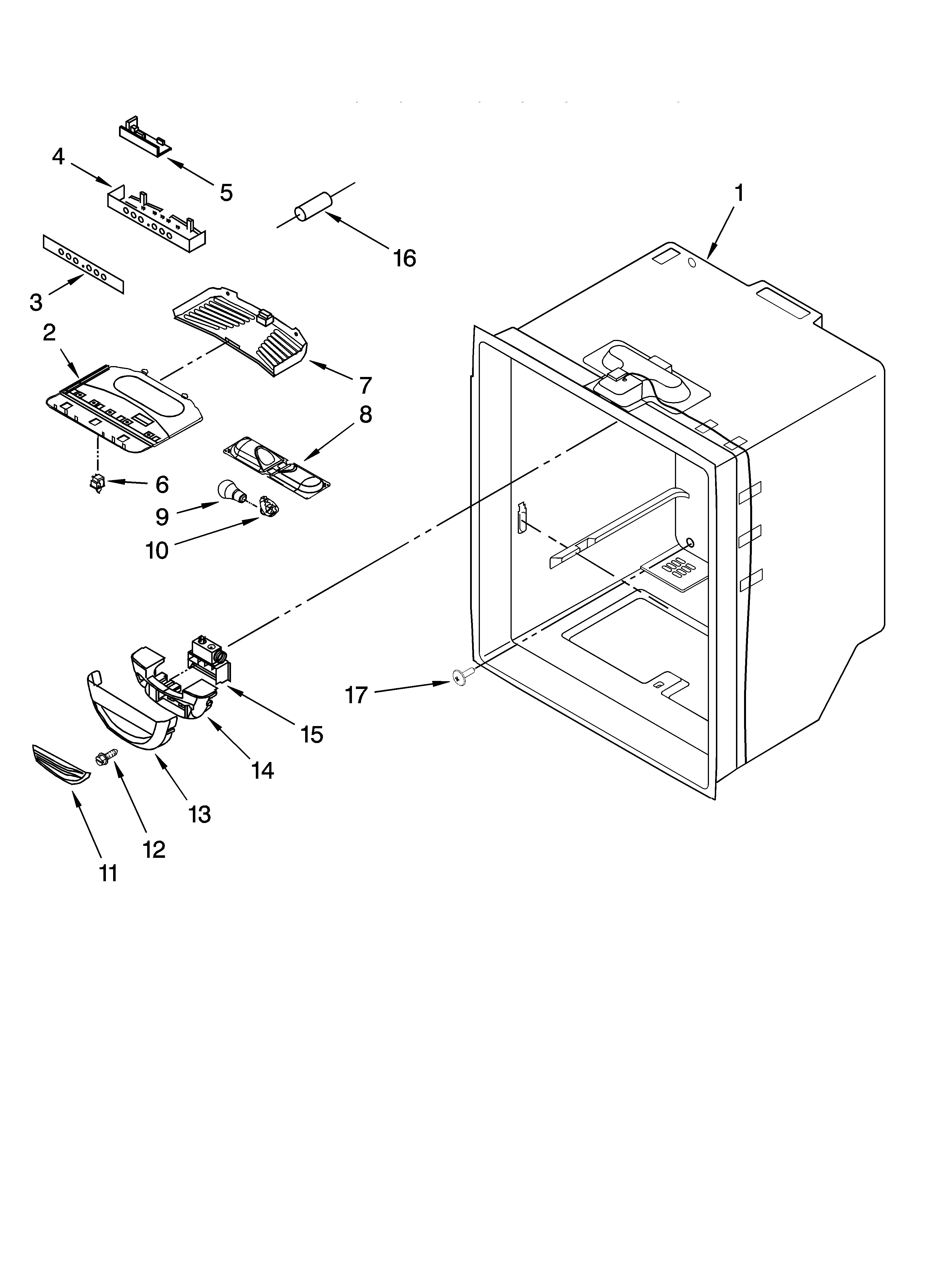

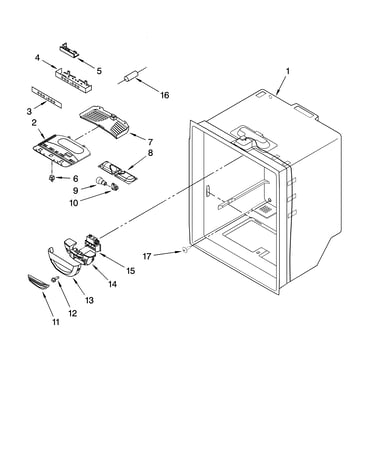

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Capacitor W/ 67005562
#11

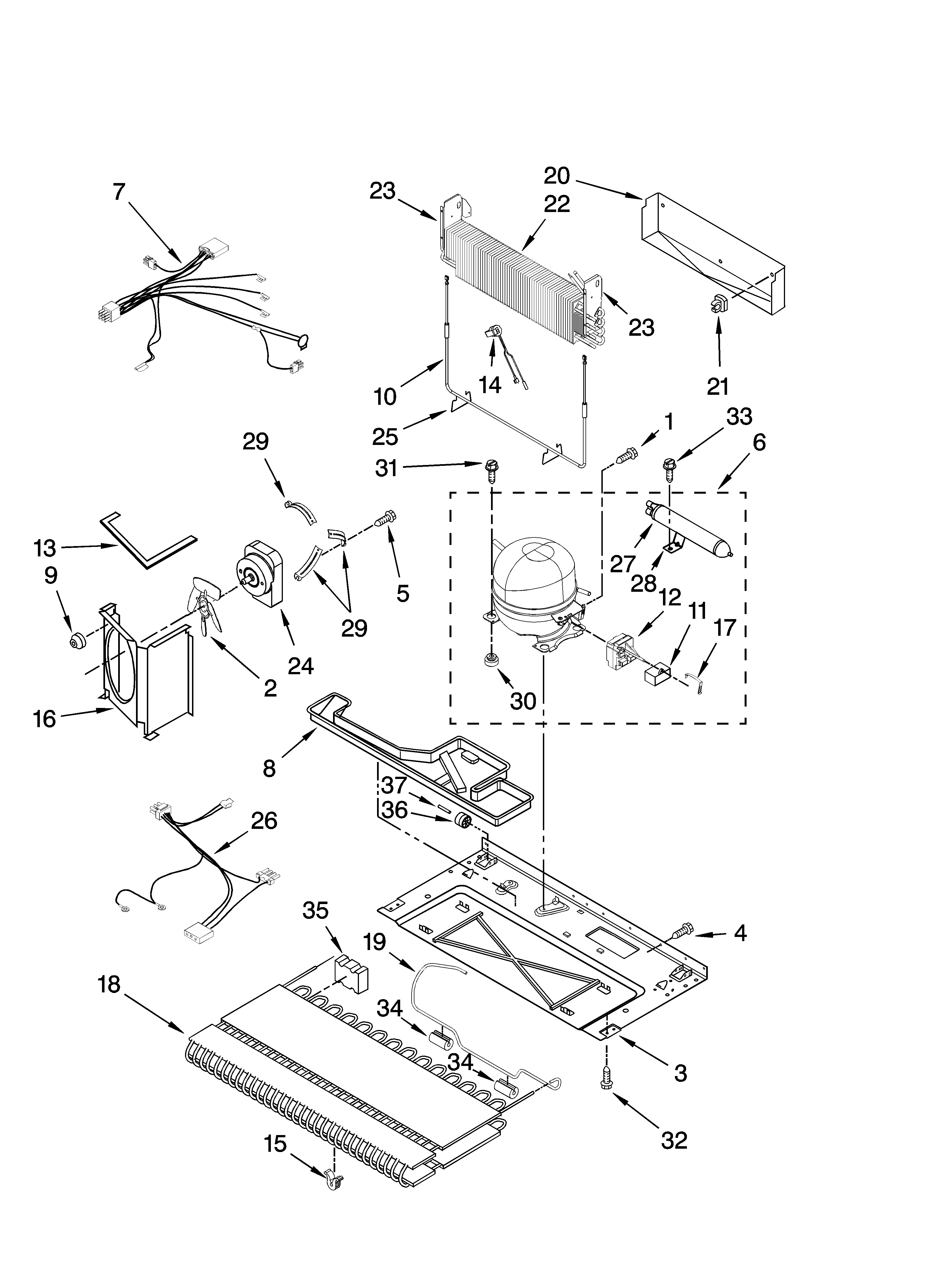

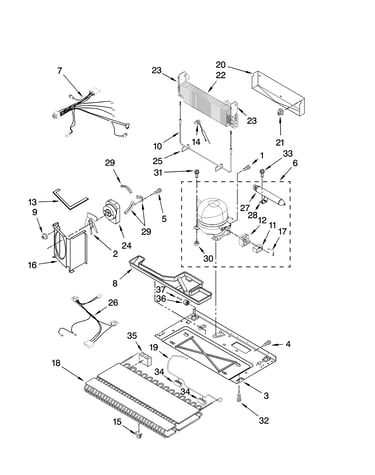

Unit parts diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$56.27 |
10% OFF Phone Price : $62.27
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#12

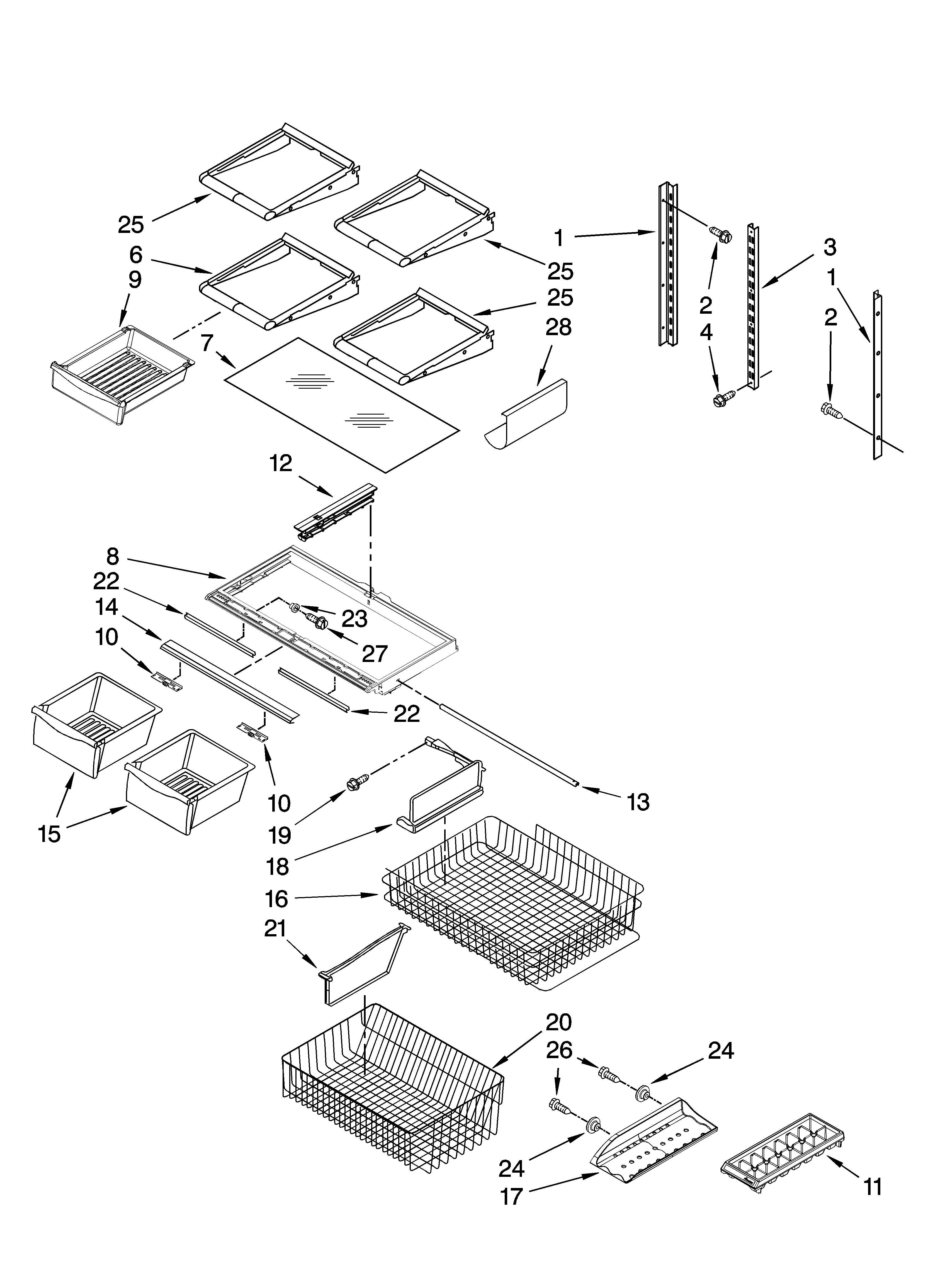

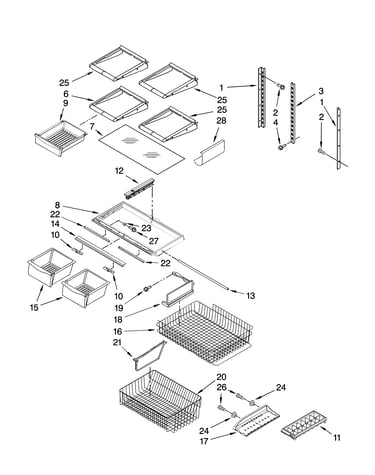

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$45.01 |
12% OFF Phone Price : $51.01
In Stock
Refrigerator Light Switch 67005653
#16

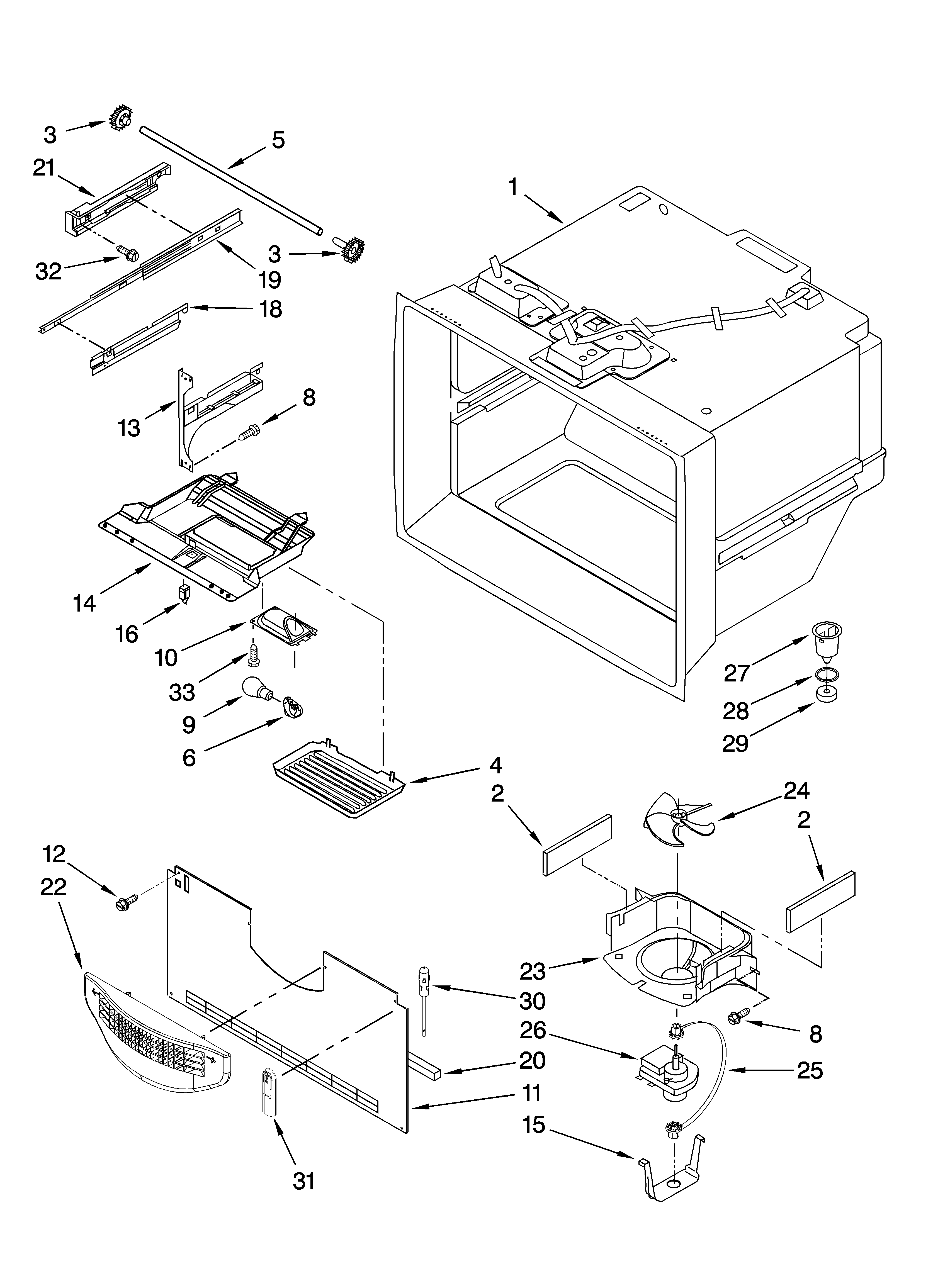

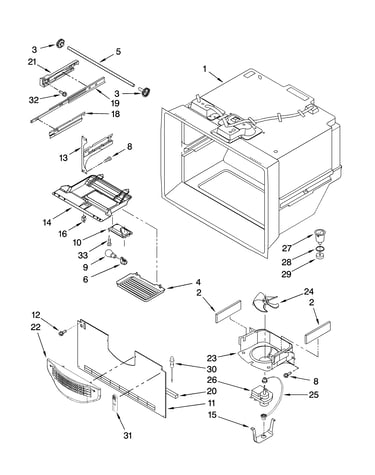

Freezer liner parts diagram

Refrigerator light switch

Part #67005653

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Drier B2150504
#27

Unit parts diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Drawer Slide Rail W10120018
#19

Freezer liner parts diagram

Refrigerator drawer slide rail

Part #W10120018

Replaced by #WPW10120018

?
Manufacturer substitution
This part replaces W10120018. Substitute parts can look different from the original.
BEST SELLER
$112.89 |
10% OFF Phone Price : $124.89
In Stock
Refrigerator Defrost Bi-metal Thermostat W10165425
#14

Unit parts diagram

Refrigerator defrost bi-metal thermostat

Part #W10165425

Replaced by #WPW10165425

?
Manufacturer substitution
This part replaces W10165425. Substitute parts can look different from the original.
BEST SELLER
$42.21 |
12% OFF Phone Price : $48.21
In Stock
Refrigerator Fan Blade W10162928
#2

Unit parts diagram

Refrigerator fan blade

Part #W10162928

Replaced by #W10156818

?
Manufacturer substitution
This part replaces W10162928. Substitute parts can look different from the original.
BEST SELLER
$42.67 |
12% OFF Phone Price : $48.67
In Stock
Refrigerator Grille W10175909
#22

Freezer liner parts diagram

Refrigerator grille

Part #W10175909

Replaced by #WPW10175909

?
Manufacturer substitution
This part replaces W10175909. Substitute parts can look different from the original.
BEST SELLER
$33.88 |
15% OFF Phone Price : $39.88
In Stock
