GE
Compact Refrigerator

Model # TAX4SNXCWH Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TAX4SNXCWH refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Power Cord WR23X108
#46

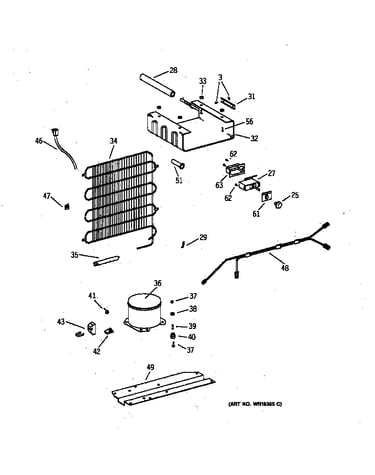

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Use And Care Guide 49-6865
#2B

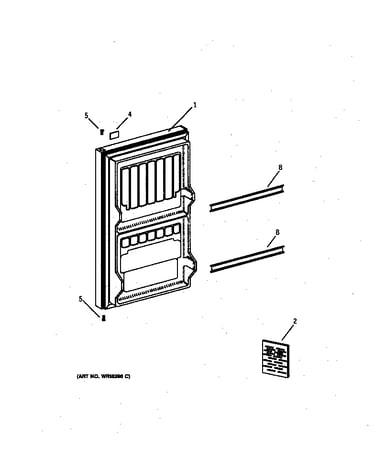

Door diagram

Refrigerator use and care guide

Part #49-6865

Replaced by #49-6865-3

?
Manufacturer substitution
This part replaces 49-6865. Substitute parts can look different from the original.
$8.49
In Stock
Refrigerator Overload WR8K01
#41

Unit parts diagram

Refrigerator overload

Part #WR8K01

The manufacturer no longer makes this part, and there's no substitute part

Suprt Com WR2X8849
#49

Unit parts diagram

Suprt com

Part #WR2X8849

The manufacturer no longer makes this part, and there's no substitute part

Grommet WR2X8053
#5

Door diagram

Grommet

Part #WR2X8053

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR17X2906
#21

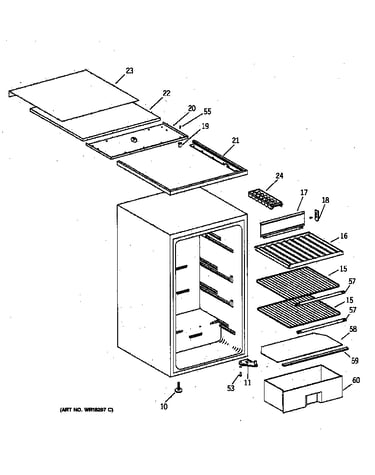

Cabinet diagram

Refrigerator trim

Part #WR17X2906

The manufacturer no longer makes this part, and there's no substitute part

Screw Com WR1X1979
#37

Unit parts diagram

Screw com

Part #WR1X1979

The manufacturer no longer makes this part, and there's no substitute part

Ice Tray WR30X5122
#24

Cabinet diagram

Ice tray

Part #WR30X5122

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Dryer WR86K01
#35

Unit parts diagram

Refrigerator dryer

Part #WR86K01

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Assembly WR85K01
#32

Unit parts diagram

Refrigerator evaporator assembly

Part #WR85K01

The manufacturer no longer makes this part, and there's no substitute part
