Jenn-Air
Electric Cooktop

Model # CCE1401W Official Jenn-Air electric cooktop

Here are the diagrams and repair parts for Official Jenn-Air CCE1401W electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

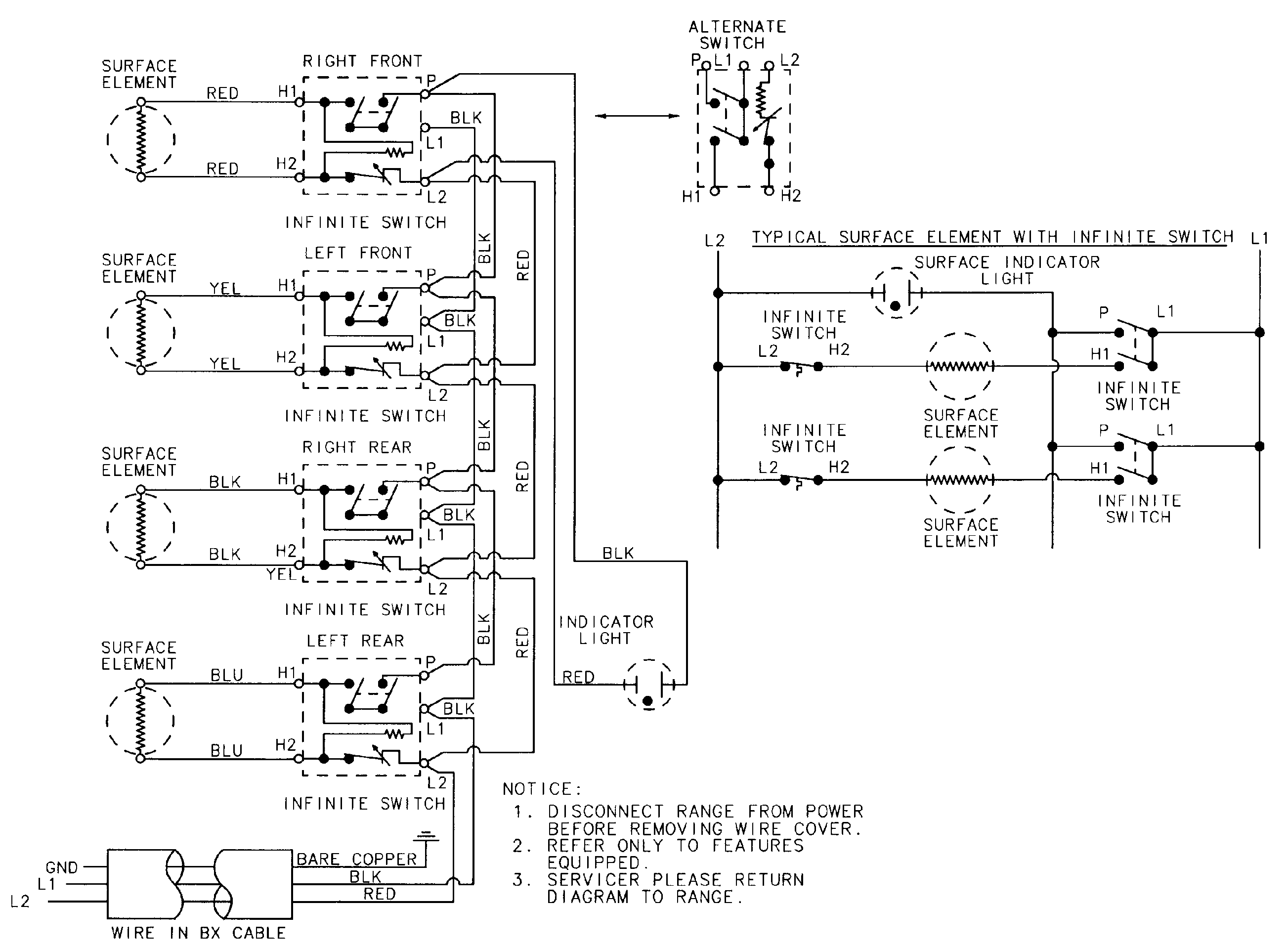

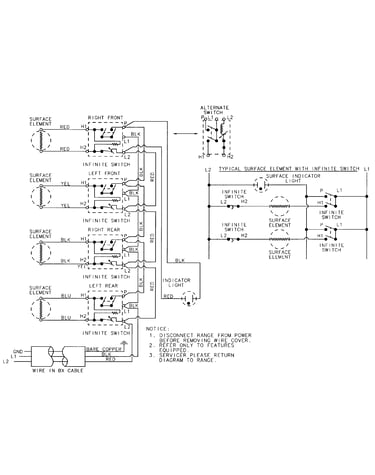

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Element, 6-in 7406P037-60
#6A

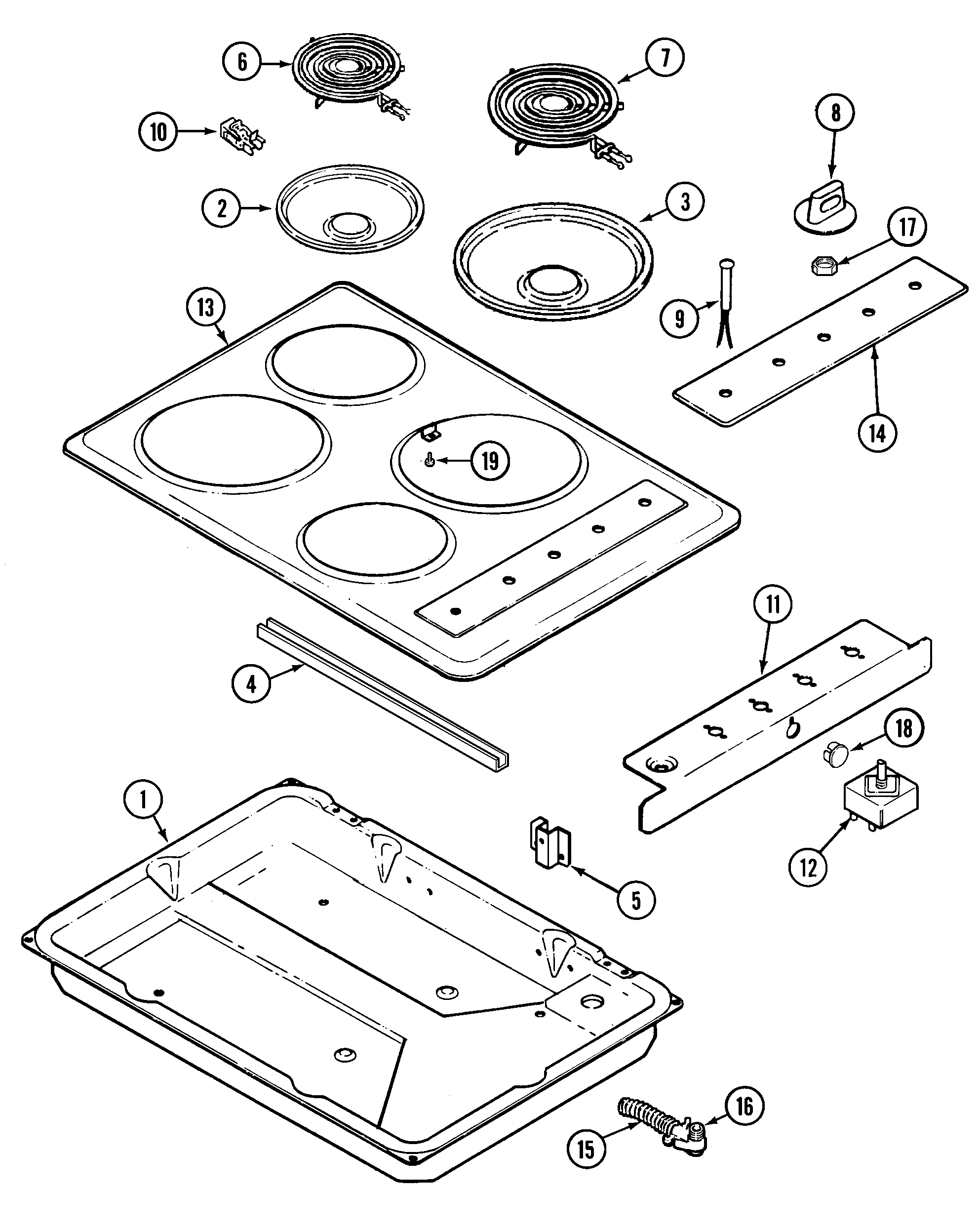

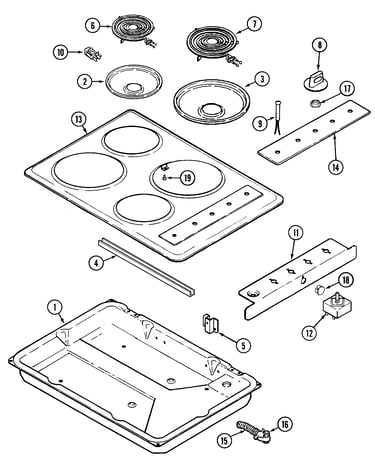

Top assembly diagram

Element, 6-in

Part #7406P037-60

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 7406P037-60. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Element, 6-in 7406P054-60
#6B

Top assembly diagram

Element, 6-in

Part #7406P054-60

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 7406P054-60. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Surface Element 74007161
#6

Top assembly diagram

Surface element

Part #74007161

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 74007161. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Infinite Switch 7403P027-60
#12

Top assembly diagram

Infinite switch

Part #7403P027-60

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 7403P027-60. Substitute parts can look different from the original.
BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Receptacle 1430306K
#10

Top assembly diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Screw 7118P004-60
#5B

Top assembly diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Element (8") 7406P055-60
#7B

Top assembly diagram

Element (8")

Part #7406P055-60

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 7406P055-60. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Element (8") 7406P039-60
#7A

Top assembly diagram

Element (8")

Part #7406P039-60

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 7406P039-60. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Surface Element 74007160
#7

Top assembly diagram

Surface element

Part #74007160

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 74007160. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Infinite Knob 74003151
#8A

Top assembly diagram

Infinite knob

Part #74003151

Replaced by #WP7737P026-60

?
Manufacturer substitution
This part replaces 74003151. Substitute parts can look different from the original.
This item is not returnable
$22.65 |
21% OFF Phone Price : $28.65
In Stock
