Model # 330204161 Official Sears lavatory faucet

Here are the diagrams and repair parts for Official Sears 330204161 lavatory faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Washer 30223
#27

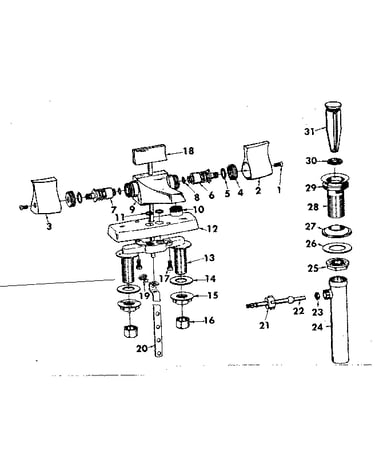

Replacement parts diagram

Washer

Part #30223

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw 30456
#19

Replacement parts diagram

Thumb screw

Part #30456

The manufacturer no longer makes this part, and there's no substitute part

Ball Rod 30499
#22

Replacement parts diagram

Ball rod

Part #30499

The manufacturer no longer makes this part, and there's no substitute part

O-ring 30453
#8

Replacement parts diagram

O-ring

Part #30453

The manufacturer no longer makes this part, and there's no substitute part

Clevis 30472
#20

Replacement parts diagram

Clevis

Part #30472

The manufacturer no longer makes this part, and there's no substitute part

Tail Tube 30478-A
#24

Replacement parts diagram

Tail tube

Part #30478-A

The manufacturer no longer makes this part, and there's no substitute part

Washer 779
#14

Replacement parts diagram

Washer

Part #779

The manufacturer no longer makes this part, and there's no substitute part

Washer 30484
#29

Replacement parts diagram

Washer

Part #30484

The manufacturer no longer makes this part, and there's no substitute part

Cap 14002
#4

Replacement parts diagram

Cap

Part #14002

The manufacturer no longer makes this part, and there's no substitute part

Nut 754
#16

Replacement parts diagram

Nut

Part #754

The manufacturer no longer makes this part, and there's no substitute part
