Model # 86030840 Official Kenmore vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 86030840 vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
86030840 Vacuum Cleaners
#33

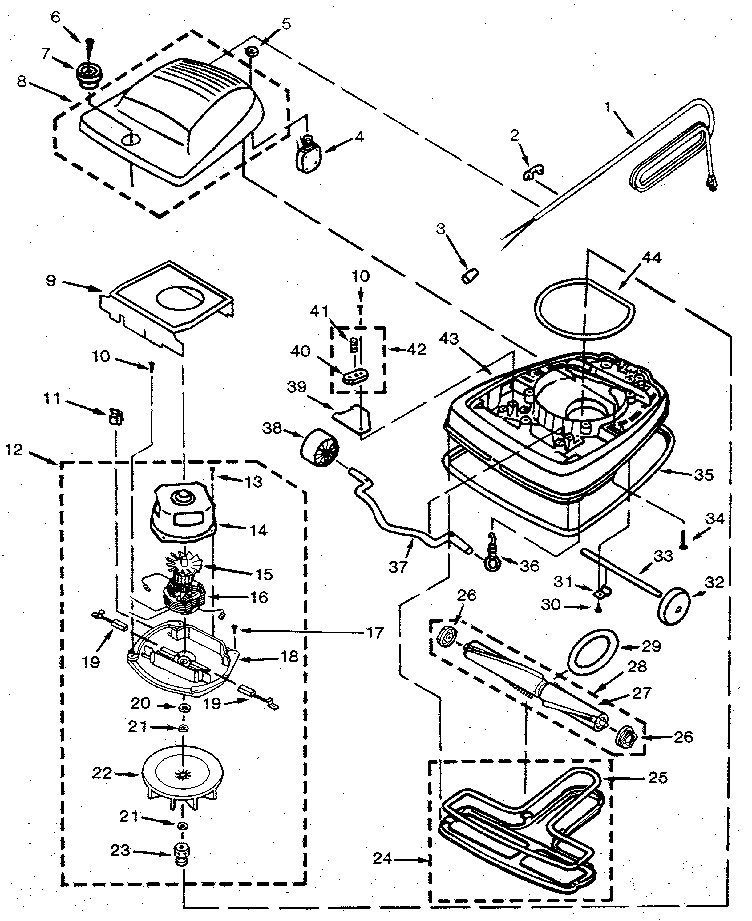

Base assembly diagram
Axle
Part #47562
The manufacturer no longer makes this part, and there's no substitute part
#15
Base assembly diagram
Fan arm
Part #26094
The manufacturer no longer makes this part, and there's no substitute part
#42
Base assembly diagram
Upright vacuum clamp and screw
Part #53140
The manufacturer no longer makes this part, and there's no substitute part
#24
Base assembly diagram
Bottom plate
Part #25922-1
The manufacturer no longer makes this part, and there's no substitute part
#20
Base assembly diagram
Electrolux steel washrs
Part #53188-1
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Garter spring
Part #48410
The manufacturer no longer makes this part, and there's no substitute part
#9

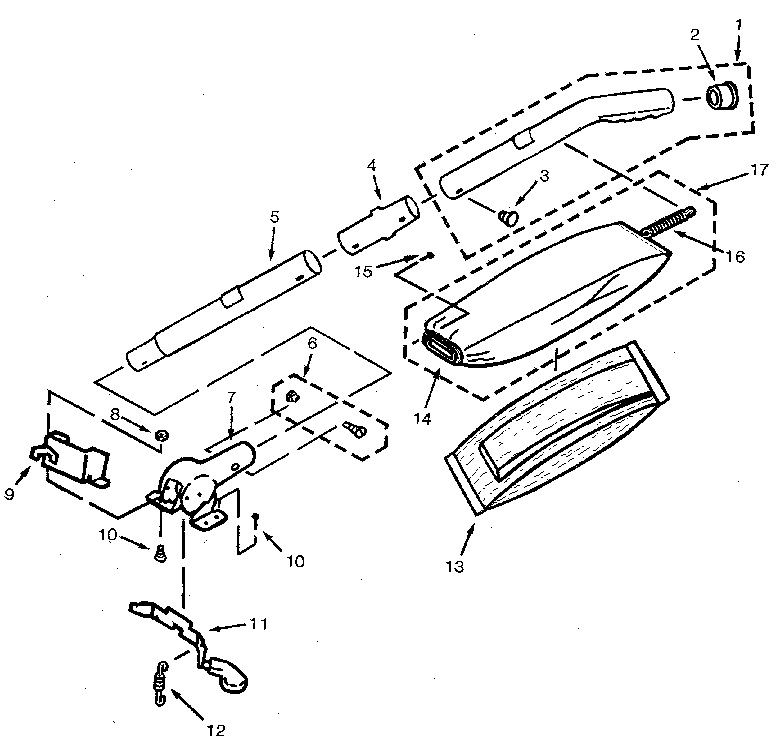

Handle and bag housing diagram
Bolt 10pk
Part #53145
The manufacturer no longer makes this part, and there's no substitute part
#6
Base assembly diagram
Upright vacuum screw
Part #53143
The manufacturer no longer makes this part, and there's no substitute part
#12
Handle and bag housing diagram
Pedal spring
Part #53097
The manufacturer no longer makes this part, and there's no substitute part
#21
Base assembly diagram
Fan washer
Part #53148
The manufacturer no longer makes this part, and there's no substitute part
