Model # MAV7650AWW Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MAV7650AWW washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

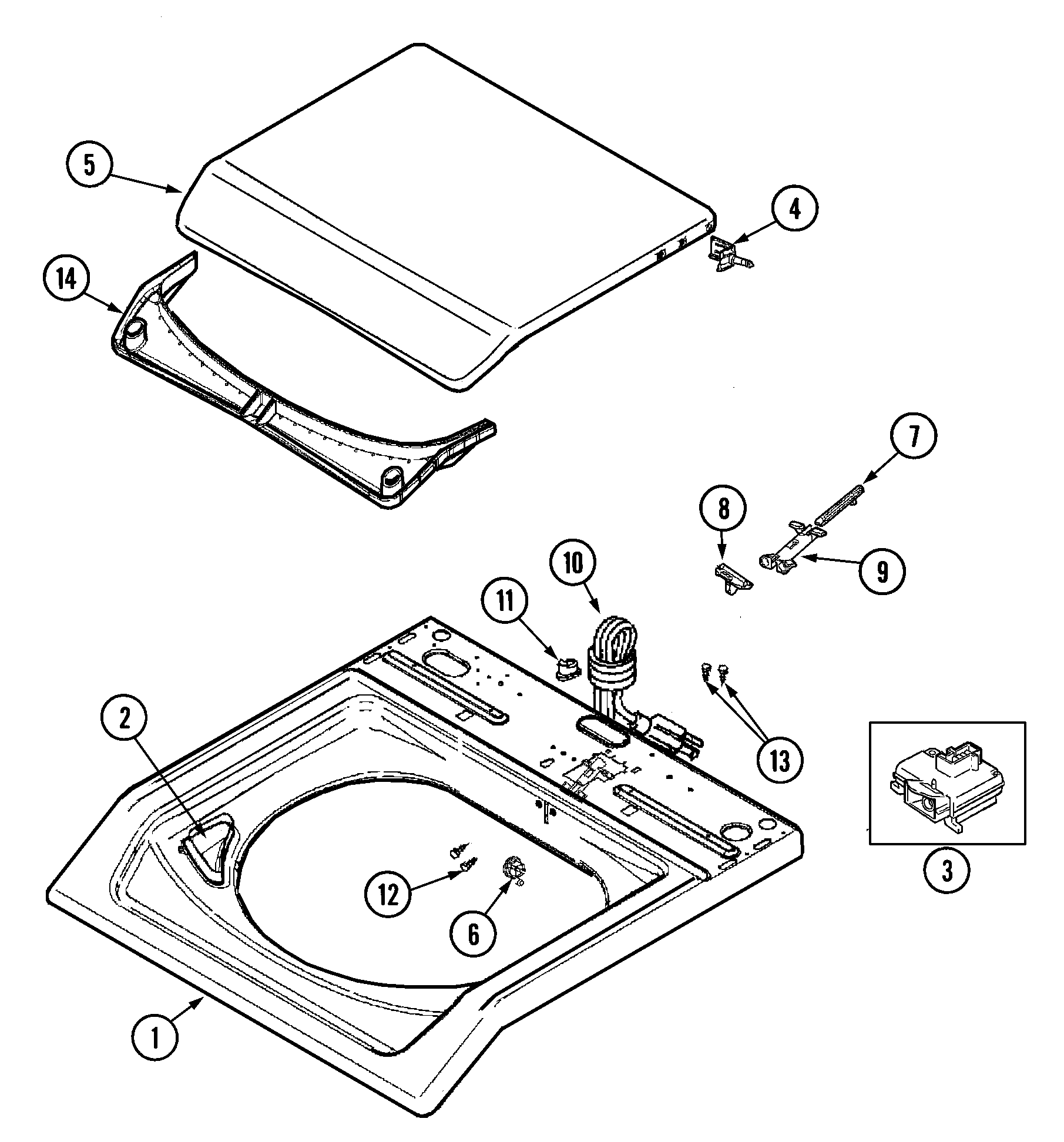

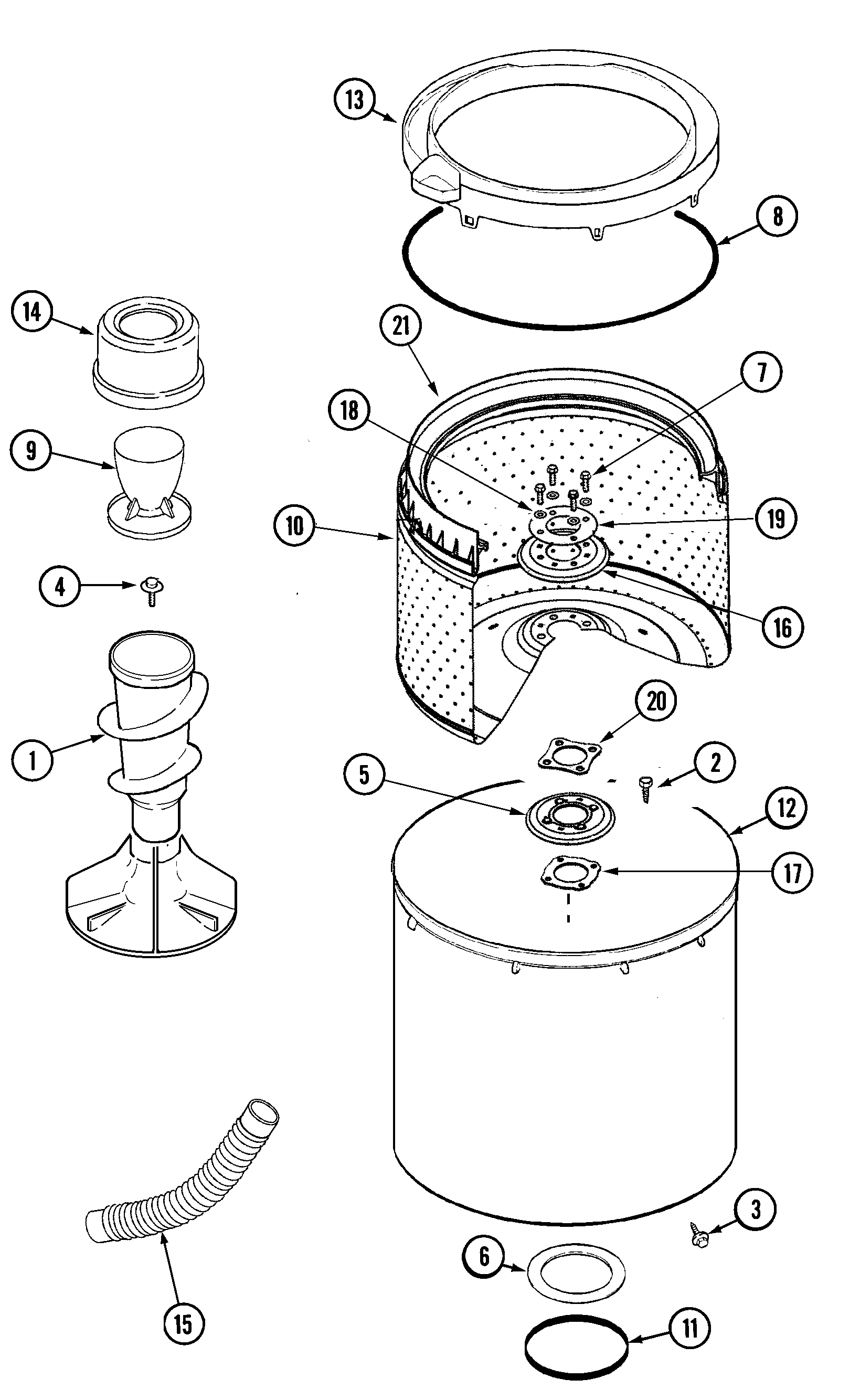

SELECT DIAGRAM
Browse Parts forMAV7650AWW Washer
- Clamp,hose-i
Part #216169
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 216169. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #12A

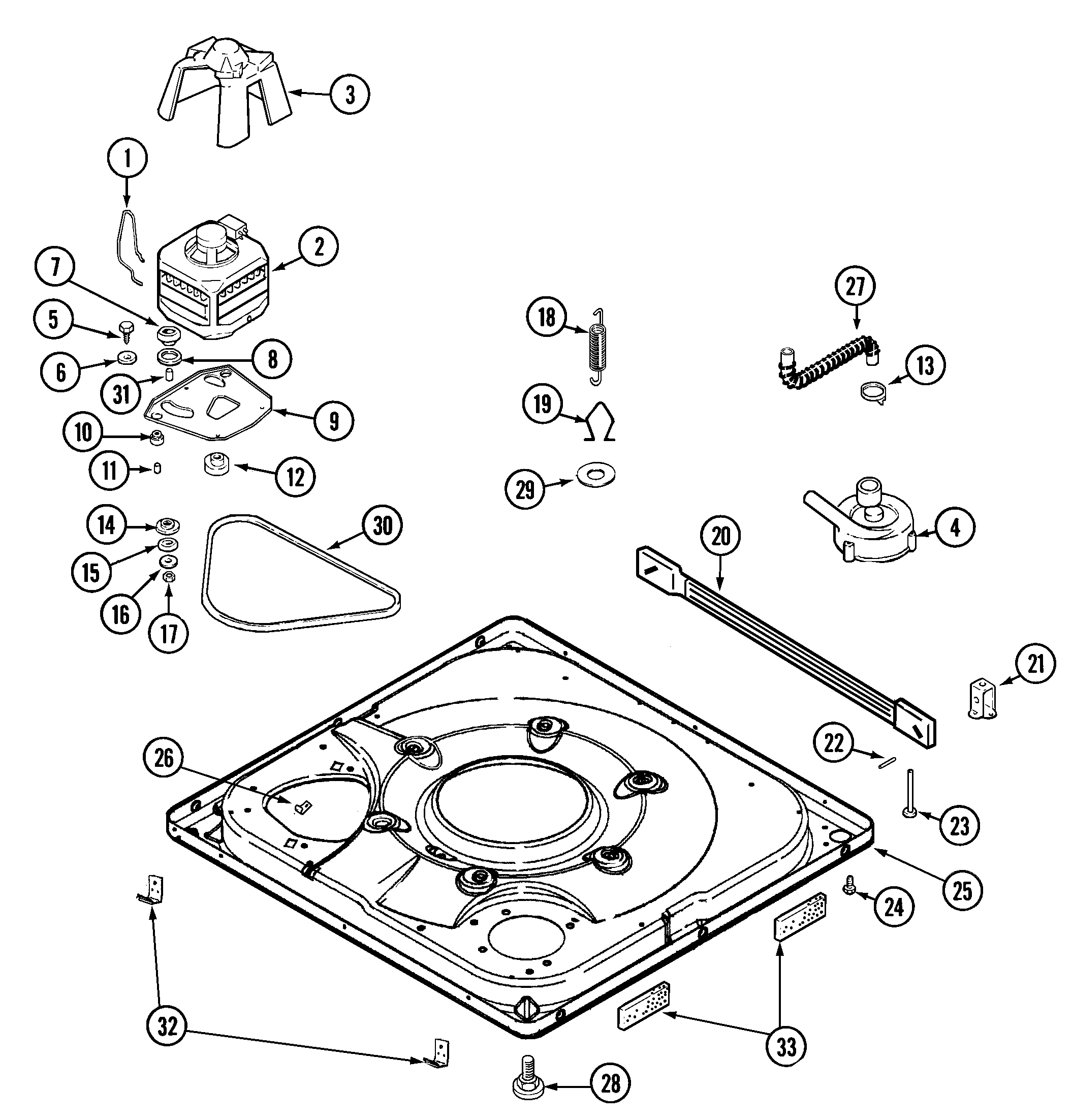

Base diagram
PulleyPart #22004297
Replaced by #WP21001950
?Manufacturer substitutionThis part replaces 22004297. Substitute parts can look different from the original.$125.99 |9% OFF Phone Price : $137.99In Stock - #12
Base diagram
Washer drive motorPart #21001506
Replaced by #WP21001950
?Manufacturer substitutionThis part replaces 21001506. Substitute parts can look different from the original.$125.99 |9% OFF Phone Price : $137.99In Stock - #2
Base diagram
Motor with pulleyPart #21001516
Replaced by #WP21001950
?Manufacturer substitutionThis part replaces 21001516. Substitute parts can look different from the original.$125.99 |9% OFF Phone Price : $137.99In Stock - #16

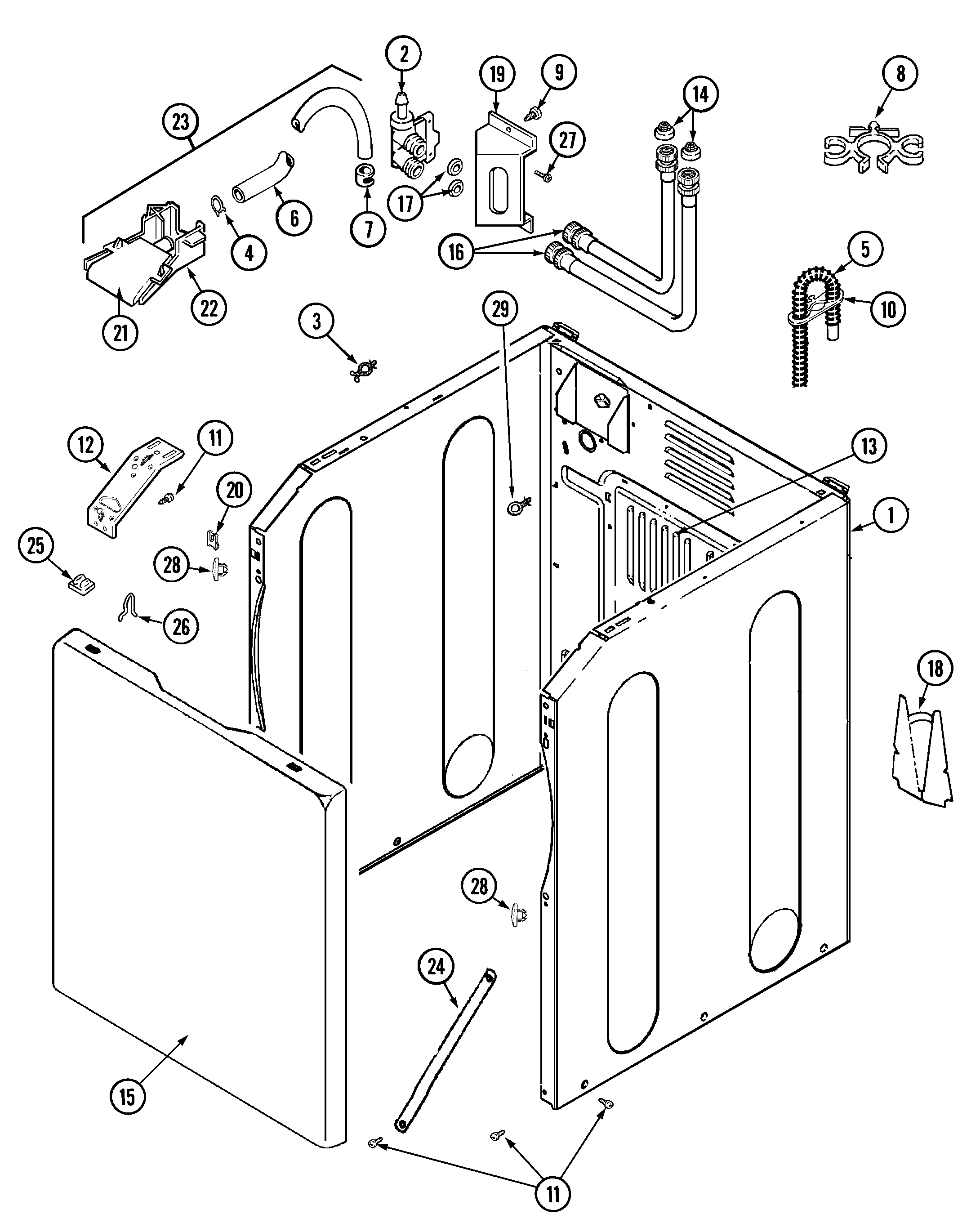

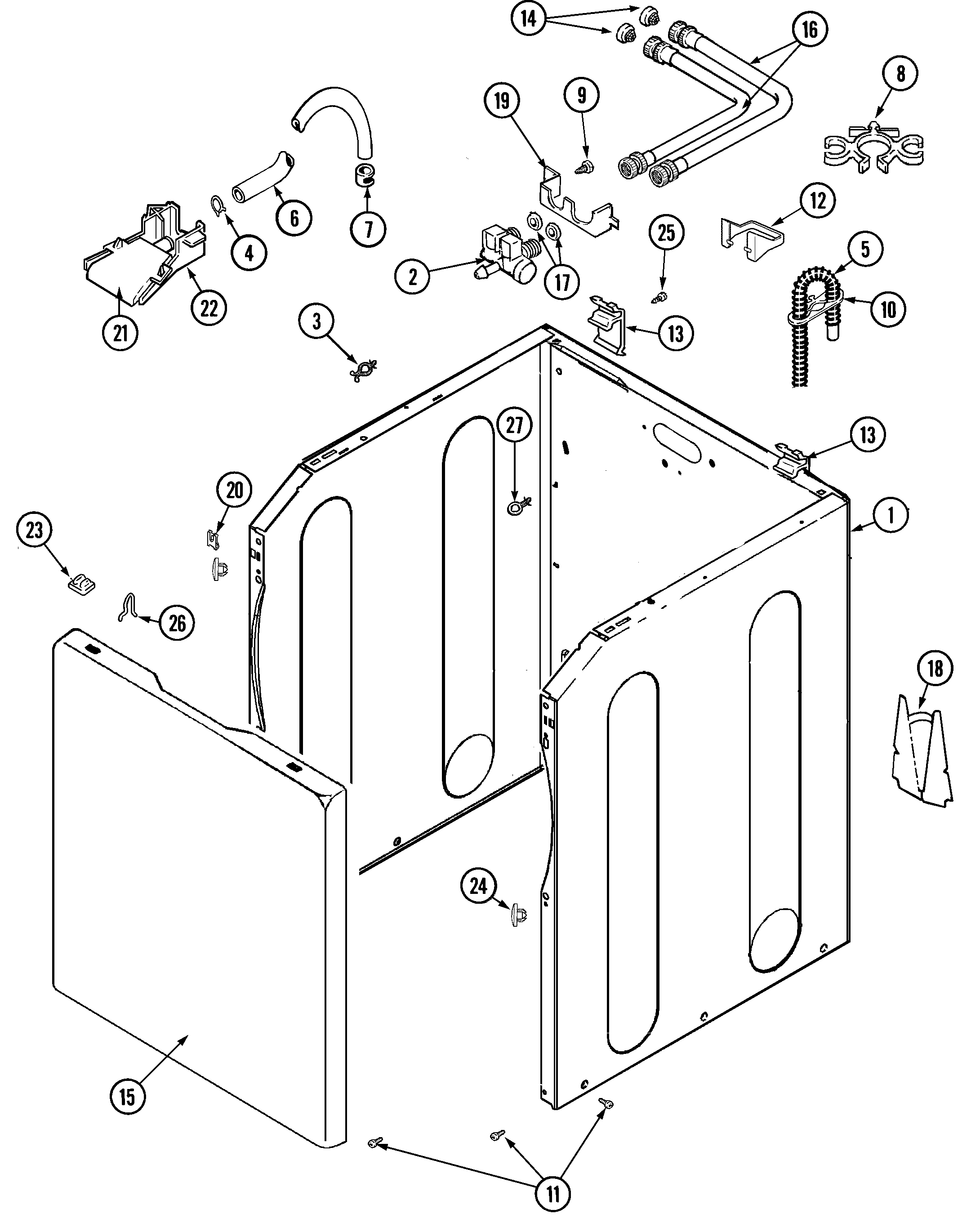

Cabinet (prior ser pre 18) diagram
Inlet hosePart #33-7891
Replaced by #WP89503
?Manufacturer substitutionThis part replaces 33-7891. Substitute parts can look different from the original.$13.63 |13% OFF Phone Price : $15.63In Stock - Washer screw
Part #22001995
Replaced by #W11573574
?Manufacturer substitutionThis part replaces 22001995. Substitute parts can look different from the original.$46.36In Stock - #4
Transmission diagram
Cam replacemPart #LA-2007
Replaced by #12002213
?Manufacturer substitutionThis part replaces LA-2007. Substitute parts can look different from the original.$35.52 |14% OFF Phone Price : $41.52In Stock - #24
Transmission diagram
Thrust brg kPart #12500036
Replaced by #12002213
?Manufacturer substitutionThis part replaces 12500036. Substitute parts can look different from the original.$35.52 |14% OFF Phone Price : $41.52In Stock - #3
Transmission diagram
PulleyPart #12001797
Replaced by #12002213
?Manufacturer substitutionThis part replaces 12001797. Substitute parts can look different from the original.$35.52 |14% OFF Phone Price : $41.52In Stock - #1

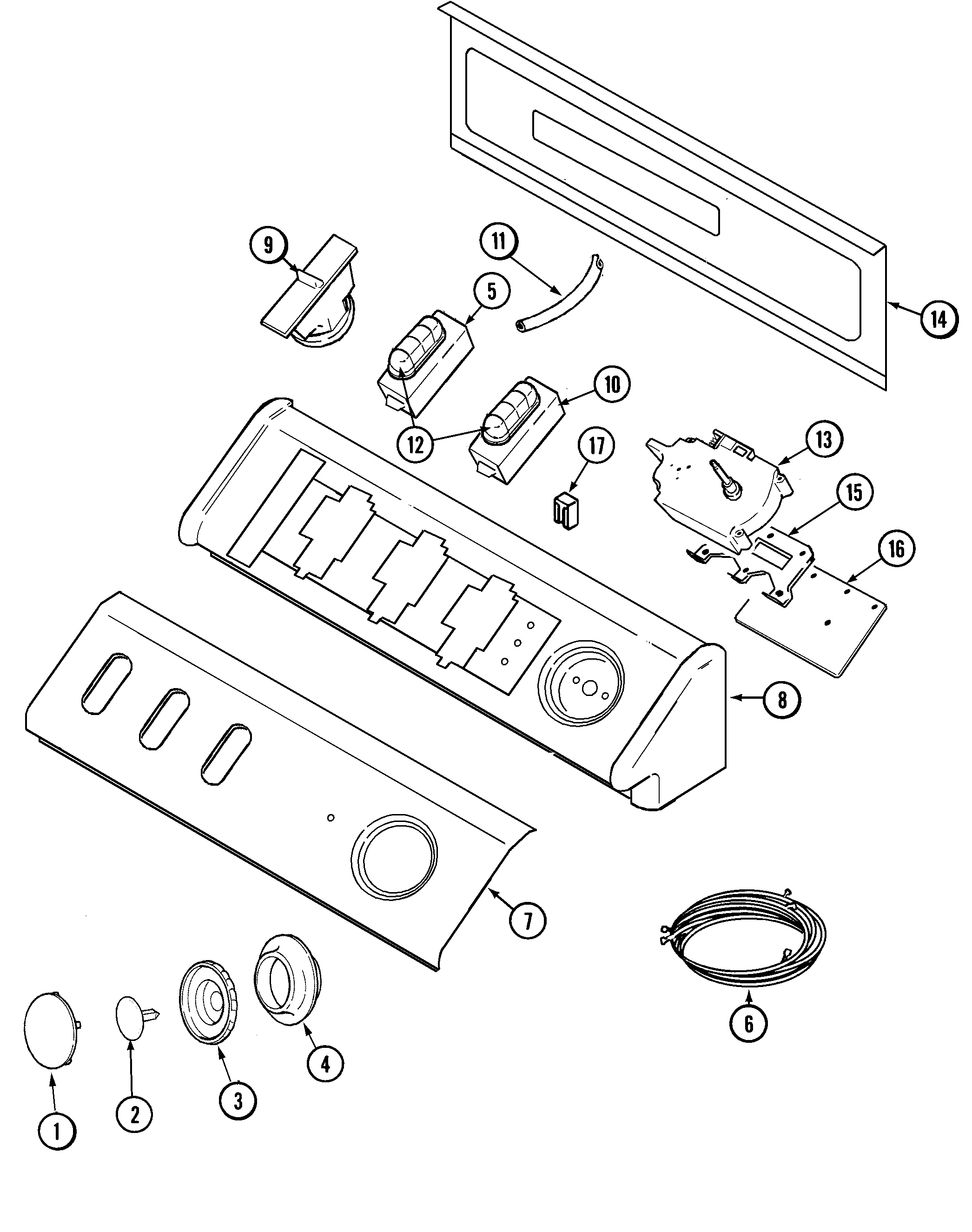

Control panel diagram
Laundry appliance timer knob insertPart #22001664
Replaced by #WP22001664
?Manufacturer substitutionThis part replaces 22001664. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock
