Model # HVFM122ABL Official Haier wine cooler

Here are the diagrams and repair parts for Official Haier HVFM122ABL wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Haier Cover RF-1950-196
#30

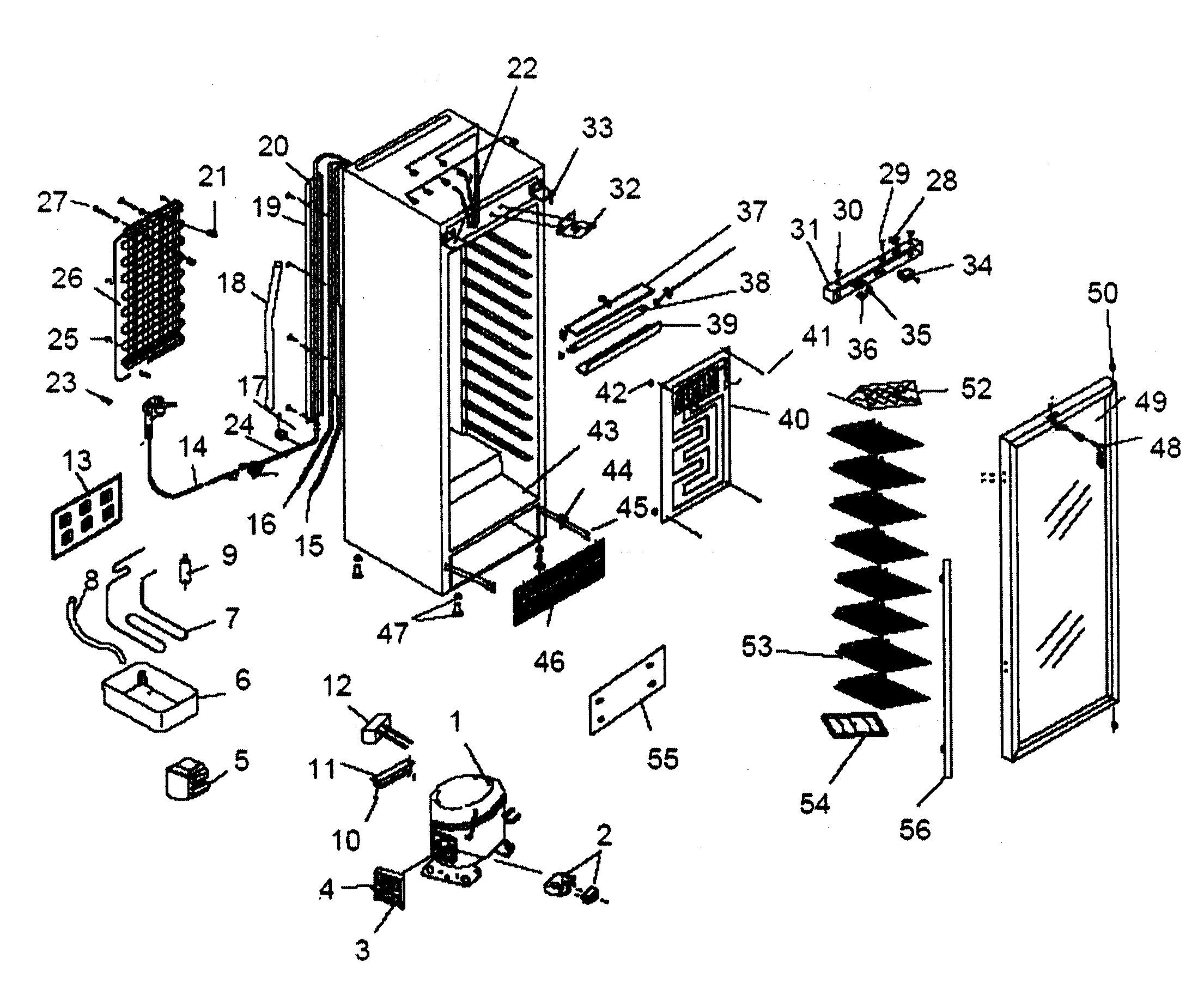

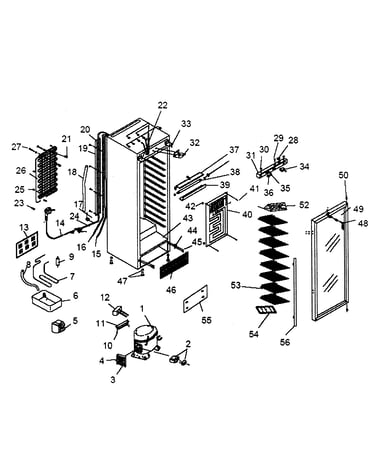

Cabinet parts diagram

Haier cover

Part #RF-1950-196

This item is not returnable
$2.16
In Stock
Haier Panel RF-5200-58
#31

Cabinet parts diagram

Haier panel

Part #RF-5200-58

$25.99
In Stock
Haier Handle Assembly RF-3350-44
#56

Cabinet parts diagram

Haier handle assembly

Part #RF-3350-44

$90.99
In Stock
Haier Door RF-2300-184
#49

Cabinet parts diagram

Haier door

Part #RF-2300-184

This item is not returnable
$299.49
In Stock
Haier Cable RF-1302-33
#14

Cabinet parts diagram

Haier cable

Part #RF-1302-33

This item is not returnable
$7.49
In Stock
Haier Owner's Manual RF-9999-116
#NI

Cabinet parts diagram

Haier owner's manual

Part #RF-9999-116

$17.49
In Stock
Haier Shelf RF-6350-191
#52

Cabinet parts diagram

Haier shelf

Part #RF-6350-191

$31.49
In Stock
Haier Shelf RF-6350-193
#53

Cabinet parts diagram

Haier shelf

Part #RF-6350-193

$53.49
In Stock
Haier Tube RF-7750-30
#18

Cabinet parts diagram

Haier tube

Part #RF-7750-30

This item is not returnable
$4.99
In Stock
Haier Pad RF-5100-33
#42

Cabinet parts diagram

Haier pad

Part #RF-5100-33

This item is not returnable
$2.16
In Stock
