Amana
Electric Cooktop

Model # AKC-4B/P85123-4S Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana AKC-4B-P85123-4S electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

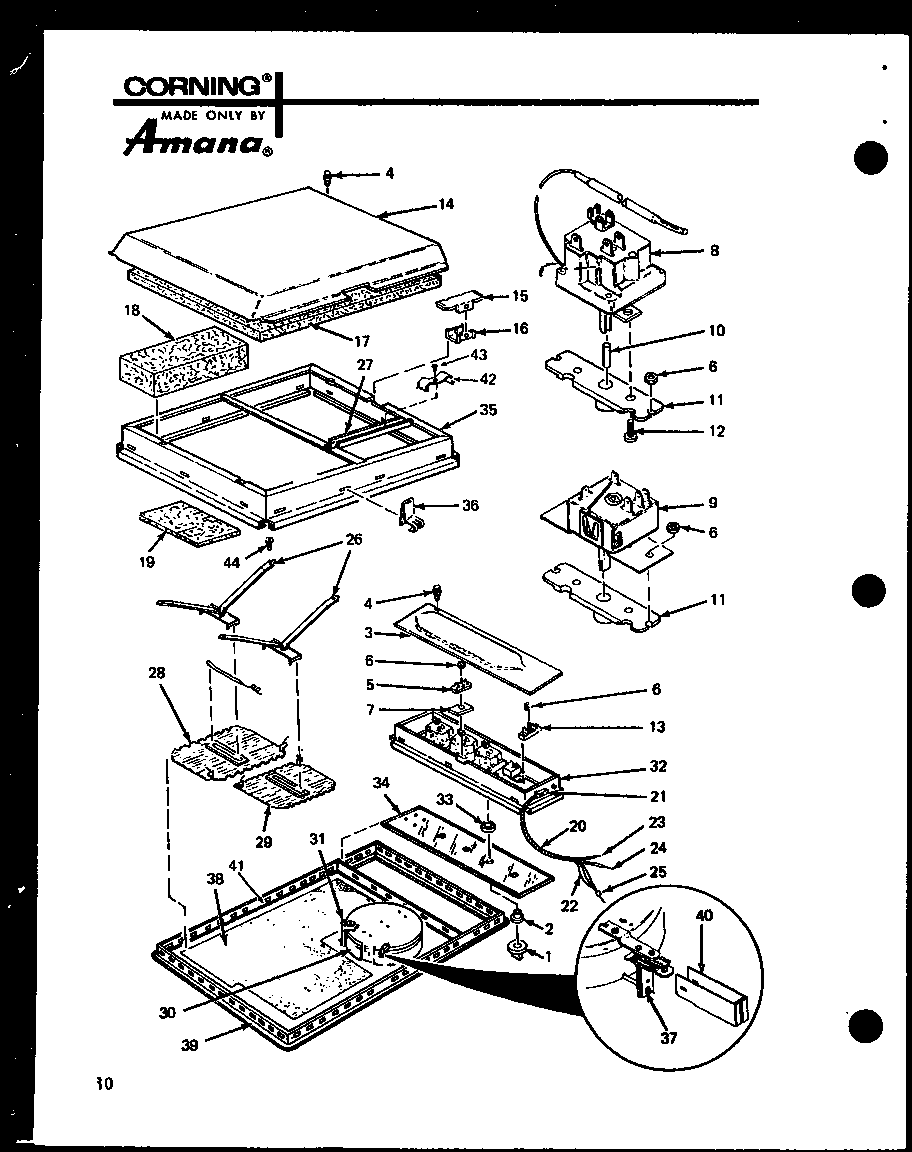

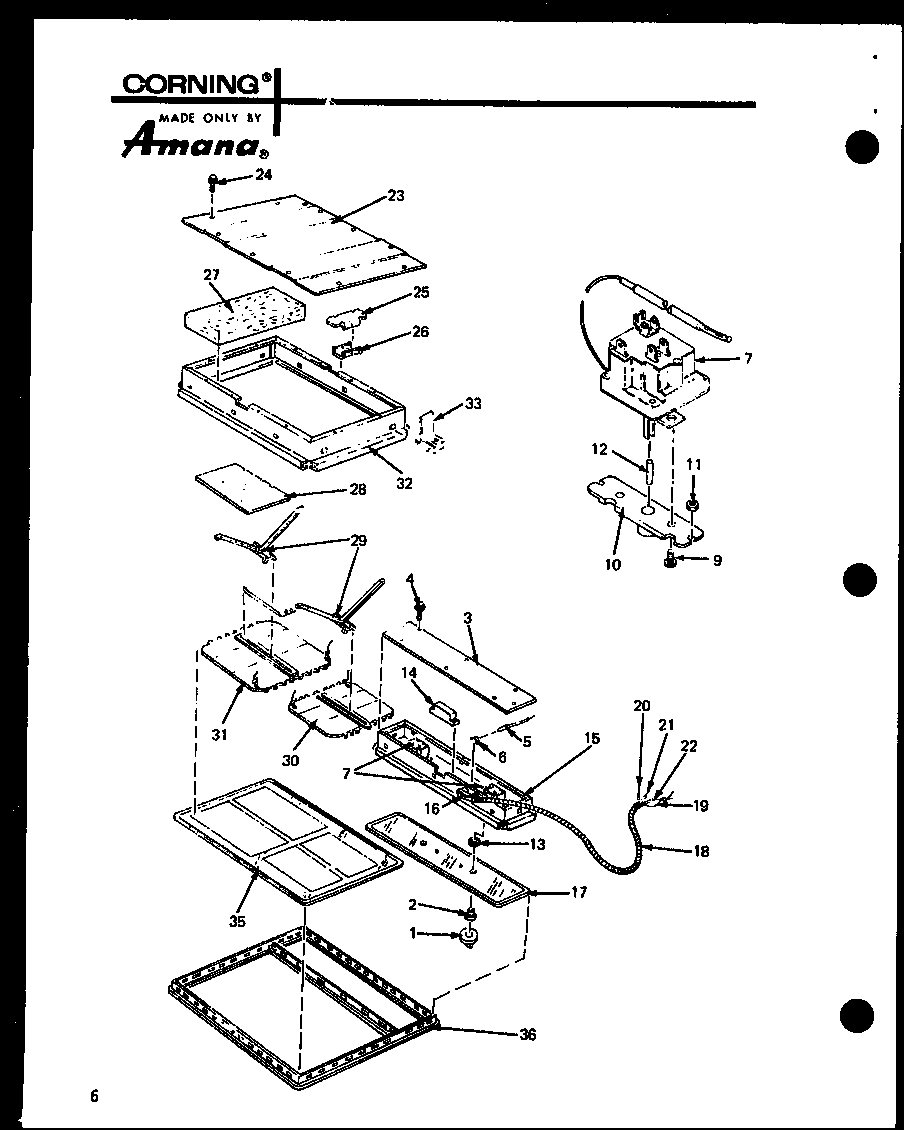

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Screw M0211016
Screw

Part #M0211016

This item is not returnable
$3.40
In Stock
No. 6-32 X 3/4 Screw (mach.) M0202528
No. 6-32 x 3/4 screw (mach.)

Part #M0202528

The manufacturer no longer makes this part, and there's no substitute part

Control Shaft Seal CG980131
Control shaft seal

Part #CG980131

The manufacturer no longer makes this part, and there's no substitute part

Control Box Cover Assembly D8503501
#1

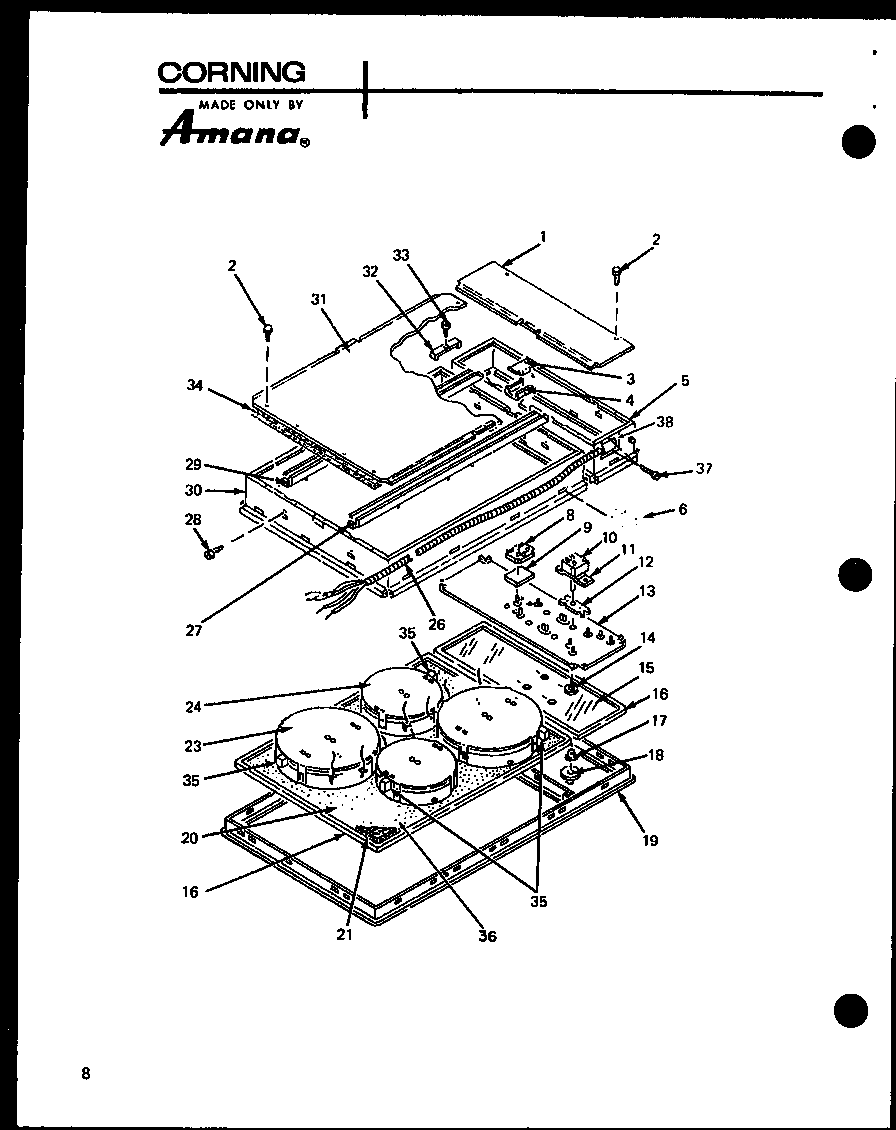

(akf-1b/p85125-1s) diagram

Control box cover assembly

Part #D8503501

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Seal M0275028
Control panel seal

Part #M0275028

The manufacturer no longer makes this part, and there's no substitute part

Control Box CG984189
#5

(akf-1b/p85125-1s) diagram

Control box

Part #CG984189

The manufacturer no longer makes this part, and there's no substitute part

Heater Box CG984530
#35

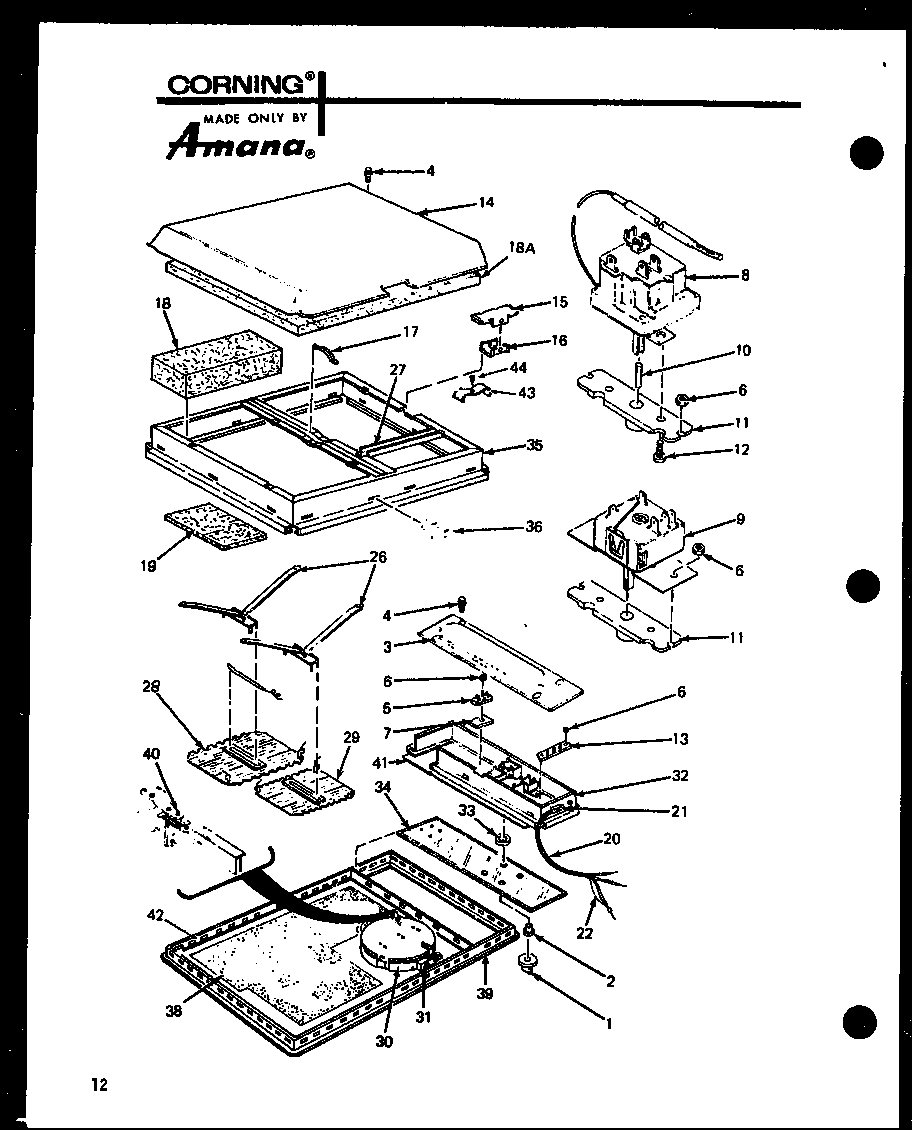

(akc-1b/p85123-1s) (akc-2b/p85123-2s) diagram

Heater box

Part #CG984530

The manufacturer no longer makes this part, and there's no substitute part

Bottom Conduit Channel B5001301
Bottom conduit channel

Part #B5001301

The manufacturer no longer makes this part, and there's no substitute part

Concuit Cap A4403101
Concuit cap

Part #A4403101

The manufacturer no longer makes this part, and there's no substitute part

Control, Surface (temp-assure Tm) (internal Hot Light) D8503901
Control, surface (temp-assure tm) (internal hot light)

Part #D8503901

The manufacturer no longer makes this part, and there's no substitute part
