Model # RS264ABRS/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RS264ABRS-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

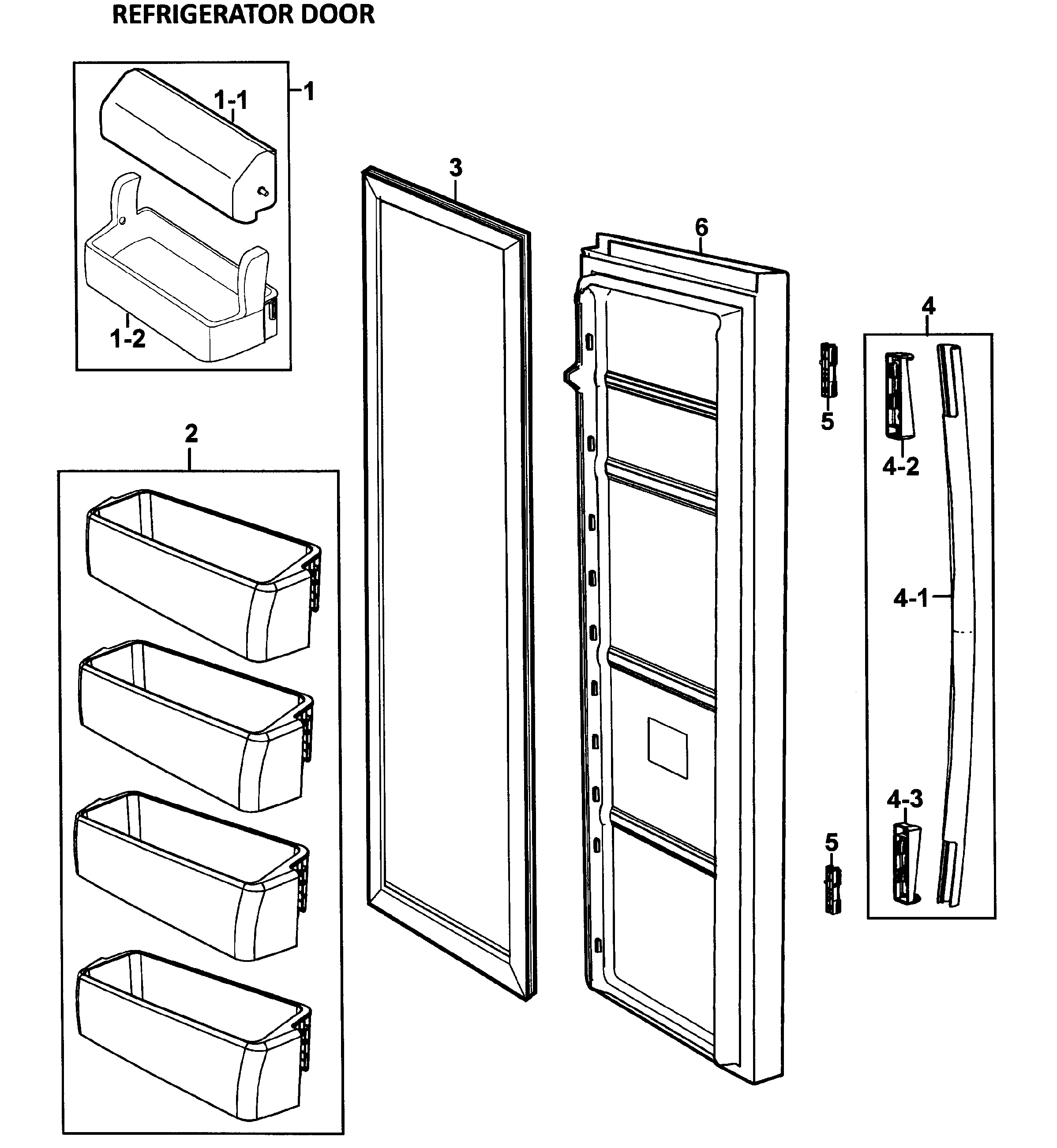

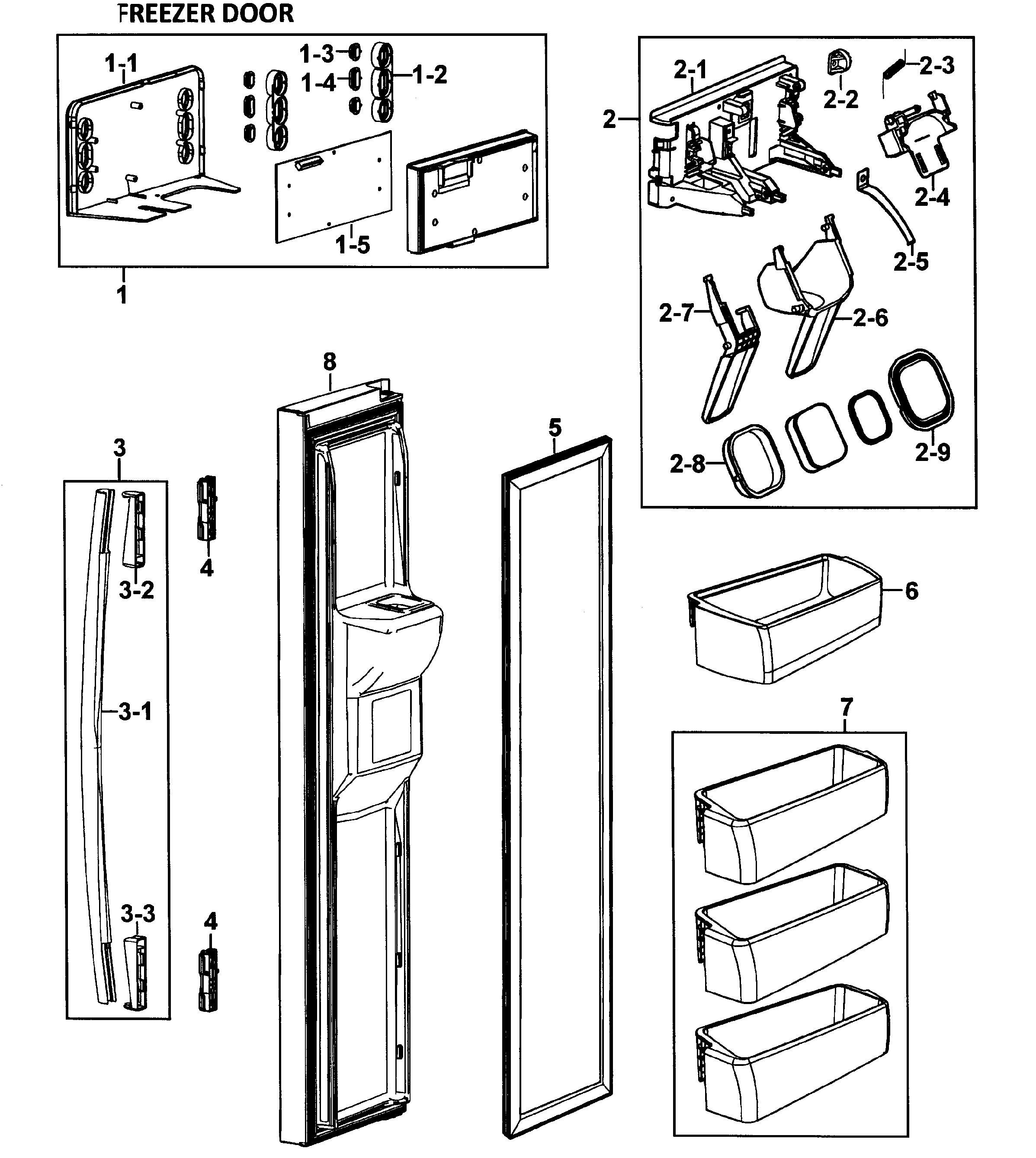

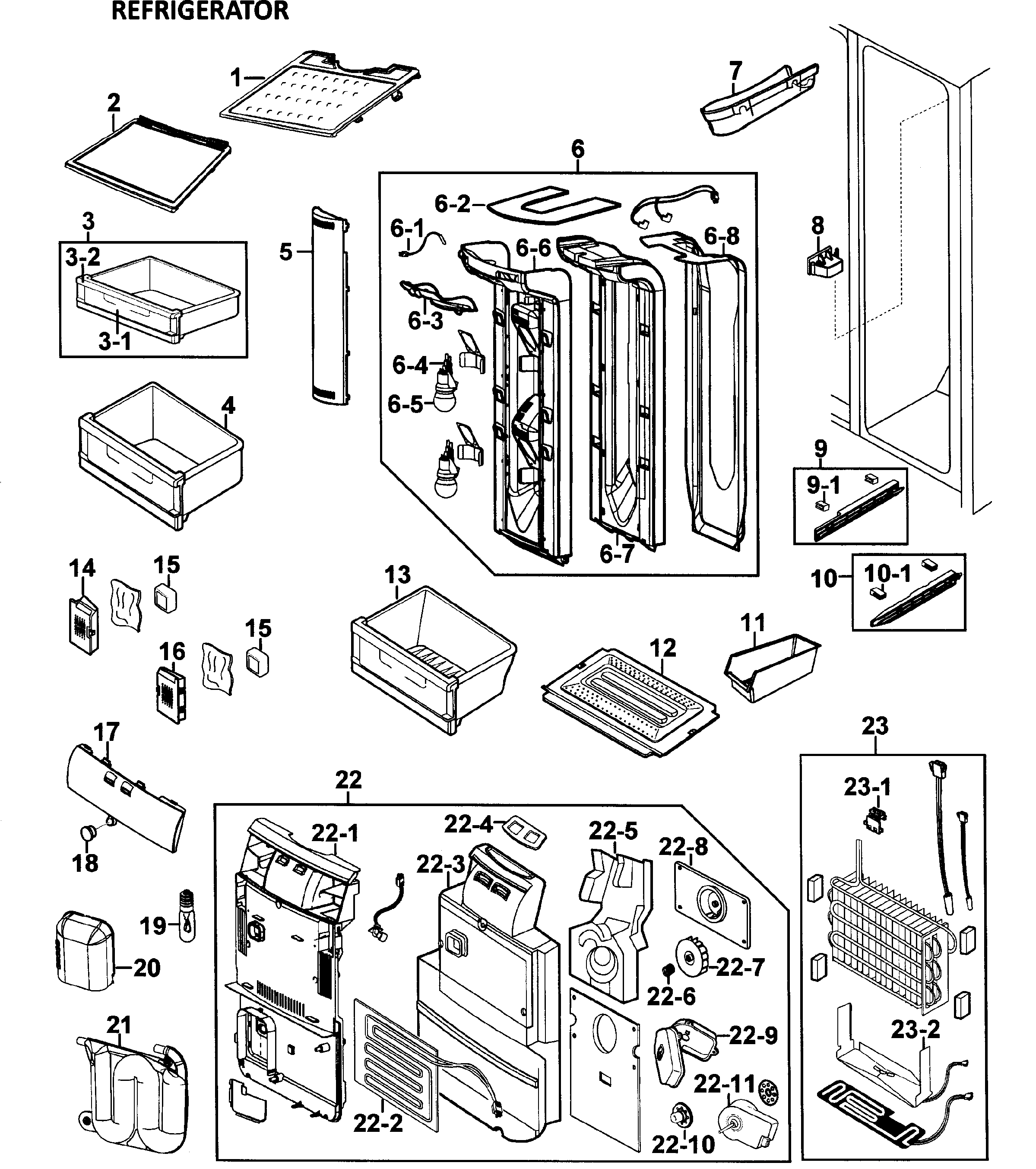

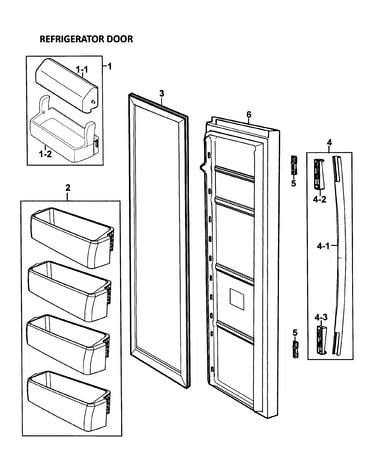

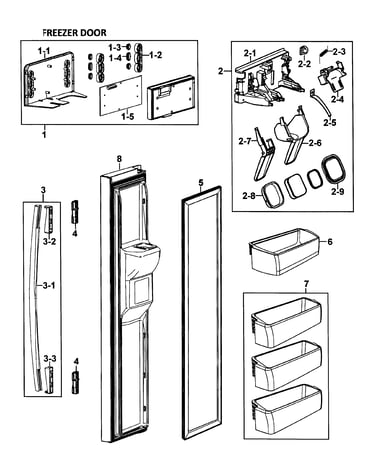

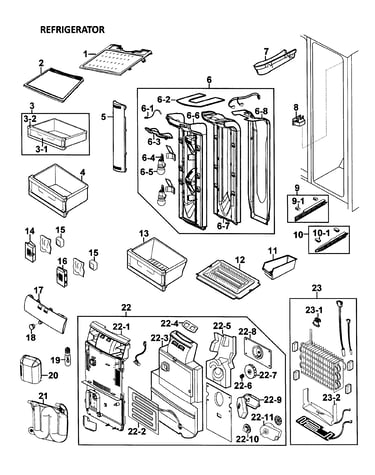

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Refrigerator Drain Cap DA97-04049A
#24

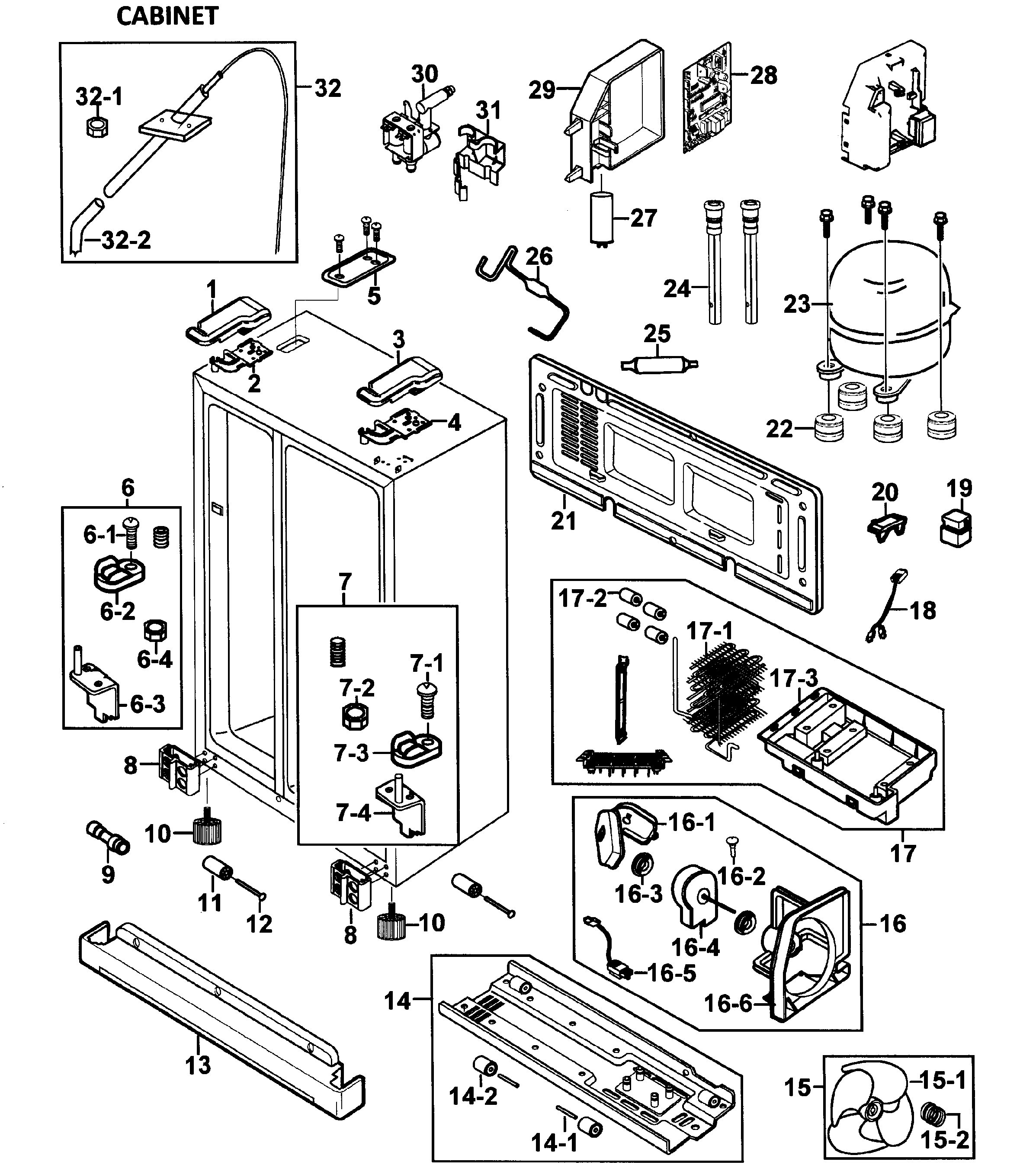

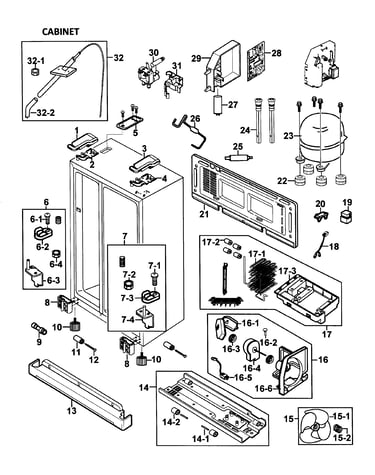

Cabinet diagram

Refrigerator drain cap

Part #DA97-04049A

Replaced by #DA97-04049D

?
Manufacturer substitution
This part replaces DA97-04049A. Substitute parts can look different from the original.
BEST SELLER
$28.75 |
17% OFF Phone Price : $34.75
In Stock
Refrigerator Freezer Evaporator Fan Motor (replaces Da31-00146g, W10126745, W10126746) DA31-00146E
Refrigerator freezer evaporator fan motor (replaces da31-00146g, w10126745, w10126746)

Part #DA31-00146E

BEST SELLER
$99.11 |
11% OFF Phone Price : $111.11
In Stock
Refrigerator Ice Maker Assembly (replaces Da97-02203d) DA97-02203G
#6

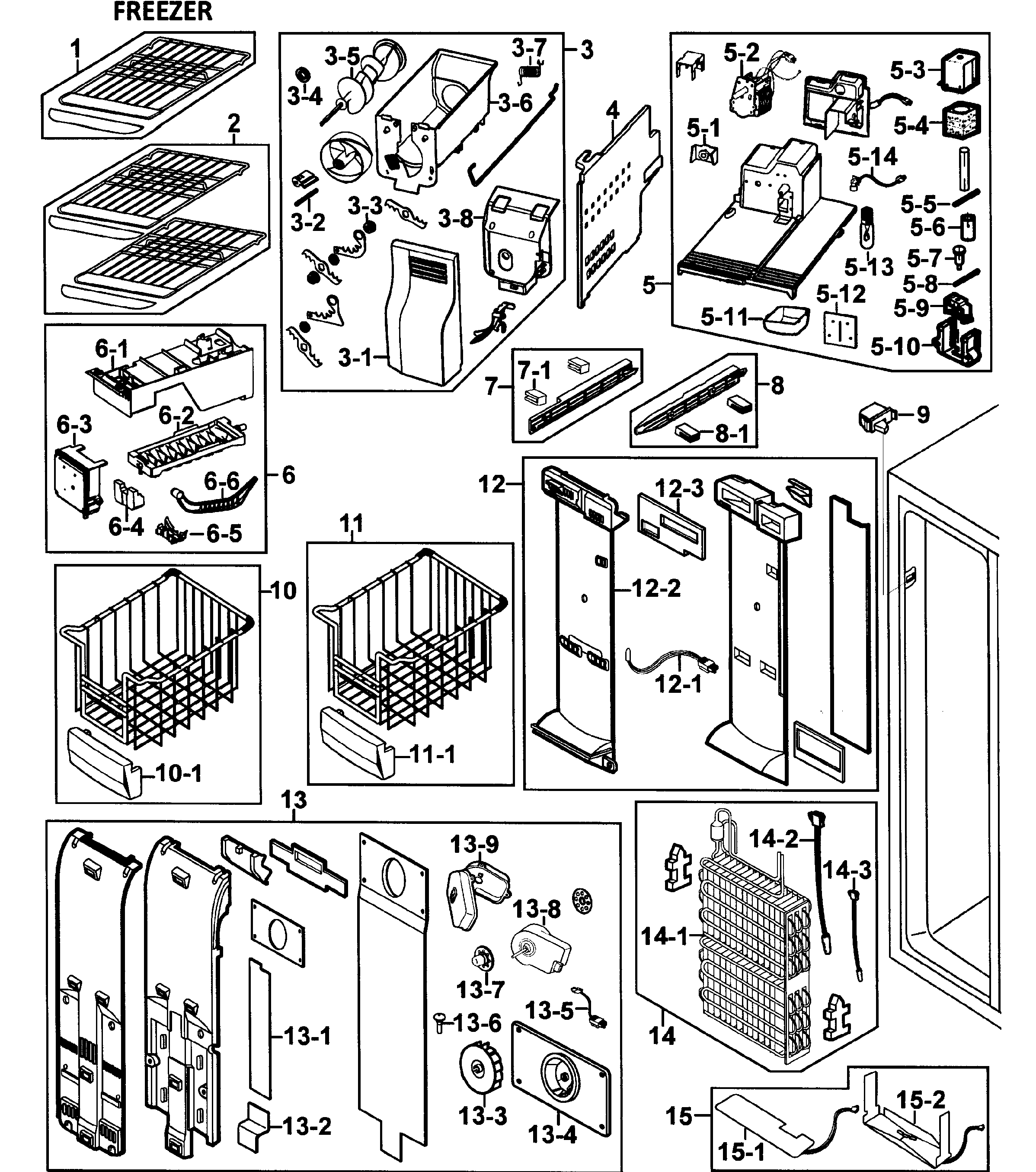

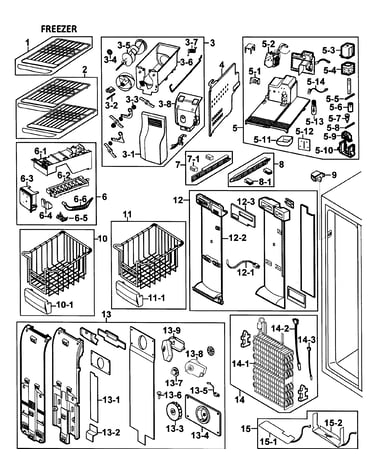

Freezer diagram

Refrigerator ice maker assembly (replaces da97-02203d)

Part #DA97-02203G

$132.97 |
8% OFF Phone Price : $144.97
In Stock
Refrigerator Compressor MK183CL2U/E07
#23

Cabinet diagram

Refrigerator compressor

Part #MK183CL2U/E07

Replaced by #MSA182DL2H/ASH

?
Manufacturer substitution
This part replaces MK183CL2U/E07. Substitute parts can look different from the original.
$220.24 |
5% OFF Phone Price : $232.24
In Stock
Refrigerator Ice Maker Cube Tray (replaces Da63-02284a) DA63-02284B
#6-2

Freezer diagram

Refrigerator ice maker cube tray (replaces da63-02284a)

Part #DA63-02284B

$36.88 |
14% OFF Phone Price : $42.88
In Stock
Refrigerator Condenser Fan Blade (replaces Da31-00010c) DA31-00010D
#15

Cabinet diagram

Refrigerator condenser fan blade (replaces da31-00010c)

Part #DA31-00010D

This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Refrigerator Ice Maker Thermostat Cover DA63-02183A
#6-5

Freezer diagram

Refrigerator ice maker thermostat cover

Part #DA63-02183A

This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
Refrigerator Door Switch (replaces Da34-00040a, Da34-10120a, Da34-10120c) DA34-10120E
#9

Freezer diagram

Refrigerator door switch (replaces da34-00040a, da34-10120a, da34-10120c)

Part #DA34-10120E

This item is not returnable
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Refrigerator Compressor Overload Protector DA34-10003S
#20

Cabinet diagram

Refrigerator compressor overload protector

Part #DA34-10003S

This item is not returnable
$30.37 |
16% OFF Phone Price : $36.37
In Stock
Refrigerator Wire Harness (replaces Da96-00042p) DA96-00042A
#16-5

Cabinet diagram

Refrigerator wire harness (replaces da96-00042p)

Part #DA96-00042A

This item is not returnable
$13.25 |
13% OFF Phone Price : $15.25
In Stock
