Amana
Countertop Microwave

Model # SA1435U.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana SA1435UA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

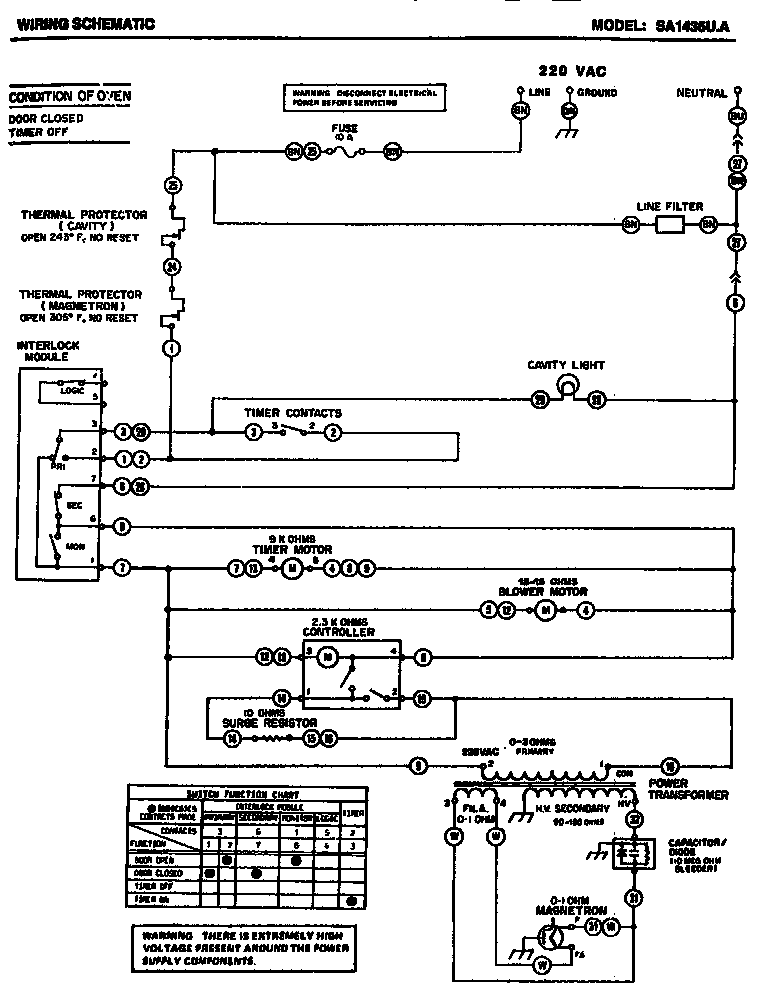

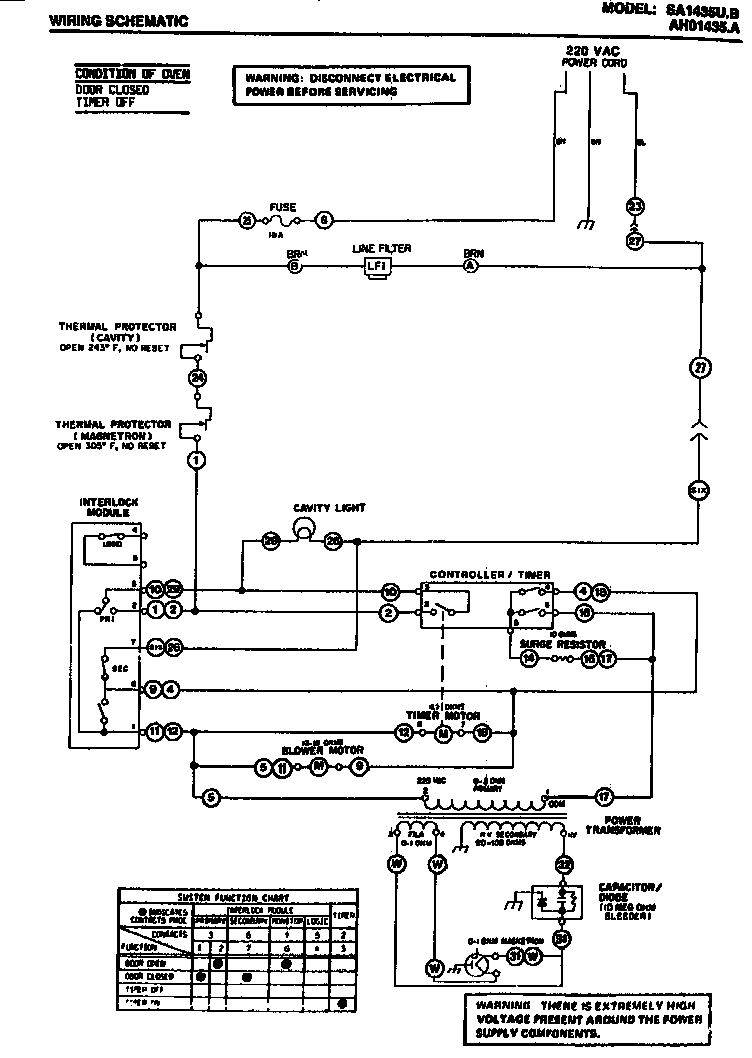

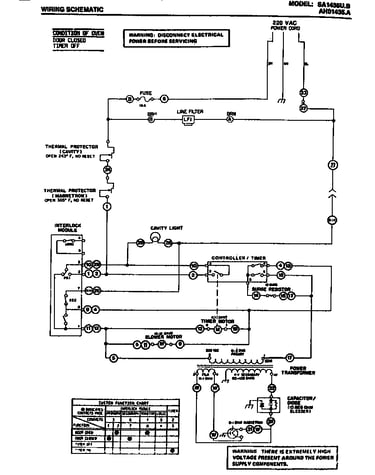

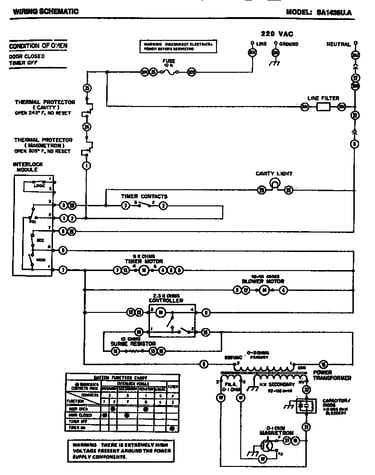

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Cavity Plug M1D755
#54

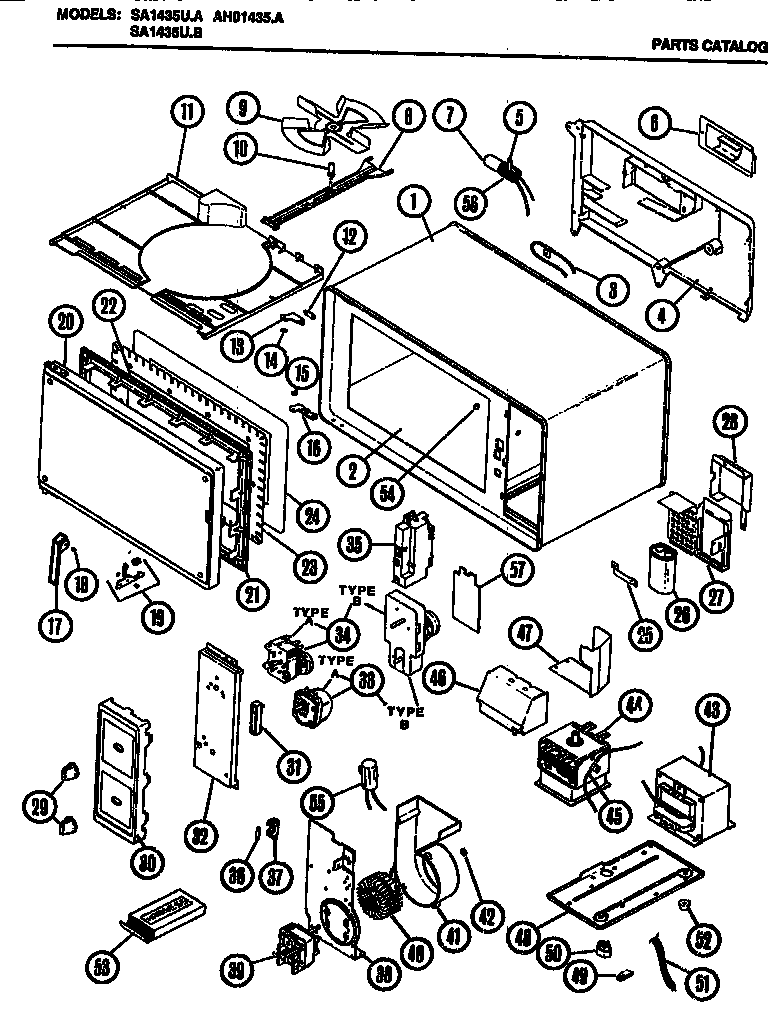

Replacement parts diagram

Cavity plug

Part #M1D755

The manufacturer no longer makes this part, and there's no substitute part

Component Mtg. M7D904
#32A

Replacement parts diagram

Component mtg.

Part #M7D904

The manufacturer no longer makes this part, and there's no substitute part

Torx Driver (t-20) M95D23

#NI

All parts diagram

Torx driver (t-20)

Part #M95D23

The manufacturer no longer makes this part, and there's no substitute part

Handle M11D78
#17

Replacement parts diagram

Handle

Part #M11D78

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (incl. Nos. 2 And 52) M77D144
#1A

Replacement parts diagram

Cavity assembly (incl. nos. 2 and 52)

Part #M77D144

The manufacturer no longer makes this part, and there's no substitute part

Outer Window (includes Ref. No. 23) M51D73
#22

Replacement parts diagram

Outer window (includes ref. no. 23)

Part #M51D73

The manufacturer no longer makes this part, and there's no substitute part

Nut Plate M8D308
#12

Replacement parts diagram

Nut plate

Part #M8D308

The manufacturer no longer makes this part, and there's no substitute part

Shelf (includes Sealant) M50D45
#2A

Replacement parts diagram

Shelf (includes sealant)

Part #M50D45

The manufacturer no longer makes this part, and there's no substitute part

Lead Cover M20D310
Lead cover

Part #M20D310

The manufacturer no longer makes this part, and there's no substitute part

Fuse M4D34
#36

Replacement parts diagram

Fuse

Part #M4D34

The manufacturer no longer makes this part, and there's no substitute part
