Craftsman
Front-Engine Lawn Tractor

Model # 917273471 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917273471 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

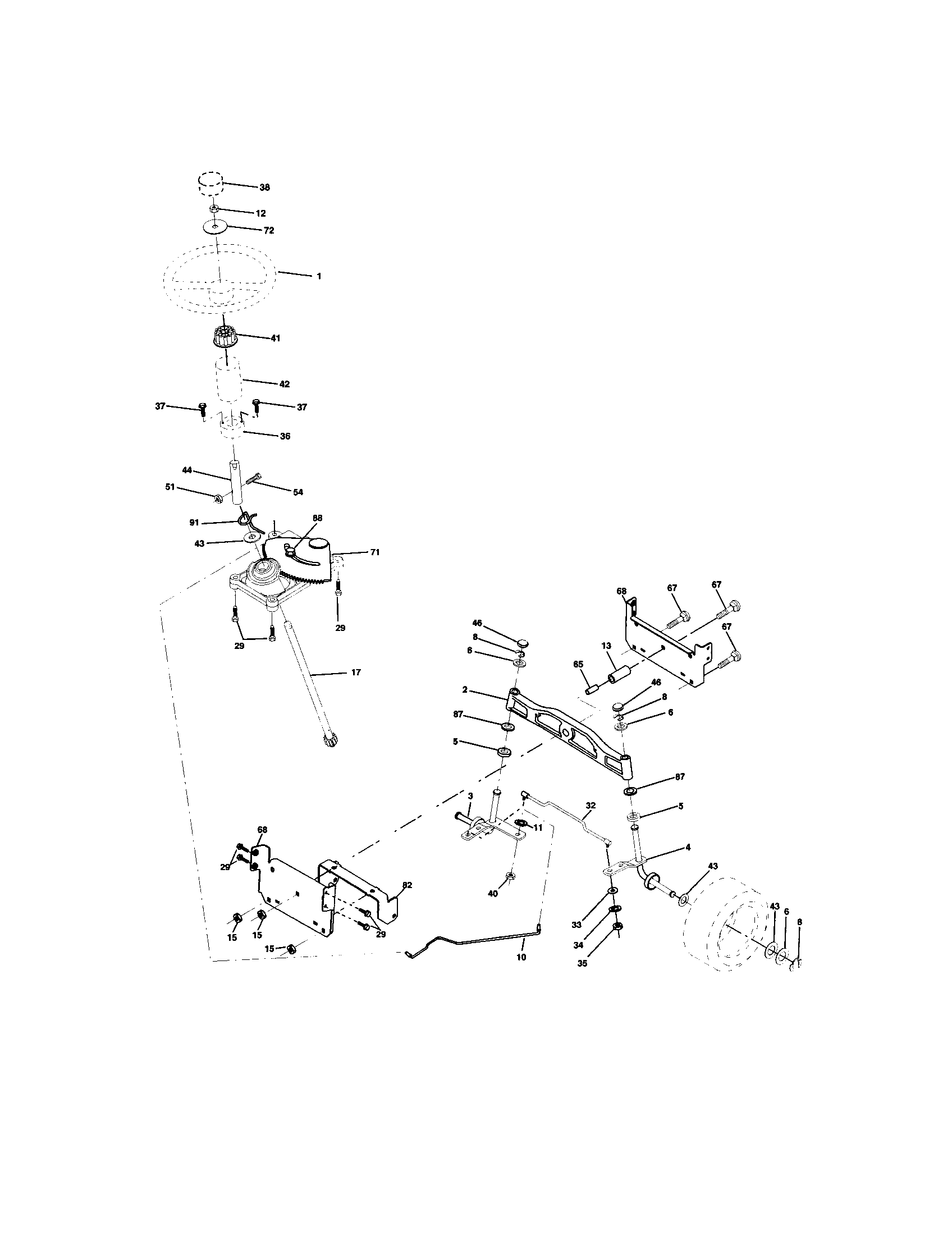

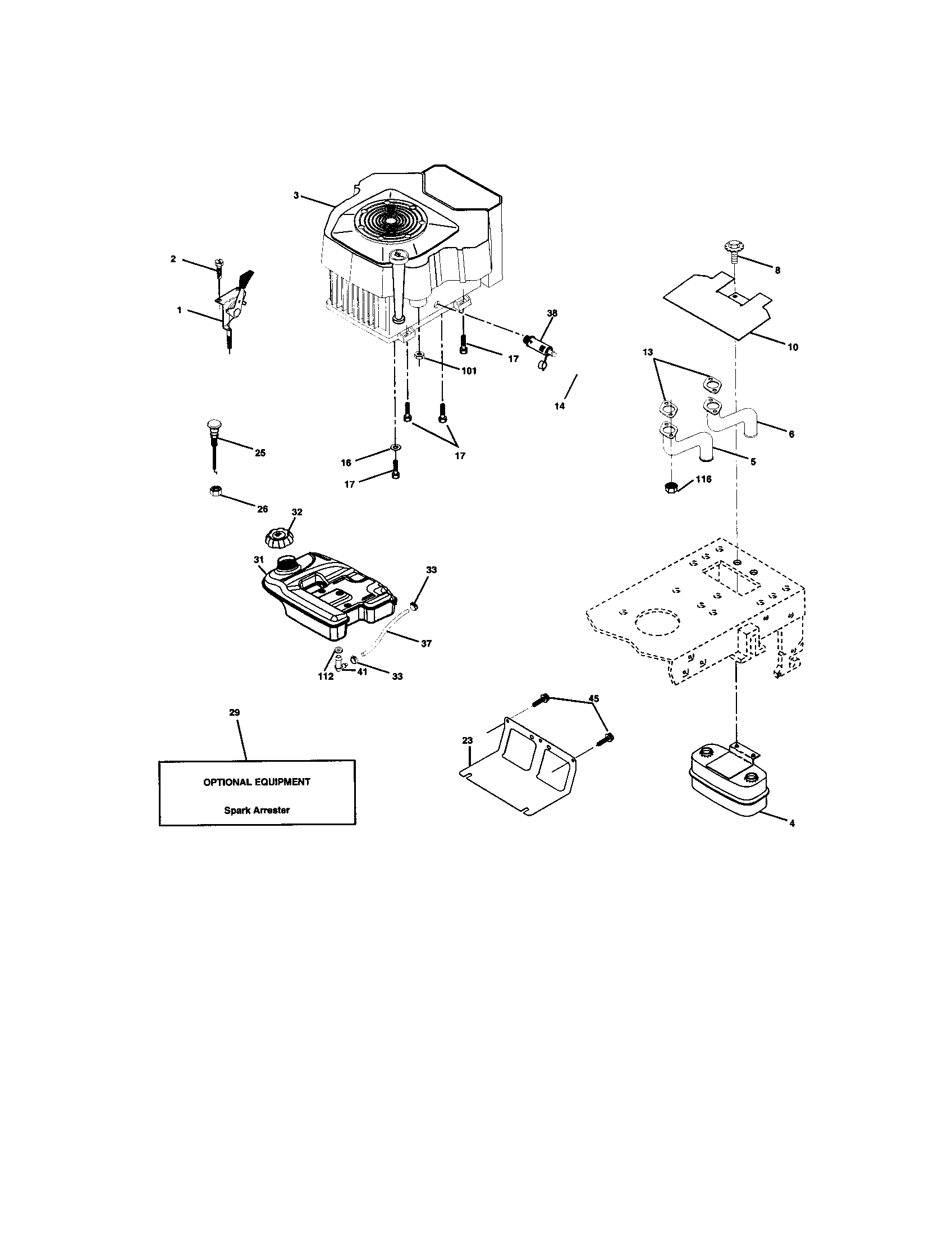

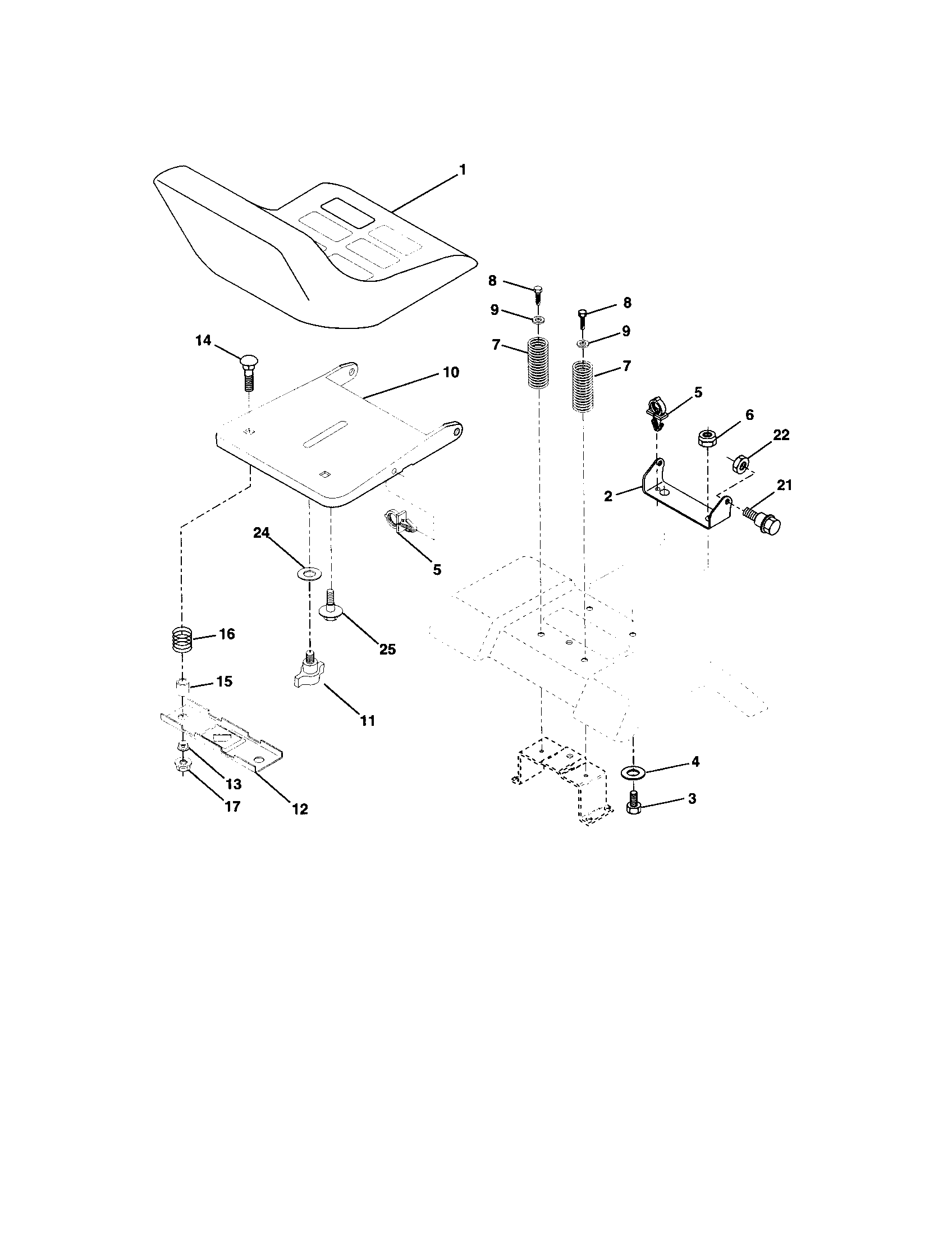

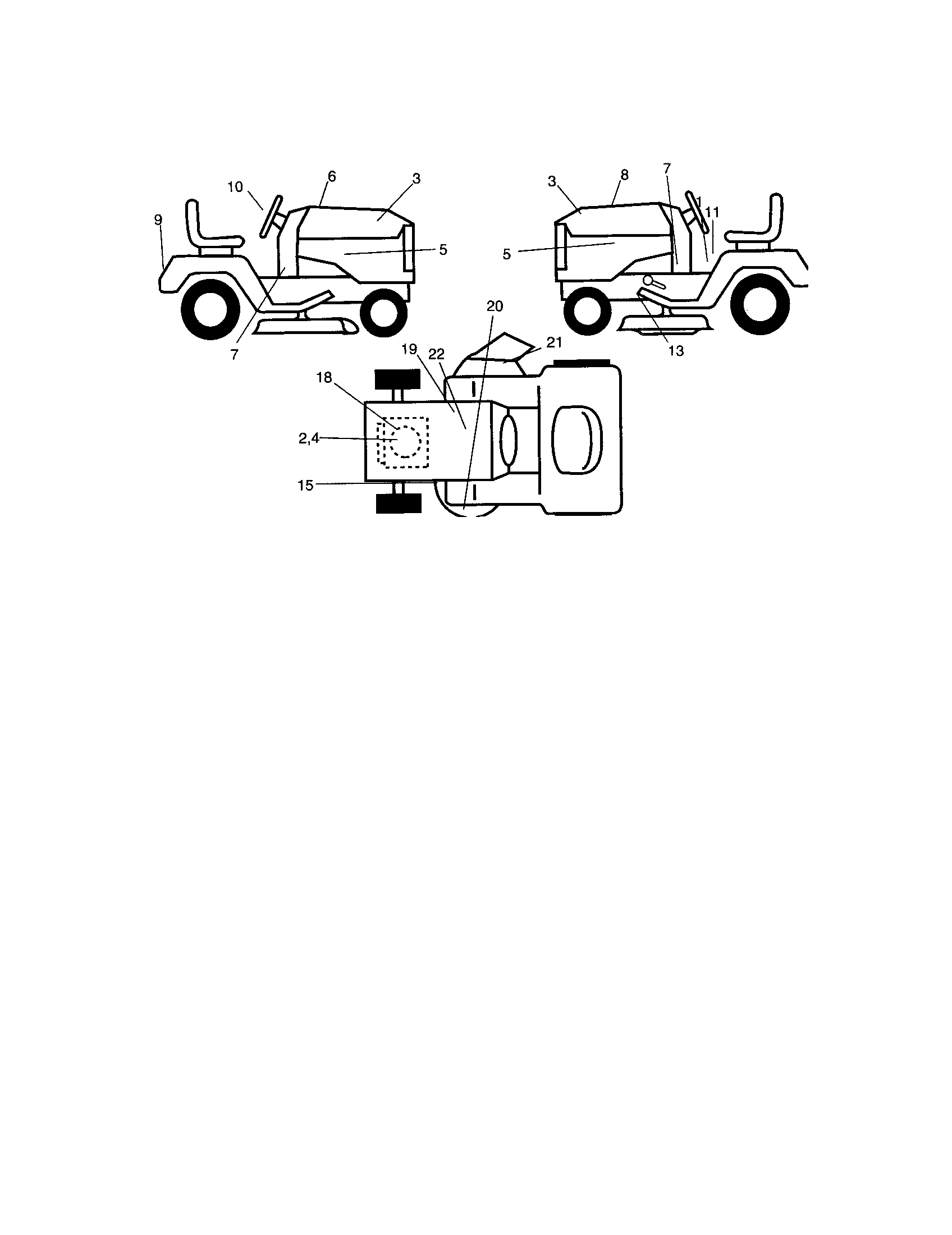

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 524 parts  |
Lawn Tractor V-belt 144959
#68

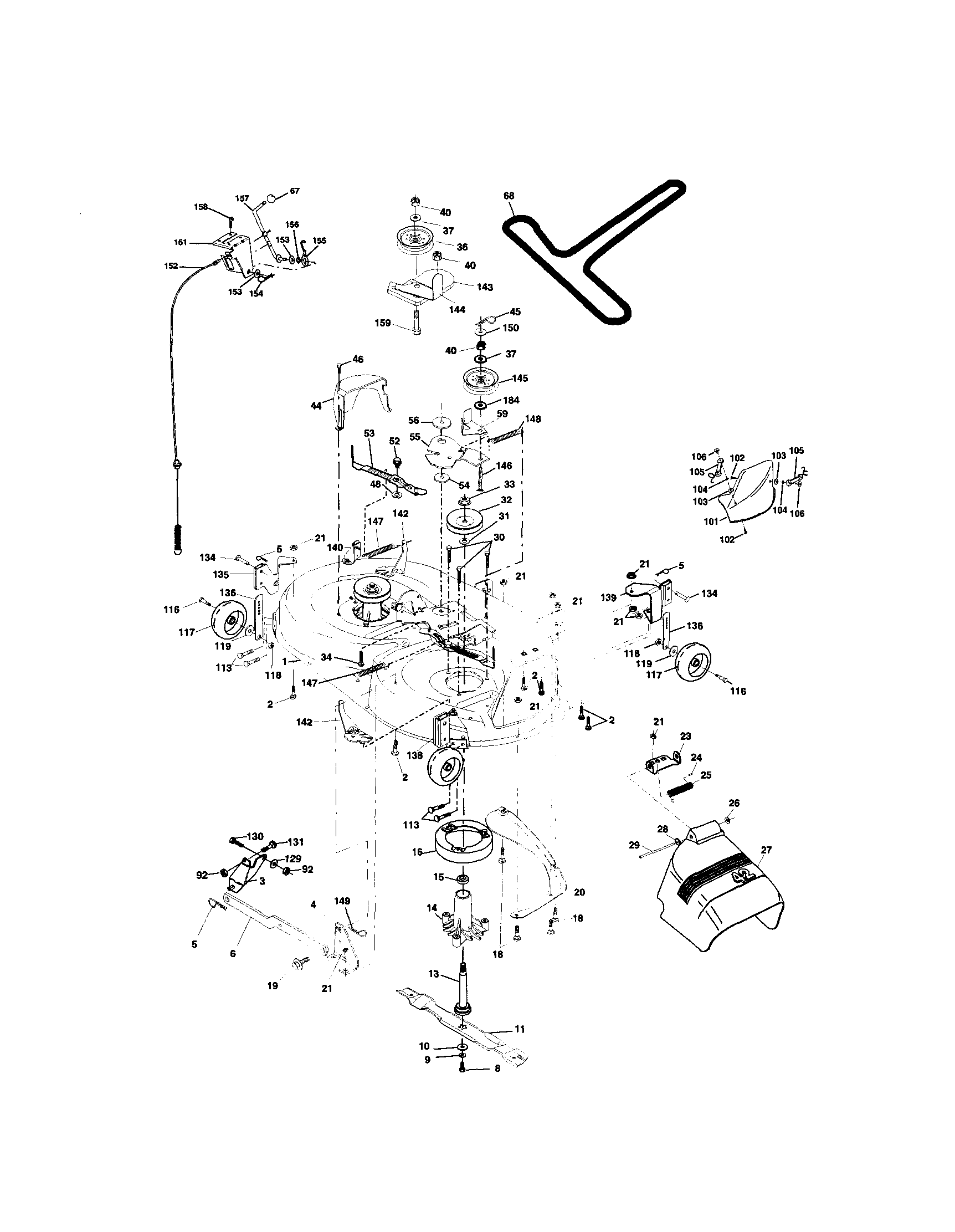

Mower deck diagram

Lawn tractor v-belt

Part #144959

Replaced by #532144959

?
Manufacturer substitution
This part replaces 144959. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$36.74 |
14% OFF Phone Price : $42.74
In Stock
Lawn Tractor Mulching Blade 134149
#11

Mower deck diagram

Lawn tractor mulching blade

Part #134149

Replaced by #532134149

?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor 42-in Deck High-lift Blade 138971
#11B

Mower deck diagram

Lawn tractor 42-in deck high-lift blade

Part #138971

Replaced by #532138971

?
Manufacturer substitution
This part replaces 138971. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor Axle Cap 104757X428
#11

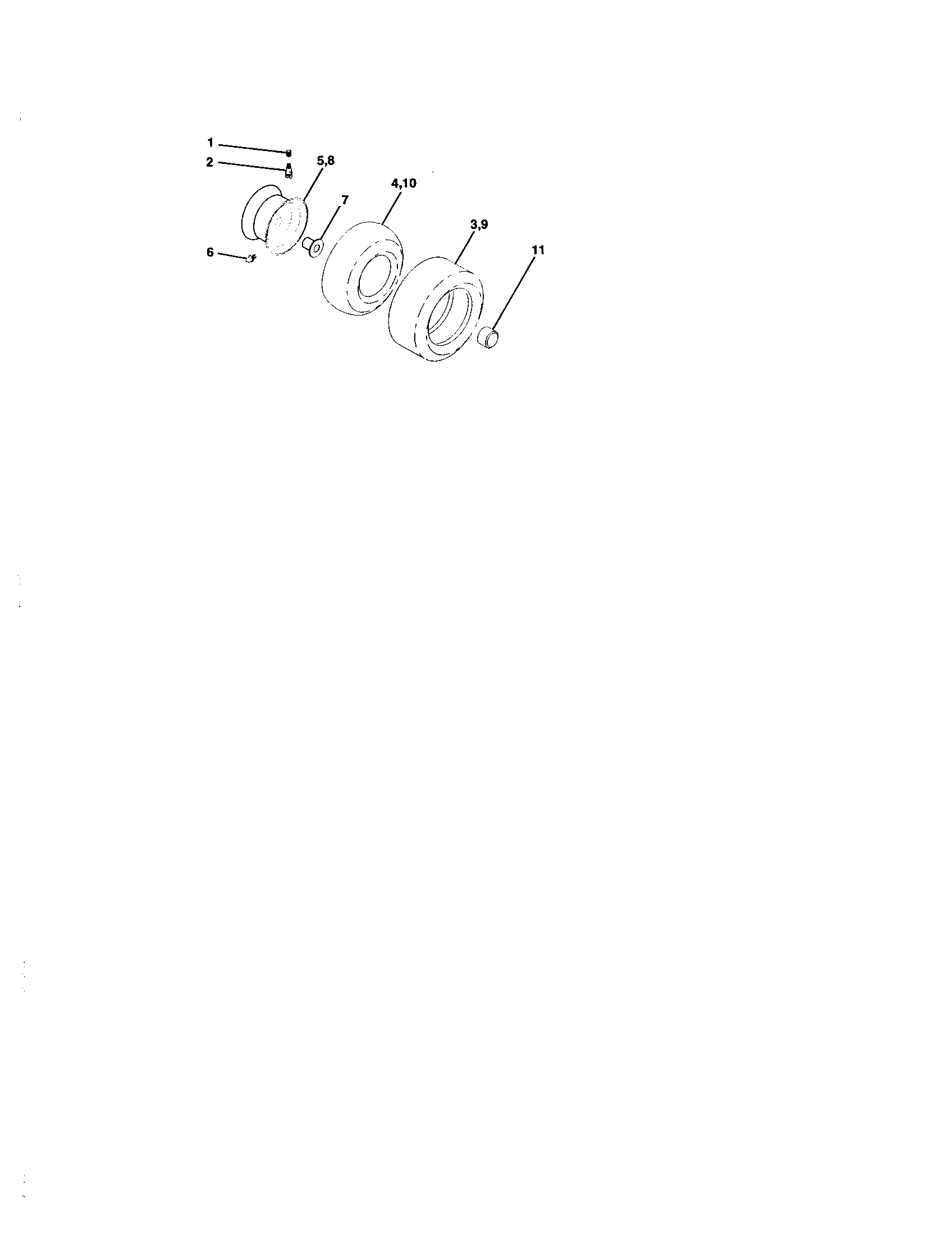

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Engagement Cable 169676
#152

Mower deck diagram

Lawn tractor blade engagement cable

Part #169676

Replaced by #532175067

?
Manufacturer substitution
This part replaces 169676. Substitute parts can look different from the original.
BEST SELLER
$41.18 |
13% OFF Phone Price : $47.18
In Stock
Lock Nut 73900600
#120

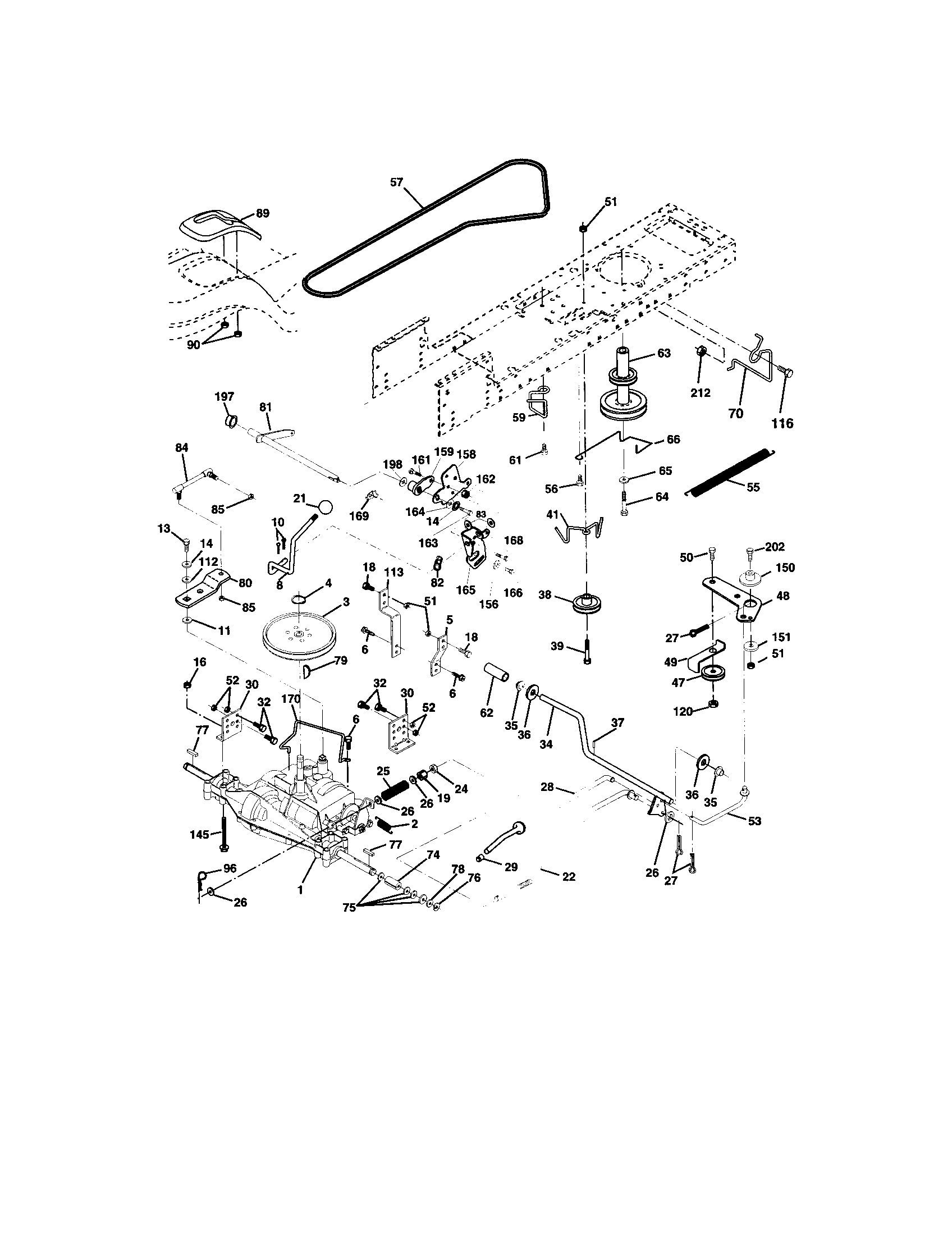

Ground drive diagram

Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Gauge Wheel 174873
#117

Mower deck diagram

Lawn tractor gauge wheel

Part #174873

Replaced by #589527301

?
Manufacturer substitution
This part replaces 174873. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Molded Ignition Key 140403
#33

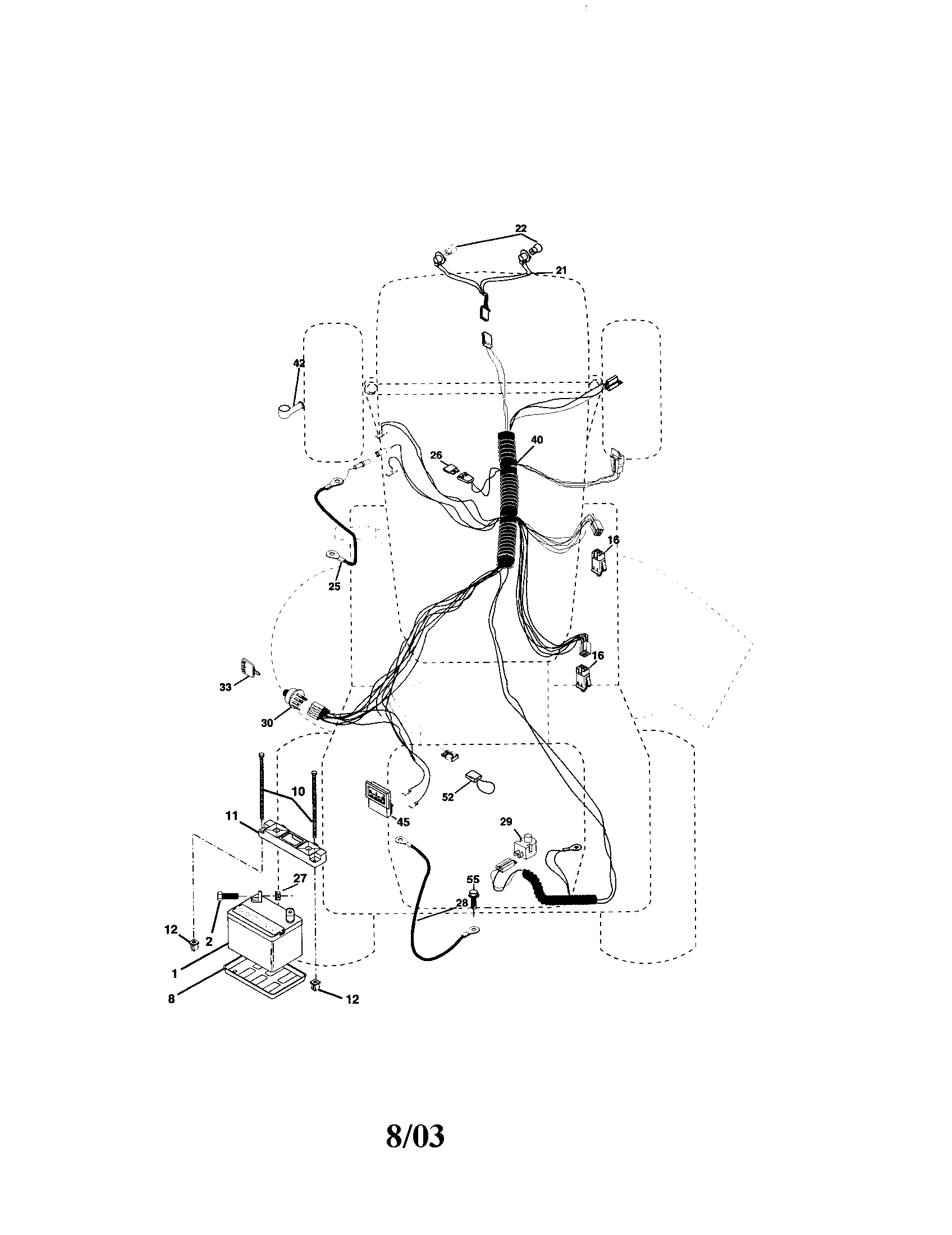

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Shoulder Bolt 184219
#116

Mower deck diagram

Lawn mower shoulder bolt

Part #184219

Replaced by #596434404

?
Manufacturer substitution
This part replaces 184219. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
