GE
Countertop Microwave

Model # JE1040GB01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1040GB01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cooking G WB4X10006
#1516

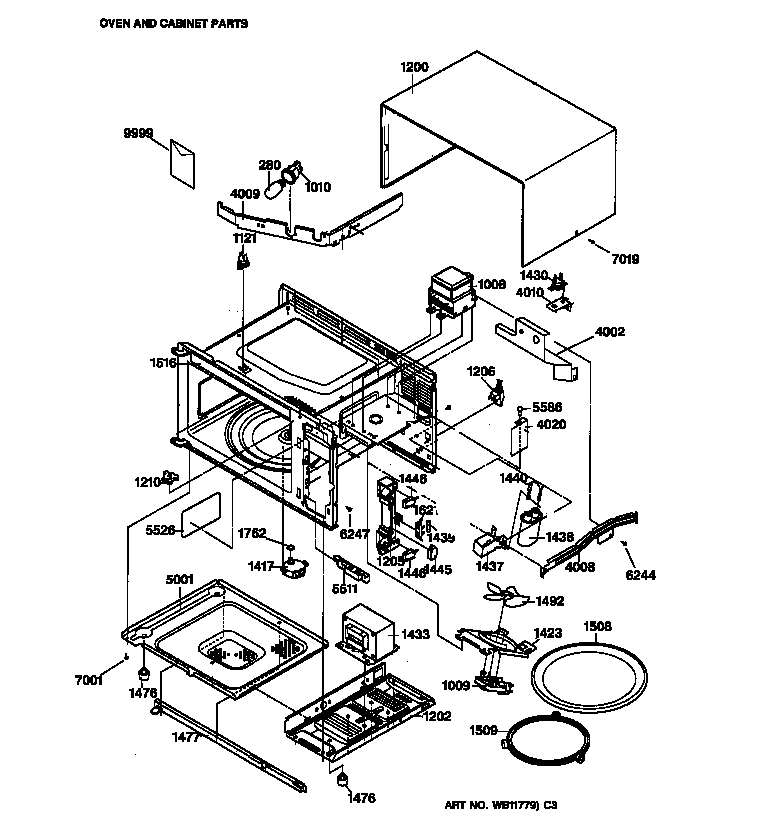

Bottom plate & internal parts diagram

Cooking g

Part #WB4X10006

This item is not returnable
$3.49
In Stock
Screw WB1X1454
#7019

Bottom plate & internal parts diagram

Screw

Part #WB1X1454

The manufacturer no longer makes this part, and there's no substitute part

Mounting Thermostat WB6X10179
#4010

Bottom plate & internal parts diagram

Mounting thermostat

Part #WB6X10179

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable WB26X161
#1417

Bottom plate & internal parts diagram

Microwave turntable

Part #WB26X161

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade WB6X433
#1492

Bottom plate & internal parts diagram

Fan blade

Part #WB6X433

The manufacturer no longer makes this part, and there's no substitute part

Switch Ha WB18X480
#1649

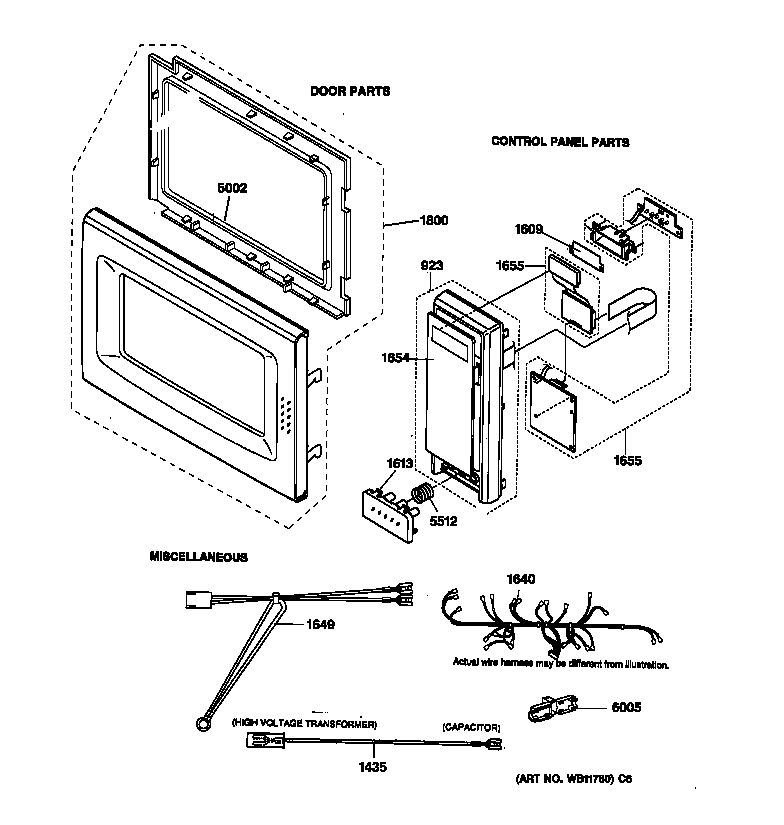

Door, control panel & wiring diagram

Switch ha

Part #WB18X480

The manufacturer no longer makes this part, and there's no substitute part

Open Butt WB3X10021
#1613

Door, control panel & wiring diagram

Open butt

Part #WB3X10021

The manufacturer no longer makes this part, and there's no substitute part

Wire H V WB18X460
#1435

Door, control panel & wiring diagram

Wire h v

Part #WB18X460

The manufacturer no longer makes this part, and there's no substitute part

Plate WB56X10041
#1202

Bottom plate & internal parts diagram

Plate

Part #WB56X10041

The manufacturer no longer makes this part, and there's no substitute part

Chassis S WB6X10101
#4008

Bottom plate & internal parts diagram

Chassis s

Part #WB6X10101

The manufacturer no longer makes this part, and there's no substitute part
