Model # WWP1160BAW Official GE portable washer

Here are the diagrams and repair parts for Official GE WWP1160BAW portable washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

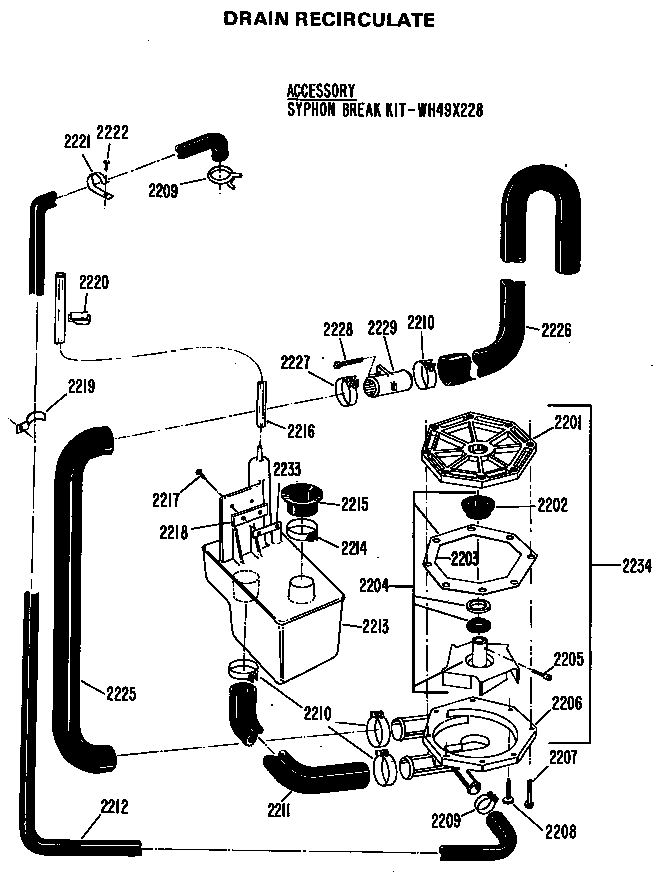

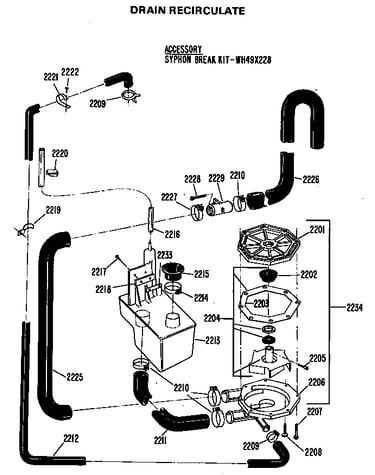

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Washer Hose Clamp Kit WH1X2036
Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Lock Plate WH1X2309
#2309

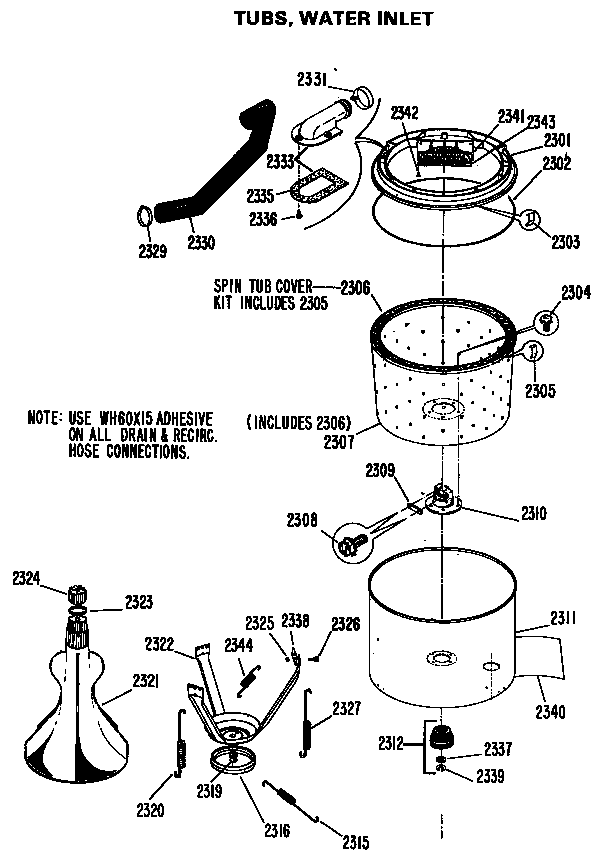

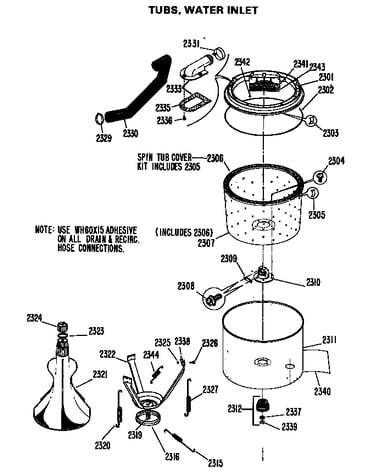

Tubs, water inlet diagram

Lock plate

Part #WH1X2309

$27.49
In Stock
Felt Washer WH2X1029
#2446

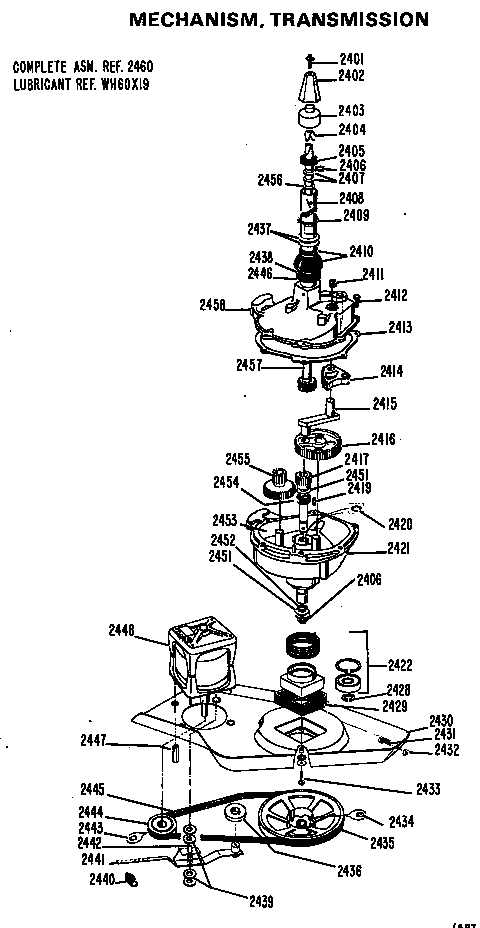

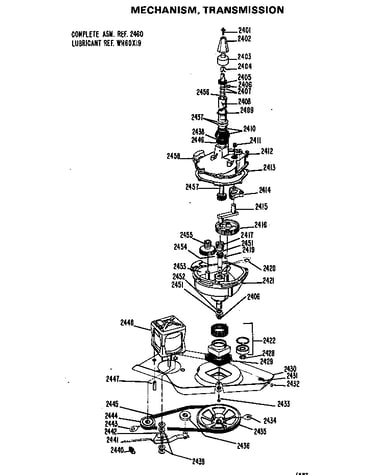

Mechanism, transmission diagram

Felt washer

Part #WH2X1029

This item is not returnable
$2.49
In Stock
Speed Nut WH2X978
#2019

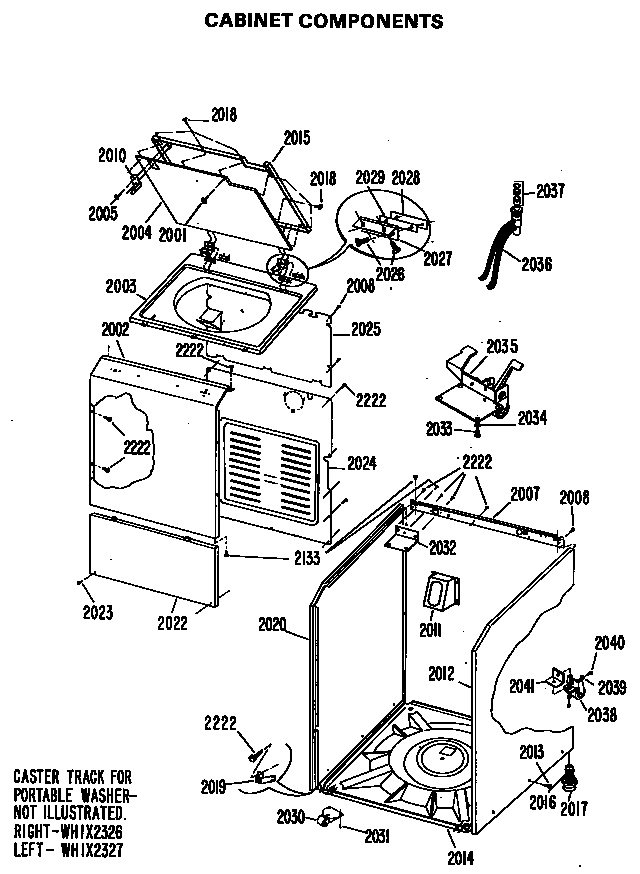

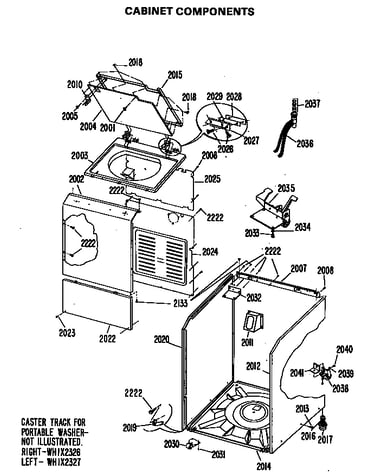

Cabinet components diagram

Speed nut

Part #WH2X978

This item is not returnable
$2.49
In Stock
Snap Ring WH1X2321
#2428

Mechanism, transmission diagram

Snap ring

Part #WH1X2321

This item is not returnable
$2.49
In Stock
In.hose 4 WH41X58
#2126

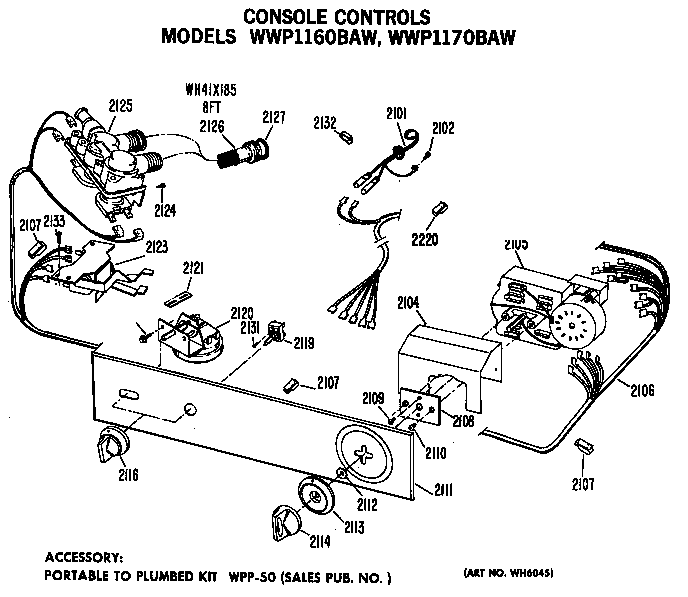

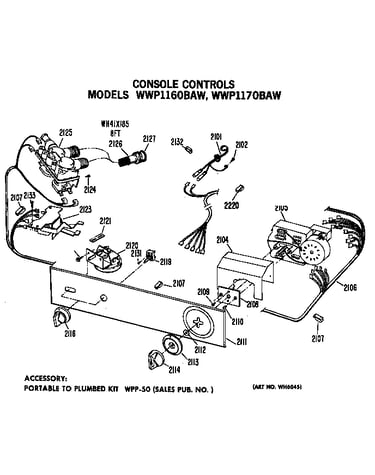

Console controls diagram

In.hose 4

Part #WH41X58

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X58. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Washer WH2X42
#2127

Console controls diagram

Washer

Part #WH2X42

Replaced by #WH2X42D

?
Manufacturer substitution
This part replaces WH2X42. Substitute parts can look different from the original.
$8.11
In Stock
Pan WH46X234
#2025

Cabinet components diagram

Pan

Part #WH46X234

The manufacturer no longer makes this part, and there's no substitute part

Unknown WH45X108
#2306

Tubs, water inlet diagram

Unknown

Part #WH45X108

The manufacturer no longer makes this part, and there's no substitute part

Spring-lon WH1X2315
#2327

Tubs, water inlet diagram

Spring-lon

Part #WH1X2315

The manufacturer no longer makes this part, and there's no substitute part
