Countertop Microwave

Model # 5649908210 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5649908210 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for5649908210 Microwaves

  • Latch Switch 10333
    #20

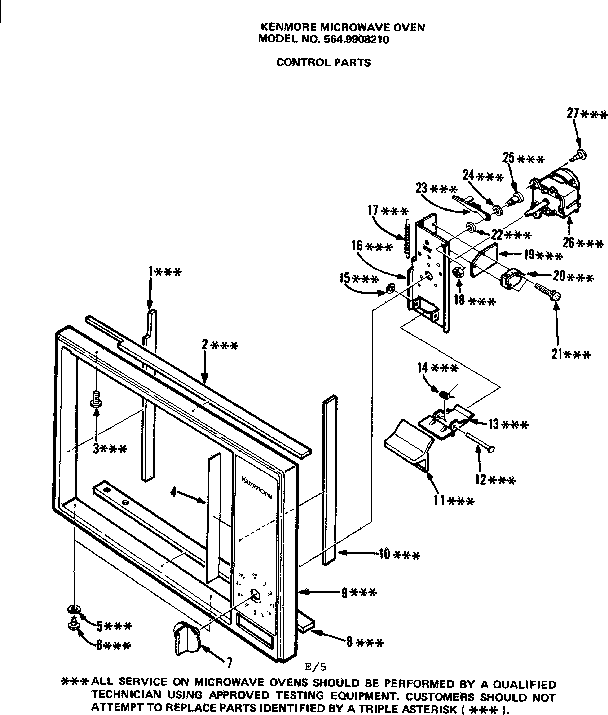

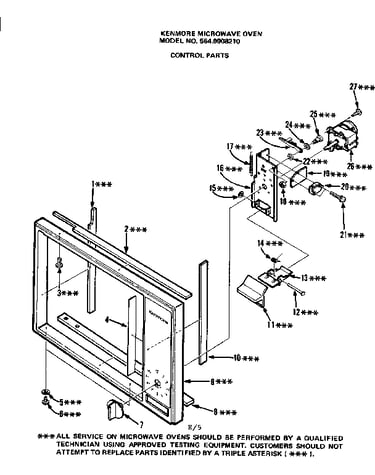

    Control parts diagram

    Latch switch

    Part #10333

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 10305
    #9

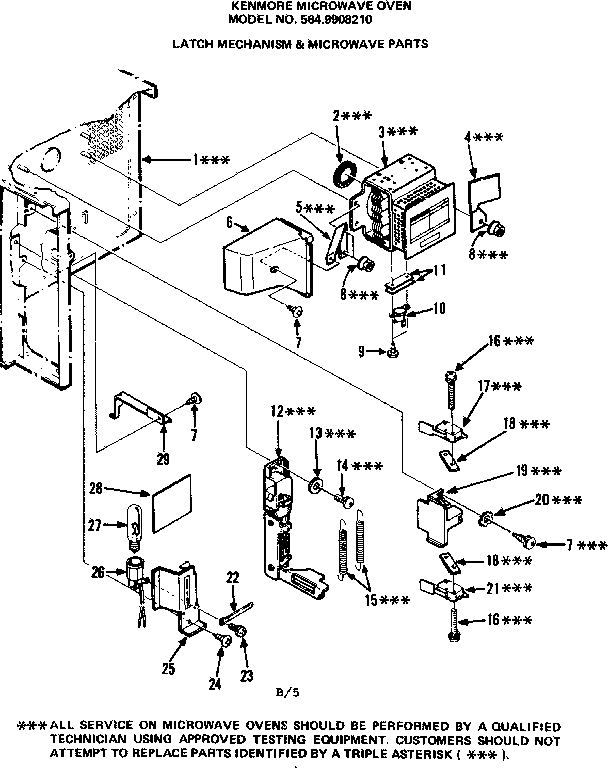

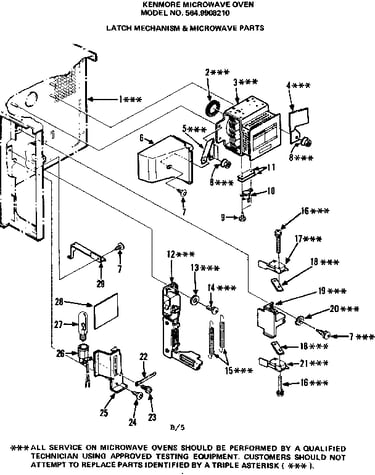

    Latch mechansim & microwave parts diagram

    Screw

    Part #10305

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse Holder 11256
    #17

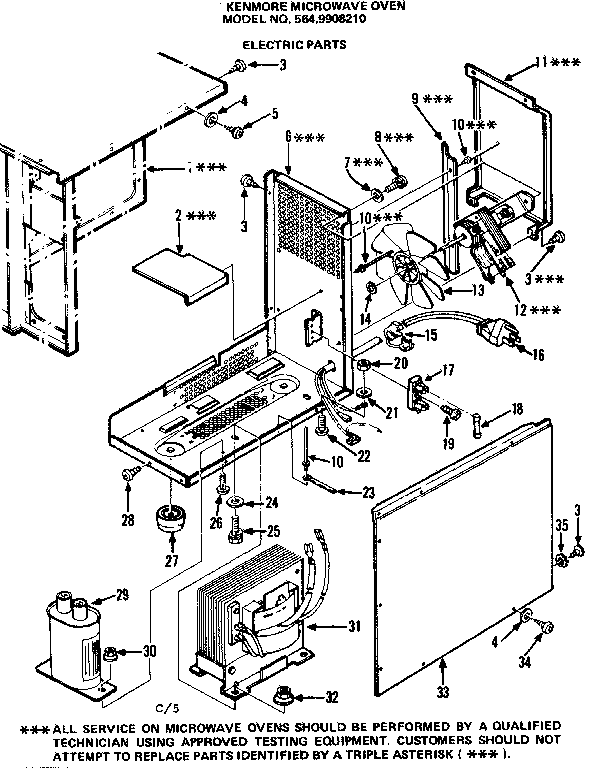

    Electric parts diagram

    Fuse holder

    Part #11256

    The manufacturer no longer makes this part, and there's no substitute part

  • Magnetron 11422
    #3

    Latch mechansim & microwave parts diagram

    Magnetron

    Part #11422

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermostat 11235
    #10

    Latch mechansim & microwave parts diagram

    Thermostat

    Part #11235

    The manufacturer no longer makes this part, and there's no substitute part

  • Ferrite Rubber 10346
    #1

    Control parts diagram

    Ferrite rubber

    Part #10346

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover 10311
    #33

    Electric parts diagram

    Cover

    Part #10311

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 10347
    #3

    Control parts diagram

    Screw

    Part #10347

    The manufacturer no longer makes this part, and there's no substitute part

  • Light Cover 11231
    #28

    Latch mechansim & microwave parts diagram

    Light cover

    Part #11231

    The manufacturer no longer makes this part, and there's no substitute part

  • Cord Bushing 11055
    #15

    Electric parts diagram

    Cord bushing

    Part #11055

    The manufacturer no longer makes this part, and there's no substitute part
