DeWalt
Generator

Model # DG4400B Official DeWalt generator

Here are the diagrams and repair parts for Official DeWalt DG4400B generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |
Grommet 285815-23
#453

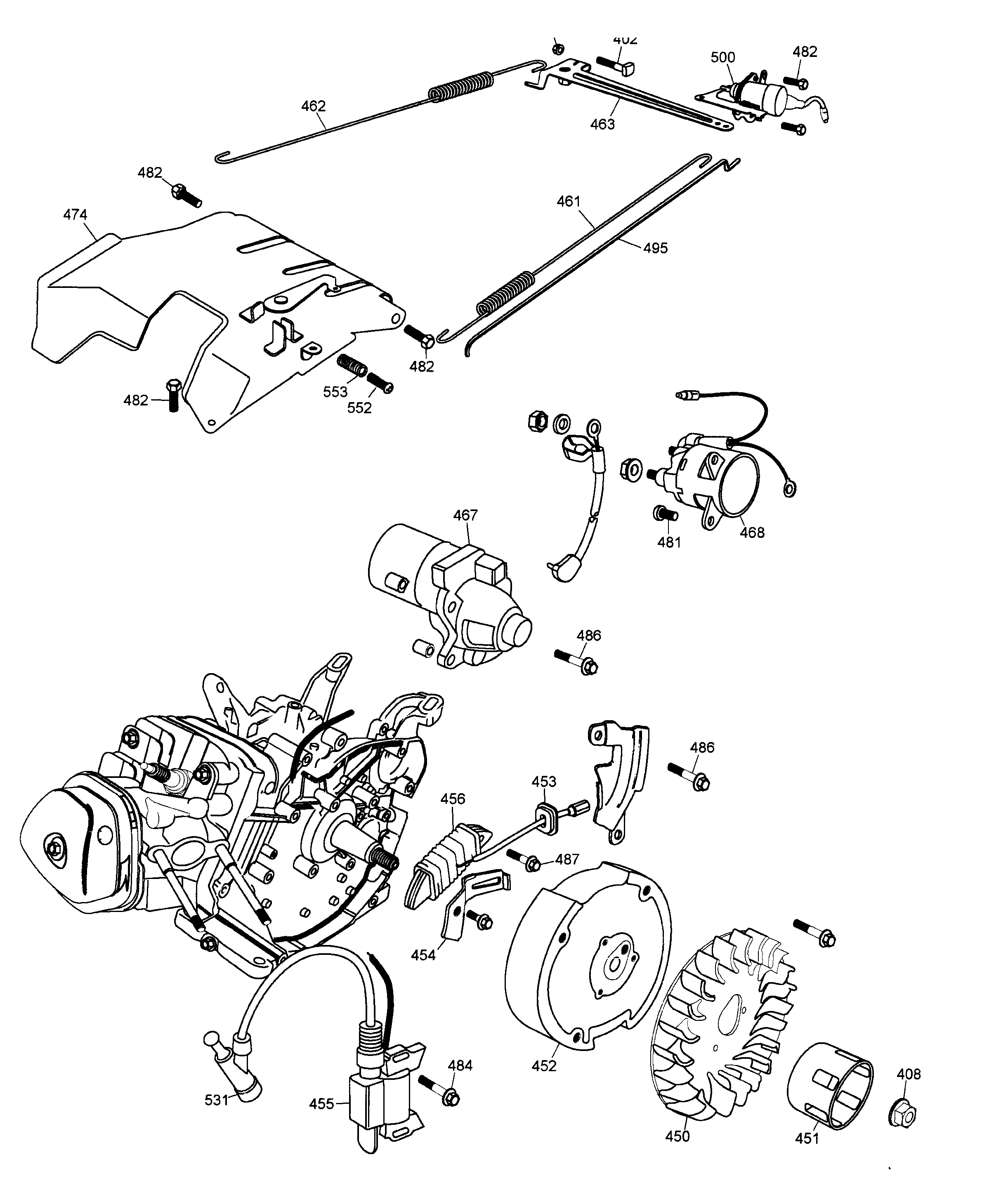

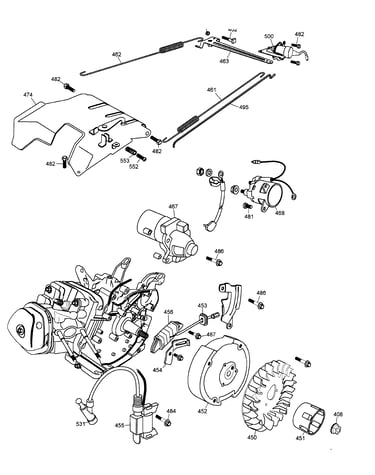

Ignition assy diagram

Grommet

Part #285815-23

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Engine 640940-00
#4

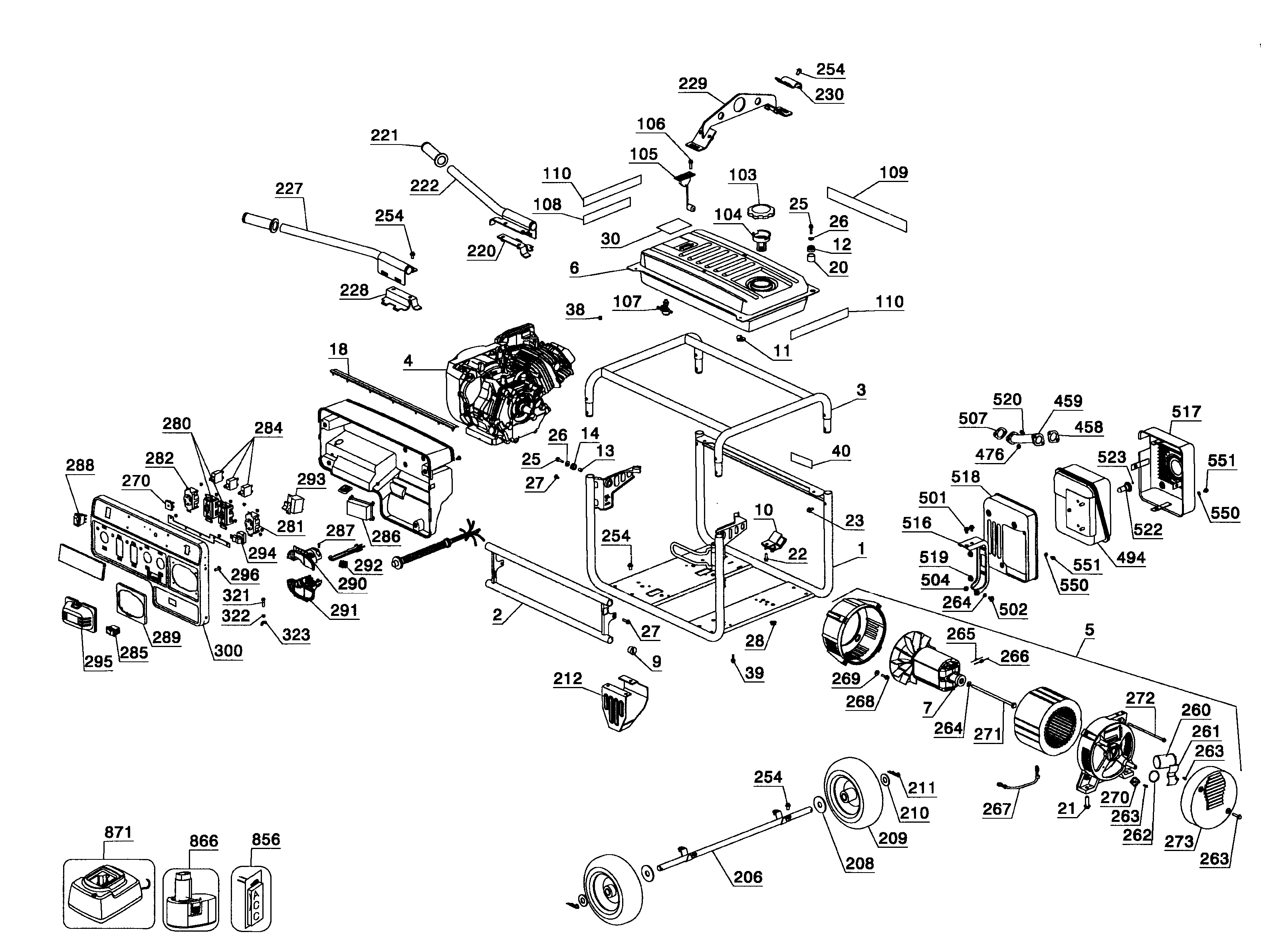

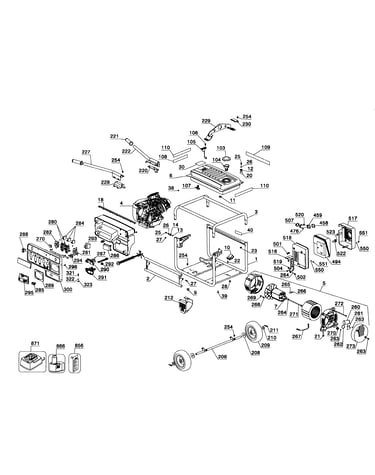

Frame assy diagram

Dewalt engine

Part #640940-00

The manufacturer no longer makes this part, and there's no substitute part

Cover Muff 285816-63
#518

Frame assy diagram

Cover muff

Part #285816-63

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Gasket 285814-45
#423

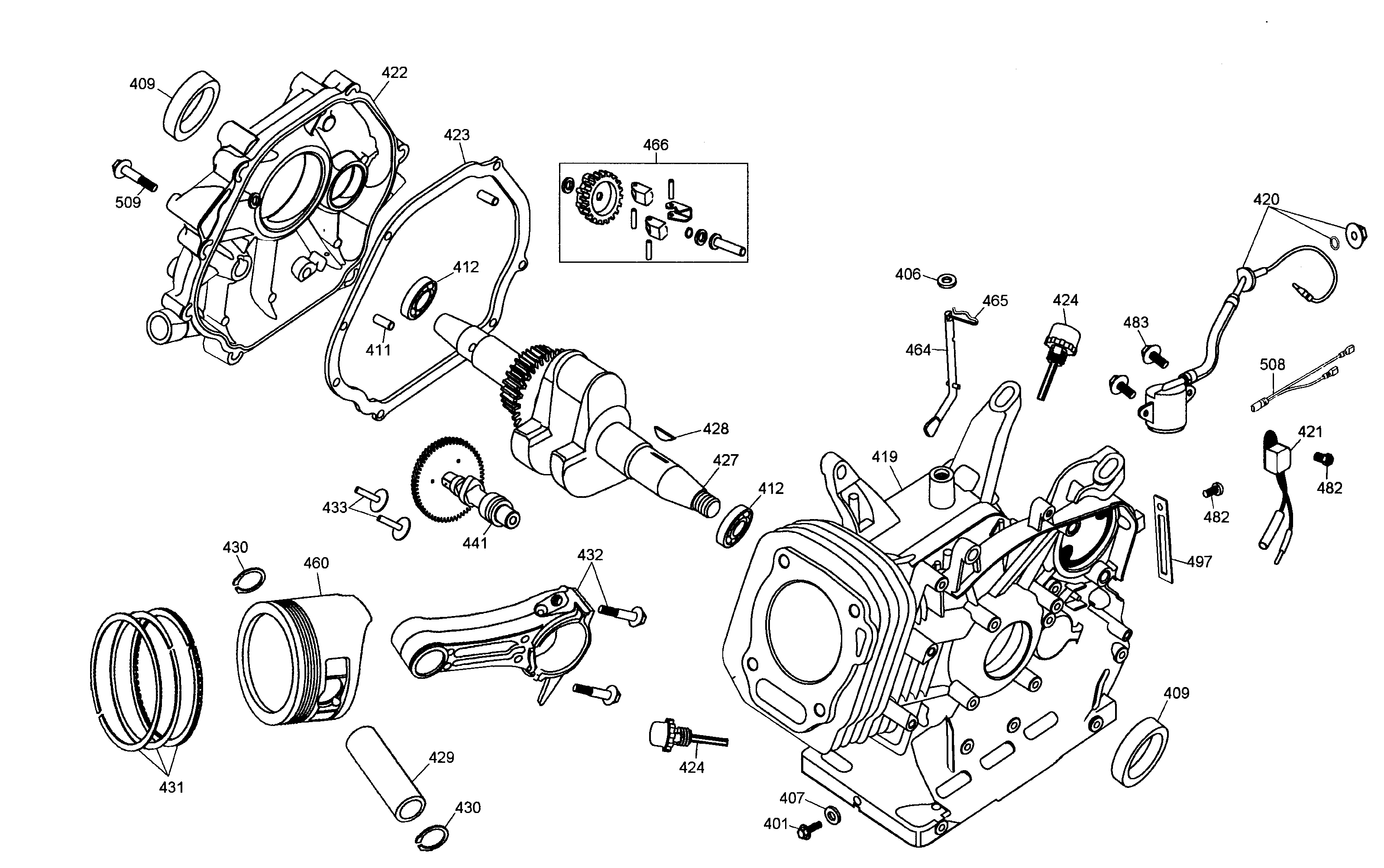

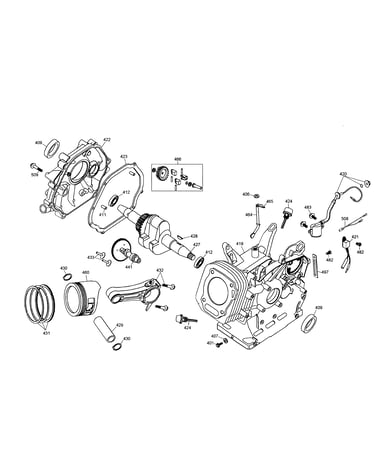

Crank case assy diagram

Dewalt gasket

Part #285814-45

The manufacturer no longer makes this part, and there's no substitute part

O-ring 285816-91
#539

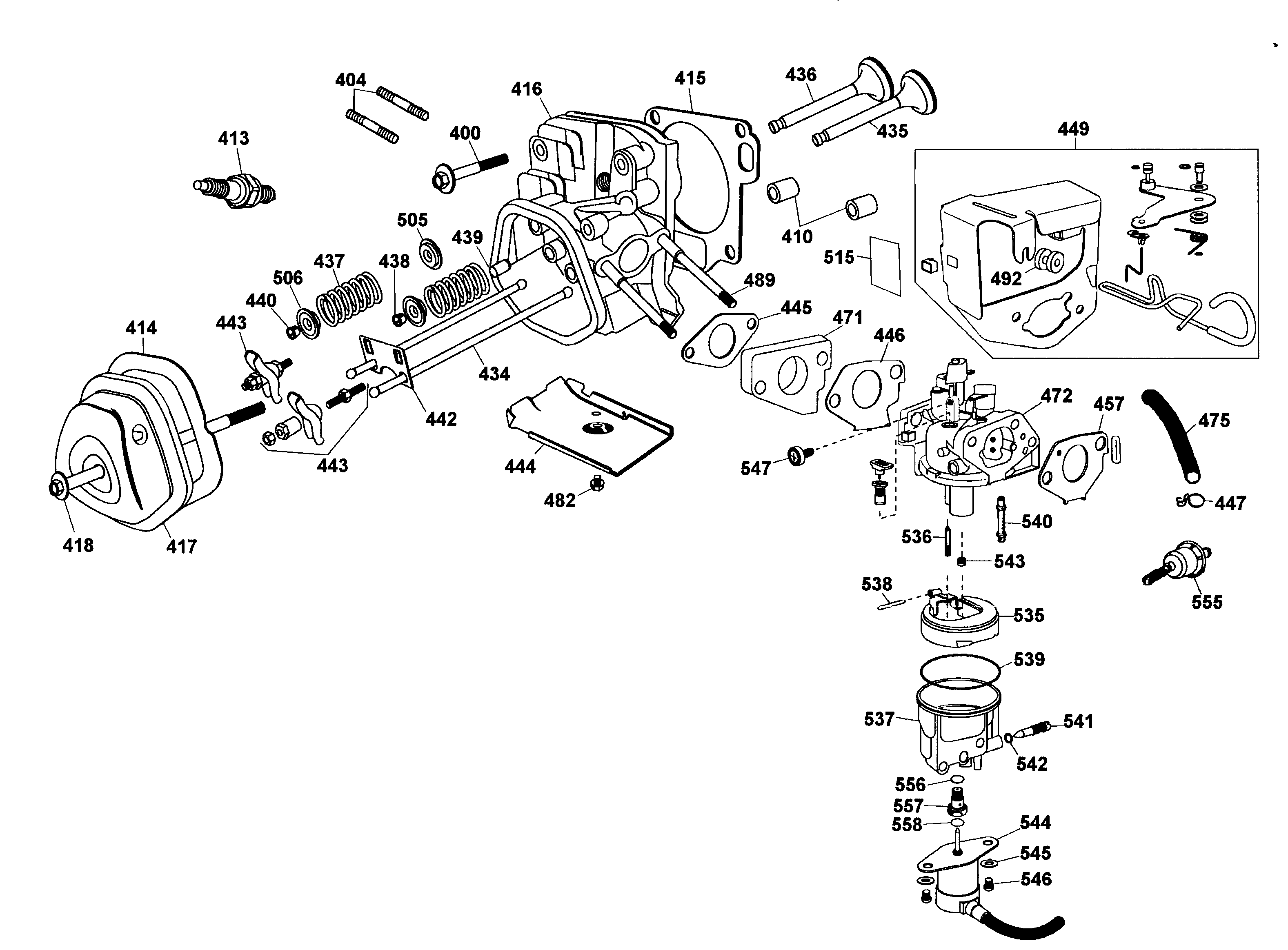

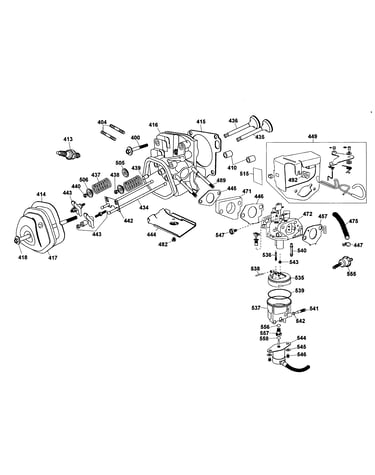

Carburetor diagram

O-ring

Part #285816-91

The manufacturer no longer makes this part, and there's no substitute part

Pulley 285816-80
#528

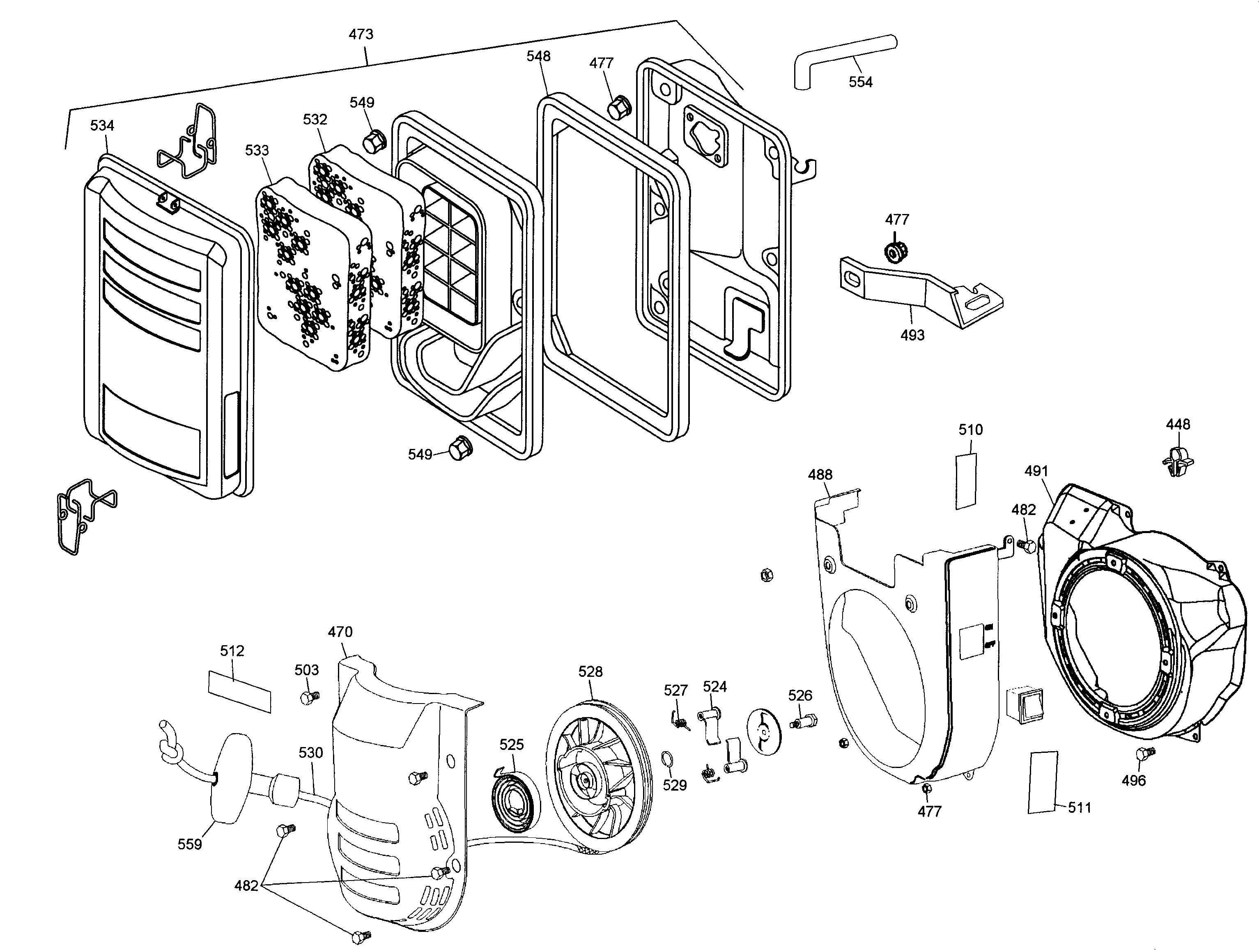

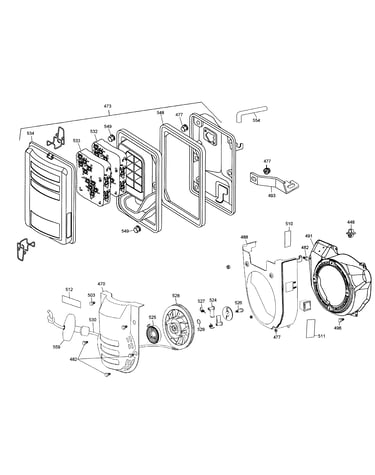

Filter/starter diagram

Pulley

Part #285816-80

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Flywheel 285815-21
#452

Ignition assy diagram

Dewalt flywheel

Part #285815-21

The manufacturer no longer makes this part, and there's no substitute part

Gauge 285816-35
#105

Frame assy diagram

Gauge

Part #285816-35

The manufacturer no longer makes this part, and there's no substitute part

Screw D26800
#502

Frame assy diagram

Screw

Part #D26800

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Label 285816-49
#510

Filter/starter diagram

Dewalt label

Part #285816-49

The manufacturer no longer makes this part, and there's no substitute part
