KitchenAid
Stand Mixer

Model # KB26G1XAC5 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid KB26G1XAC5 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

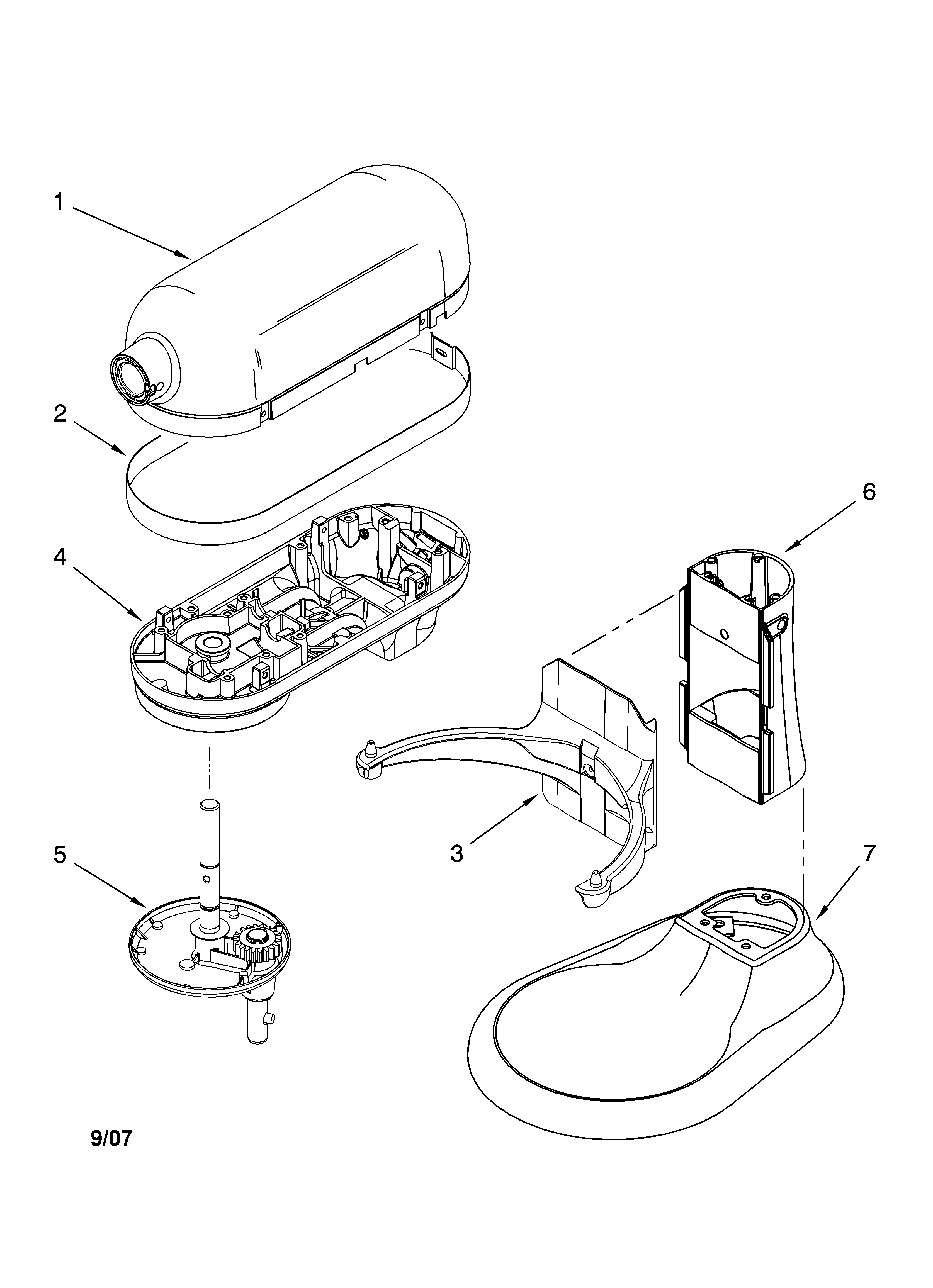

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Sensor 9703312
#24

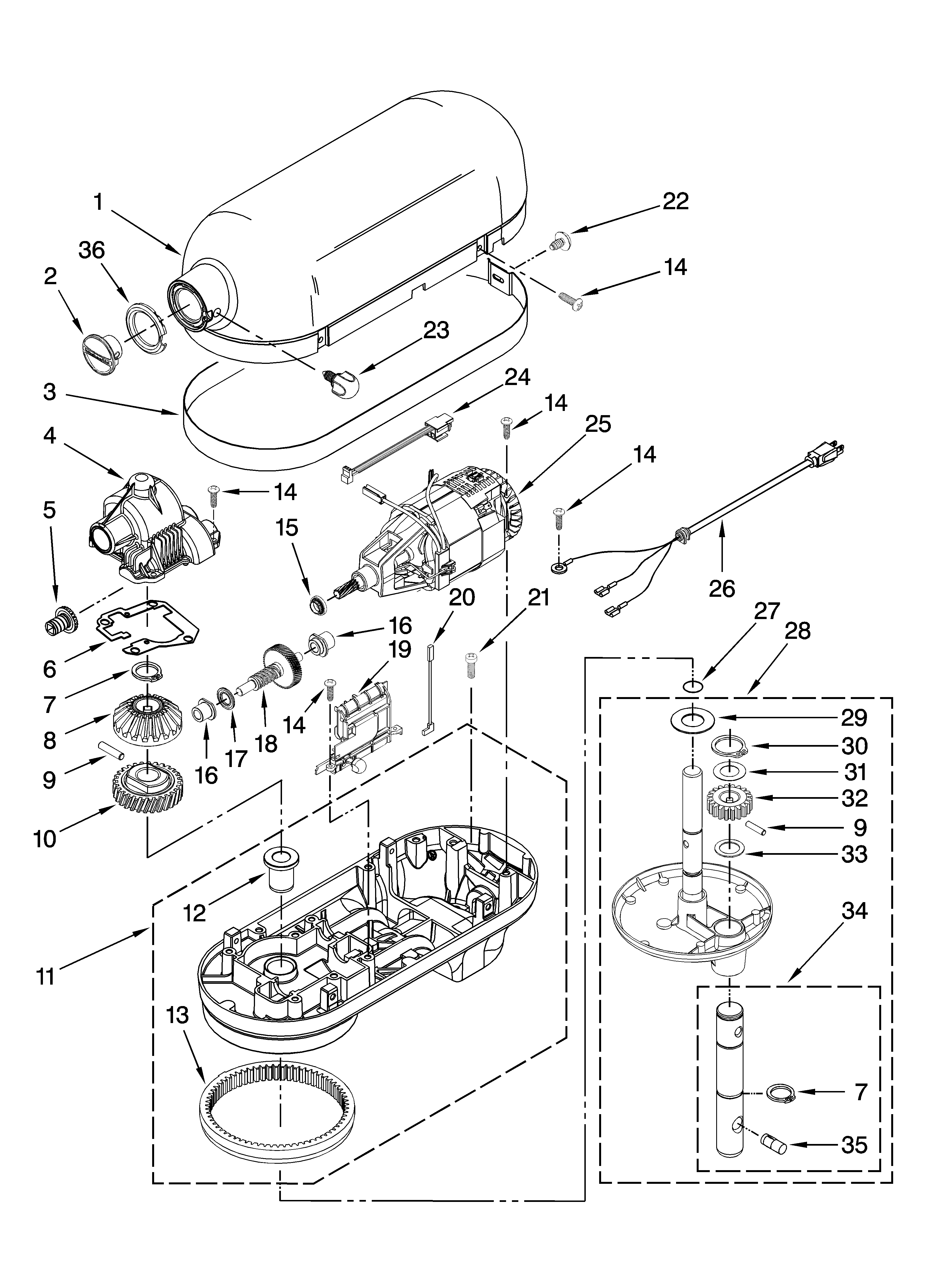

Case, gearing and planetary unit diagram

Sensor

Part #9703312

Replaced by #WP9706648

?
Manufacturer substitution
This part replaces 9703312. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$68.85 |
8% OFF Phone Price : $74.85
In Stock
Speed Control 9706650
#19B

Case, gearing and planetary unit diagram

Speed control

Part #9706650

Replaced by #WP9706648

?
Manufacturer substitution
This part replaces 9706650. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$68.85 |
8% OFF Phone Price : $74.85
In Stock
Mixer Control Assembly 9706649
#19A

Case, gearing and planetary unit diagram

Mixer control assembly

Part #9706649

Replaced by #WP9706648

?
Manufacturer substitution
This part replaces 9706649. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$68.85 |
8% OFF Phone Price : $74.85
In Stock
Stand Mixer Speed Control Board And Knob (black) 9706648
#19

Case, gearing and planetary unit diagram

Stand mixer speed control board and knob (black)

Part #9706648

Replaced by #WP9706648

?
Manufacturer substitution
This part replaces 9706648. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$68.85 |
8% OFF Phone Price : $74.85
In Stock
Stand Mixer Worm Follower Gear 9706529
#10

Case, gearing and planetary unit diagram

Stand mixer worm follower gear

Part #9706529

Replaced by #W11086780

?
Manufacturer substitution
This part replaces 9706529. Substitute parts can look different from the original.
$14.82 |
12% OFF Phone Price : $16.82
In Stock
Stand Mixer Worm Gear 9709231
#18

Case, gearing and planetary unit diagram

Stand mixer worm gear

Part #9709231

Replaced by #WP9709231

?
Manufacturer substitution
This part replaces 9709231. Substitute parts can look different from the original.
$40.77 |
13% OFF Phone Price : $46.77
In Stock
Lift Arm 9706885
#18

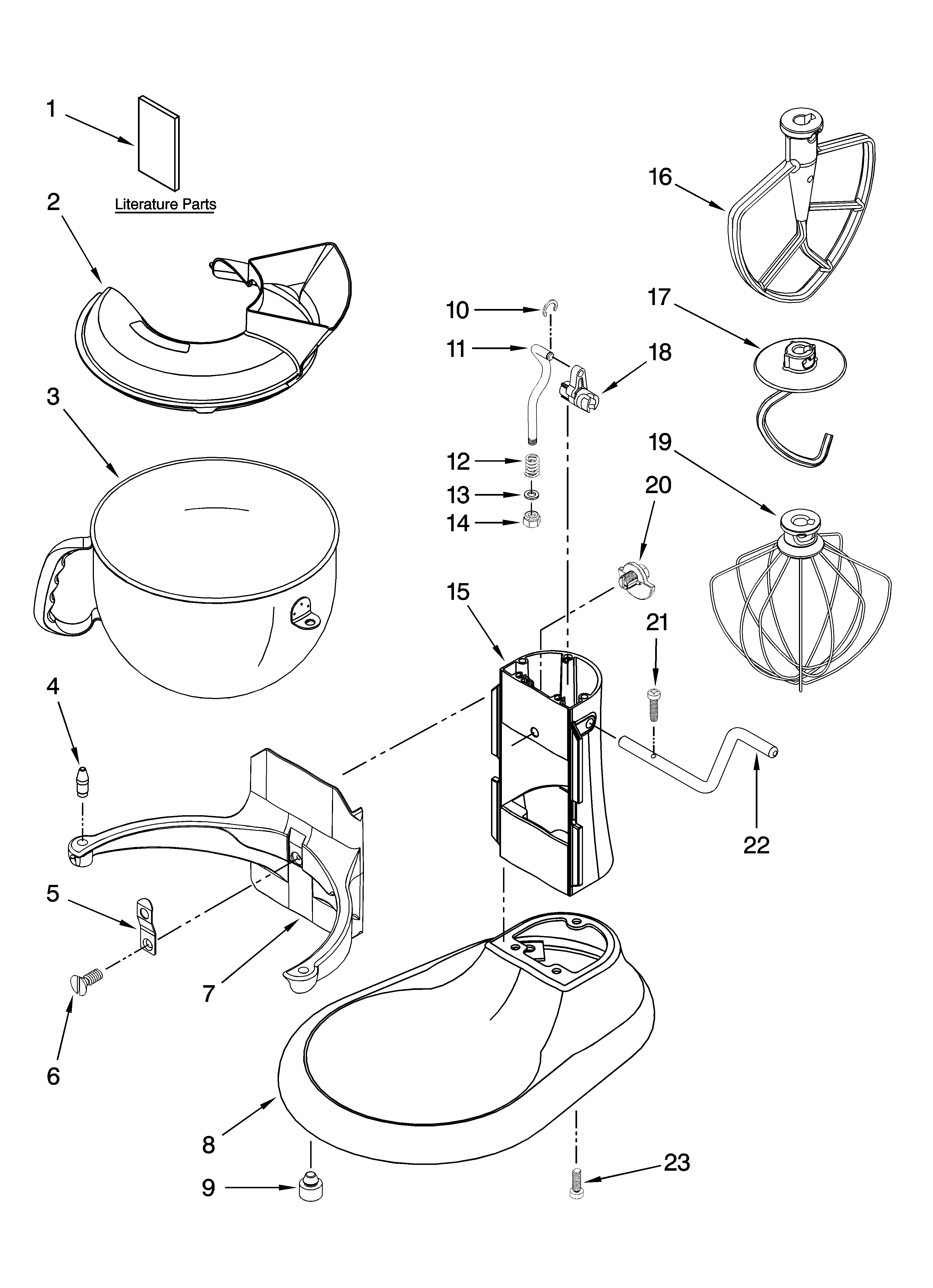

Base and pedestal unit, optional parts diagram

Lift arm

Part #9706885

Replaced by #WP9706885

?
Manufacturer substitution
This part replaces 9706885. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Gear 9703338
#5

Case, gearing and planetary unit diagram

Gear

Part #9703338

Replaced by #W11192795

?
Manufacturer substitution
This part replaces 9703338. Substitute parts can look different from the original.
This item is not returnable
$20.03 |
23% OFF Phone Price : $26.03
In Stock
Ring-o 67500-55
#27

Case, gearing and planetary unit diagram

Ring-o

Part #67500-55

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 67500-55. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Gear 9703337
#8

Case, gearing and planetary unit diagram

Gear

Part #9703337

Replaced by #W11192795

?
Manufacturer substitution
This part replaces 9703337. Substitute parts can look different from the original.
This item is not returnable
$20.03 |
23% OFF Phone Price : $26.03
In Stock
