Model # MTG16EYACRWH Official GE refrigerator - a series
Here are the diagrams and repair parts for Official GE MTG16EYACRWH refrigerator - a series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forMTG16EYACRWH Refrigerators
- #740

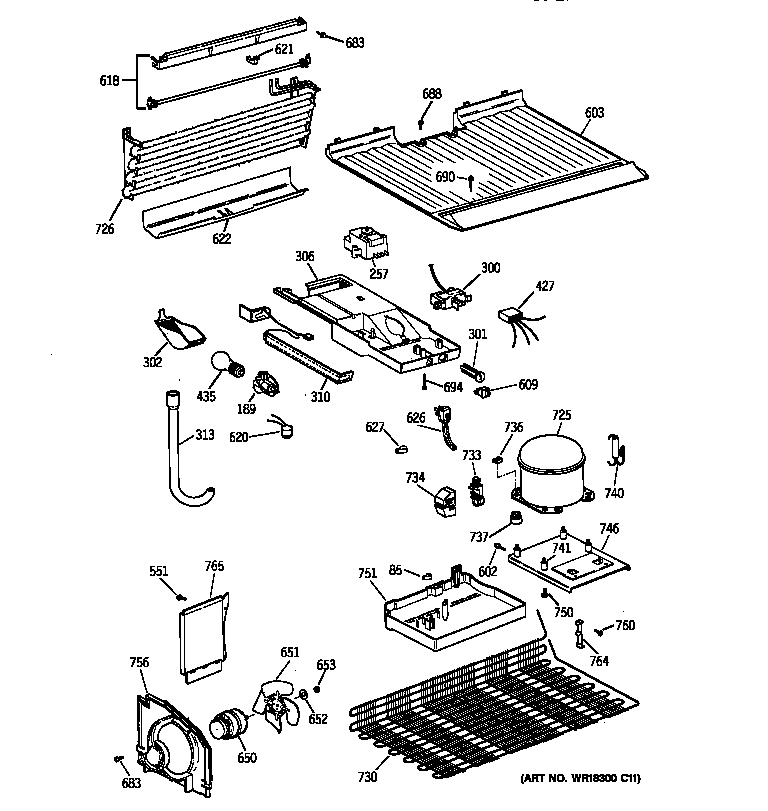

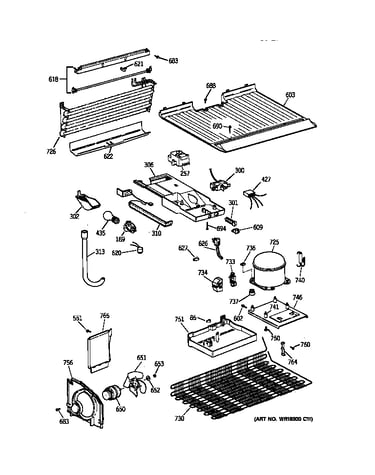

Unit parts diagram
Refrigerator filter dryerPart #WR86X96
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X96. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #242

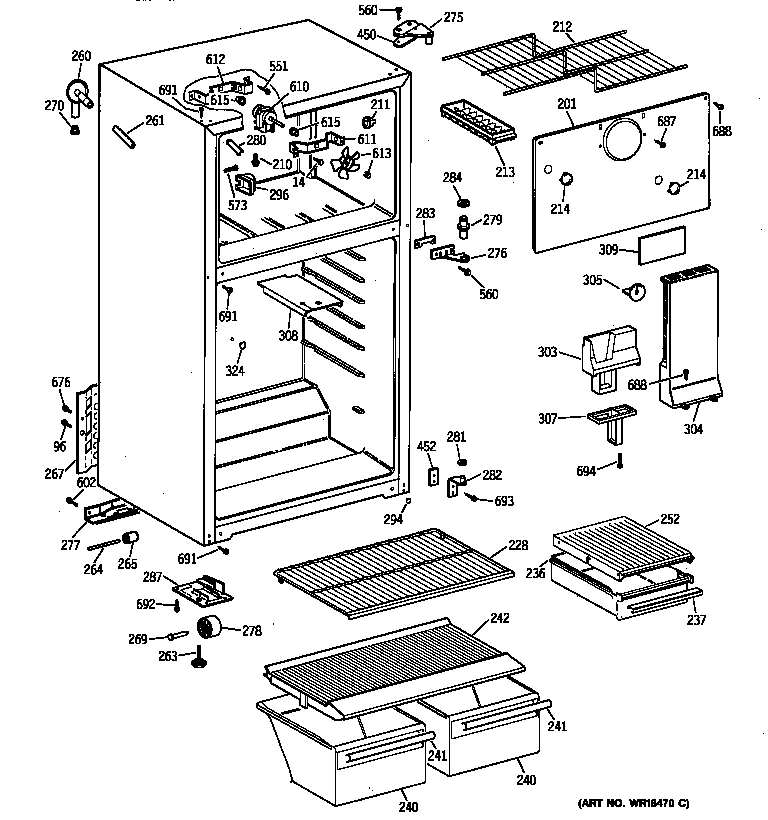

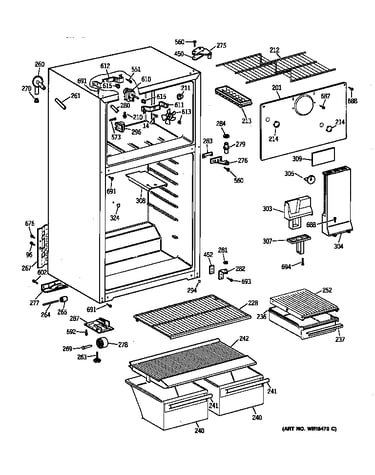

Cabinet diagram
Refrigerator pan coverPart #WR32X1094
Replaced by #WR32X10398
?Manufacturer substitutionThis part replaces WR32X1094. Substitute parts can look different from the original.$69.83 |8% OFF Phone Price : $75.83In Stock - #23

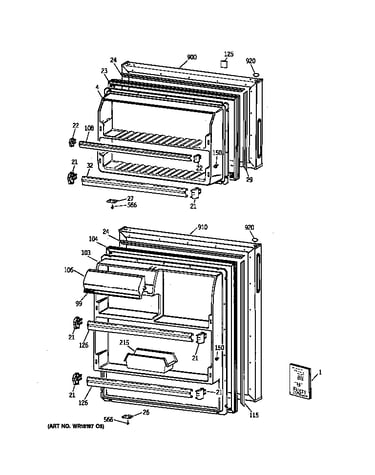

Doors diagram
Refrigerator freezer door gasket (white)Part #WR24X524
Replaced by #WR24X10228
?Manufacturer substitutionThis part replaces WR24X524. Substitute parts can look different from the original.$63.14 |9% OFF Phone Price : $69.14In Stock - #106
Doors diagram
Refrigerator dairy doorPart #WR22X503
Replaced by #WR22X10068
?Manufacturer substitutionThis part replaces WR22X503. Substitute parts can look different from the original.This item is not returnable$29.05 |17% OFF Phone Price : $35.05In Stock - #104
Doors diagram
Refrigerator gasketPart #WR24X486
Replaced by #WR24X10229
?Manufacturer substitutionThis part replaces WR24X486. Substitute parts can look different from the original.$67.55 |8% OFF Phone Price : $73.55In Stock - #21
Doors diagram
Refrigerator freezer door shelf railPart #WR2X8345
This item is not returnable$30.82 |16% OFF Phone Price : $36.82In Stock - #726
Unit parts diagram
Evap repl asPart #WR85X287
Replaced by #WR87X28948
?Manufacturer substitutionThis part replaces WR85X287. Substitute parts can look different from the original.$294.97In Stock - #240
Cabinet diagram
Vegetable twin panPart #WR32X1449
Replaced by #WR32X10340
?Manufacturer substitutionThis part replaces WR32X1449. Substitute parts can look different from the original.$73.41 |8% OFF Phone Price : $79.41In Stock - #260B
Cabinet diagram
Refrigerator grommetPart #WR2X9161
Replaced by #WR02X10967
?Manufacturer substitutionThis part replaces WR2X9161. Substitute parts can look different from the original.$24.93 |19% OFF Phone Price : $30.93In Stock - #236
Cabinet diagram
Refrigerator deli drawerPart #WR32X1448
$92.04 |6% OFF Phone Price : $98.04In Stock
