Model # H3432SRW Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick H3432SRW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

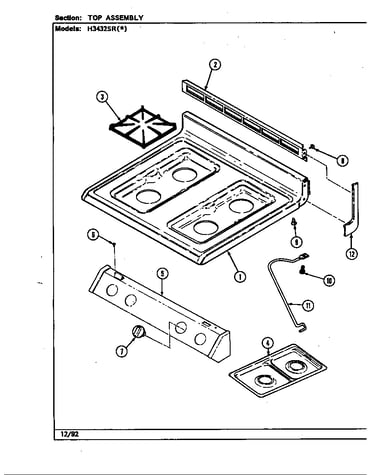

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Oven Igniter 7432P076-60
#9

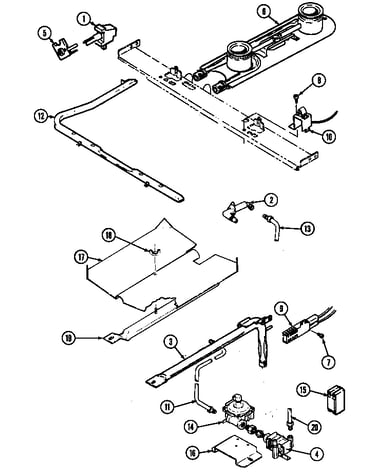

Gas controls diagram

Oven igniter

Part #7432P076-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
BEST SELLER
$40.08 |
13% OFF Phone Price : $46.08
In Stock
Door Gasket 7201P046-60
#7

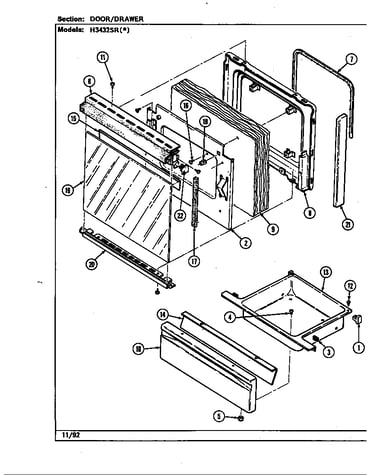

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Screw 7101P290-60
Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P103-60
#11

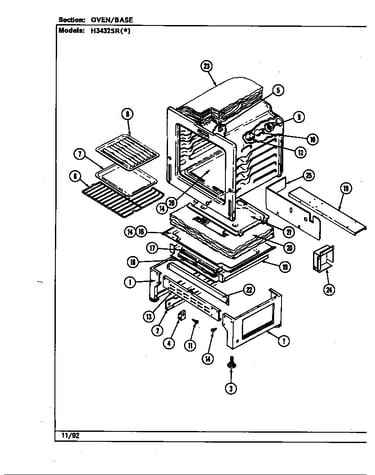

Oven/base diagram

Screw

Part #7101P103-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P103-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw, Housi 7118P015-60
Screw, housi

Part #7118P015-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7118P015-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Panel Screw 7101P041-60
#2

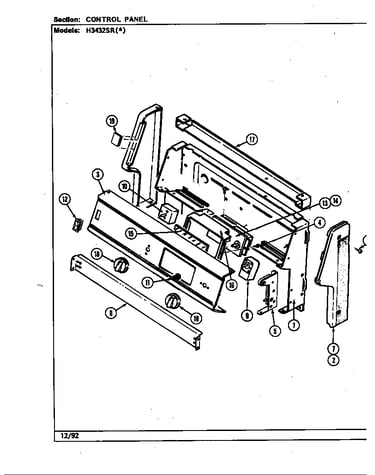

Control panel diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Hinge Screw 7101P017-60
#24

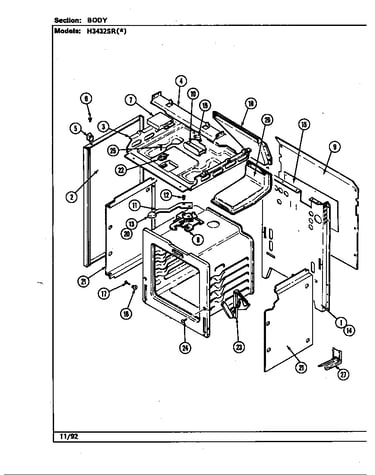

Body diagram

Hinge screw

Part #7101P017-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P017-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Rack 7801P036-60
#6

Oven/base diagram

Oven rack

Part #7801P036-60

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 7801P036-60. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Screw 7101P282-60
#7

Gas controls diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P115-60
#4

Door/drawer diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
