Gibson
Room Air Conditioner

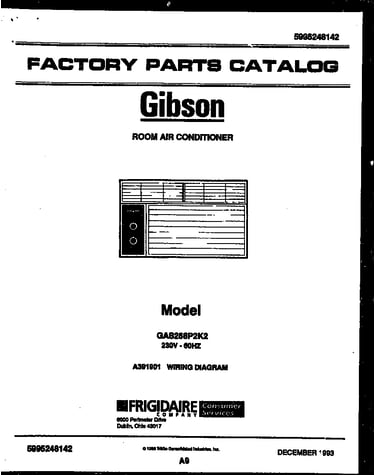

Model # GAS258P2K2 Official Gibson room air conditioner - 5995248142

Here are the diagrams and repair parts for Official Gibson GAS258P2K2 room air conditioner - 5995248142, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Universal/multiflex (frigidaire) Partition 5303295753
#19

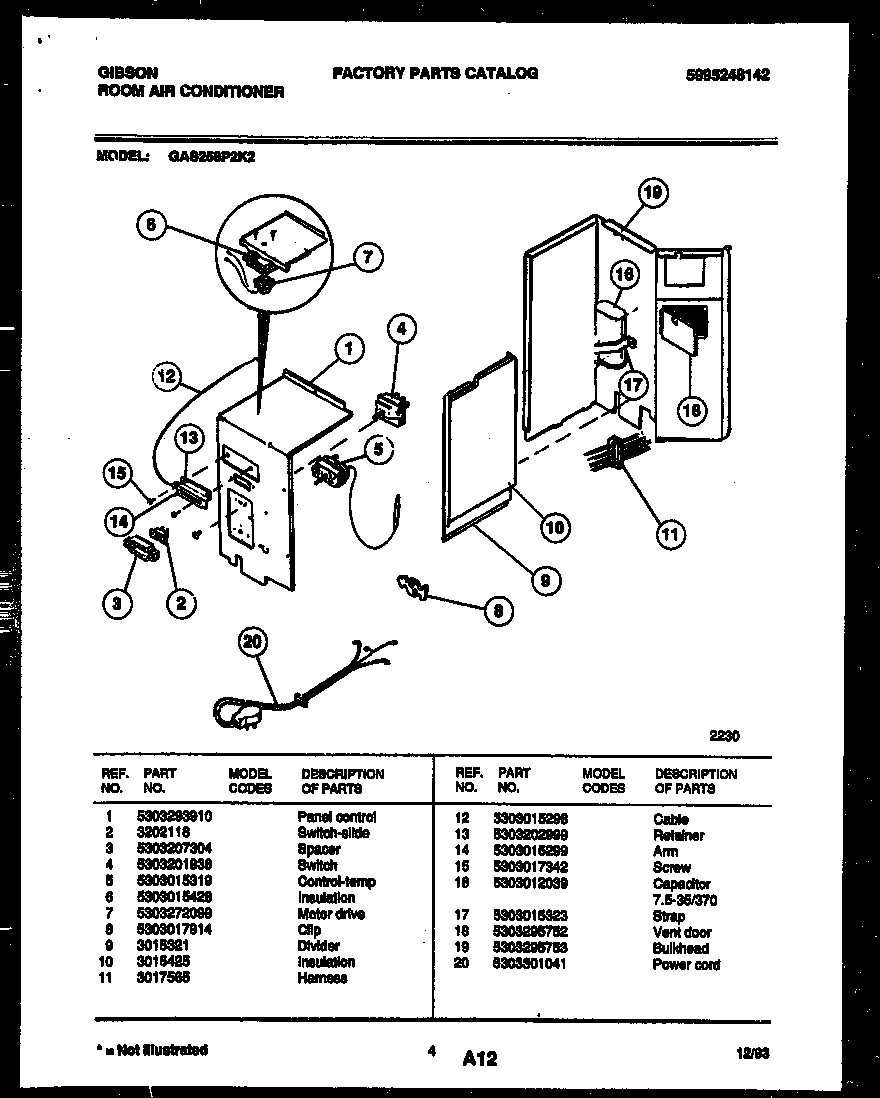

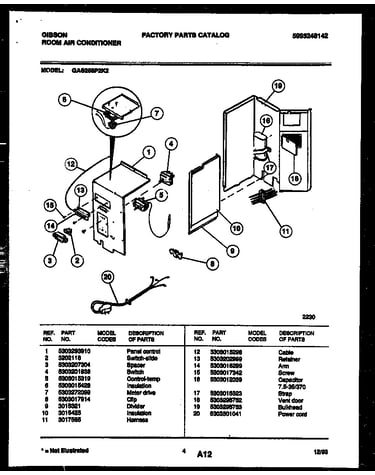

Electrical parts diagram

Universal/multiflex (frigidaire) partition

Part #5303295753

In Stock
Divider 3015321
#9

Electrical parts diagram

Divider

Part #3015321

This item is not returnable
In Stock
Seal-top Rai 5303302764
#5

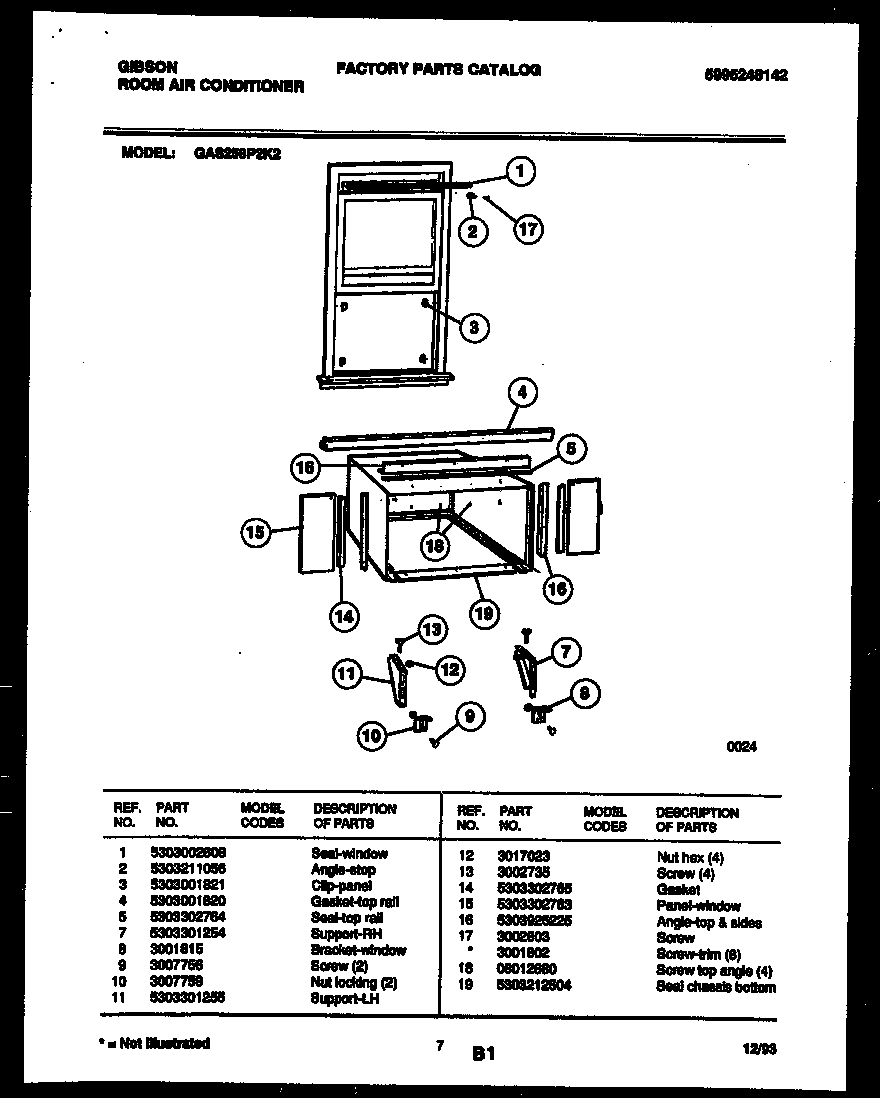

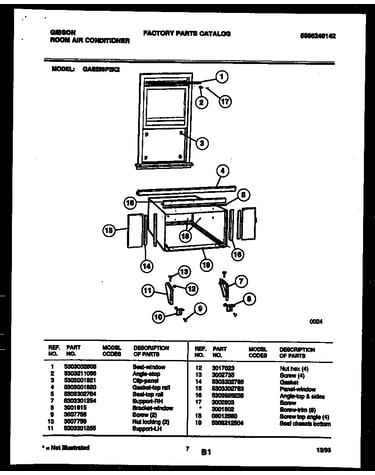

Cabinet and installation parts diagram

Seal-top rai

Part #5303302764

In Stock
Gasket Panel 5303302765
#14

Cabinet and installation parts diagram

Gasket panel

Part #5303302765

This item is not returnable
In Stock
Kelvinator Screw 3001802
#17A

Cabinet and installation parts diagram

Kelvinator screw

Part #3001802

This item is not returnable
In Stock
Motor 5303272099
#7

Electrical parts diagram

Motor

Part #5303272099

In Stock
Motor 5303017557
#1

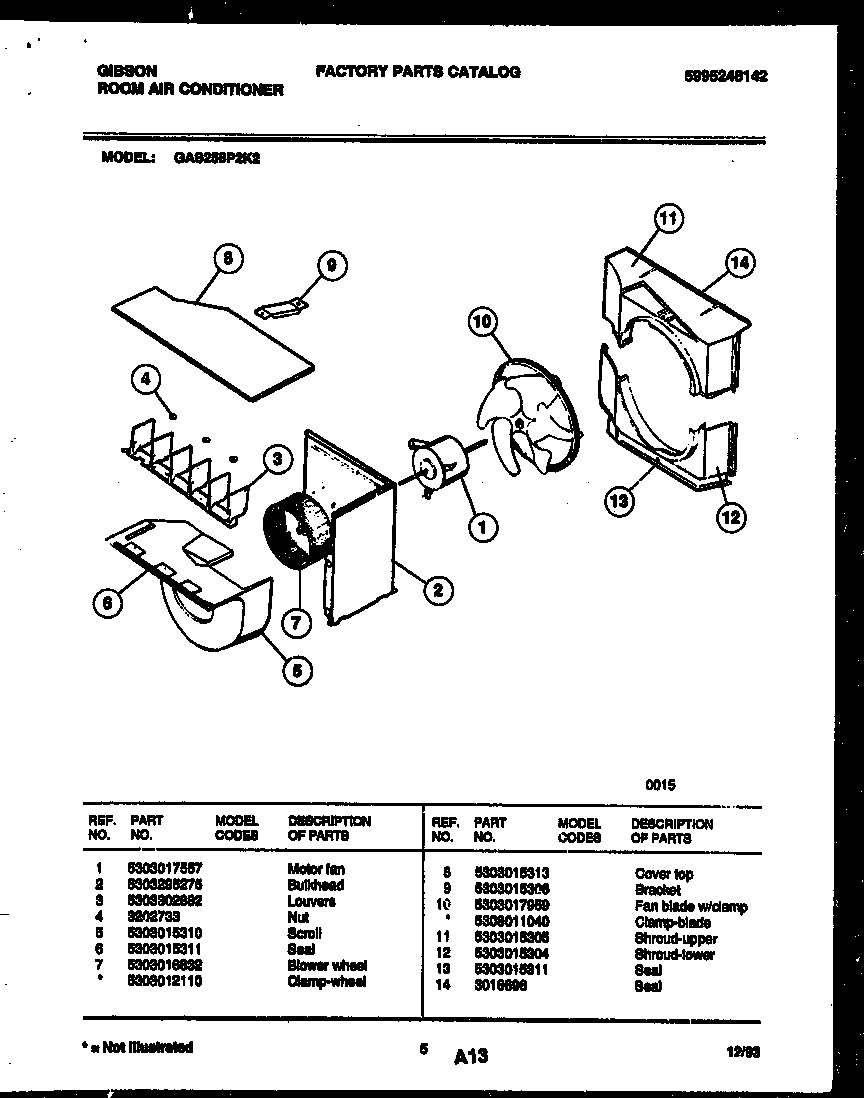

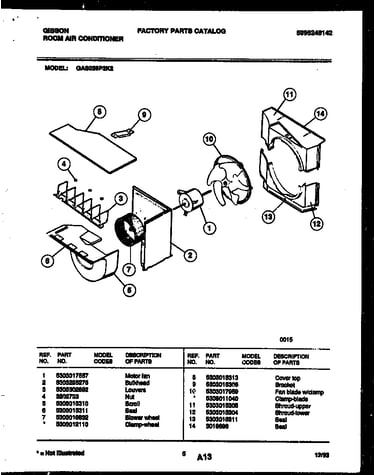

Air handling parts diagram

Motor

Part #5303017557

Replaced by #309630608

?
Manufacturer substitution
This part replaces 5303017557. Substitute parts can look different from the original.
In Stock
Gasket 5303001820
#4

Cabinet and installation parts diagram

Gasket

Part #5303001820

Replaced by #5303302764

?
Manufacturer substitution
This part replaces 5303001820. Substitute parts can look different from the original.
In Stock
Nut-hex 3017023
#12

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
In Stock
Insulation 3015425
#10

Electrical parts diagram

Insulation

Part #3015425

The manufacturer no longer makes this part, and there's no substitute part
