Model # AOGD2750SS-P113253NSS Official Amana gas wall oven

Here are the diagrams and repair parts for Official Amana AOGD2750SS-P113253NSS gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

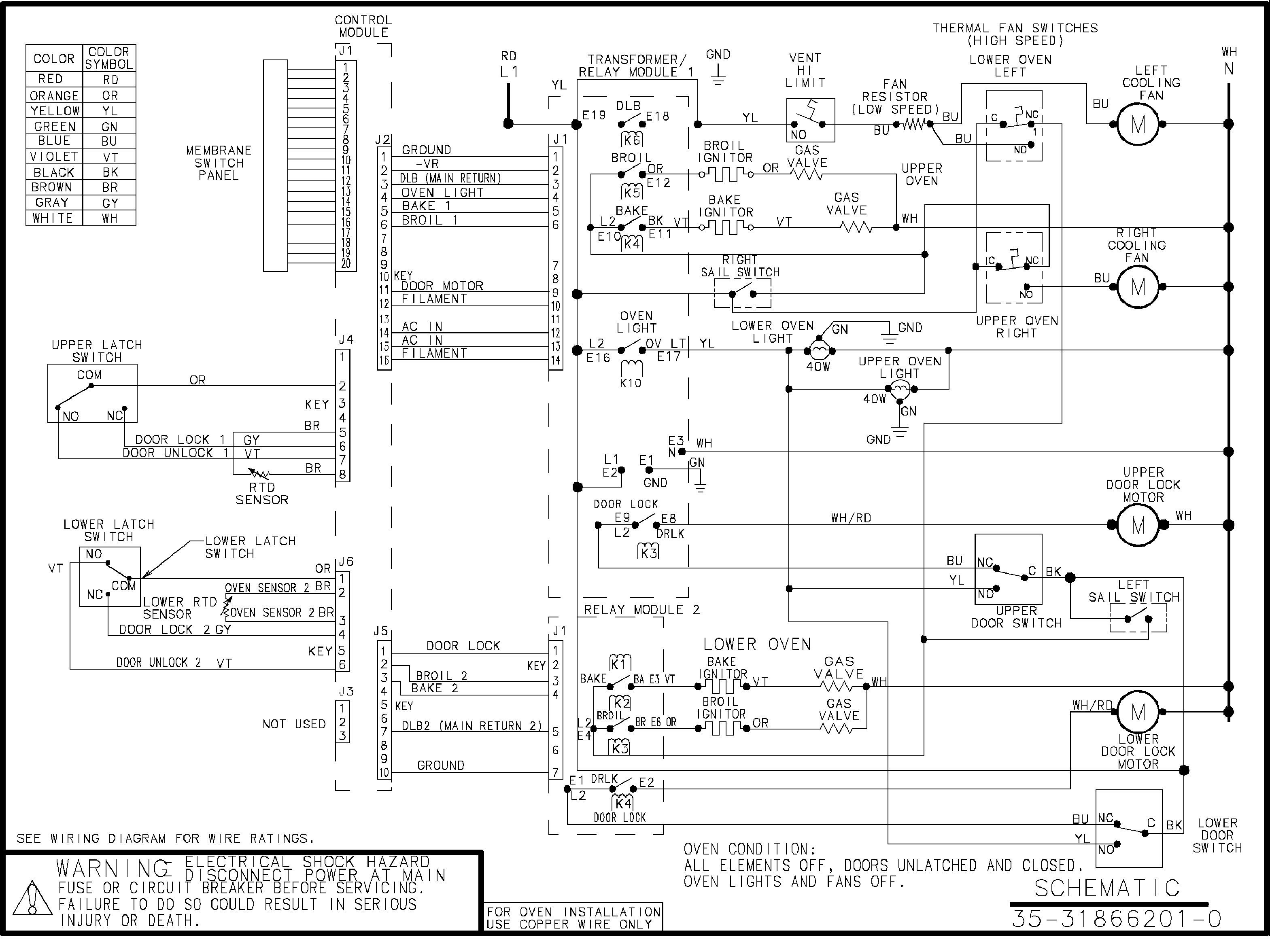

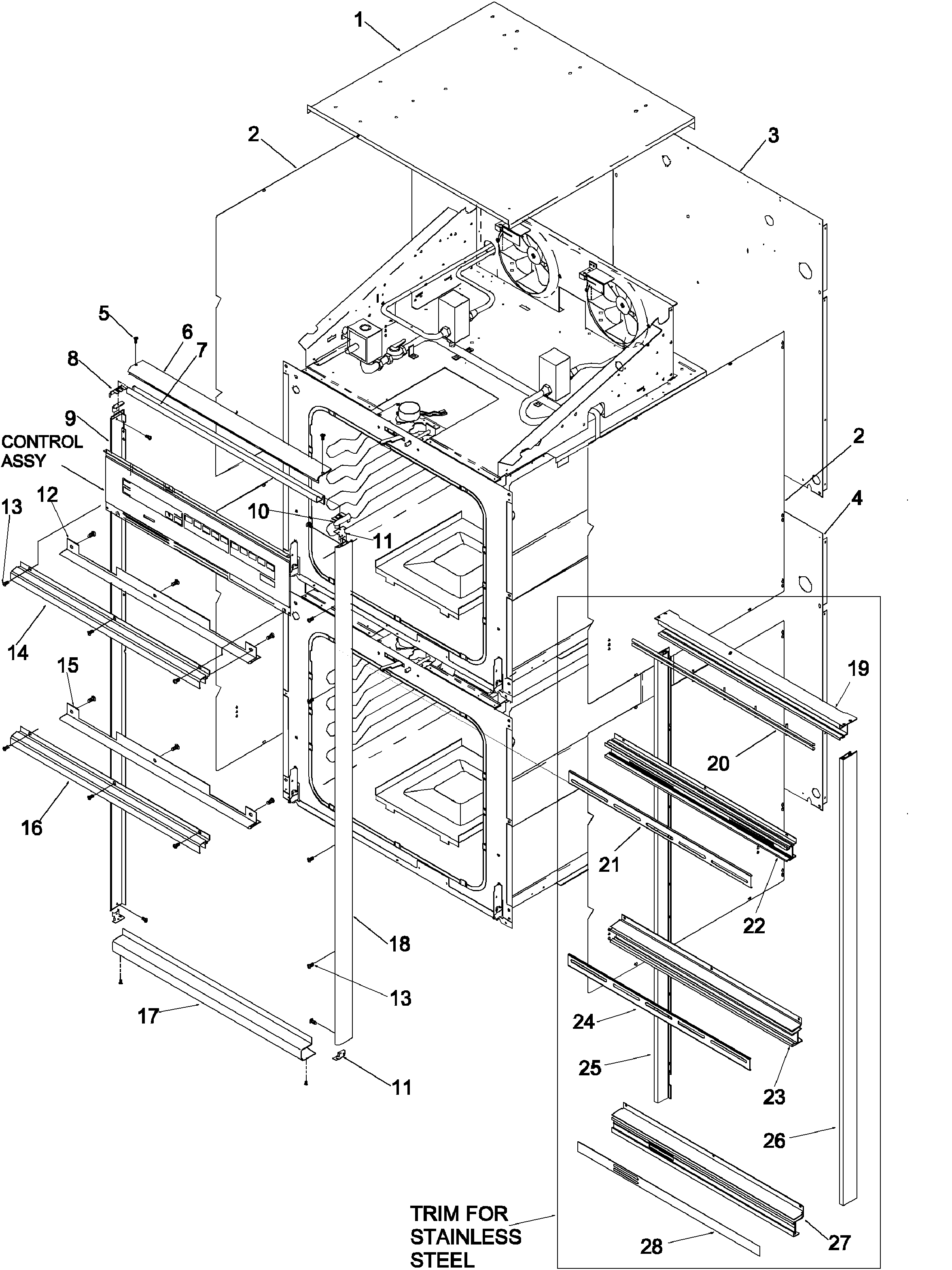

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Lamp 0042175
#28

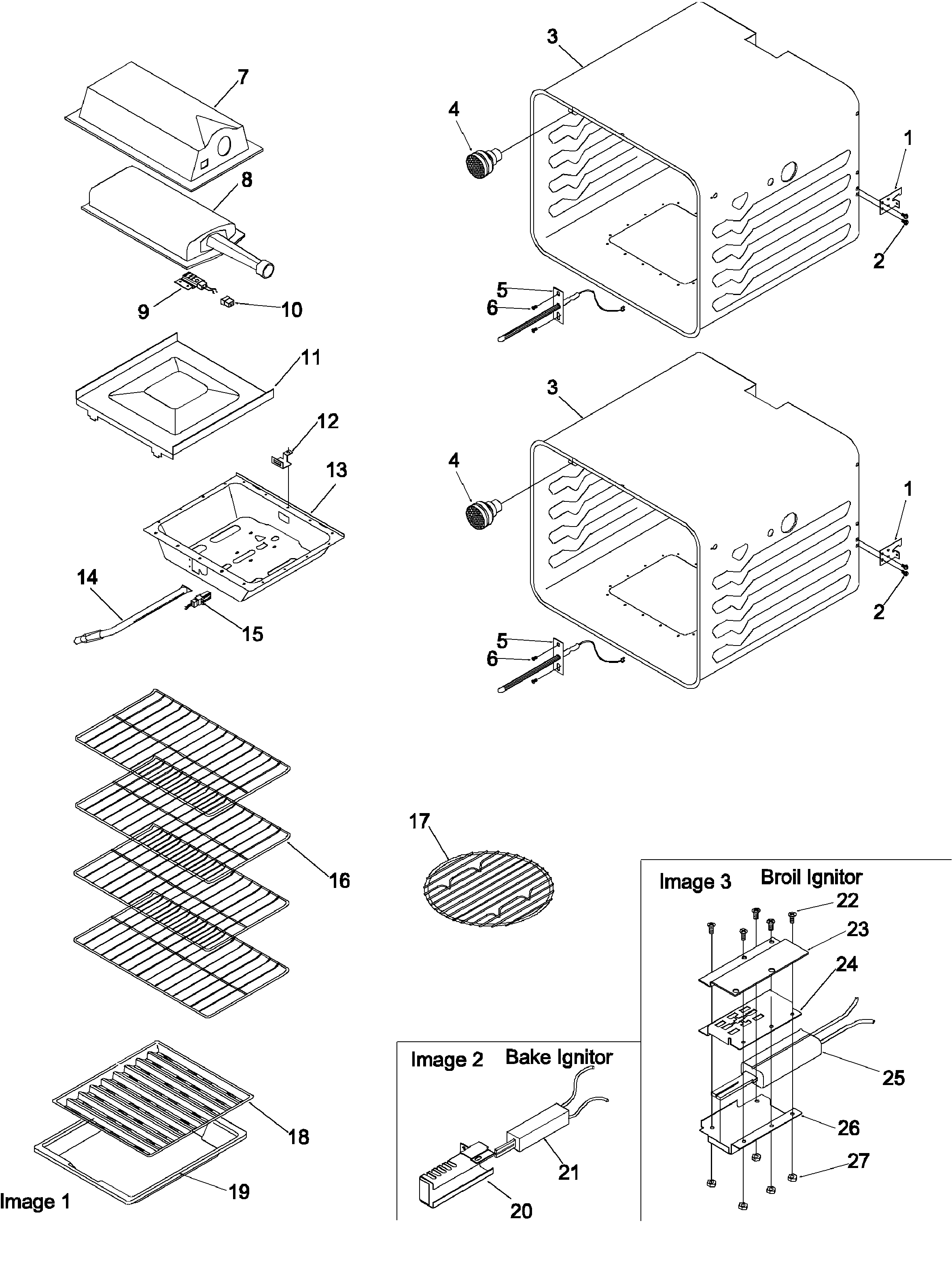

Cavity diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 31750432
Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Oven Light 0314842
#4

Cavity diagram

Oven light

Part #0314842

The manufacturer no longer makes this part, and there's no substitute part

"grid, Broile" 304451CG
#18

Cavity diagram

"grid, broile"

Part #304451CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 314175CG
#19

Cavity diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw 31750410
#36

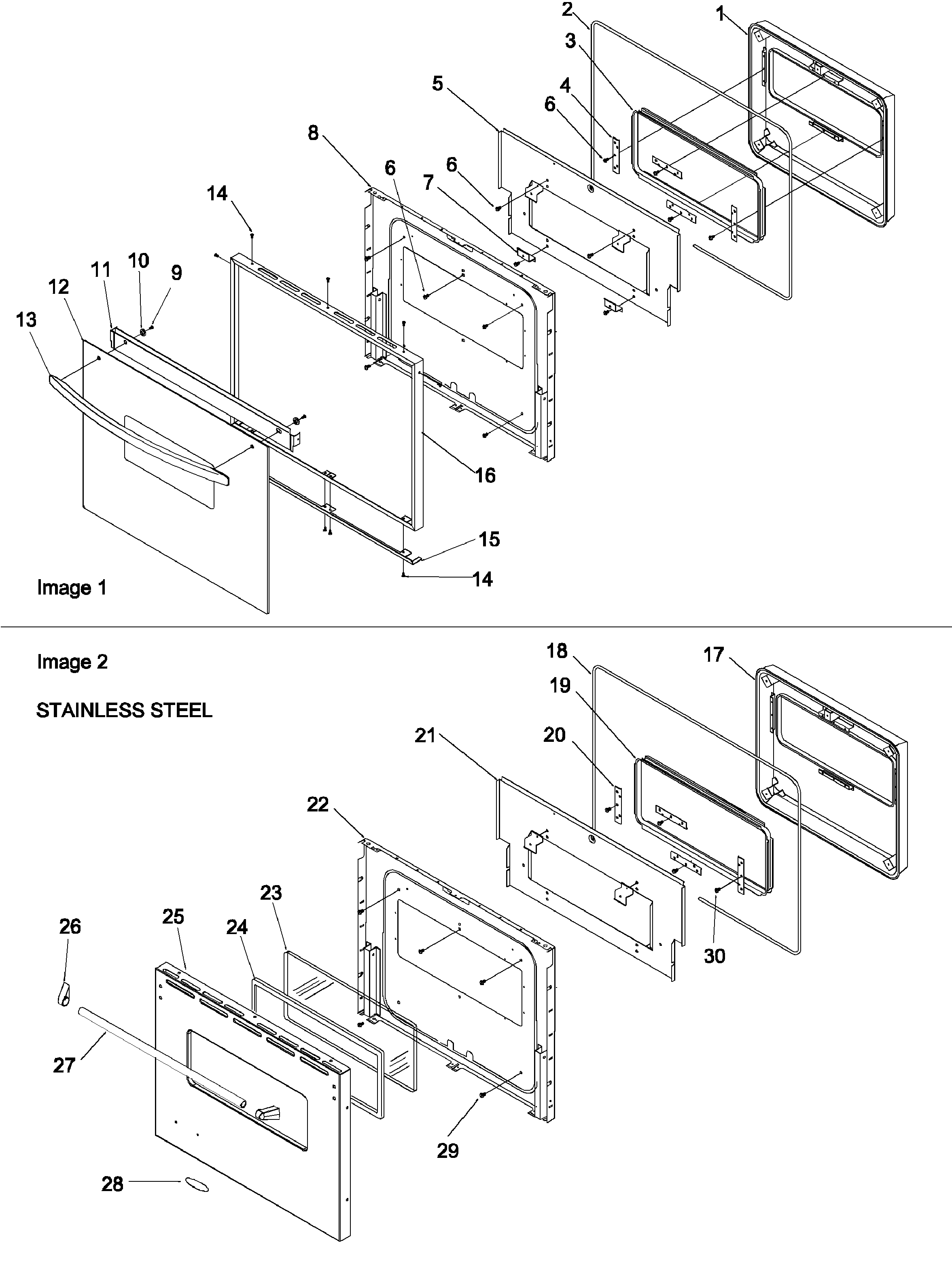

Oven door diagram

Screw

Part #31750410

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750410. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw, #10-2 31750509
#31

Oven door diagram

Screw, #10-2

Part #31750509

Replaced by #707407

?
Manufacturer substitution
This part replaces 31750509. Substitute parts can look different from the original.
This item is not returnable
$5.09
In Stock
Shield Nut 31750113
#27

Cavity diagram

Shield nut

Part #31750113

Replaced by #M0282005

?
Manufacturer substitution
This part replaces 31750113. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Nut 31750119
#2

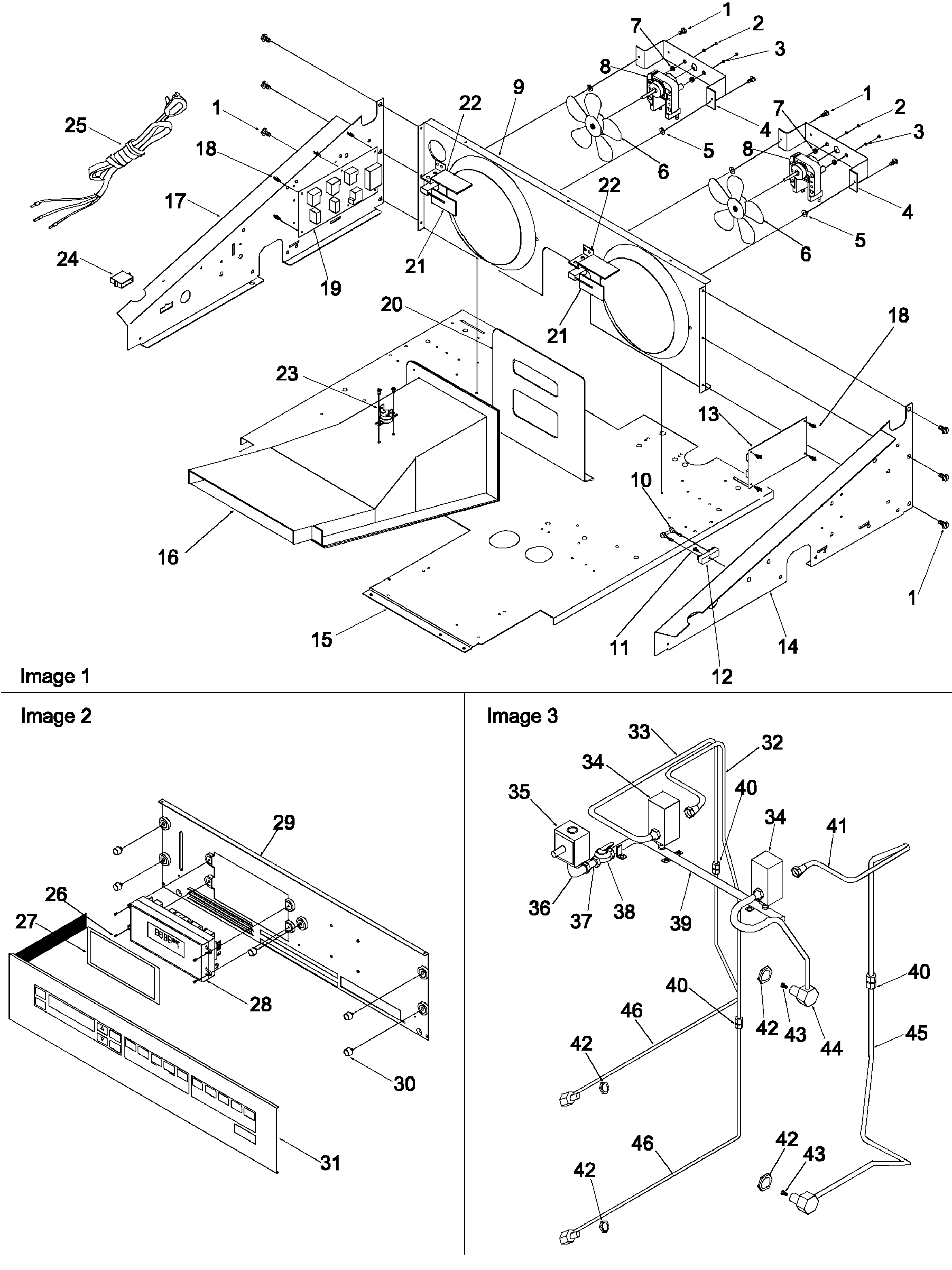

Control compartment, panel & gas supply diagram

Nut

Part #31750119

Replaced by #M0282005

?
Manufacturer substitution
This part replaces 31750119. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Switch 31899201
#40

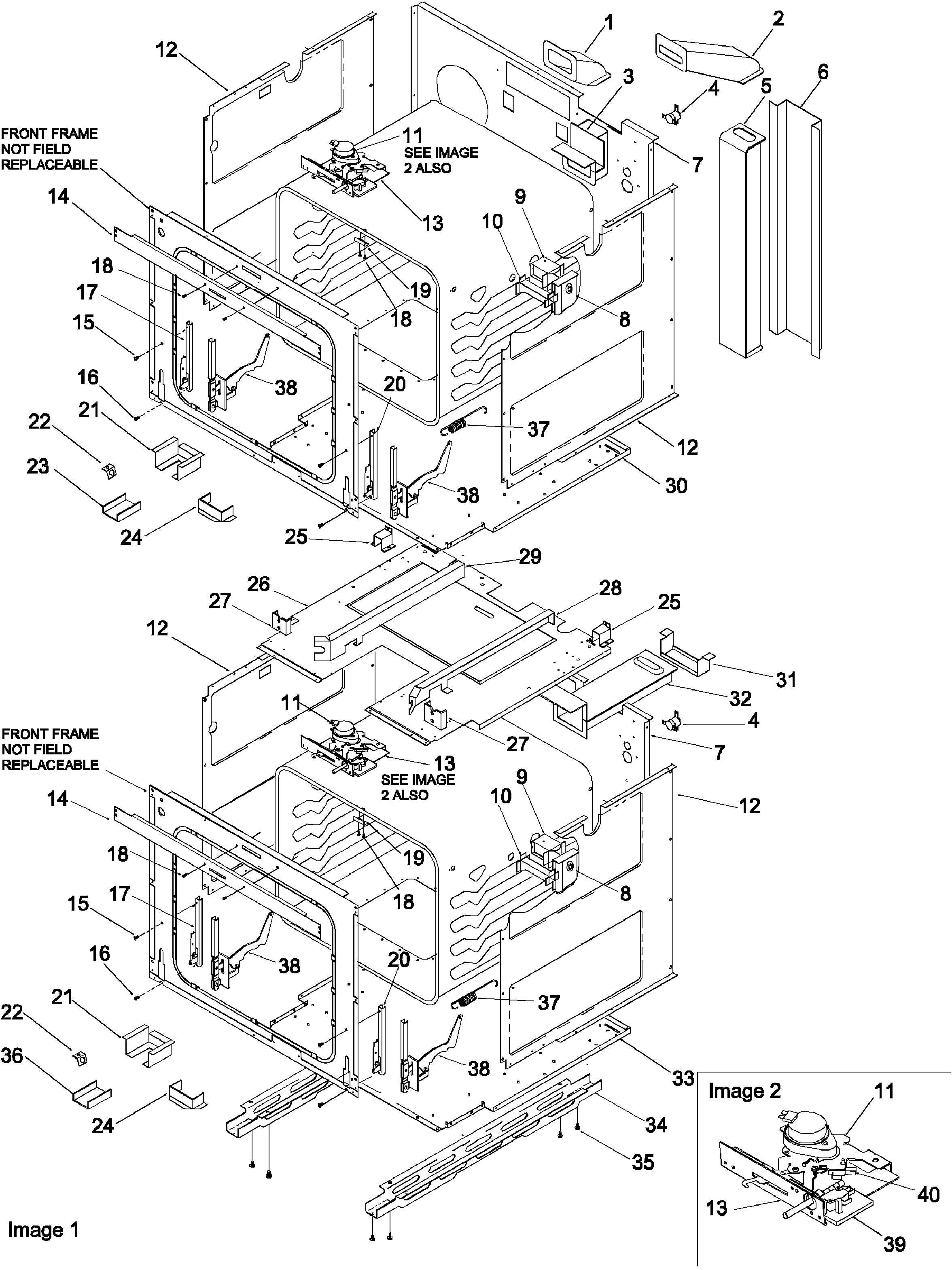

Main front diagram

Switch

Part #31899201

Replaced by #W10915404

?
Manufacturer substitution
This part replaces 31899201. Substitute parts can look different from the original.
This item is not returnable
$13.09 |
13% OFF Phone Price : $15.09
In Stock
