Hotpoint
Electric Range

Model # RB536GW2 Official Hotpoint electric range

Here are the diagrams and repair parts for Official Hotpoint RB536GW2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

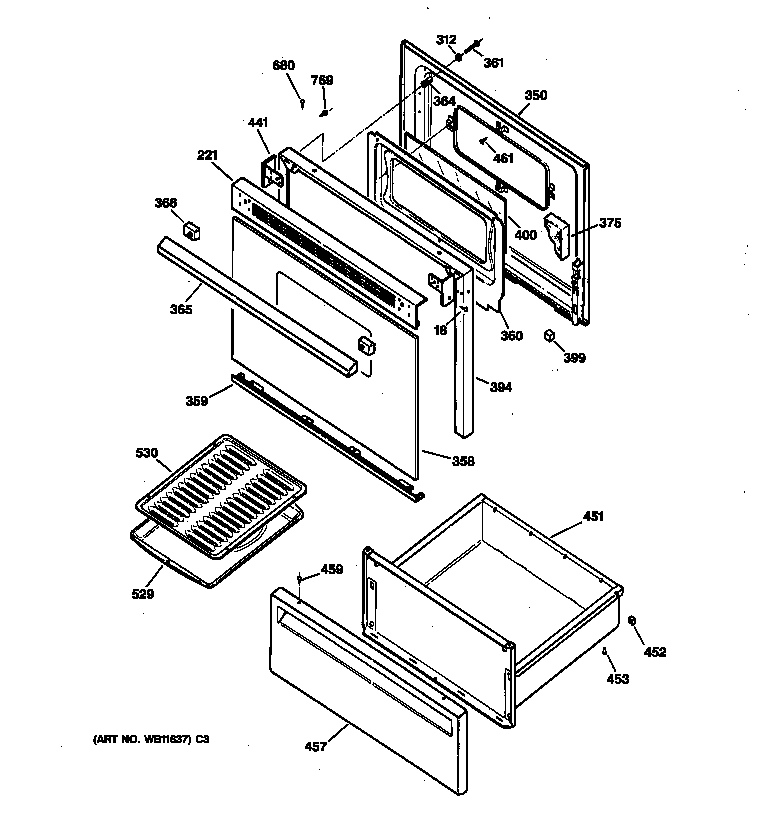

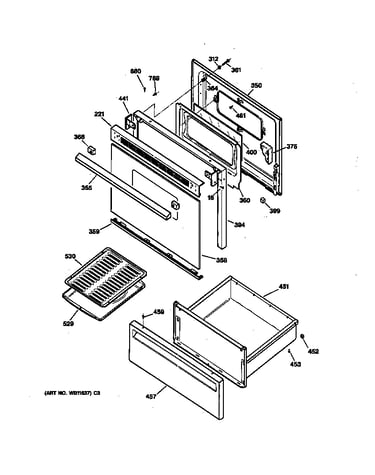

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Range Oven Light Bulb WX12X1510
#1024

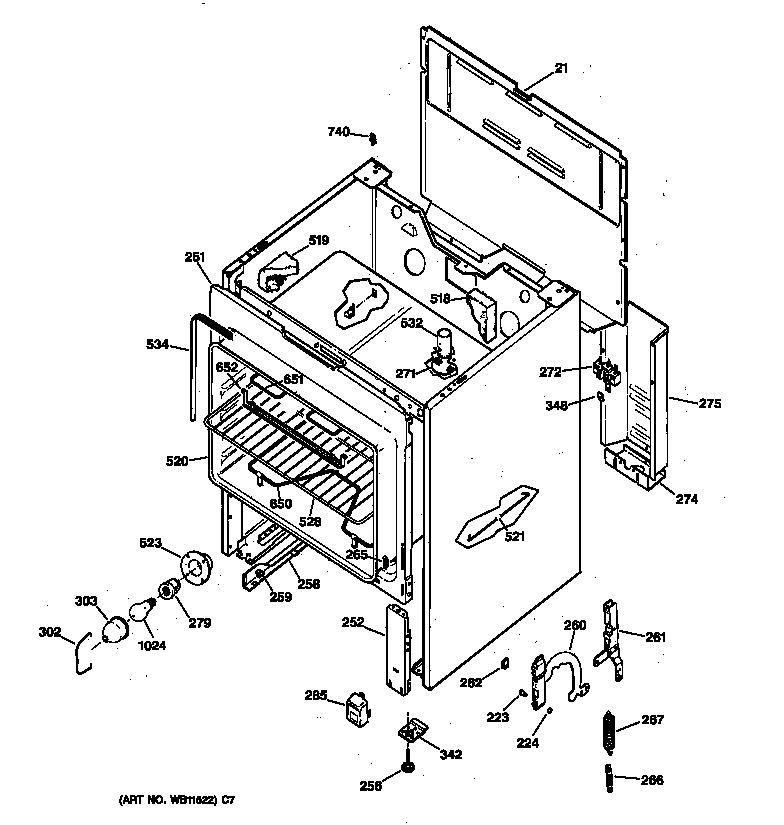

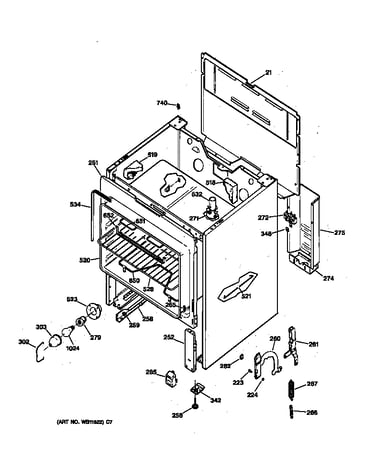

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Infinite Control Switch WB32X5095
#3B

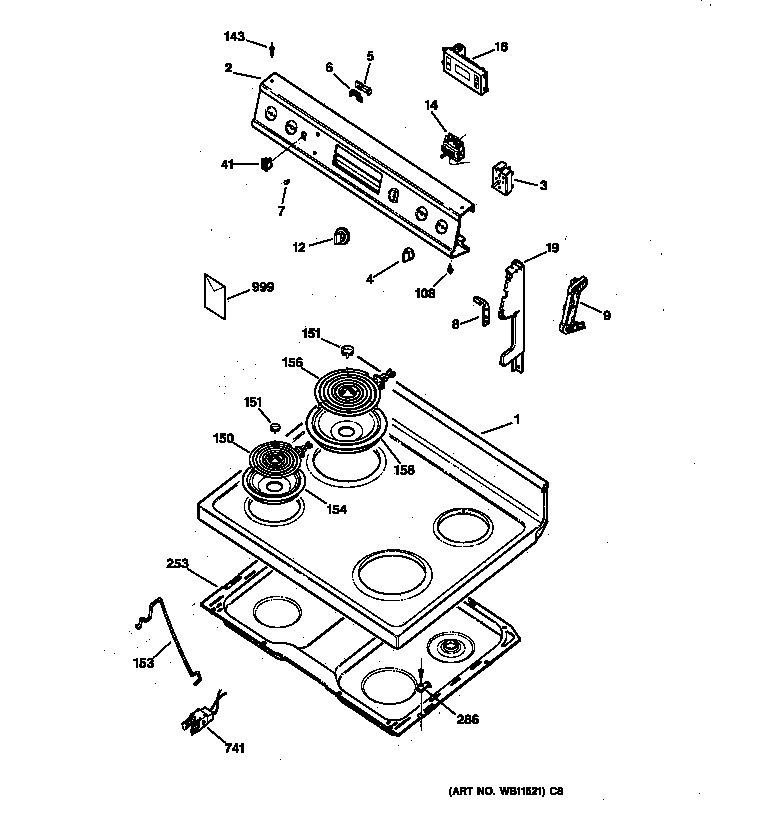

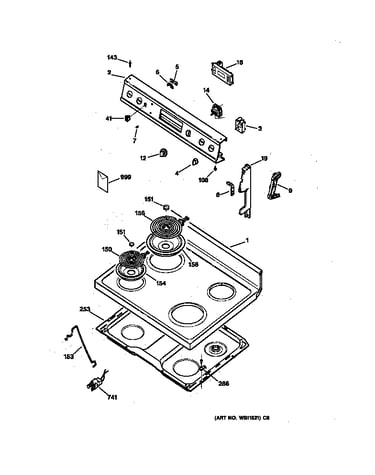

Cooktop diagram

Infinite control switch

Part #WB32X5095

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB32X5095. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Infinite Control Switch WB23X5092
#3A

Cooktop diagram

Infinite control switch

Part #WB23X5092

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB23X5092. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Bake Unit WB44X10003
#650

Body parts diagram

Bake unit

Part #WB44X10003

Replaced by #WB44X5082

?
Manufacturer substitution
This part replaces WB44X10003. Substitute parts can look different from the original.
BEST SELLER
$47.68 |
11% OFF Phone Price : $53.68
In Stock
8" Surf Elem WB30X5120
#156

Cooktop diagram

8" surf elem

Part #WB30X5120

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5120. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Range Drip Pan WB32X5076
#158

Cooktop diagram

Range drip pan

Part #WB32X5076

Replaced by #WB31K10266

?
Manufacturer substitution
This part replaces WB32X5076. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Drip Pan WB32X5075
#154

Cooktop diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Receptacle WB8X5095
#279

Body parts diagram

Receptacle

Part #WB8X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB8X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Broil Element (replaces Wb44x0173, Wb44x149, Wb44x150, Wb44x167, Wb44x168, Wb44x174, Wb44x185) WB44X173
#651

Body parts diagram

Range broil element (replaces wb44x0173, wb44x149, wb44x150, wb44x167, wb44x168, wb44x174, wb44x185)

Part #WB44X173

$27.42 |
18% OFF Phone Price : $33.42
In Stock
6"p.i. S/u WB30X5129
#150

Cooktop diagram

6"p.i. s/u

Part #WB30X5129

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5129. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
