Model # 24ANA760A0030020 Official Carrier air conditioner
Here are the diagrams and repair parts for Official Carrier 24ANA760A0030020 air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic

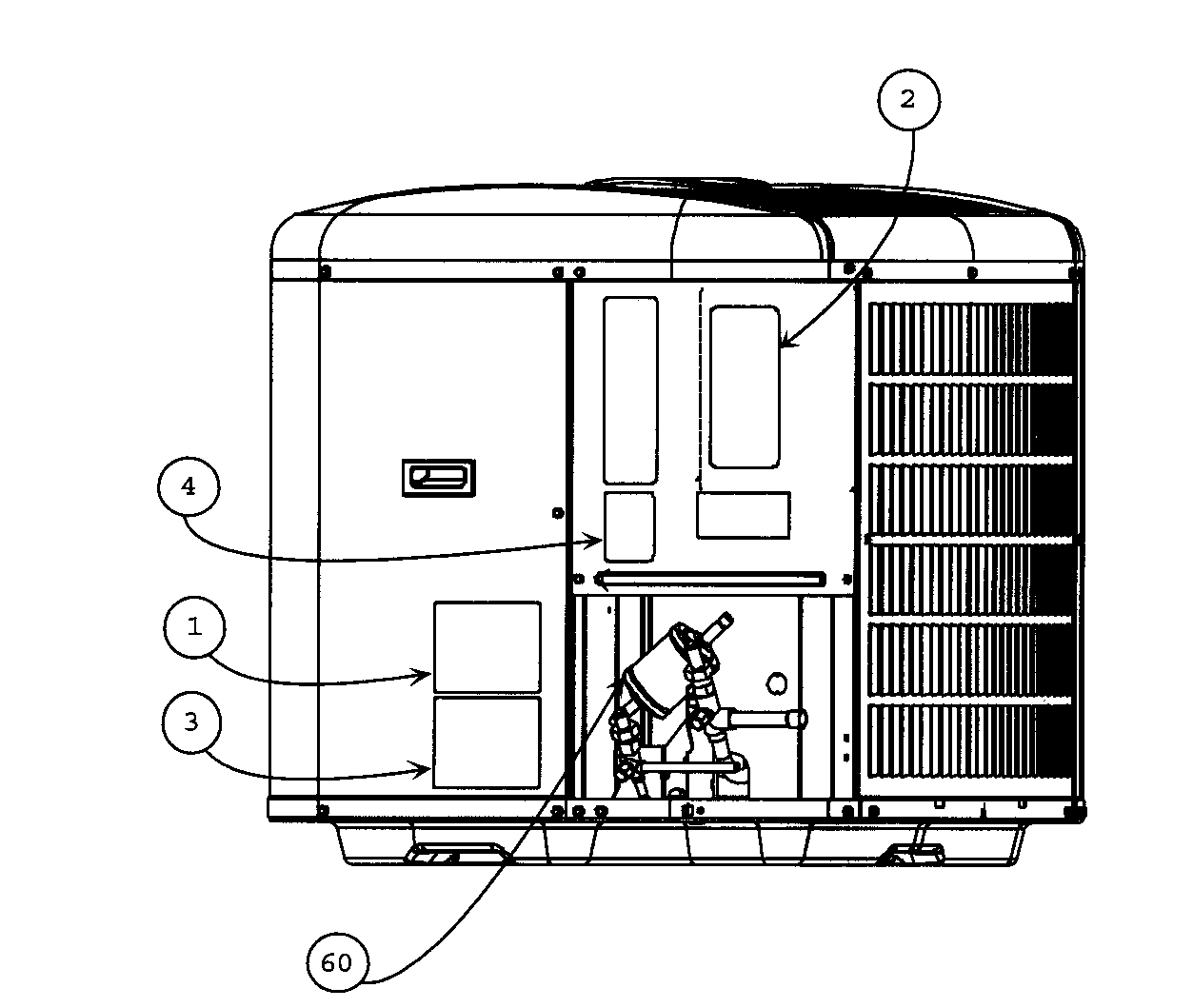

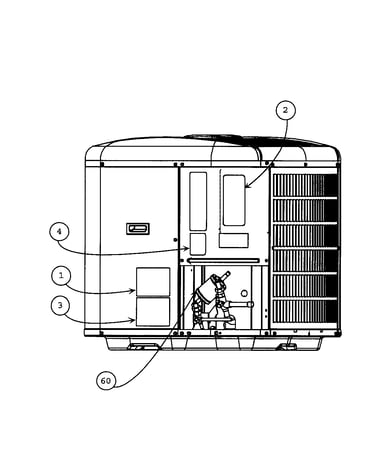

SELECT DIAGRAM
Browse Parts for
24ANA760A0030020 Air Conditioner
#38

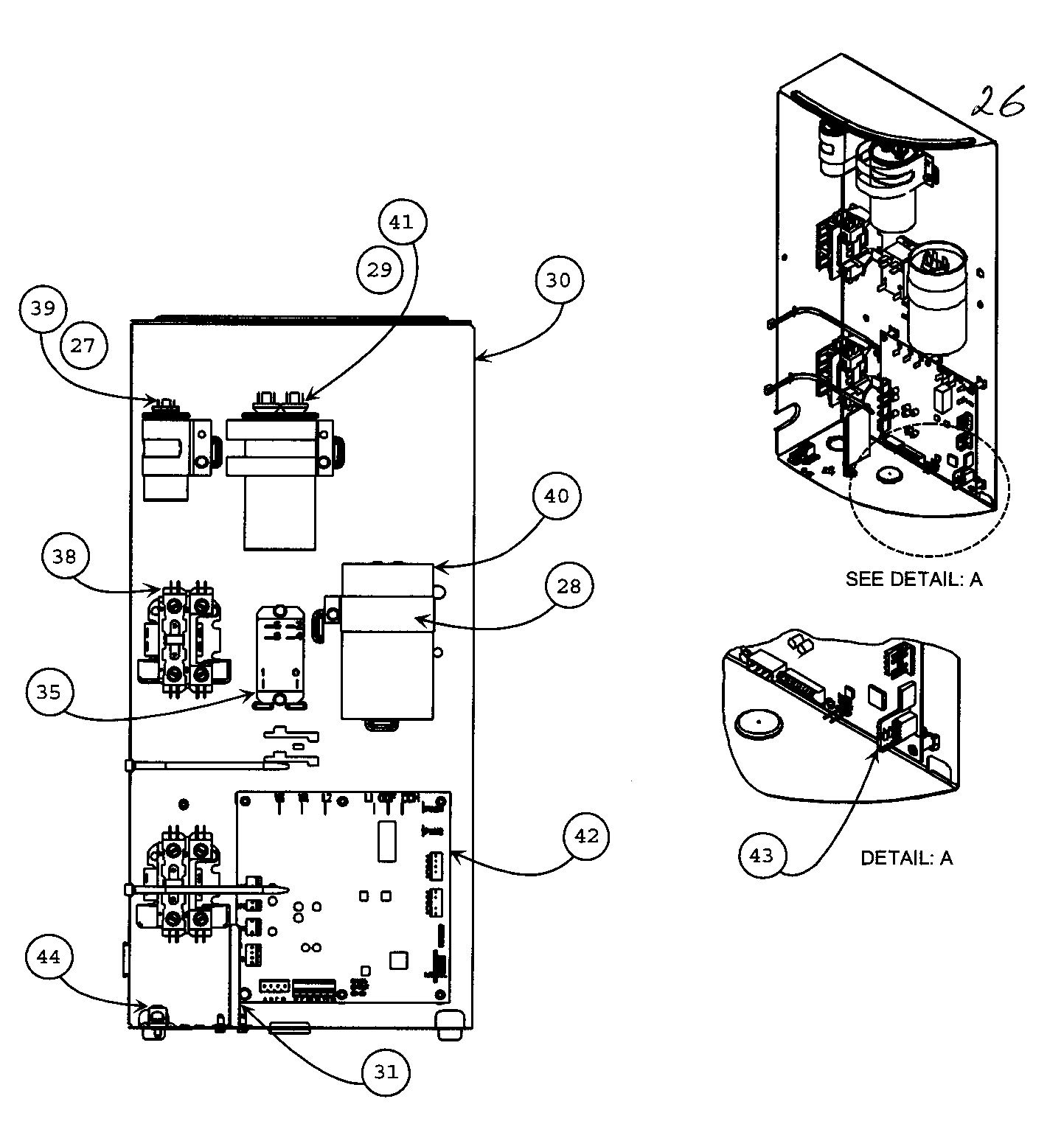

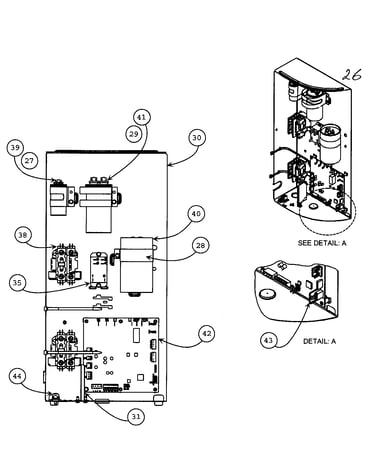

Cabinet parts 2 diagram
Contactor
Part #HN51KC024
Replaced by #90-244
?
Manufacturer substitution
This part replaces HN51KC024. Substitute parts can look different from the original.
$26.61 |
18% OFF Phone Price : $32.61
In Stock
#42
Cabinet parts 2 diagram
Circ pcb
Part #HK38EA010
Replaced by #HK38EA023
?
Manufacturer substitution
This part replaces HK38EA010. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock
#NI

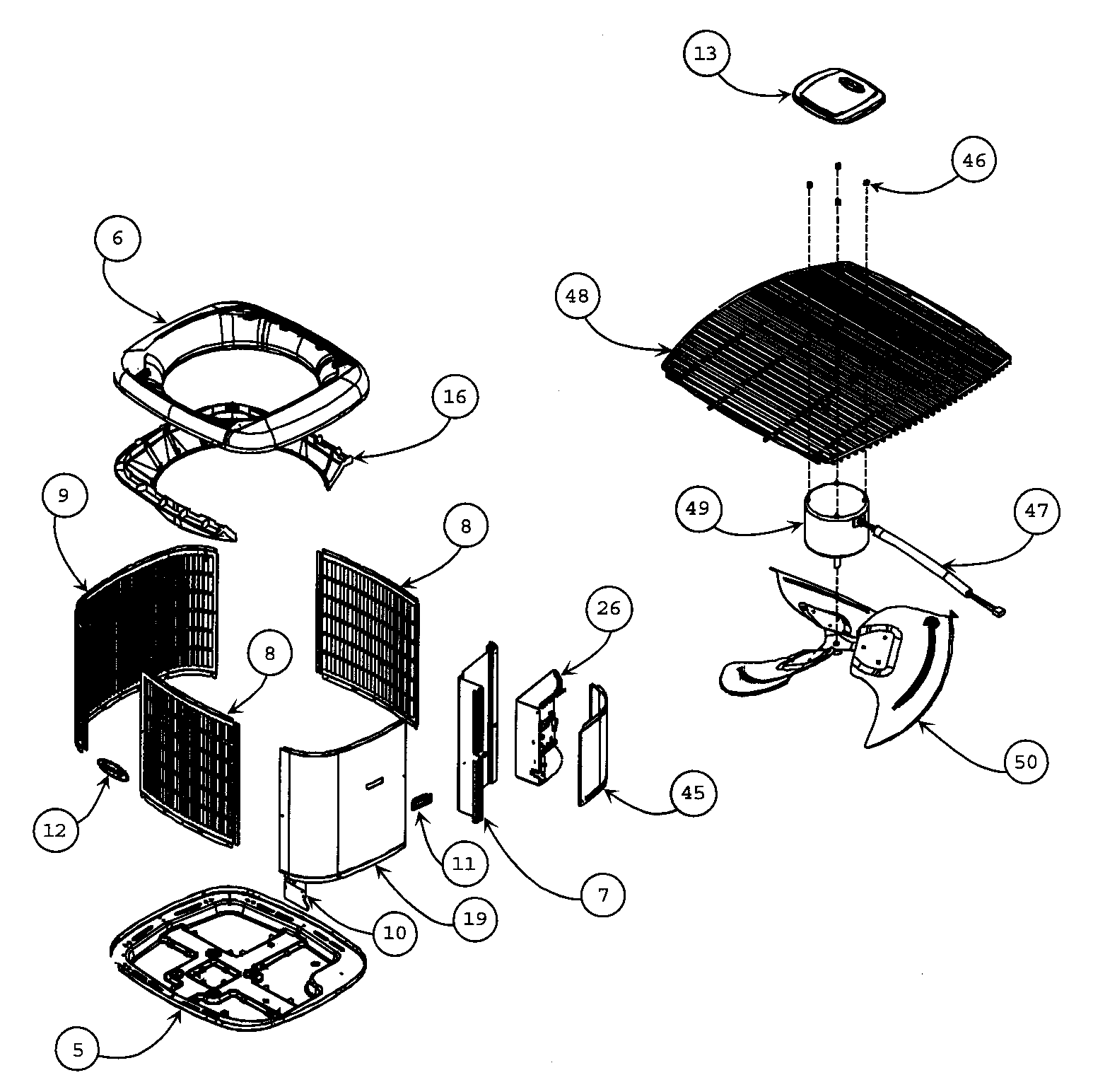

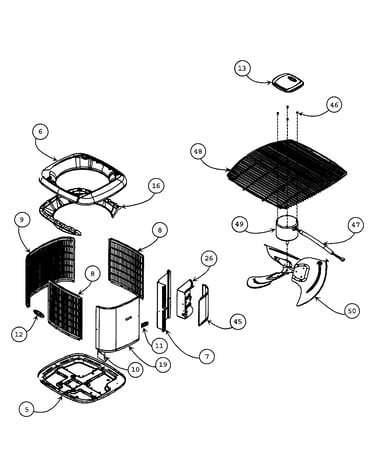

Cabinet parts 1 diagram
Plug
Part #HY07MN121
This item is not returnable
$2.16
In Stock
#NI
Cabinet parts 1 diagram
Service valve
Part #330815-401
$257.73
In Stock
#NI
Cabinet parts 1 diagram
Muffler
Part #LM10KK011
$150.20
In Stock
#16
Cabinet parts 1 diagram
Supprt top
Part #330962-401
$79.62
In Stock
#13
Cabinet parts 1 diagram
Central air conditioner condenser fan motor cap
Part #330801-703
$60.29 |
9% OFF Phone Price : $66.29
In Stock
#NI
Cabinet parts 1 diagram
Nut
Part #DD02CA101
This item is not returnable
$5.46
In Stock
#NI
Cabinet parts 1 diagram
Paint
Part #313974-760
$50.00
In Stock
#NI
Cabinet parts 1 diagram
Switch
Part #HK02ZB056
$26.45
In Stock
