Frigidaire
Side-By-Side Refrigerator

Model # FRS24AGGW8 Official Frigidaire refrigerator - p5995336186

Here are the diagrams and repair parts for Official Frigidaire FRS24AGGW8 refrigerator - p5995336186, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

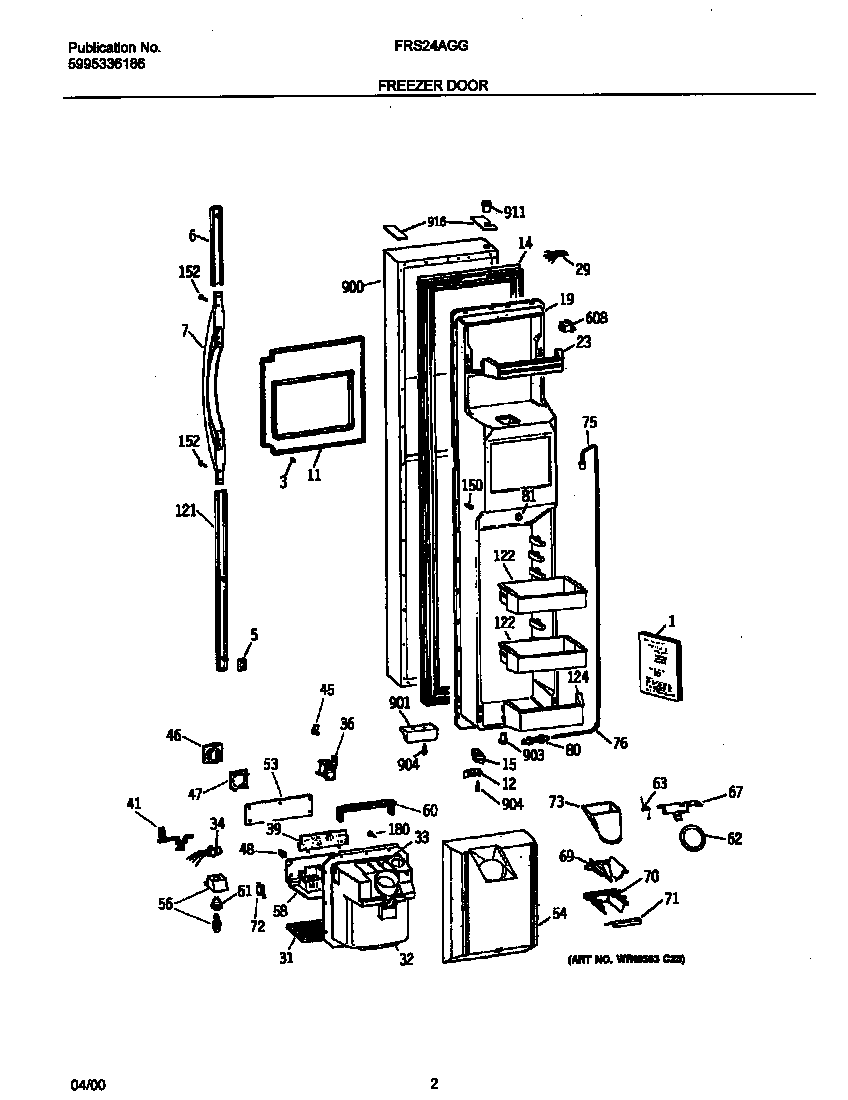

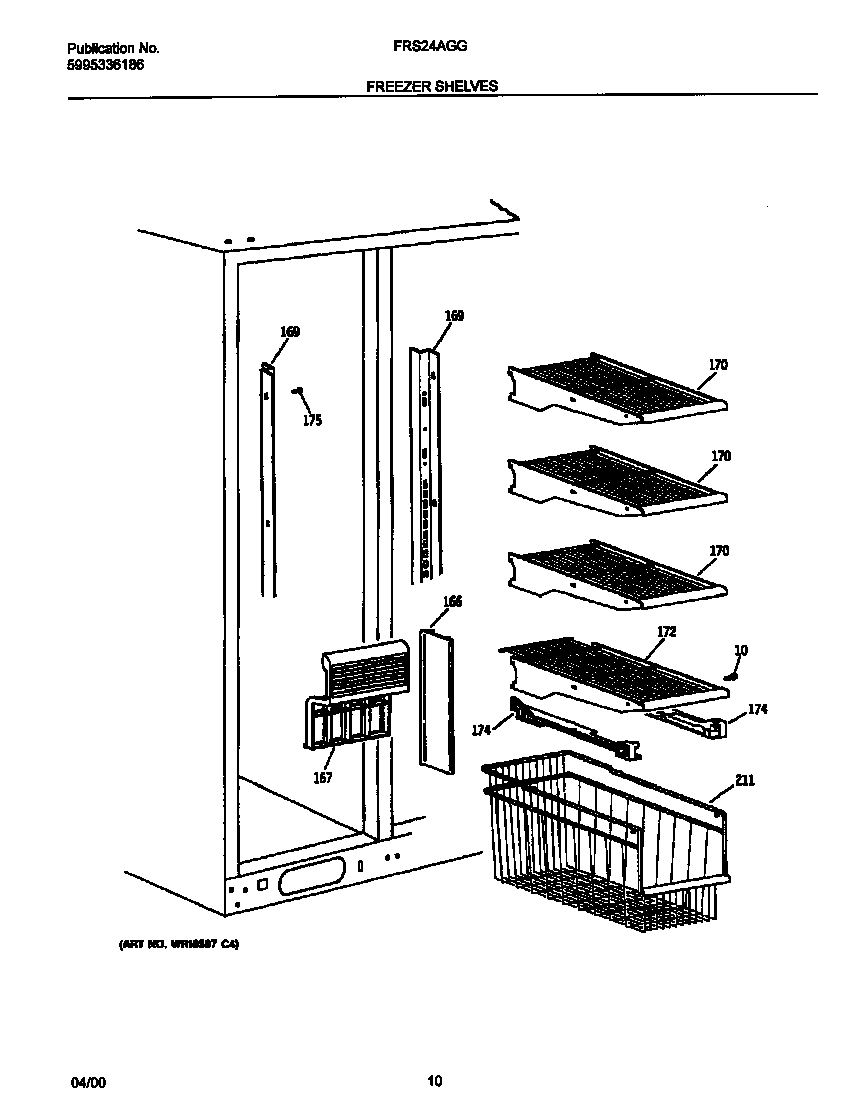

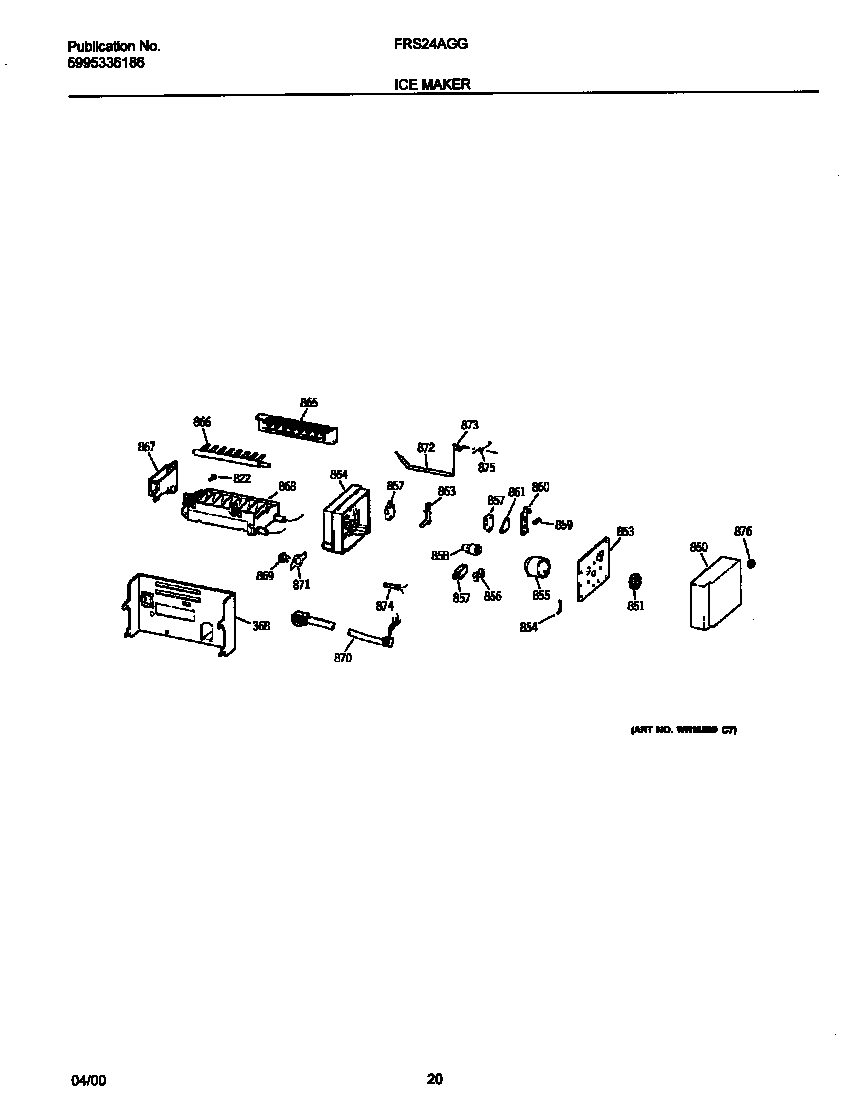

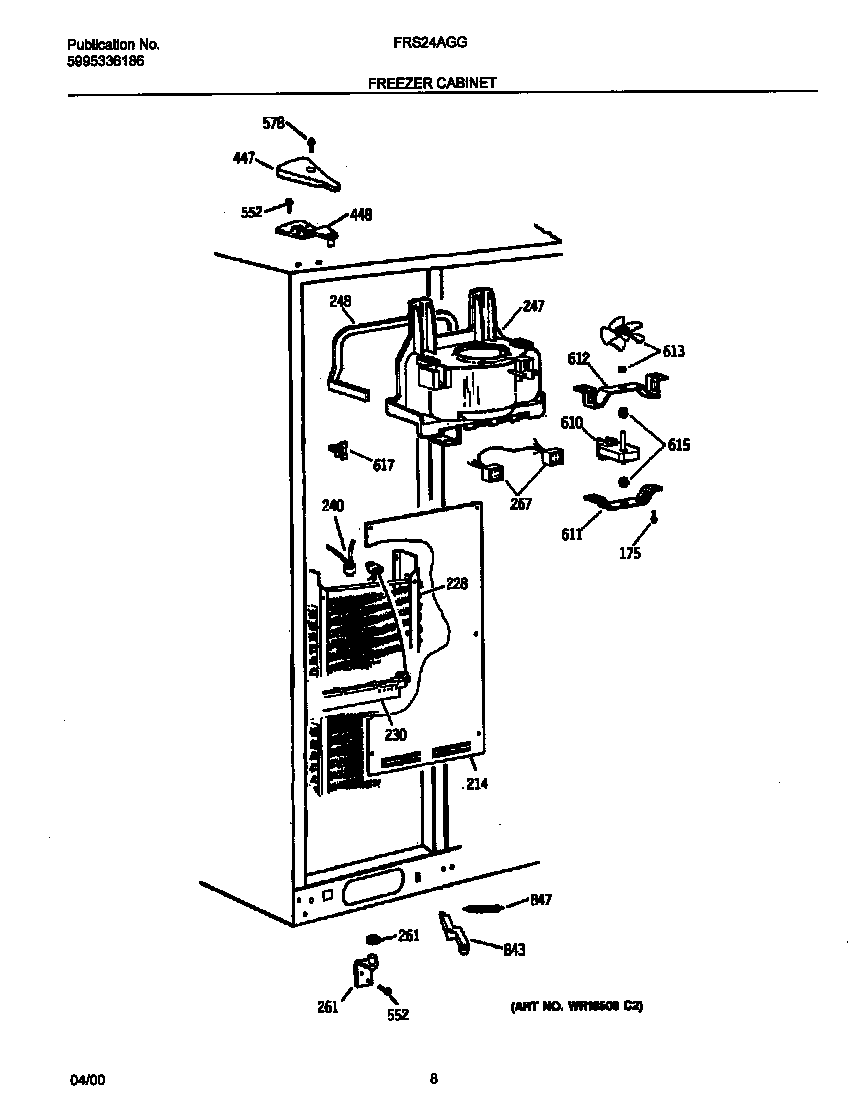

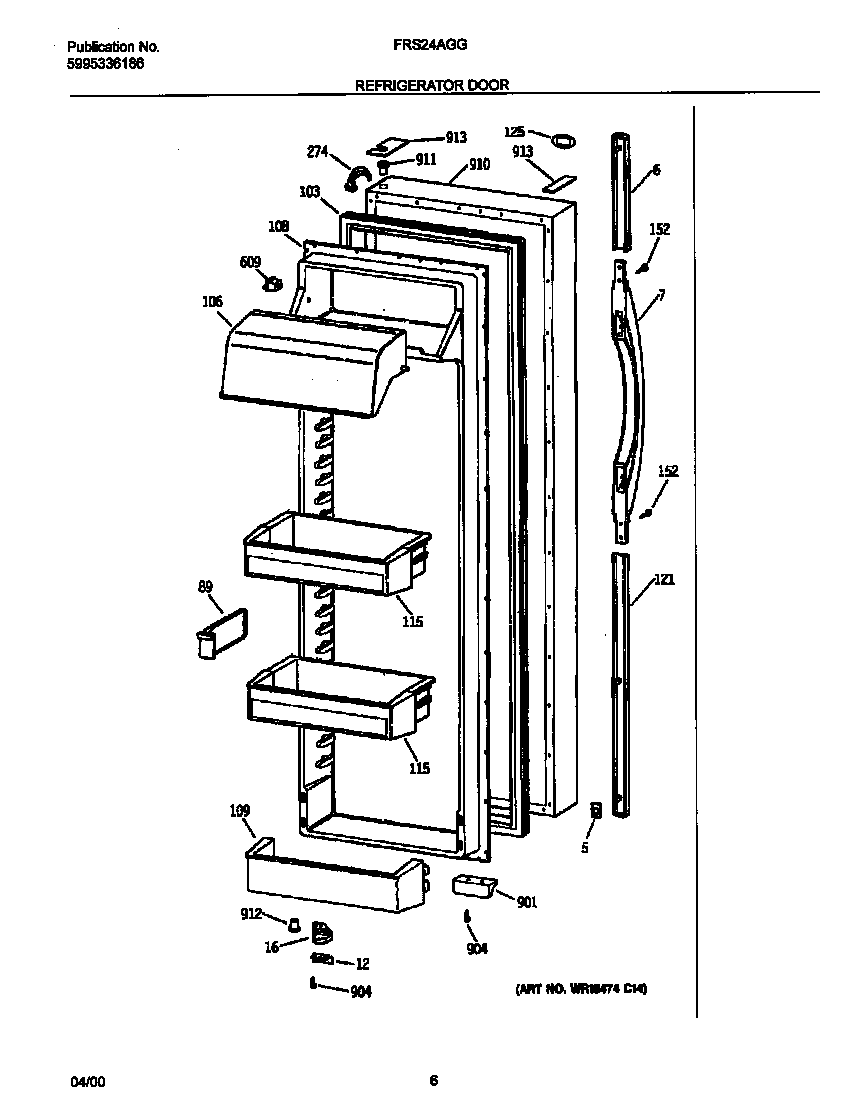

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 334 parts  |
Hanger-snack 5304406617
#473A

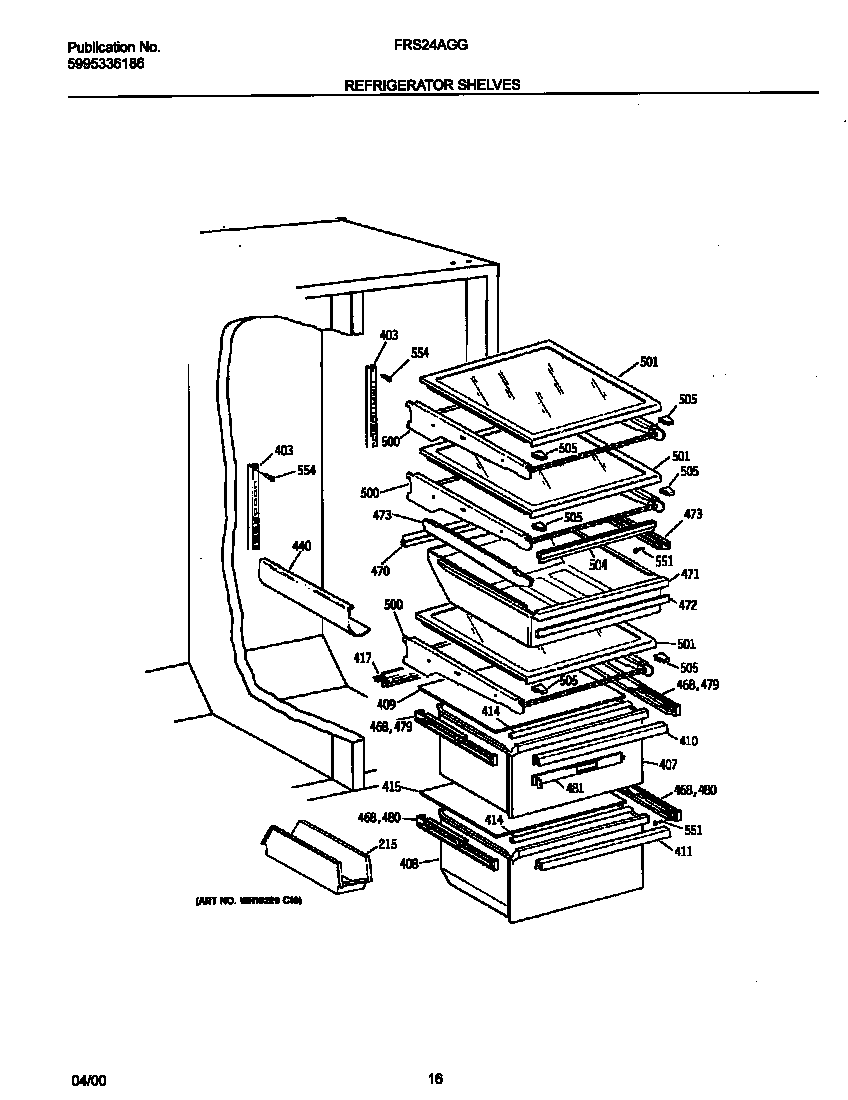

Refrigerator shelves diagram

Hanger-snack

Part #5304406617

$81.20
In Stock
Relay Cover 5304406337
#734

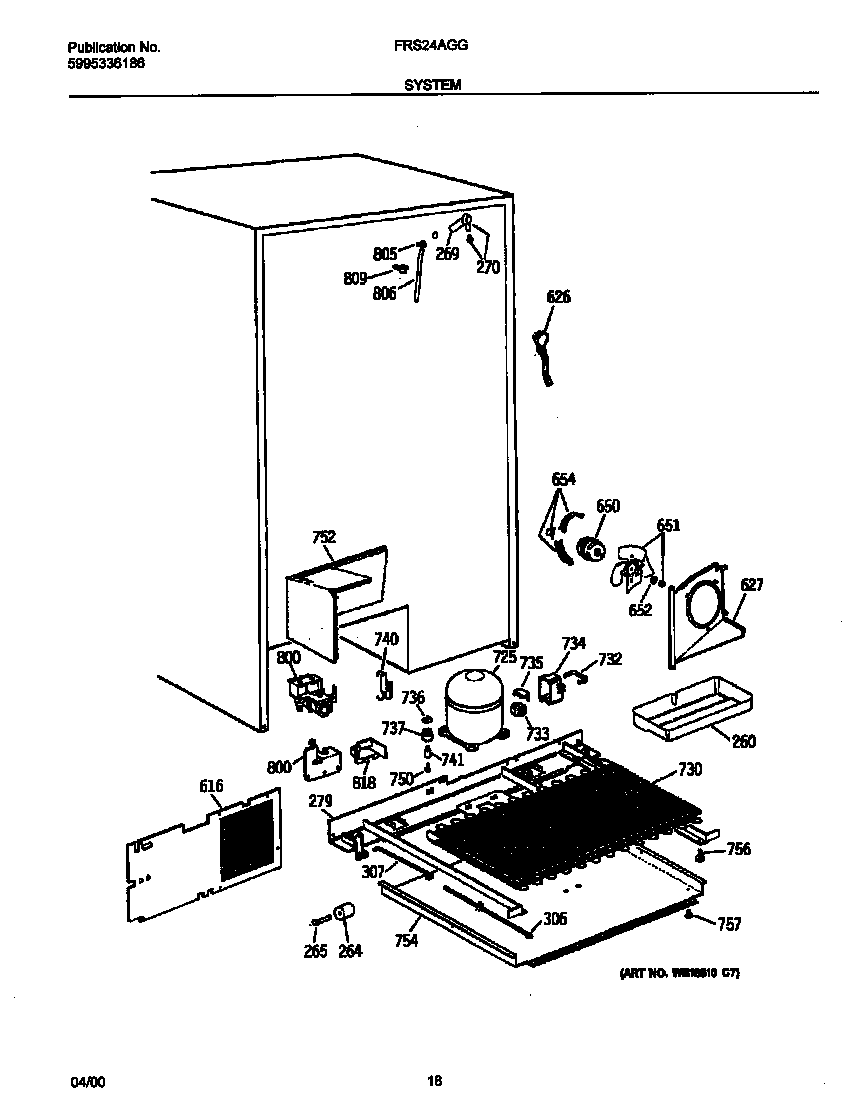

System diagram

Relay cover

Part #5304406337

$20.51
In Stock
Refrigerator Dispenser Spring 5304406423
#63

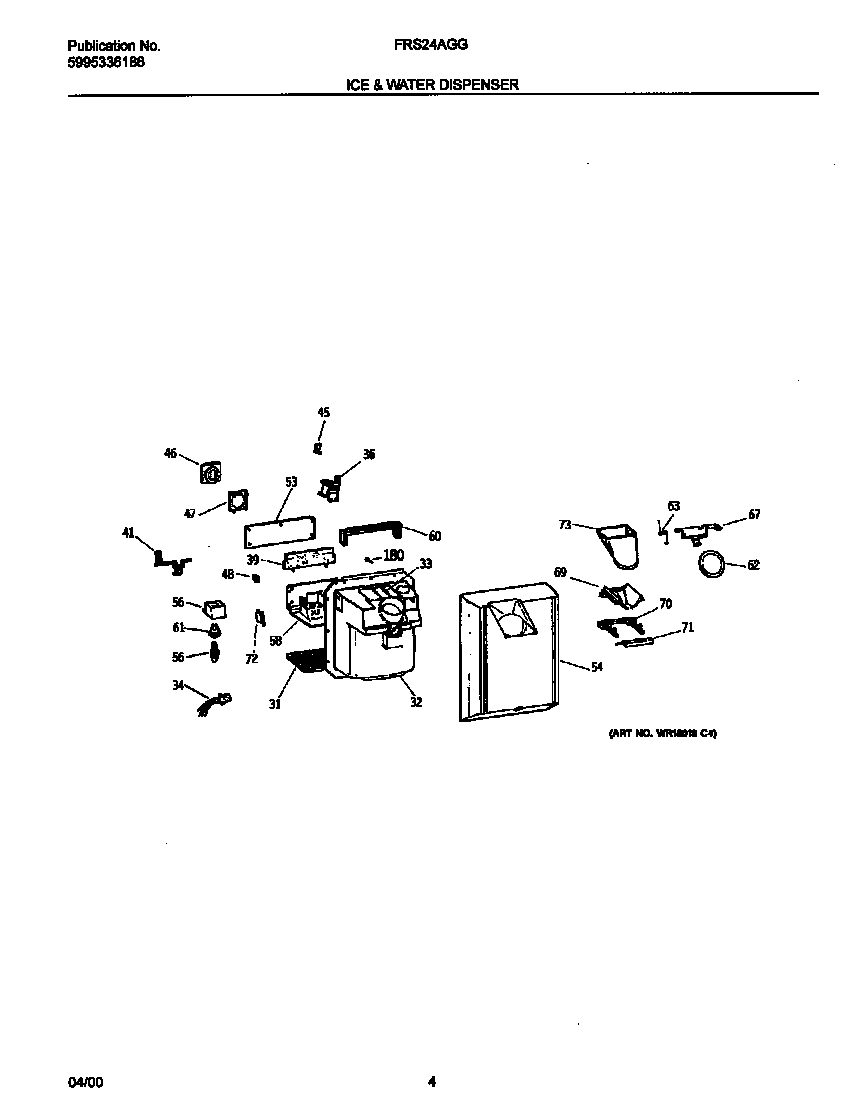

Ice & water dispenser diagram

Refrigerator dispenser spring

Part #5304406423

$22.16
In Stock
Light Grille 5304406591
#446

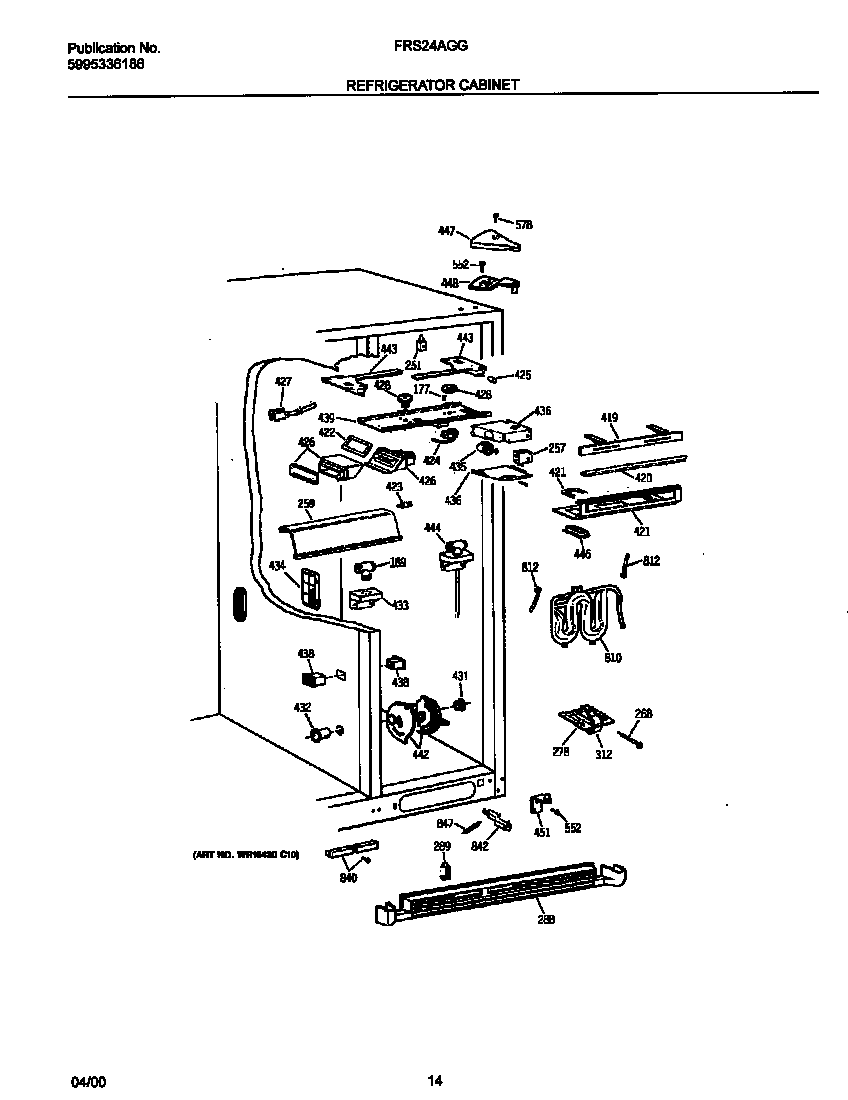

Refrigerator cabinet diagram

Light grille

Part #5304406591

$54.91
In Stock
Solenoid Arm 5304406539
#378

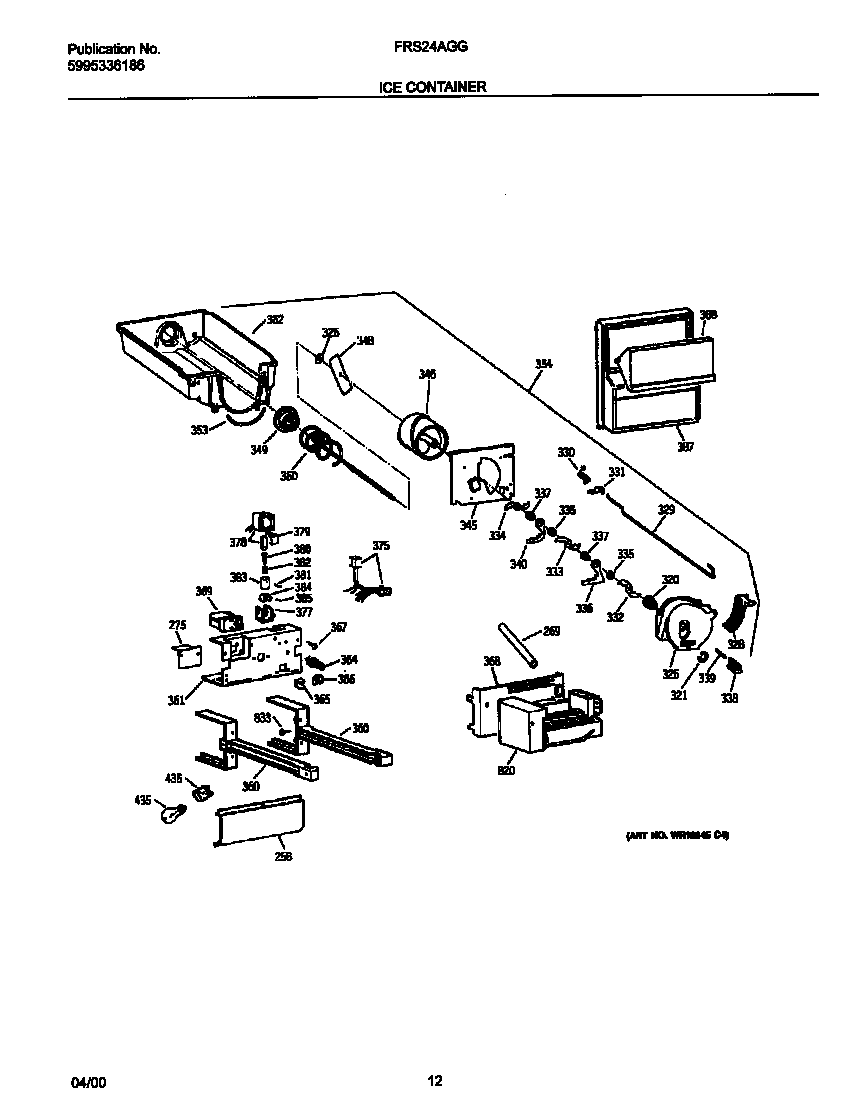

Ice container diagram

Solenoid arm

Part #5304406539

The manufacturer no longer makes this part, and there's no substitute part

Rack Gear 5304406590
#443A

Refrigerator cabinet diagram

Rack gear

Part #5304406590

The manufacturer no longer makes this part, and there's no substitute part

Drive Nut 5304406533
#366

Ice container diagram

Drive nut

Part #5304406533

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Insulation 5304406344
#752

System diagram

Refrigerator insulation

Part #5304406344

The manufacturer no longer makes this part, and there's no substitute part

Terminal Clamp 5304406335
#732

System diagram

Terminal clamp

Part #5304406335

The manufacturer no longer makes this part, and there's no substitute part

Ice Dispenser Drum 5304406522
#346

Ice container diagram

Ice dispenser drum

Part #5304406522

The manufacturer no longer makes this part, and there's no substitute part
