Kenmore
Gas Grill

Model # 41515672 Official Kenmore natural gas grill

Here are the diagrams and repair parts for Official Kenmore 41515672 natural gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Wire 4153720
#22

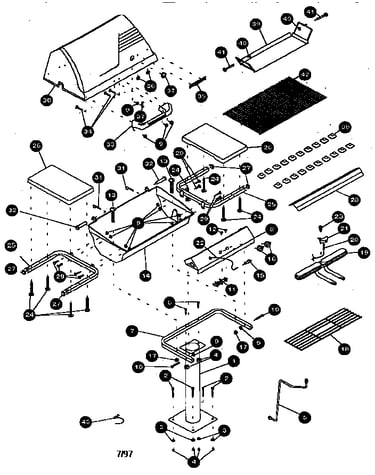

Replacement parts diagram

Wire

Part #4153720

Replaced by #4153196

?
Manufacturer substitution
This part replaces 4153720. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Ken-ran Gas Grill Lid Hinge Pin 4156513
#32

Replacement parts diagram

Ken-ran gas grill lid hinge pin

Part #4156513

This item is not returnable
$2.16
In Stock
Thermos Gas Grill Igniter 4153713
#15

Replacement parts diagram

Thermos gas grill igniter

Part #4153713

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Craftsman Gas Grill Flame Tamer 4156418
#28

Replacement parts diagram

Craftsman gas grill flame tamer

Part #4156418

The manufacturer no longer makes this part, and there's no substitute part

Grease Clip 4156894
#43

Replacement parts diagram

Grease clip

Part #4156894

Replaced by #80011874

?
Manufacturer substitution
This part replaces 4156894. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Pin 4156515
#31

Replacement parts diagram

Pin

Part #4156515

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Cooking Grate 4152741
#42

Replacement parts diagram

Gas grill cooking grate

Part #4152741

The manufacturer no longer makes this part, and there's no substitute part

Nut, 3/16" 4153096
#36

Replacement parts diagram

Nut, 3/16"

Part #4153096

The manufacturer no longer makes this part, and there's no substitute part

Knob 4154203
#16

Replacement parts diagram

Knob

Part #4154203

The manufacturer no longer makes this part, and there's no substitute part

Grate 4156409
#18

Replacement parts diagram

Grate

Part #4156409

The manufacturer no longer makes this part, and there's no substitute part
