Model # 86774582 Official Kenmore oil-fired furnace

Here are the diagrams and repair parts for Official Kenmore 86774582 oil-fired furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Fan Wheel 72978
#12A

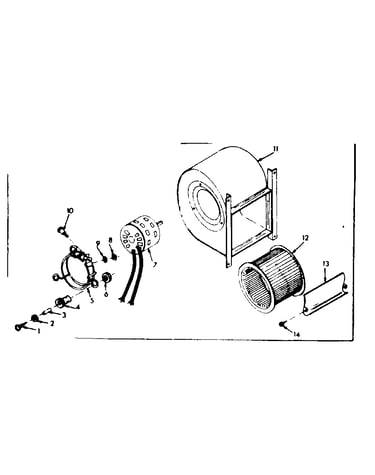

H-q blower assembly diagram

Fan wheel

Part #72978

Replaced by #600587

?
Manufacturer substitution
This part replaces 72978. Substitute parts can look different from the original.
$130.20 |
8% OFF Phone Price : $142.20
In Stock
Blower Wheel 72400
#12B

H-q blower assembly diagram

Blower wheel

Part #72400

Replaced by #601210

?
Manufacturer substitution
This part replaces 72400. Substitute parts can look different from the original.
$194.16
In Stock
Nozzle 64485
#46B

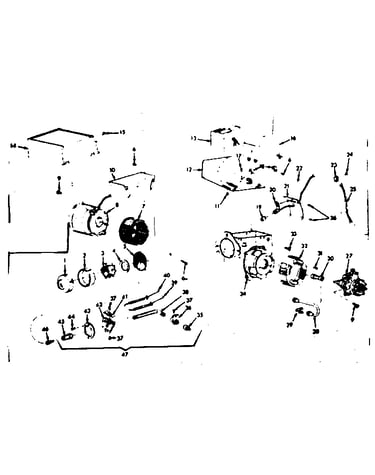

Oil burner assembly diagram

Nozzle

Part #64485

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 9233

#NI

All parts diagram

Thermostat

Part #9233

The manufacturer no longer makes this part, and there's no substitute part

Screw 448445
#6

Oil burner assembly diagram

Screw

Part #448445

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 64605
#46A

Oil burner assembly diagram

Nozzle

Part #64605

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 72944
#65A

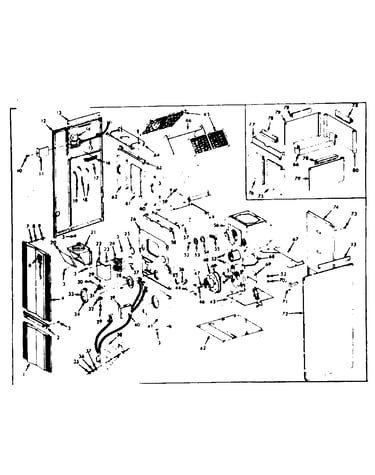

Furnance assemblies diagram

Air filter

Part #72944

The manufacturer no longer makes this part, and there's no substitute part

Coupling 68091
#30

Oil burner assembly diagram

Coupling

Part #68091

The manufacturer no longer makes this part, and there's no substitute part

Limit Control 82382
#71

Furnance assemblies diagram

Limit control

Part #82382

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 65596
#65B

Furnance assemblies diagram

Air filter

Part #65596

The manufacturer no longer makes this part, and there's no substitute part
