GE
Electric Cooktop

Model # JP3030DJ4BB Official GE electric counter unit

Here are the diagrams and repair parts for Official GE JP3030DJ4BB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

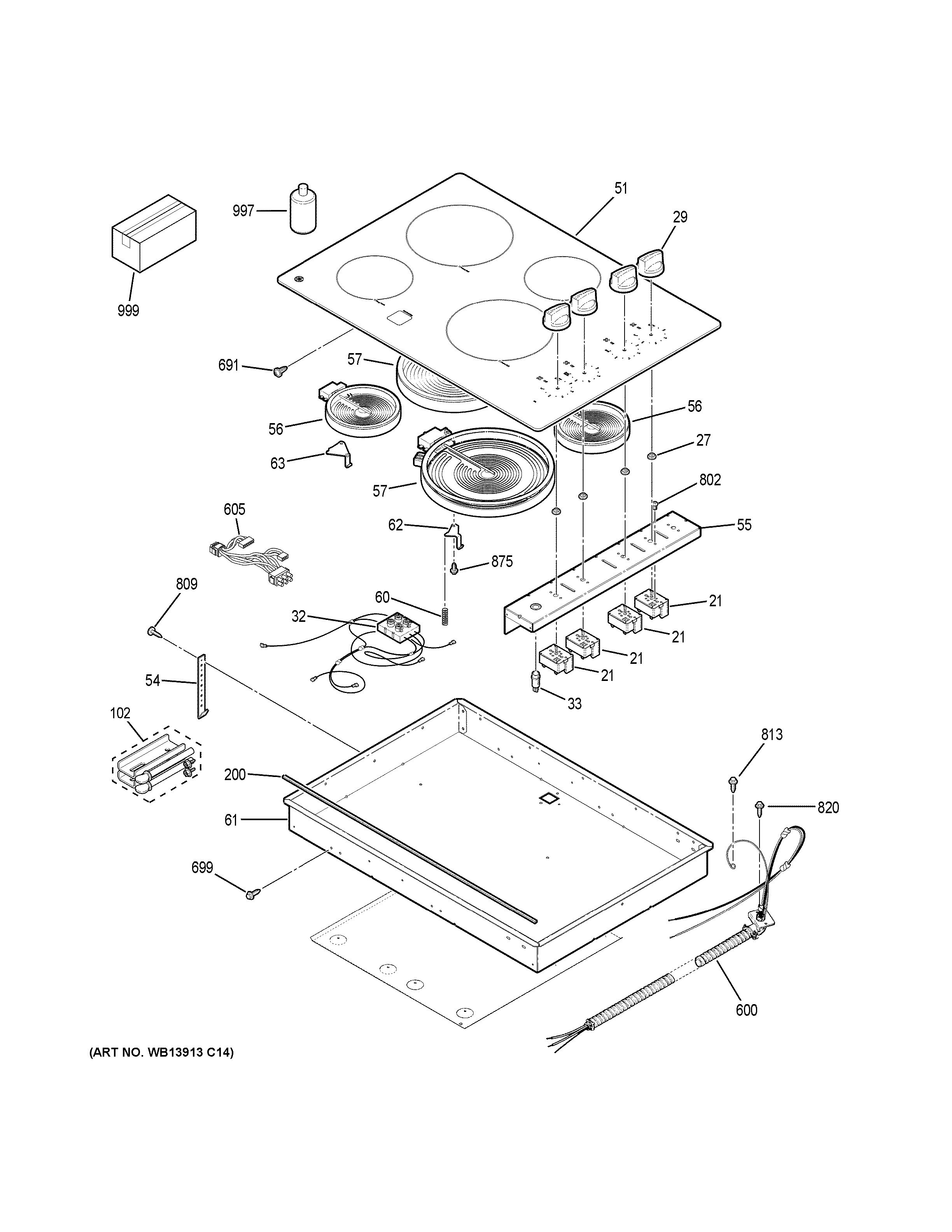

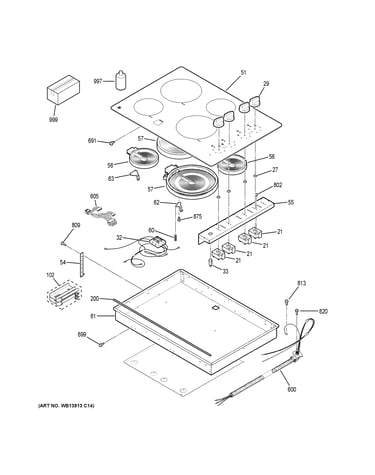

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Cooktop Element Control Switch WB24X22341
Cooktop element control switch

Part #WB24X22341

Replaced by #WB24X40331

?
Manufacturer substitution
This part replaces WB24X22341. Substitute parts can look different from the original.
BEST SELLER
$40.83
In Stock
Range Radiant Surface Element, 8-in WB30T10136
Range radiant surface element, 8-in

Part #WB30T10136

BEST SELLER
$107.70 |
10% OFF Phone Price : $119.70
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Harness Wire Inf Rt WB18X32535
Harness wire inf rt

Part #WB18X32535

$26.77
In Stock
Harness Wire Inf Lt WB18X32523
Harness wire inf lt

Part #WB18X32523

$25.86
In Stock
Screw WB01X1137
Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Element Mounting Spring WB02X20902
Range surface element mounting spring

Part #WB02X20902

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Harness Wire Maintop Rt WB18X32558
Harness wire maintop rt

Part #WB18X32558

$63.96
In Stock
Conduit Wire Asm WB18X32525
Conduit wire asm

Part #WB18X32525

$84.38
In Stock
