Frigidaire
Side-By-Side Refrigerator

Model # GRMS2773AF01 Official Frigidaire bottom-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire GRMS2773AF01 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

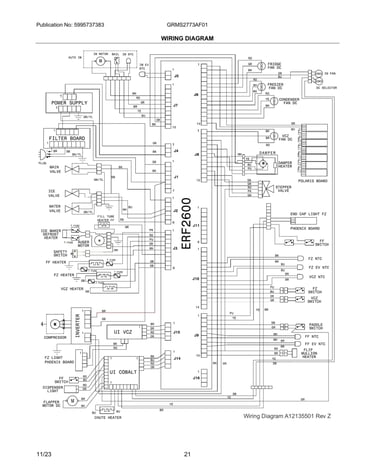

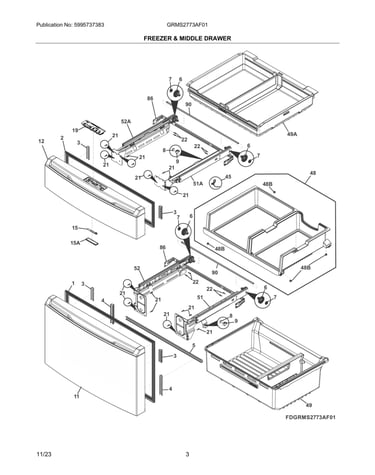

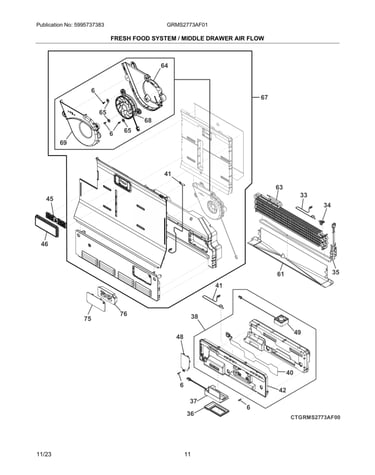

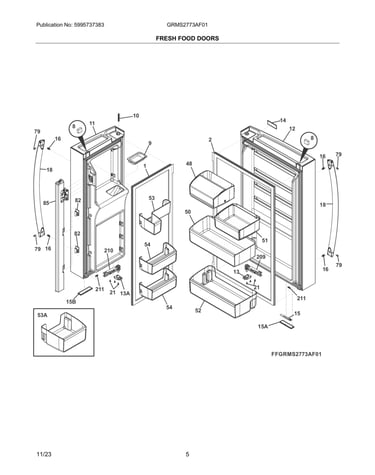

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 221 parts  |
Refrigerator Ice Maker Gasket Kit 242095404
#25

Ice maker system diagram

Refrigerator ice maker gasket kit

Part #242095404

Replaced by #5303918784

?
Manufacturer substitution
This part replaces 242095404. Substitute parts can look different from the original.
BEST SELLER
$89.81 |
6% OFF Phone Price : $95.81
In Stock
Front 243297608
#9

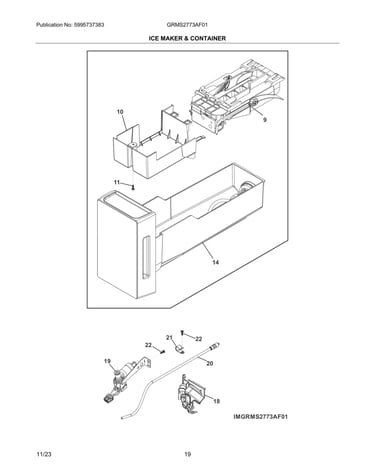

Ice maker & container diagram

Front

Part #243297608

BEST SELLER
$109.26
In Stock
Frigidaire Refrigerator Water Filter FPPWFU01
#42

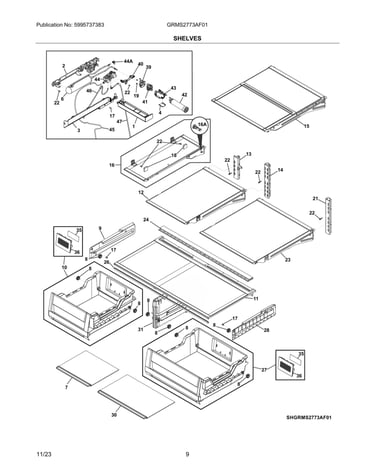

Shelves diagram

Frigidaire refrigerator water filter

Part #FPPWFU01

BEST SELLER

Get free shipping with Automatic Reorder

$64.65 |
8% OFF Phone Price : $70.65
In Stock
Refrigerator Water Filter Head 5304524817
#41

Shelves diagram

Refrigerator water filter head

Part #5304524817

BEST SELLER
$63.93 |
9% OFF Phone Price : $69.93
In Stock
Refrigerator Electronic Control Board (replaces 5304519114) 5304526795
#52

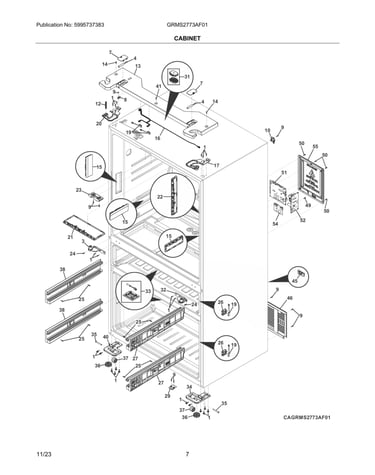

Cabinet diagram

Refrigerator electronic control board (replaces 5304519114)

Part #5304526795

BEST SELLER
This item is not returnable
$164.14
In Stock
Motor 5304524796
#6

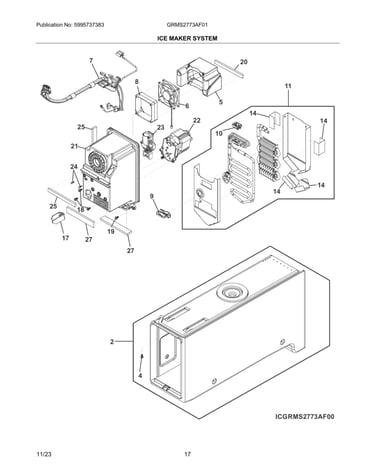

Ice maker system diagram

Motor

Part #5304524796

BEST SELLER
$116.60
In Stock
Refrigerator Defrost Bi-metal Thermostat And Wire Harness Assembly 5303918851
Refrigerator defrost bi-metal thermostat and wire harness assembly

Part #5303918851

BEST SELLER
$26.11
In Stock
Refrigerator Dispenser User Interface Control 5304529572
#38

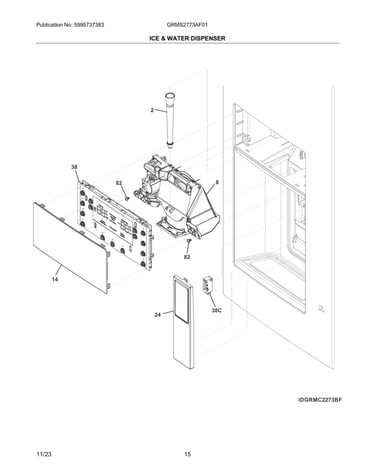

Ice & water dispenser diagram

Refrigerator dispenser user interface control

Part #5304529572

BEST SELLER
This item is not returnable
$172.84
In Stock
Refrigerator Refrigerant Valve 5304529531
#9

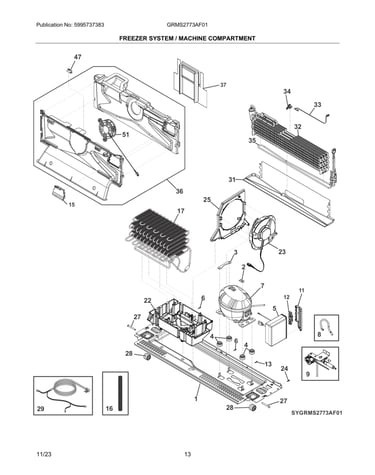

Freezer system/compartment diagram

Refrigerator refrigerant valve

Part #5304529531

BEST SELLER
$122.50
In Stock
Refrigeration Appliance Water Inlet Valve 5304529544
#44

Shelves diagram

Refrigeration appliance water inlet valve

Part #5304529544

$112.52
In Stock
