Gas Walk-Behind Mower

Model # 917388932 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388932 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#56

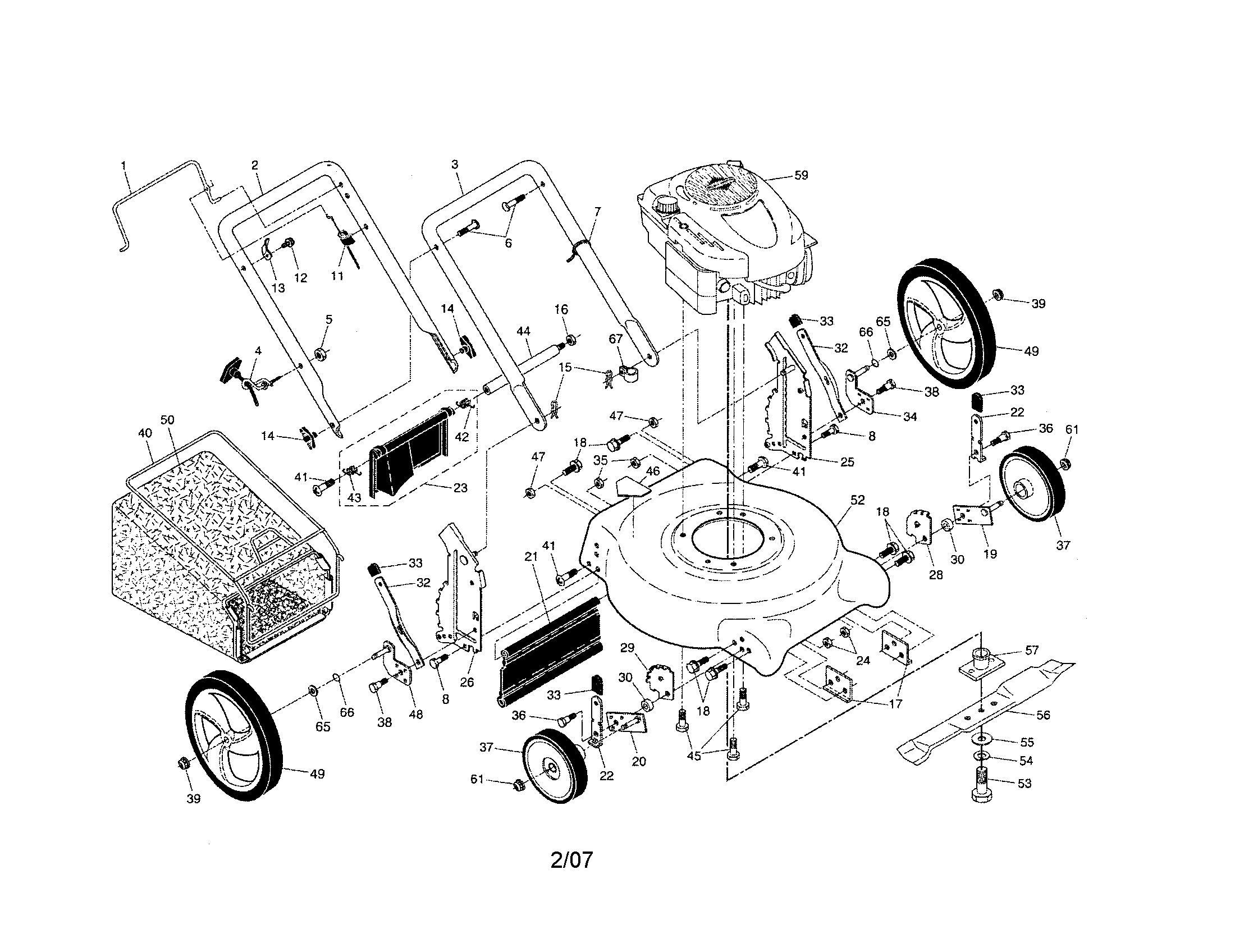

Lawn mower diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

BEST SELLER

Get free shipping with Automatic Reorder

$11.41 |
15% OFF Phone Price : $13.41
In Stock
Lock Nut 83923
#61

Lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#39

Lawn mower diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#14

Lawn mower diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 191574
#6

Lawn mower diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Gbag.2061012 401705
#50

Lawn mower diagram

Gbag.2061012

Part #401705

Replaced by #532410666

?
Manufacturer substitution
This part replaces 401705. Substitute parts can look different from the original.
BEST SELLER
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Nut 132004
#5

Lawn mower diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Guide.rope.s 194788
#4

Lawn mower diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Lawn mower diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
