Magic Chef
Gas Range

Model # 3121XPA Official Magic Chef range

Here are the diagrams and repair parts for Official Magic Chef 3121XPA range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Oven Igniter 7432P067-60
#8

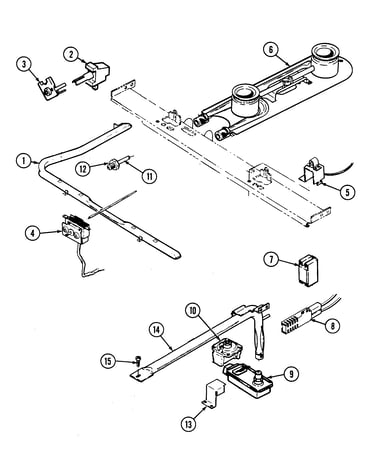

Gas controls diagram

Oven igniter

Part #7432P067-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P067-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Panel Screw 7101P041-60
#3B

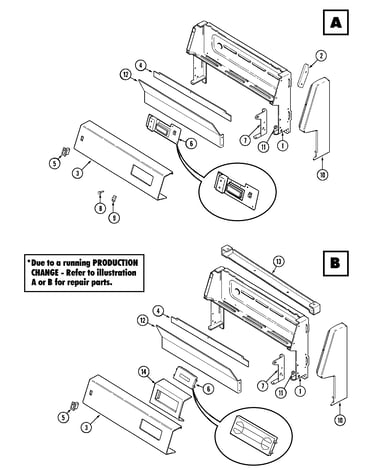

Control panel (3121xp*) diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P338-60
Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw, Housi 7118P015-60
#5B

Gas controls diagram

Screw, housi

Part #7118P015-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7118P015-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P290-60
Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
#8A

Gas controls diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Seal 7208P011-60
#14

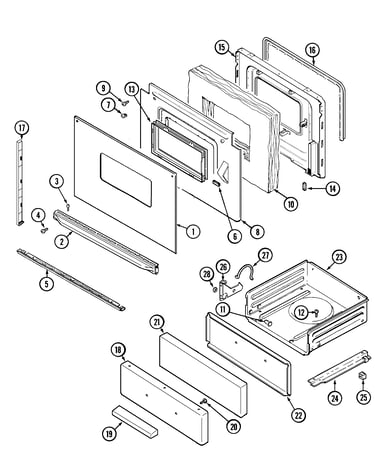

Door/drawer (3121xp*) diagram

Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Valve Knob 7733P027-60
#8

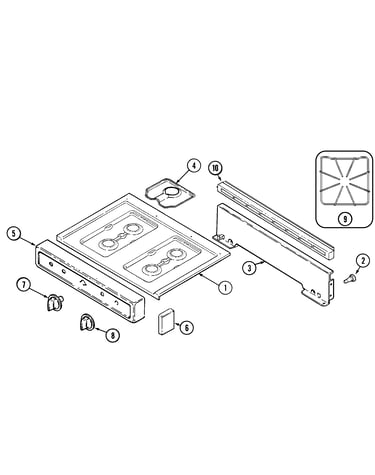

Top assembly (3121xp*) diagram

Valve knob

Part #7733P027-60

Replaced by #WP7711P135-60

?
Manufacturer substitution
This part replaces 7733P027-60. Substitute parts can look different from the original.
This item is not returnable
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Pressure Regulator 7510P050-60
#10

Gas controls diagram

Pressure regulator

Part #7510P050-60

Replaced by #WP74006429

?
Manufacturer substitution
This part replaces 7510P050-60. Substitute parts can look different from the original.
$145.61 |
8% OFF Phone Price : $157.61
In Stock
Hinge Drawer 3418F080-51
#26A

Door/drawer (3121xp*) diagram

Hinge drawer

Part #3418F080-51

This item is not returnable
$3.29
In Stock
