Model # ST4500 TYPE 4 Official Black & Decker trimmer

Here are the diagrams and repair parts for Official Black & Decker ST4500-TYPE-4 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Spring 598936-00
#7

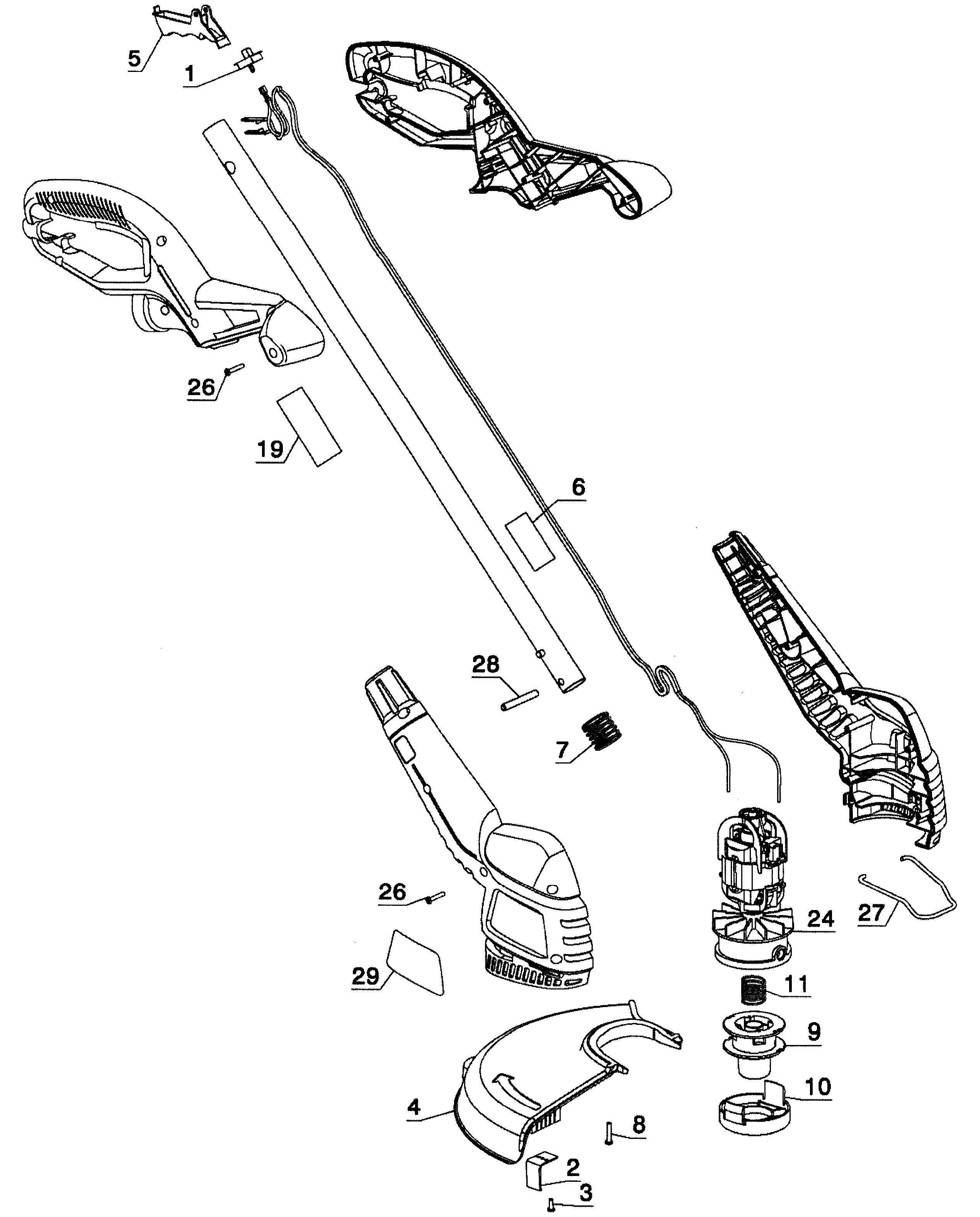

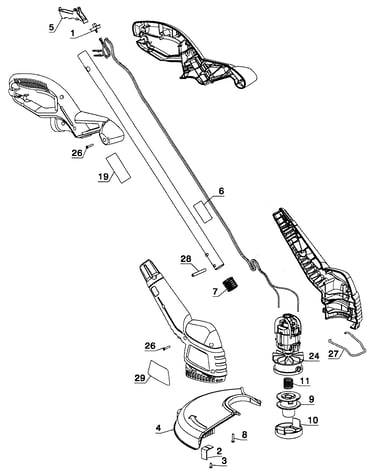

Trimmer assy diagram

Spring

Part #598936-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Nameplate 90579625
#29

Trimmer assy diagram

Black & decker nameplate

Part #90579625

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Label 90553885
#19

Trimmer assy diagram

Black & decker label

Part #90553885

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 330019-04
#26

Trimmer assy diagram

Lawn & garden equipment screw

Part #330019-04

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Edge Guide 90503998
#27

Trimmer assy diagram

Line trimmer edge guide

Part #90503998

The manufacturer no longer makes this part, and there's no substitute part

Trigger 244179-02
#5

Trimmer assy diagram

Trigger

Part #244179-02

The manufacturer no longer makes this part, and there's no substitute part

Pin 243251-00
#28

Trimmer assy diagram

Pin

Part #243251-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 681914-00
#3

Trimmer assy diagram

Lawn & garden equipment screw

Part #681914-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Line Trimmer Spool 143684-01
#9

Trimmer assy diagram

Craftsman line trimmer spool

Part #143684-01

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer On/off Switch 383994-00
#1

Trimmer assy diagram

Line trimmer on/off switch

Part #383994-00

The manufacturer no longer makes this part, and there's no substitute part
