Model # DR705223 Official Proform proform crosswalk plus treadmill

Here are the diagrams and repair parts for Official Proform DR705223 proform crosswalk plus treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

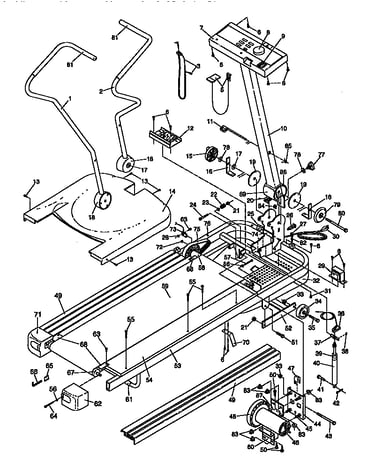

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Sil Lube 2oz 112940

#NI

All parts diagram

Sil lube 2oz

Part #112940

Replaced by #219167

?
Manufacturer substitution
This part replaces 112940. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
Back Order
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382
#26

Unit parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#30

Unit parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Black & Decker Exercise Equipment Screw 105444
#64

Unit parts diagram

Black & decker exercise equipment screw

Part #105444

This item is not returnable
$2.16
Back Order
Controller 137855
#12

Unit parts diagram

Controller

Part #137855

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin,3 106334
#42

Unit parts diagram

Cotter pin,3

Part #106334

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Screw 112609
#57

Unit parts diagram

Weider exercise equipment screw

Part #112609

This item is not returnable
$2.16
In Stock
Healthrider Bolt, 5/16 X 3/4-in 013556
#50

Unit parts diagram

Healthrider bolt, 5/16 x 3/4-in

Part #013556

This item is not returnable
$2.16
In Stock
Weider Clamp,wire M 016055
#76

Unit parts diagram

Weider clamp,wire m

Part #016055

This item is not returnable
$2.16
In Stock
Screw,tekslo 109250
#4

Unit parts diagram

Screw,tekslo

Part #109250

This item is not returnable
$2.16
In Stock
