Model # LP52ES Official Motorguide boat motor

Here are the diagrams and repair parts for Official Motorguide LP52ES boat motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Housing JF3210-01
#16

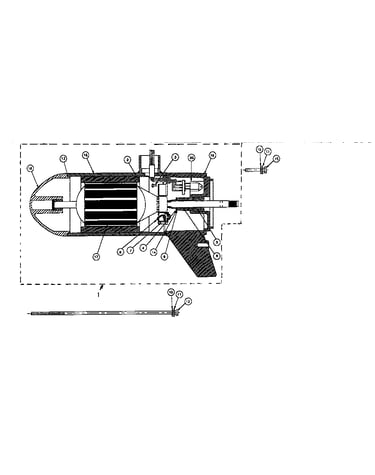

3.5"-41#-dura amp motor diagram

Housing

Part #JF3210-01

The manufacturer no longer makes this part, and there's no substitute part

O-ring MR217-01
#13

3.5"-41#-dura amp motor diagram

O-ring

Part #MR217-01

The manufacturer no longer makes this part, and there's no substitute part

Term Strip BR161-03
#32

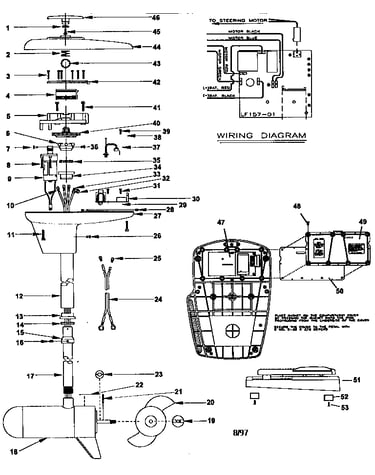

Unit parts diagram

Term strip

Part #BR161-03

The manufacturer no longer makes this part, and there's no substitute part

Set Screw FM142-01
#16

Unit parts diagram

Set screw

Part #FM142-01

The manufacturer no longer makes this part, and there's no substitute part

Schematic BK192-01A
#1

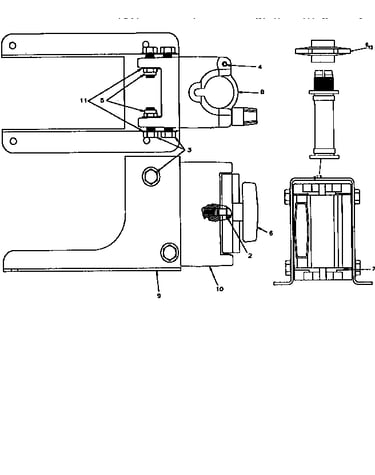

Brackets diagram

Schematic

Part #BK192-01A

The manufacturer no longer makes this part, and there's no substitute part

Knob AK082-02
#6

Brackets diagram

Knob

Part #AK082-02

The manufacturer no longer makes this part, and there's no substitute part

Screw, Sec LF141-01

#NI

All parts diagram

Screw, sec

Part #LF141-01

The manufacturer no longer makes this part, and there's no substitute part

Base LF004-02
#27

Unit parts diagram

Base

Part #LF004-02

The manufacturer no longer makes this part, and there's no substitute part

Washer-nyl WF171-01
#2

Brackets diagram

Washer-nyl

Part #WF171-01

The manufacturer no longer makes this part, and there's no substitute part

Washer MR227-01
#14

3.5"-41#-dura amp motor diagram

Washer

Part #MR227-01

The manufacturer no longer makes this part, and there's no substitute part
