Milwaukee
Reciprocating Saw

Model # 6527 TYPE E Official Milwaukee super sawzall

Here are the diagrams and repair parts for Official Milwaukee 6527-TYPE-E super sawzall, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Gear 32-40-2223
#45

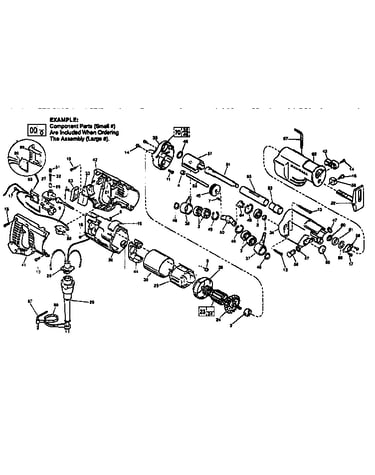

Unit parts diagram

Gear

Part #32-40-2223

The manufacturer no longer makes this part, and there's no substitute part

Drill Motor Brush Spring 23-52-0160
#32

Unit parts diagram

Drill motor brush spring

Part #23-52-0160

The manufacturer no longer makes this part, and there's no substitute part

Key Holder 48-66-4080
#68

Unit parts diagram

Key holder

Part #48-66-4080

The manufacturer no longer makes this part, and there's no substitute part

Handle Rht 31-44-1661
#41

Unit parts diagram

Handle rht

Part #31-44-1661

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 44-60-1200
#58

Unit parts diagram

Lock pin

Part #44-60-1200

The manufacturer no longer makes this part, and there's no substitute part

Shield 45-12-0470
#63

Unit parts diagram

Shield

Part #45-12-0470

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-95-5150
#18

Unit parts diagram

Screw

Part #06-95-5150

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm 28-28-2000
#70

Unit parts diagram

Diaphragm

Part #28-28-2000

The manufacturer no longer makes this part, and there's no substitute part

Spindle 38-50-5831
#51

Unit parts diagram

Spindle

Part #38-50-5831

The manufacturer no longer makes this part, and there's no substitute part

Shaft 42-12-0150
#52

Unit parts diagram

Shaft

Part #42-12-0150

The manufacturer no longer makes this part, and there's no substitute part
