Model # FP12SSARWH Official GE freezer

Here are the diagrams and repair parts for Official GE FP12SSARWH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Dryer Assembly WR86X86
Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Condenser WR84X5007
#101

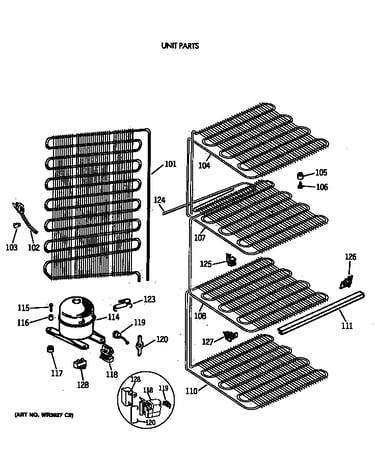

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Power Cord WR23X108

#NI

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Technical Data Sheet 31-5858
#1

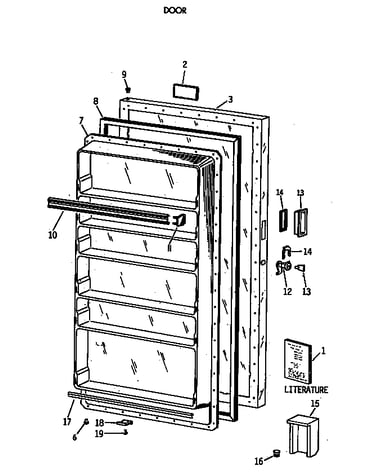

Door diagram

Technical data sheet

Part #31-5858

Replaced by #31-5800-99

?
Manufacturer substitution
This part replaces 31-5858. Substitute parts can look different from the original.
$51.99
In Stock
Toe Screw WR1X1978
#129

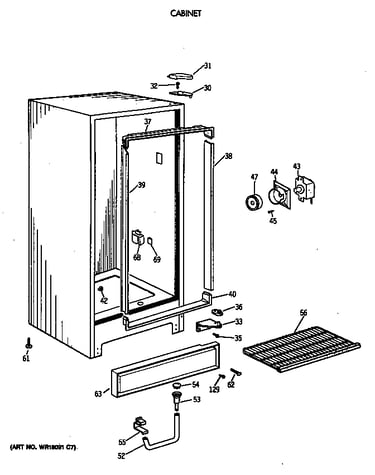

Cabinet diagram

Toe screw

Part #WR1X1978

Replaced by #WR1X2209

?
Manufacturer substitution
This part replaces WR1X1978. Substitute parts can look different from the original.
$7.51
In Stock
Bearing WR2X3812
#9

Door diagram

Bearing

Part #WR2X3812

The manufacturer no longer makes this part, and there's no substitute part

Bottom Hinge Cam WR2X8546
#36

Cabinet diagram

Bottom hinge cam

Part #WR2X8546

The manufacturer no longer makes this part, and there's no substitute part

Breaker Strip WR40X1707
#40

Cabinet diagram

Breaker strip

Part #WR40X1707

The manufacturer no longer makes this part, and there's no substitute part

O.door Fz Wh WR78X8630

#NI

All parts diagram

O.door fz wh

Part #WR78X8630

The manufacturer no longer makes this part, and there's no substitute part

Duct WR2X6054
#15

Door diagram

Duct

Part #WR2X6054

The manufacturer no longer makes this part, and there's no substitute part
