Model # 769810611 Official Kenmore air conditioner unit

Here are the diagrams and repair parts for Official Kenmore 769810611 air conditioner unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Contactor 8401-243
#22

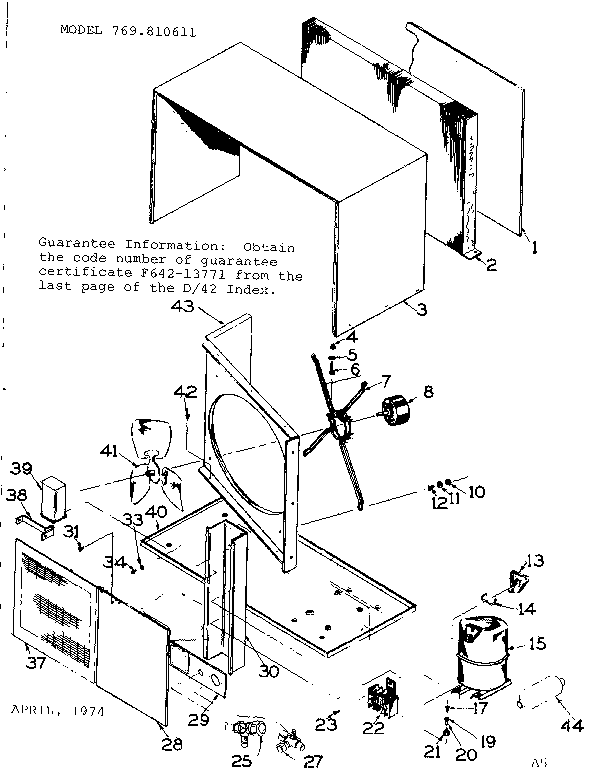

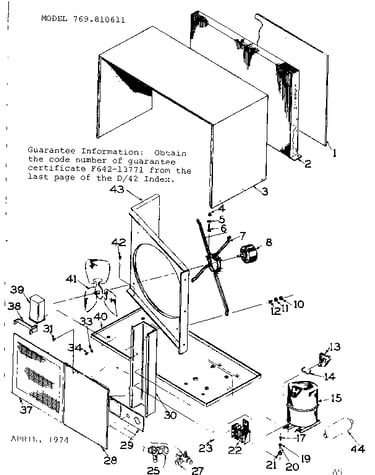

Functional replacement parts diagram

Contactor

Part #8401-243

Replaced by #90-244

?
Manufacturer substitution
This part replaces 8401-243. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Fan Motor 8101-193
#8

Functional replacement parts diagram

Fan motor

Part #8101-193

Replaced by #45461

?
Manufacturer substitution
This part replaces 8101-193. Substitute parts can look different from the original.
$207.04
In Stock
Guarantee F642-13771A

#NI

All parts diagram

Guarantee

Part #F642-13771A

The manufacturer no longer makes this part, and there's no substitute part

Inlet Grille 7051-636
#37

Functional replacement parts diagram

Inlet grille

Part #7051-636

The manufacturer no longer makes this part, and there's no substitute part

Shrould Fan 7031-141
#43

Functional replacement parts diagram

Shrould fan

Part #7031-141

The manufacturer no longer makes this part, and there's no substitute part

Housing 5371-707
#3

Functional replacement parts diagram

Housing

Part #5371-707

The manufacturer no longer makes this part, and there's no substitute part

Capaci Strap 7071-30
#38

Functional replacement parts diagram

Capaci strap

Part #7071-30

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 122027
#17

Functional replacement parts diagram

Cap screw

Part #122027

The manufacturer no longer makes this part, and there's no substitute part

Clip 7951-150
#14

Functional replacement parts diagram

Clip

Part #7951-150

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5051-229
#2

Functional replacement parts diagram

Condenser

Part #5051-229

The manufacturer no longer makes this part, and there's no substitute part
