Model # MMW9730FZ05 Official Maytag electric oven/microwave combo

Here are the diagrams and repair parts for Official Maytag MMW9730FZ05 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

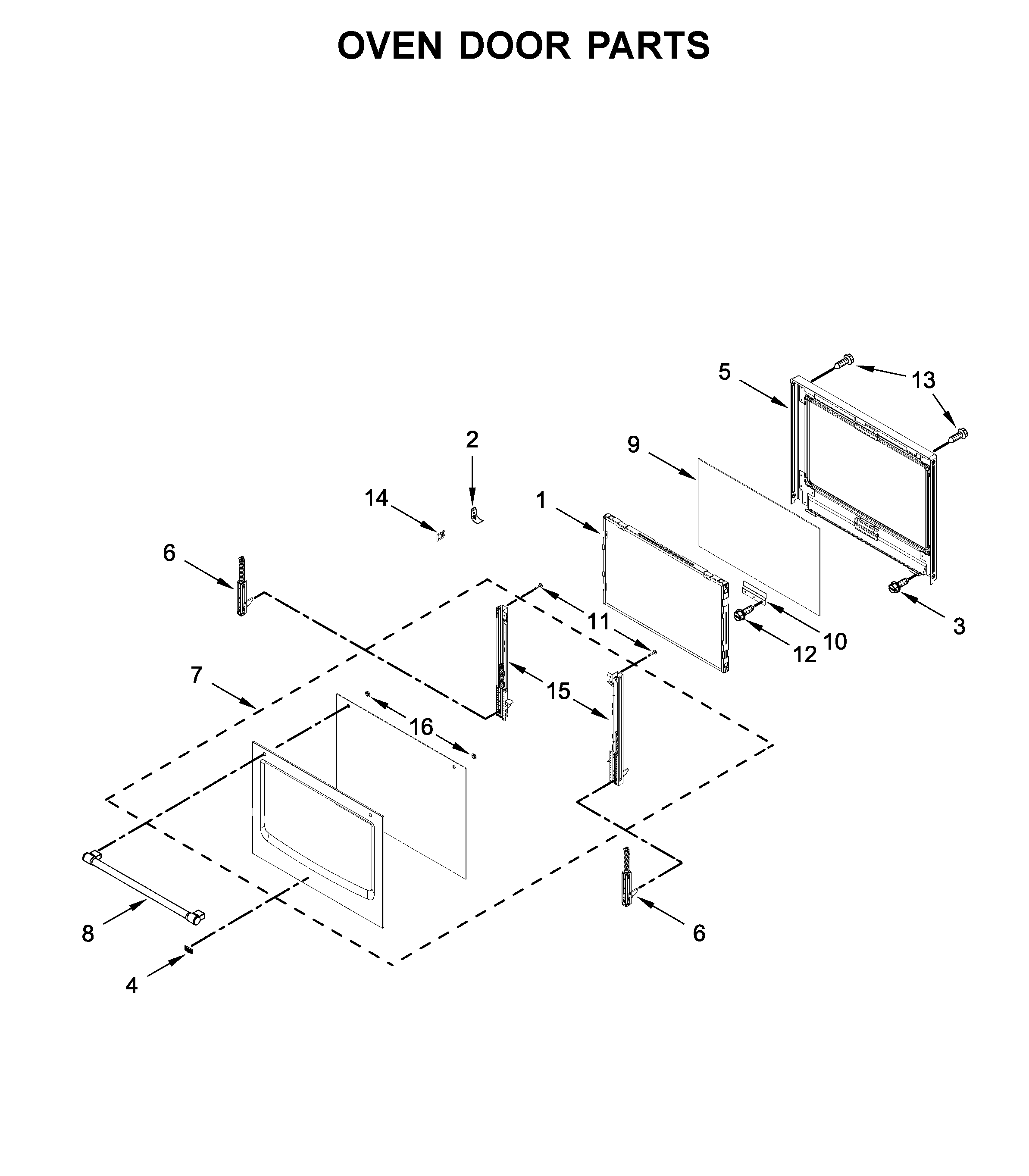

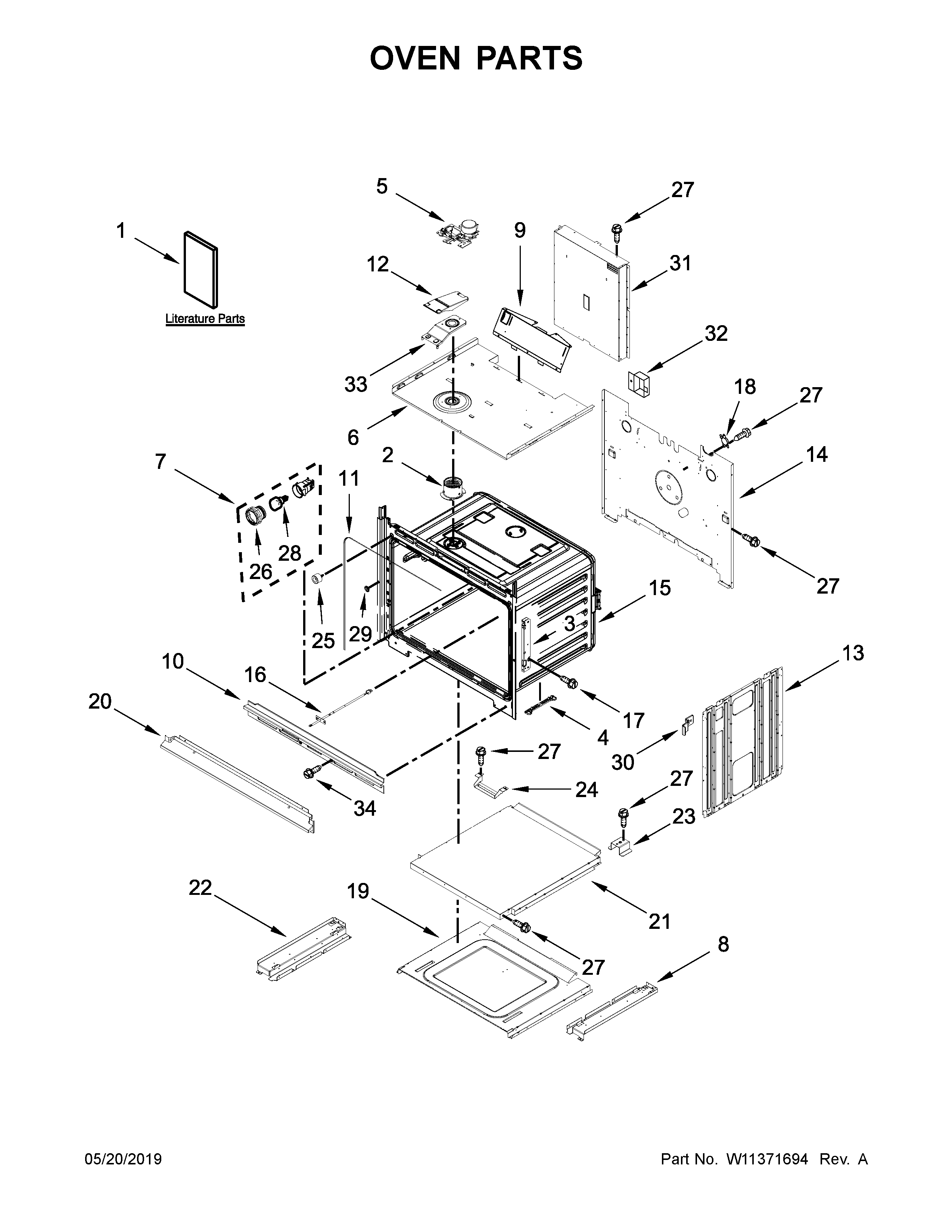

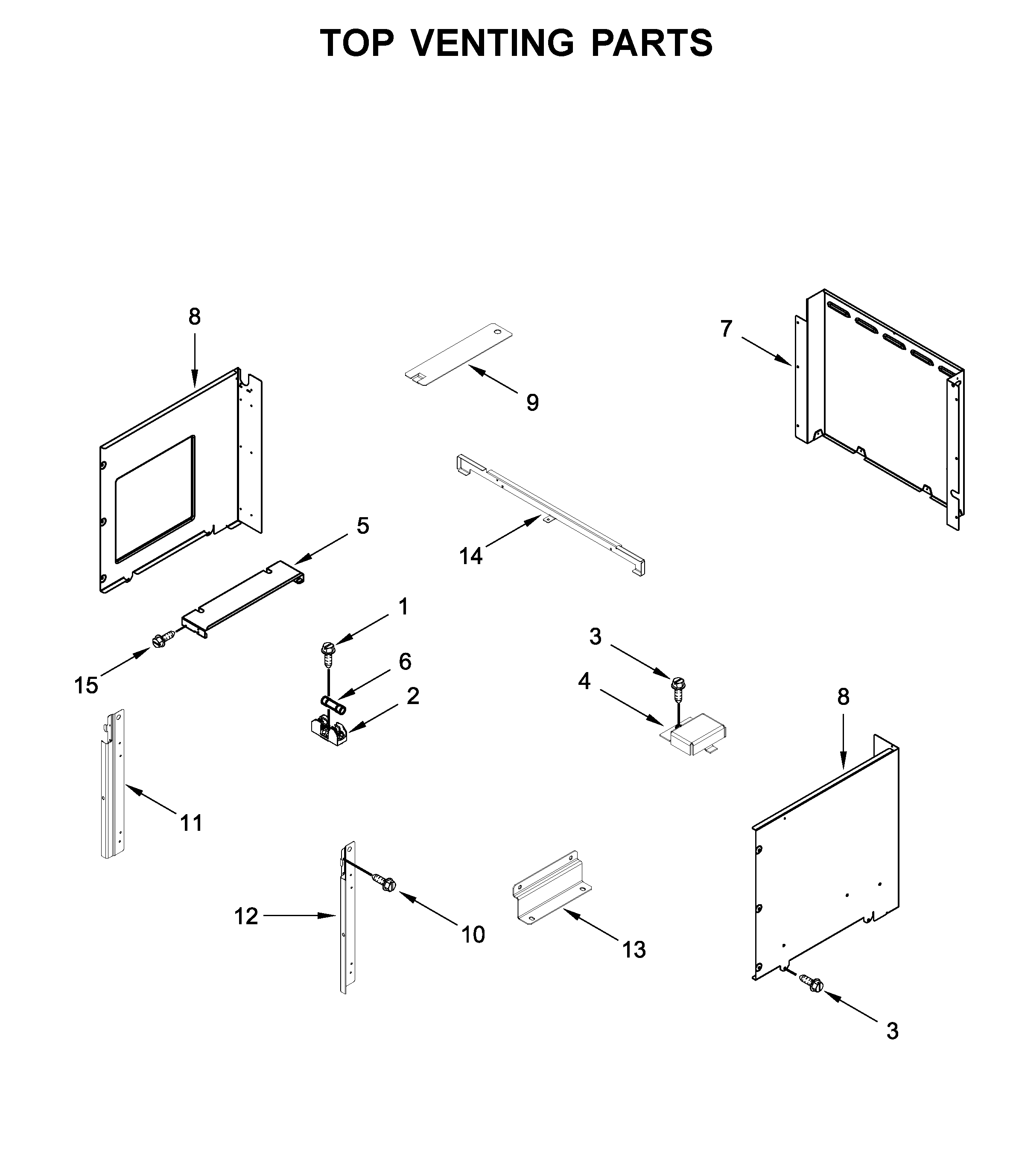

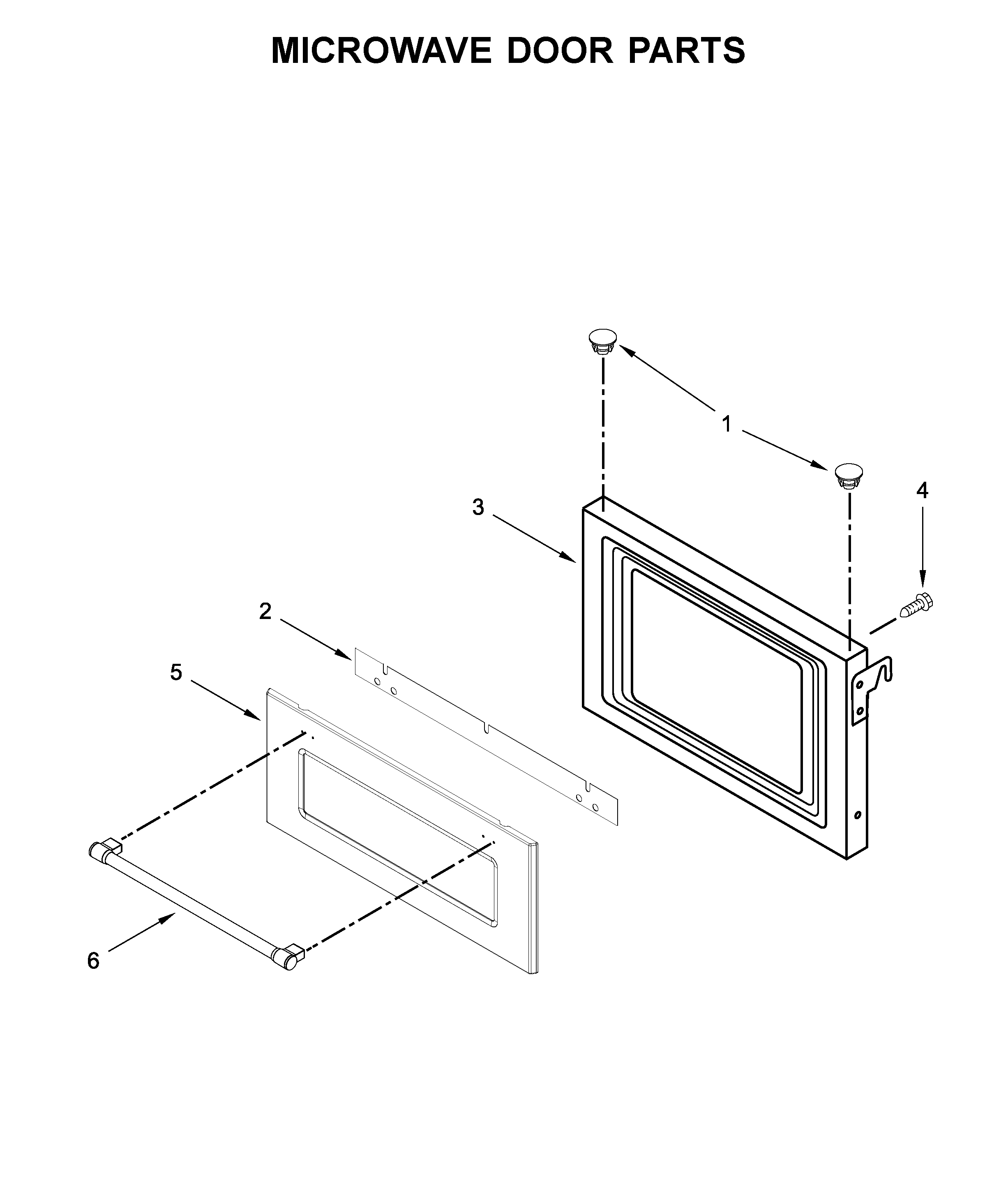

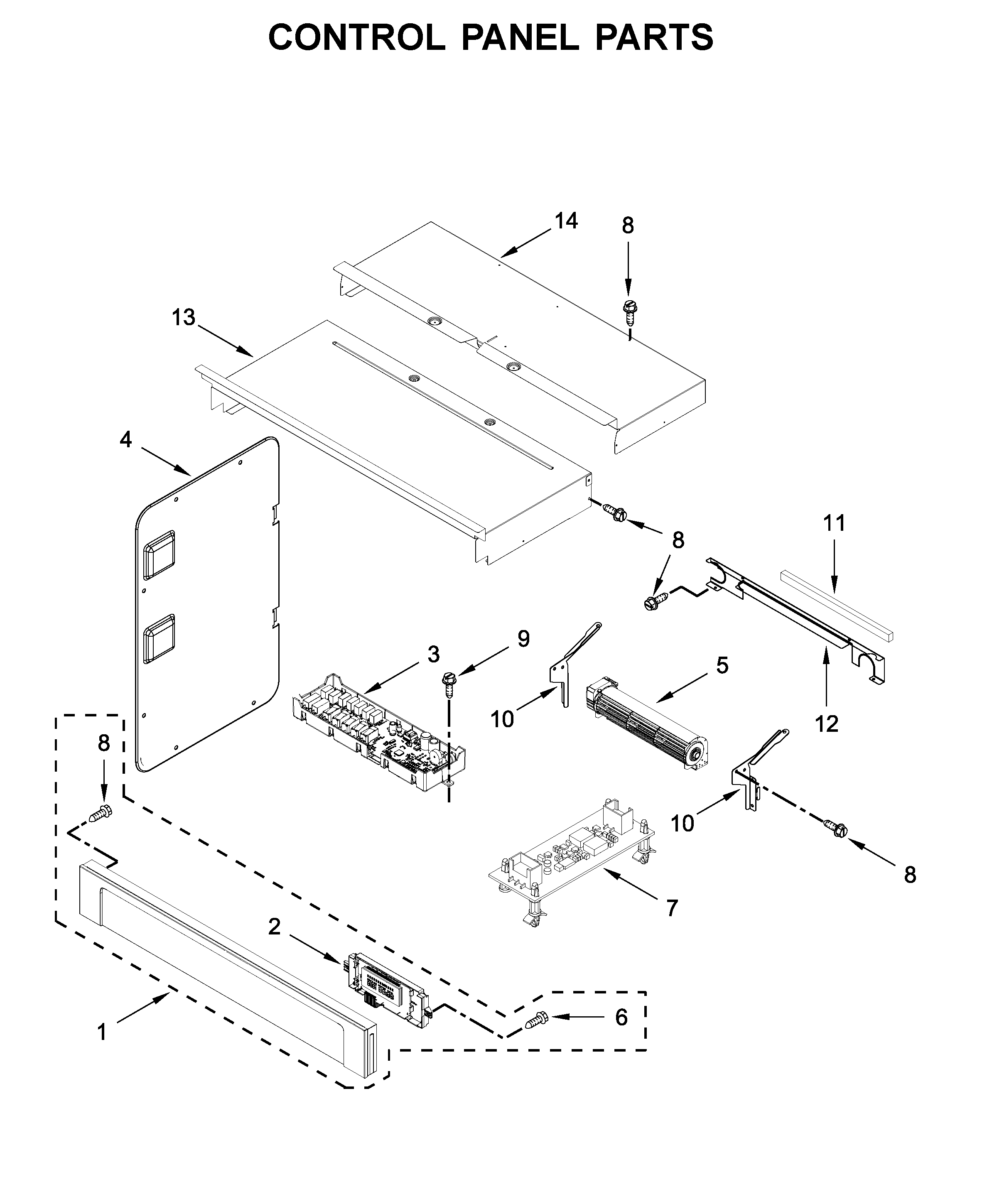

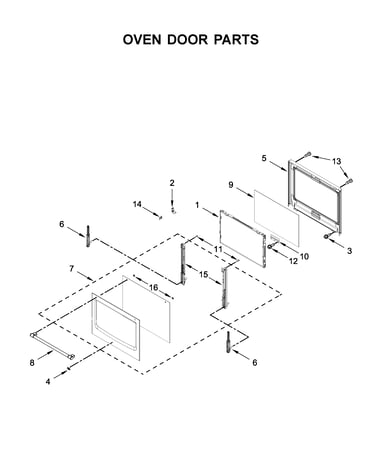

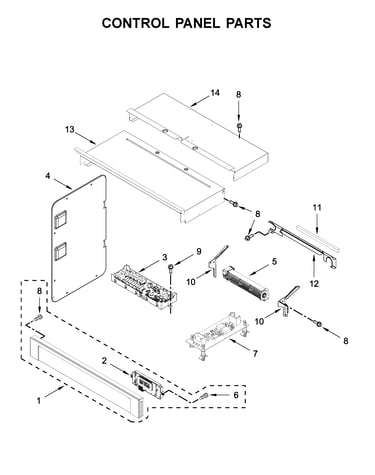

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Switch 461967848881
#15

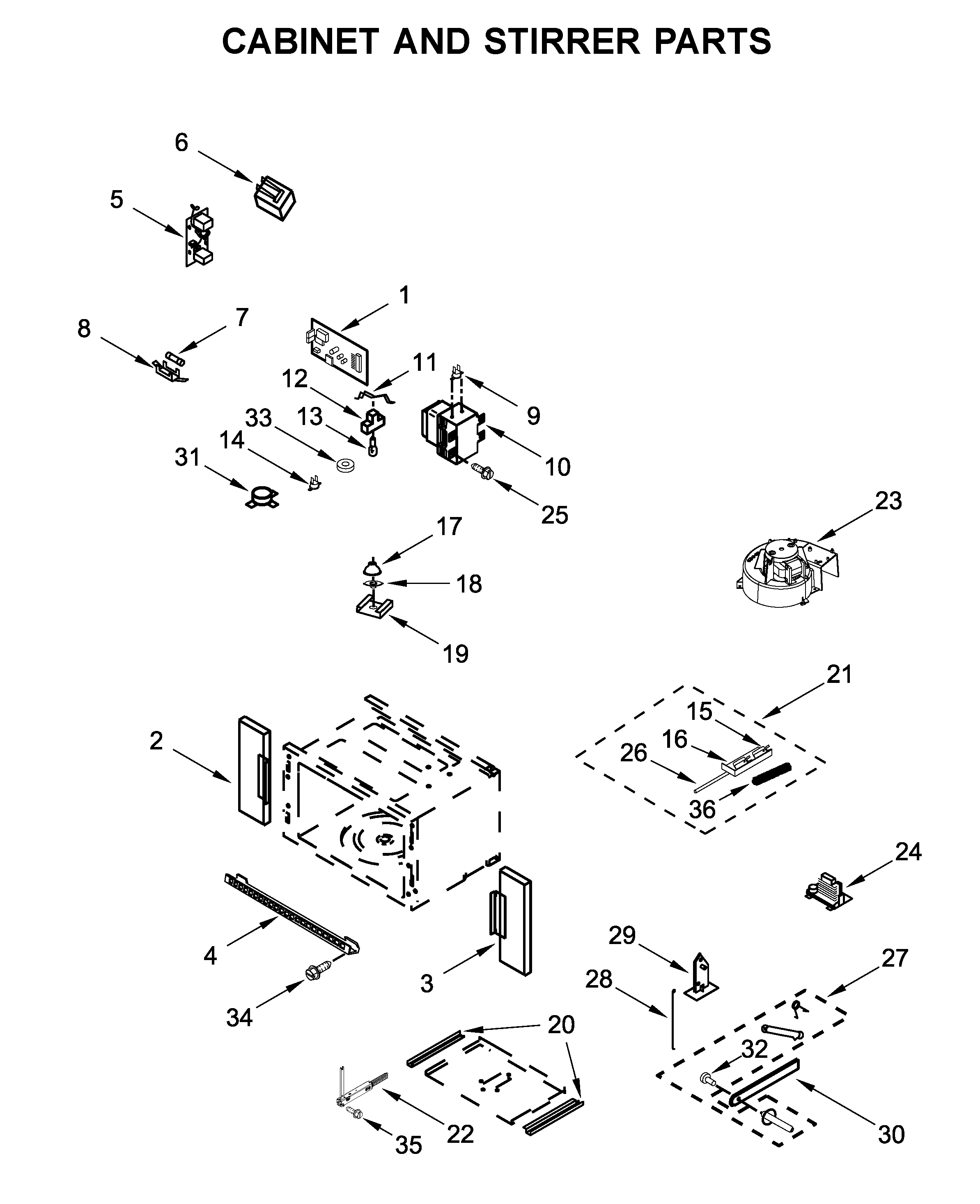

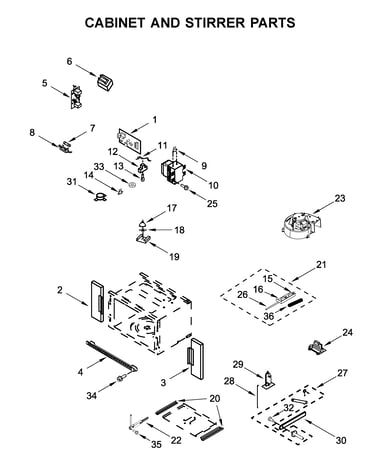

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Range High-limit Thermostat 4449751
#18

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Interlock W10358241
#21

Cabinet and stirrer parts diagram

Interlock

Part #W10358241

Replaced by #W11033422

?
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
BEST SELLER
$85.81 |
7% OFF Phone Price : $91.81
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Wako Minerva W10622170
#16

Oven parts diagram

Wako minerva

Part #W10622170

Replaced by #W10859573

?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
BEST SELLER
$100.74 |
11% OFF Phone Price : $112.74
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Bake Element W10546517
#7

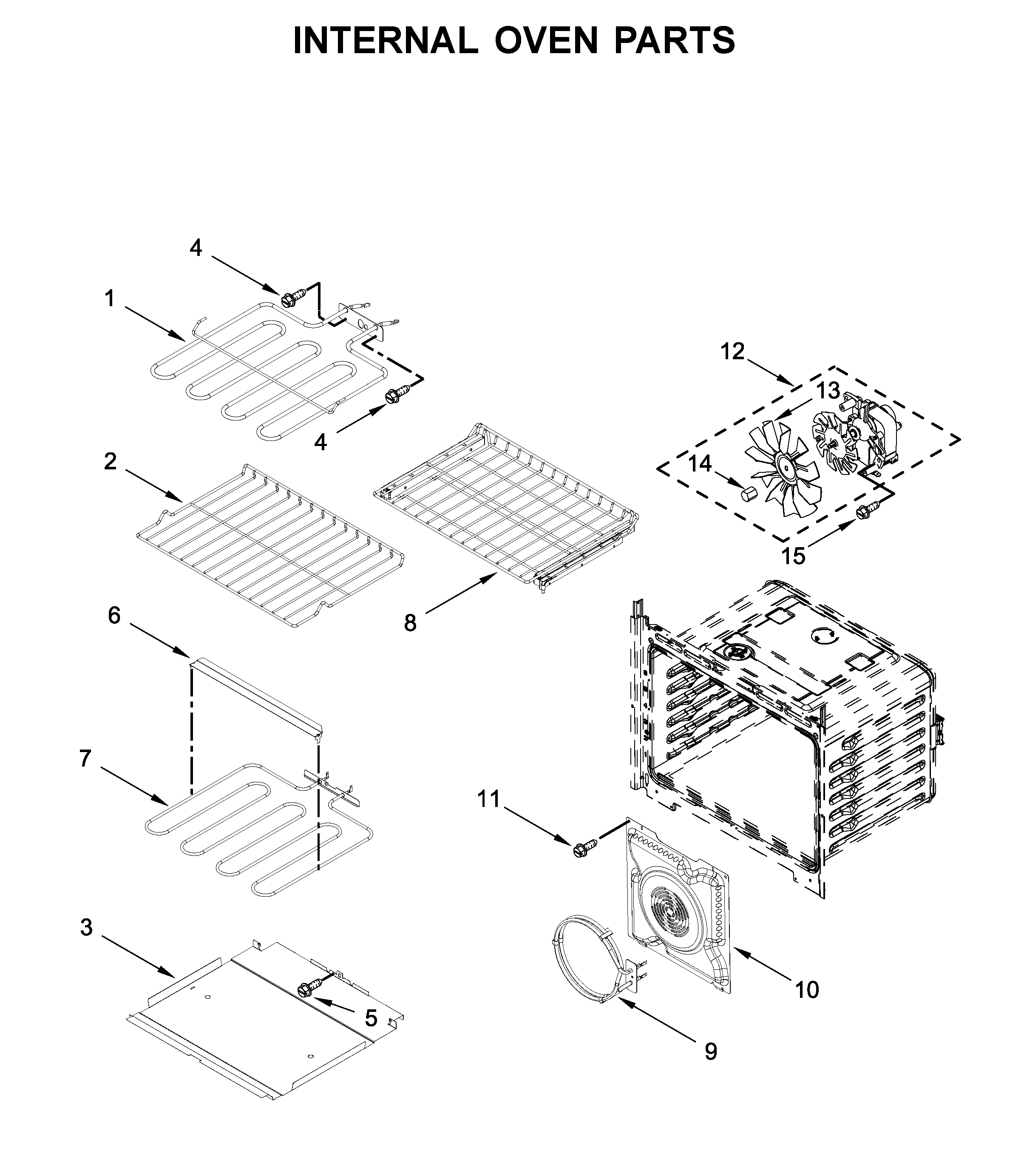

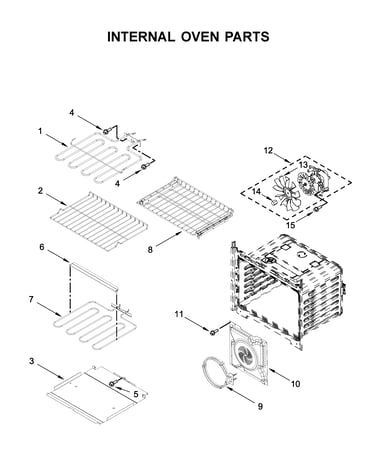

Internal oven parts diagram

Range bake element

Part #W10546517

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Inverter W11237240
#24

Cabinet and stirrer parts diagram

Inverter

Part #W11237240

Replaced by #W11325604

?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
BEST SELLER
$151.29 |
7% OFF Phone Price : $163.29
In Stock
Microwave Turntable Motor 461967848971
#6

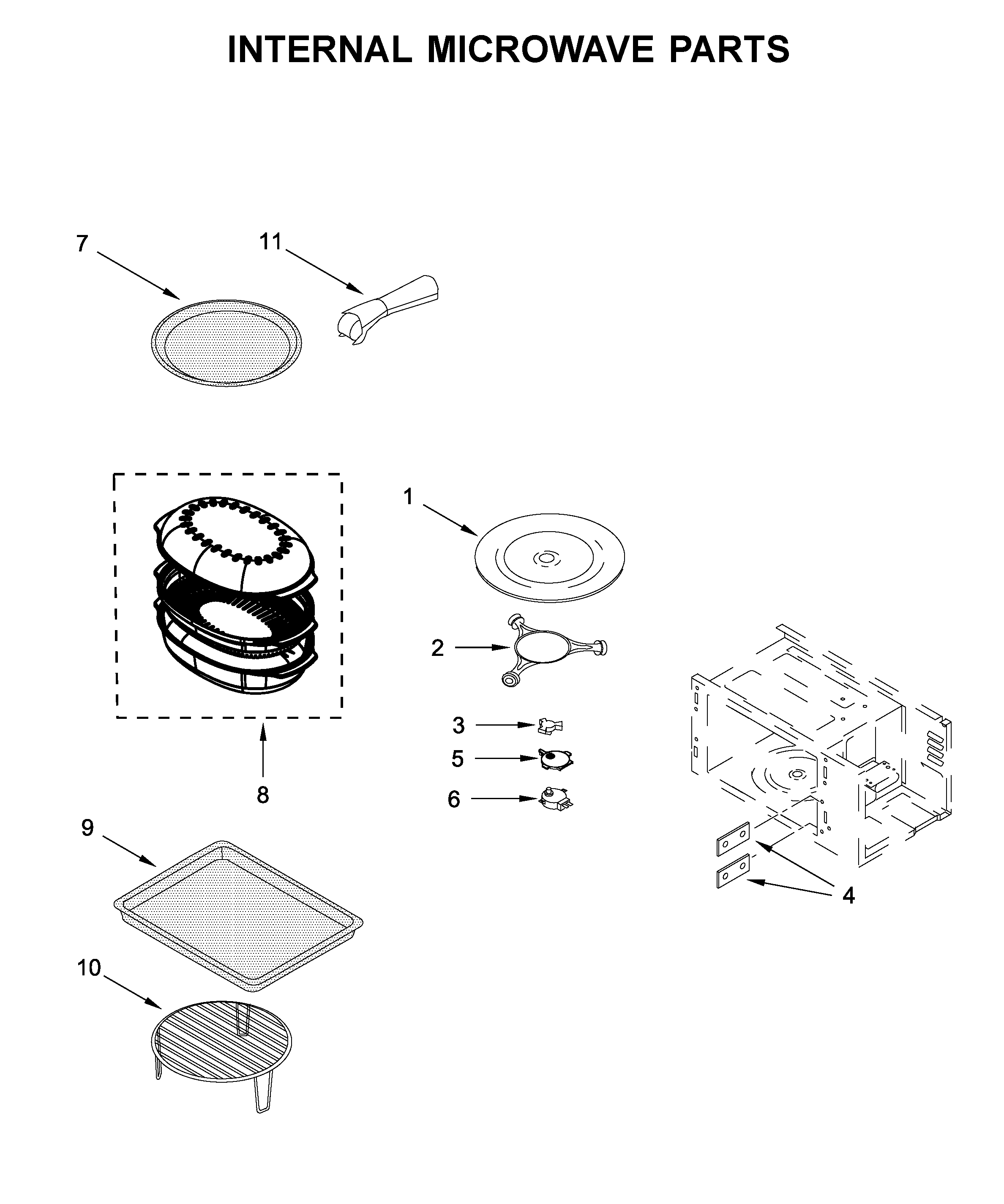

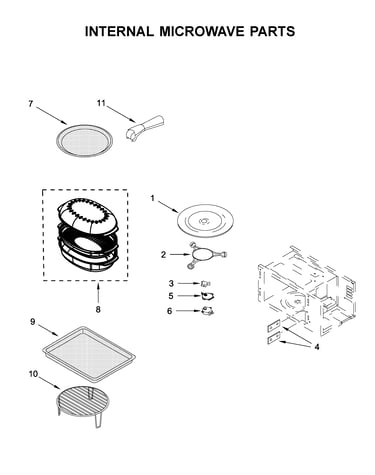

Internal microwave parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
BEST SELLER
$69.43 |
8% OFF Phone Price : $75.43
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
