Model # 217586240 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586240 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

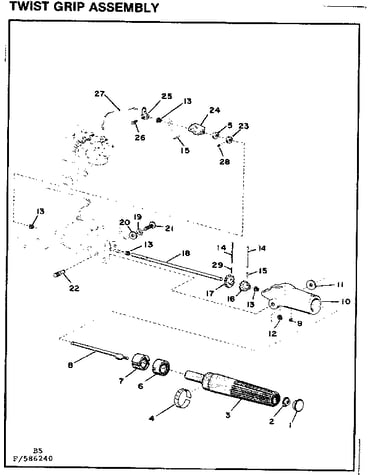

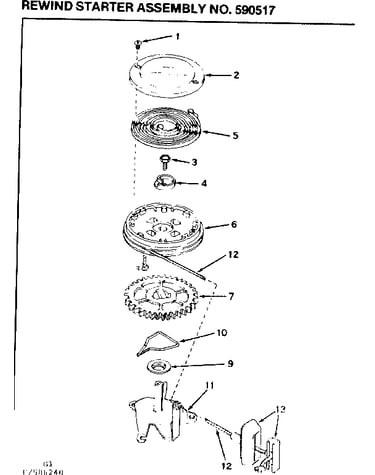

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 319 parts  |
Gasket 631028
#25

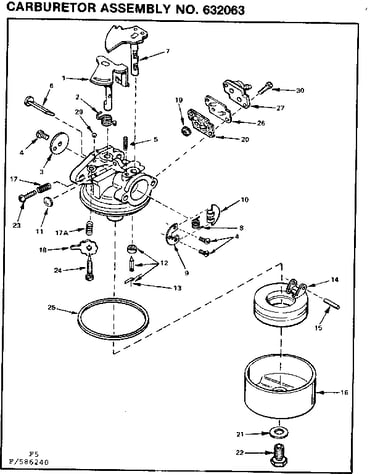

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Float 632019
#14

Carburetor assembly diagram

Float

Part #632019

The manufacturer no longer makes this part, and there's no substitute part

Nut 2629
#47

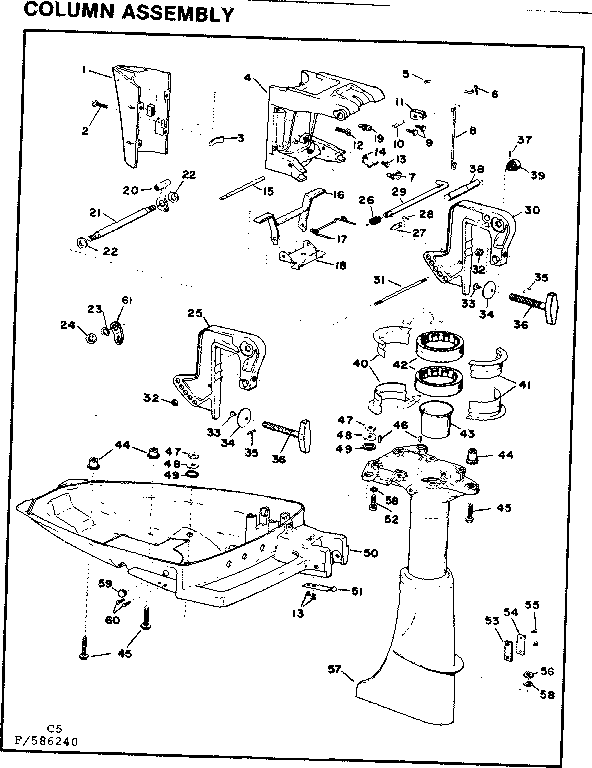

Column assembly diagram

Nut

Part #2629

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#5

Carburetor assembly diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Sealer 510304A
#62

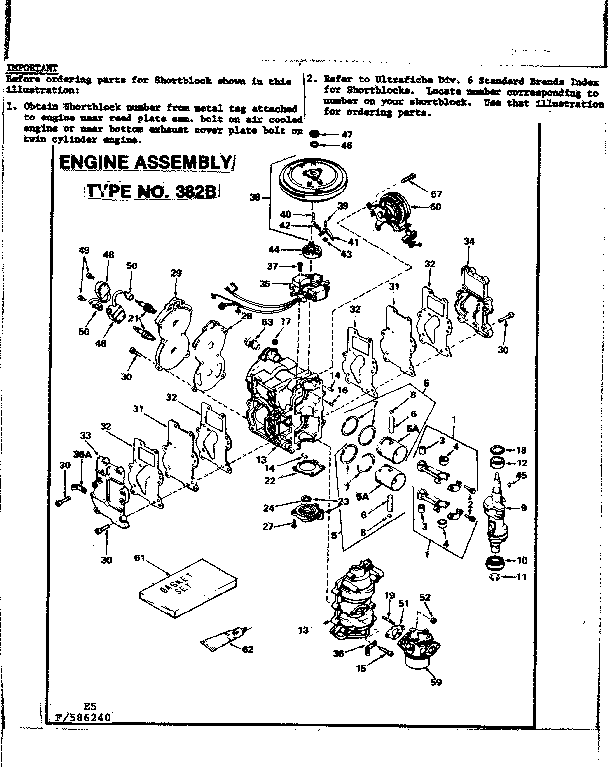

Engine assembly diagram

Sealer

Part #510304A

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96516
#56

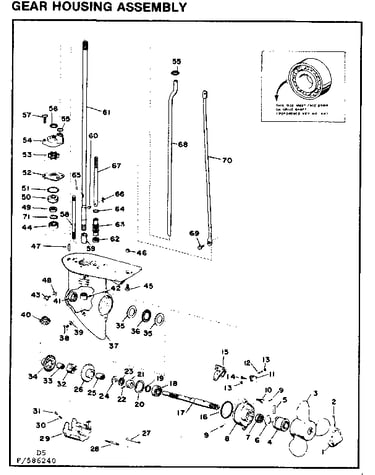

Gear housing assembly diagram

Preway boat motor oil seal

Part #96516

The manufacturer no longer makes this part, and there's no substitute part

Shift Lever Handle 76130
#41

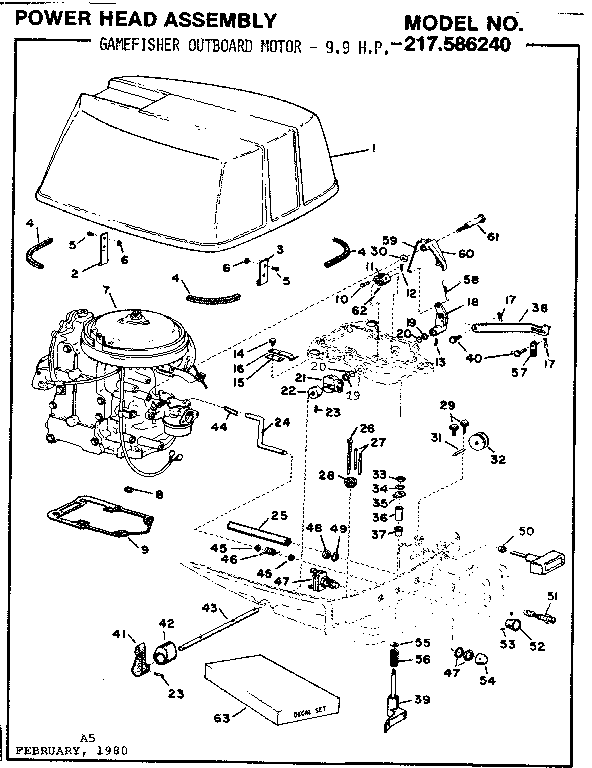

Power head assembly diagram

Shift lever handle

Part #76130

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Gasket (gray) 26352
#53

Column assembly diagram

Tecumseh gasket (gray)

Part #26352

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Exercise Equipment Washer 96687
#6

Gear housing assembly diagram

Tecumseh exercise equipment washer

Part #96687

The manufacturer no longer makes this part, and there's no substitute part
