Model # 315113082 Official Craftsman trim saw

Here are the diagrams and repair parts for Official Craftsman 315113082 trim saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

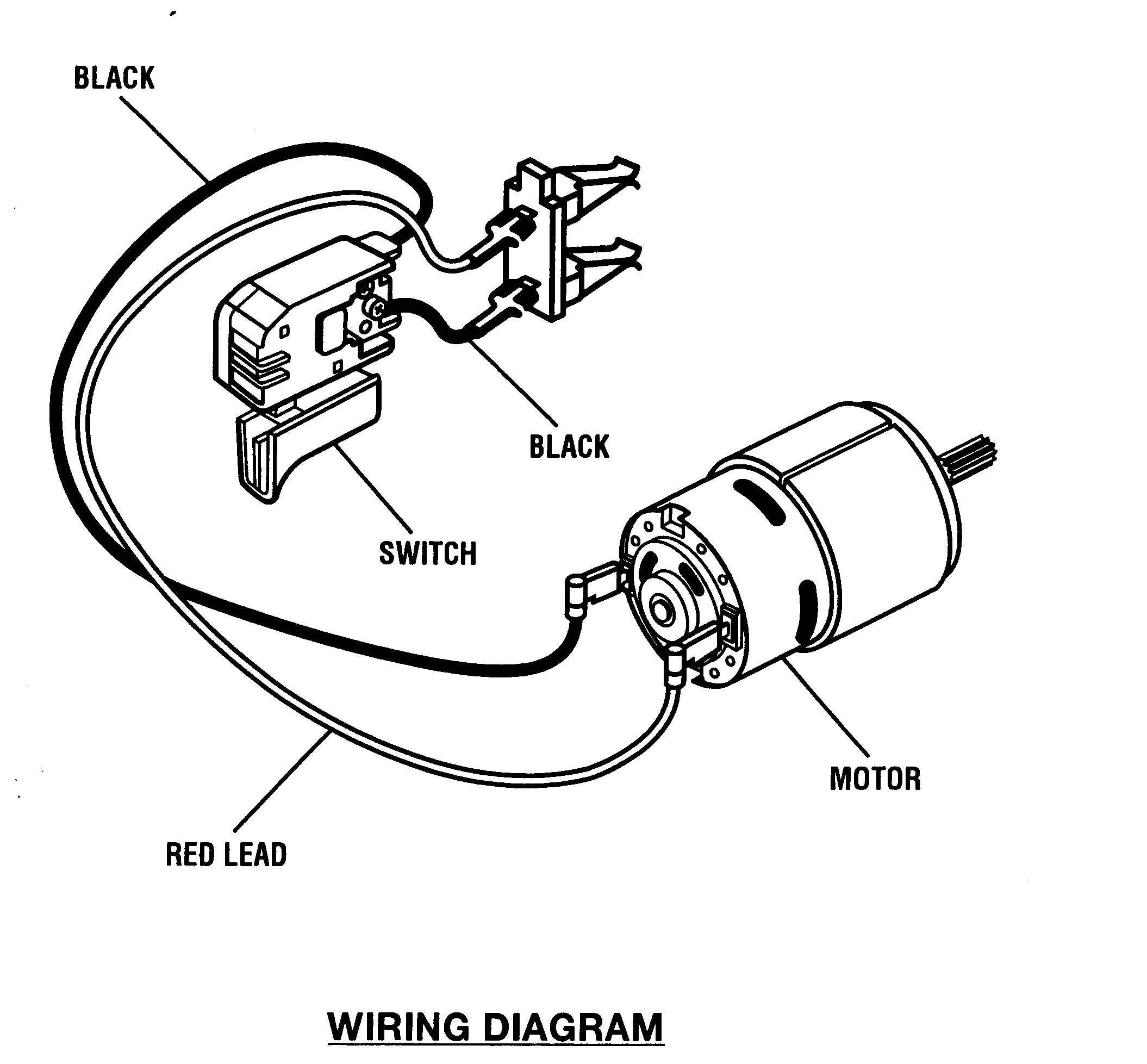

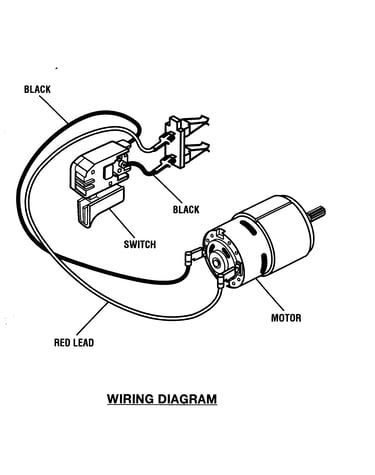

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Washer 5228001
#30

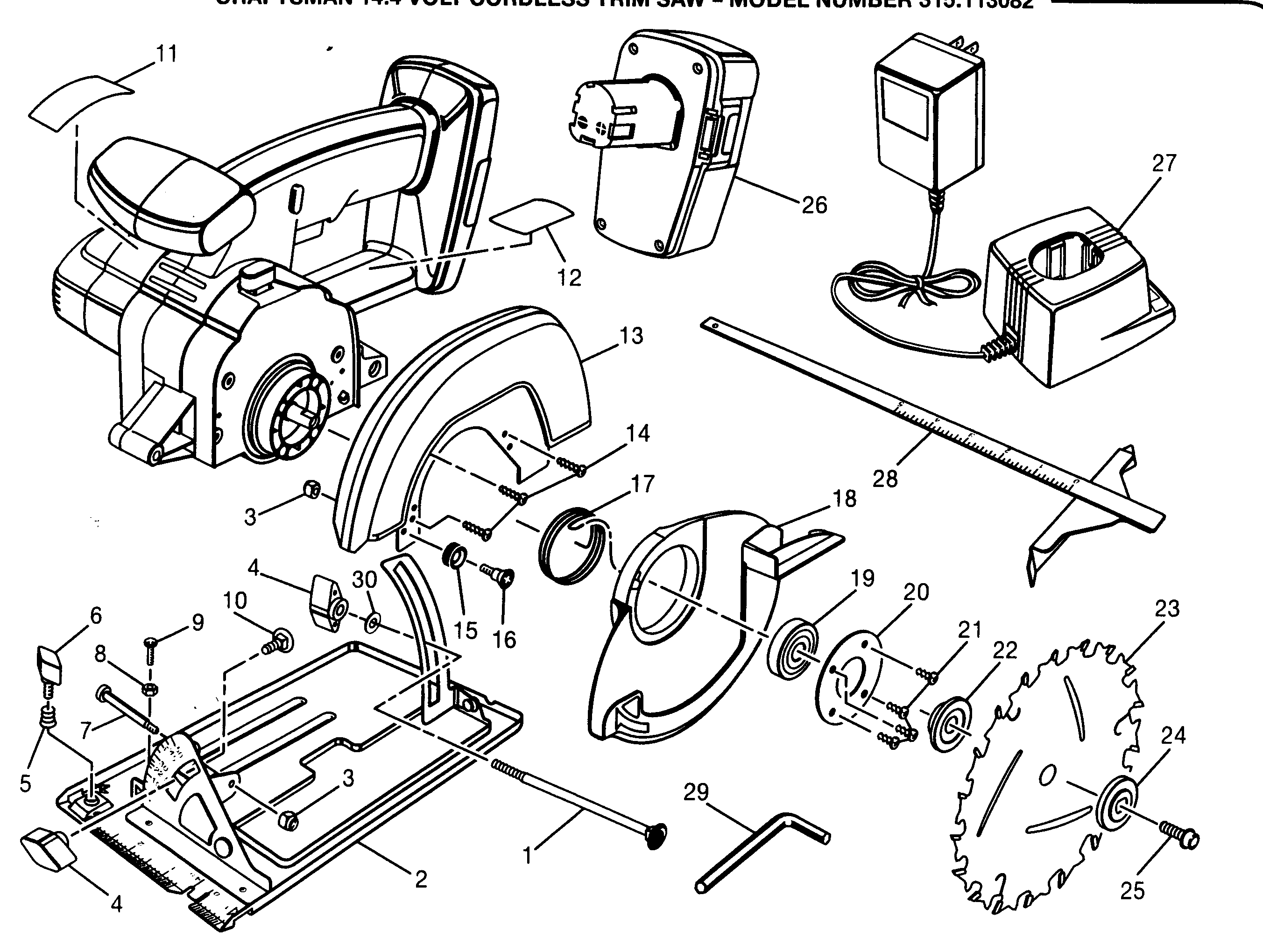

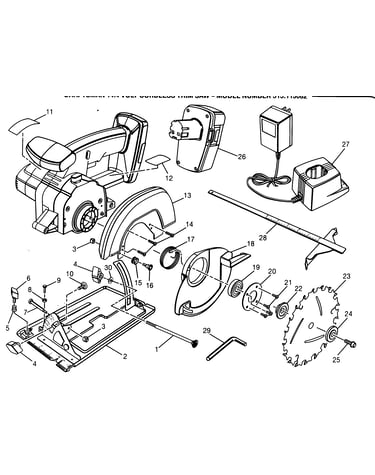

Base assy diagram

Washer

Part #5228001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 940271019
#11

Base assy diagram

Data plate

Part #940271019

The manufacturer no longer makes this part, and there's no substitute part

Screw 6600506
#21

Base assy diagram

Screw

Part #6600506

The manufacturer no longer makes this part, and there's no substitute part

Washer 975664-000
#10

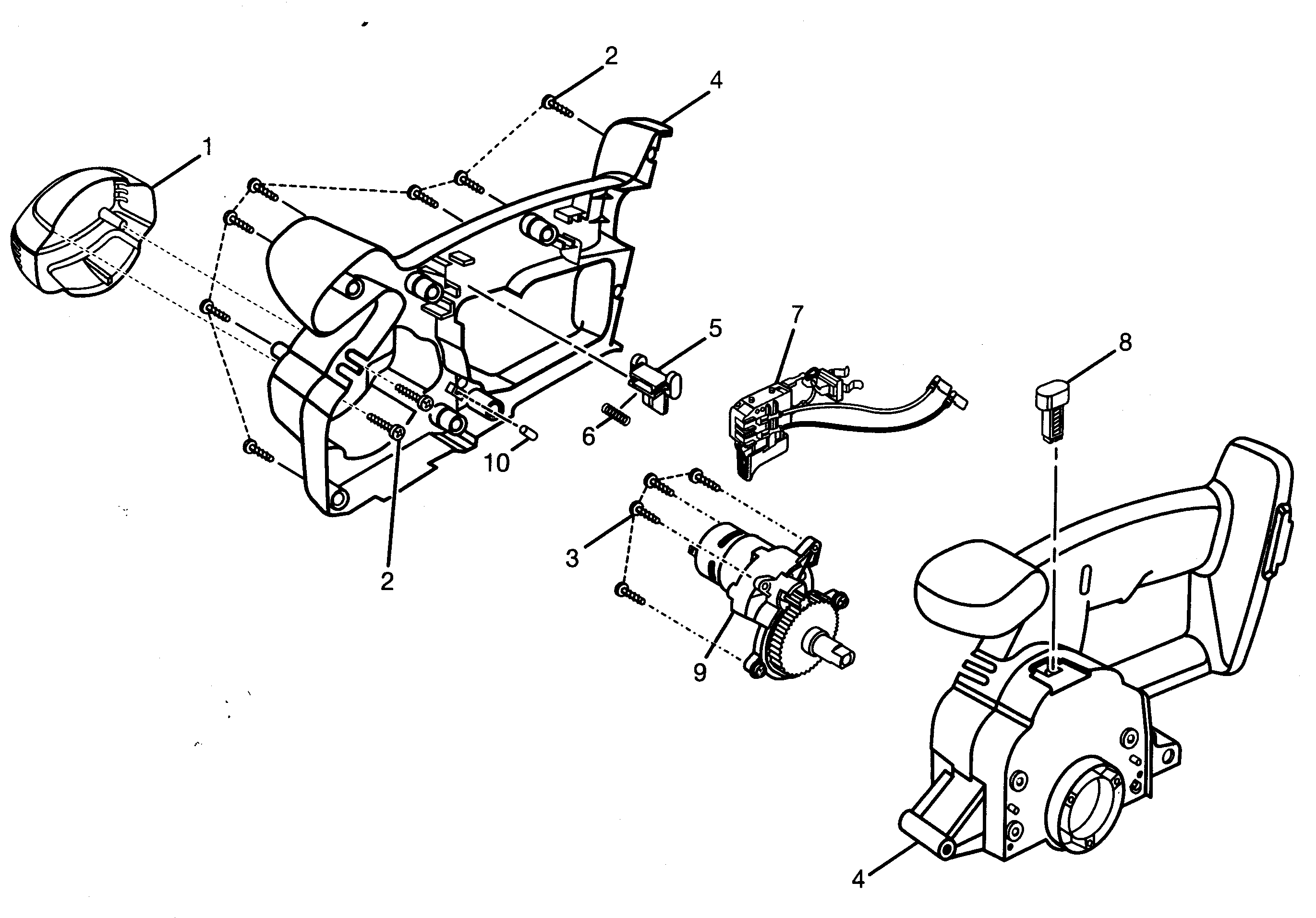

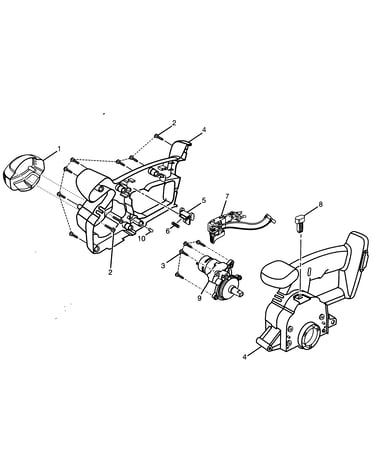

Housing assy diagram

Washer

Part #975664-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 975532-000
#25

Base assy diagram

Screw

Part #975532-000

The manufacturer no longer makes this part, and there's no substitute part

Label 975557-000
#12

Base assy diagram

Label

Part #975557-000

The manufacturer no longer makes this part, and there's no substitute part

End Cap 3517601
#1

Housing assy diagram

End cap

Part #3517601

The manufacturer no longer makes this part, and there's no substitute part

Spring 6799802
#6

Housing assy diagram

Spring

Part #6799802

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620604
#3

Housing assy diagram

Screw

Part #6620604

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 975544-000
#3

Base assy diagram

Lock nut

Part #975544-000

The manufacturer no longer makes this part, and there's no substitute part
