Maytag
Microwave/Hood Combo

Model # MMV1174FZ2 Official Maytag microwave/hood combo

Here are the diagrams and repair parts for Official Maytag MMV1174FZ2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Diode W10886077
#20

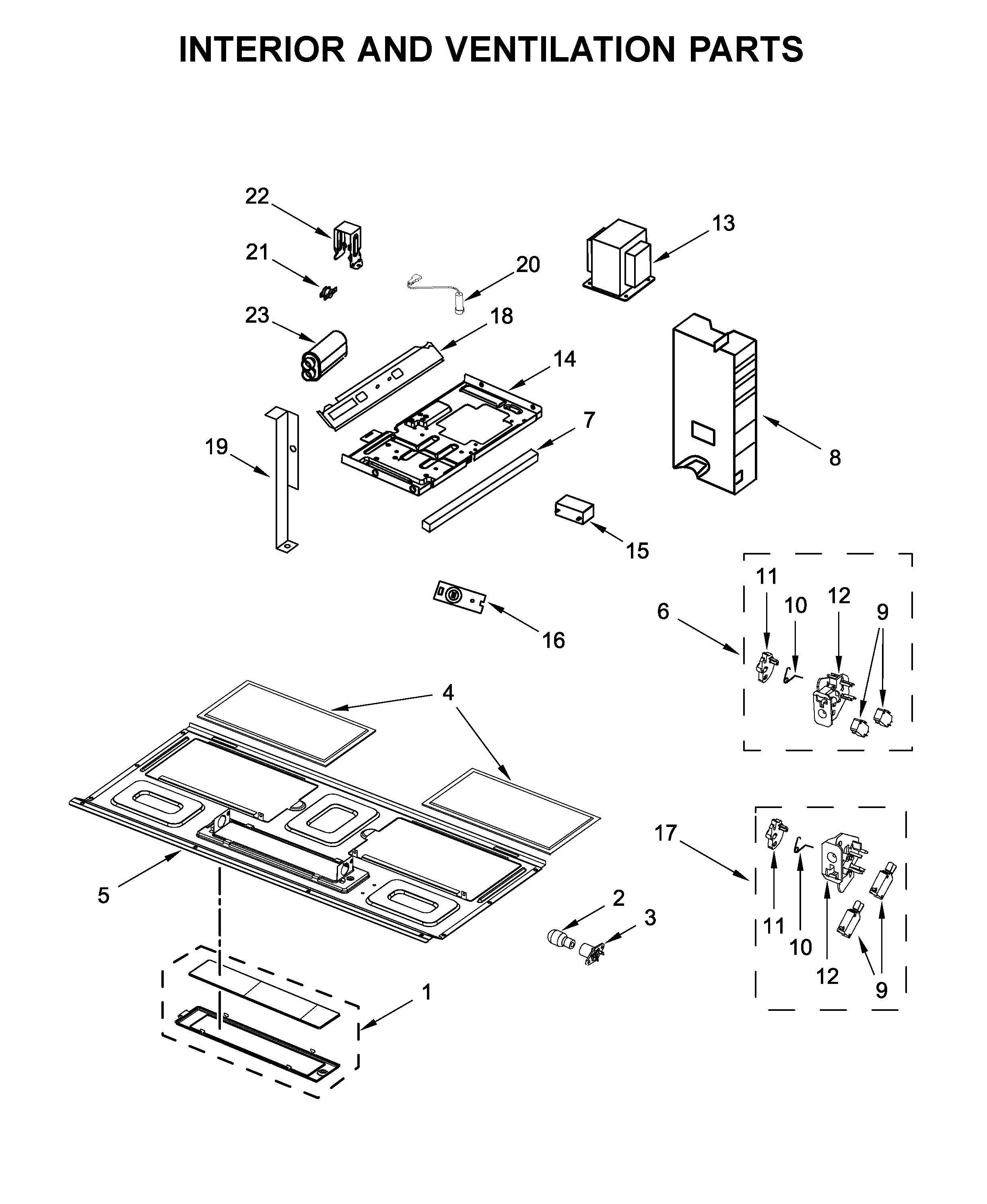

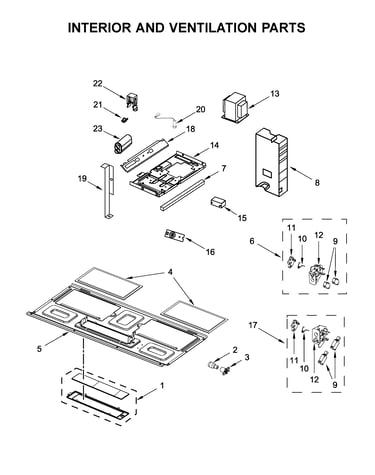

Interior and ventilation parts diagram

Diode

Part #W10886077

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10886077. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Capacitor W10343300
#23

Interior and ventilation parts diagram

Capacitor

Part #W10343300

Replaced by #W10850446

?
Manufacturer substitution
This part replaces W10343300. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
6% OFF Phone Price : $100.83
In Stock
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Lamp Assembly 4393681
#3

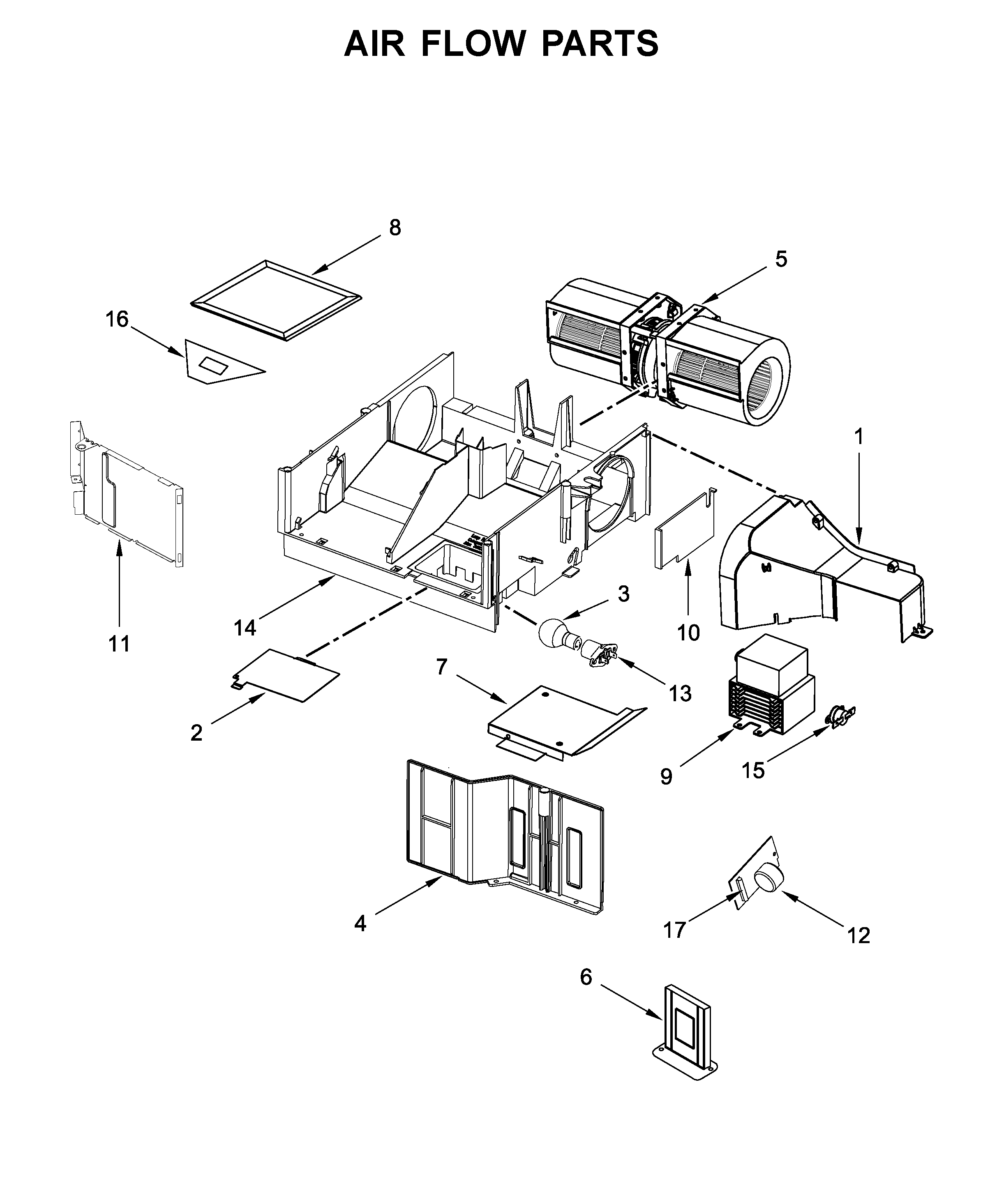

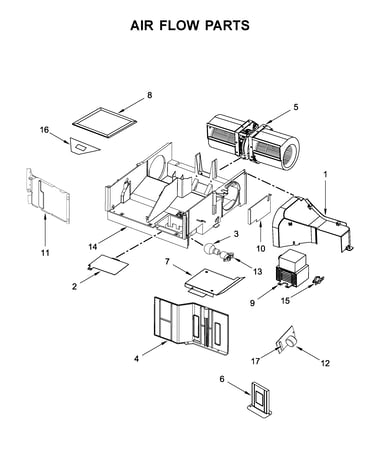

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Microwave Glass Turntable Tray W10337247
#4

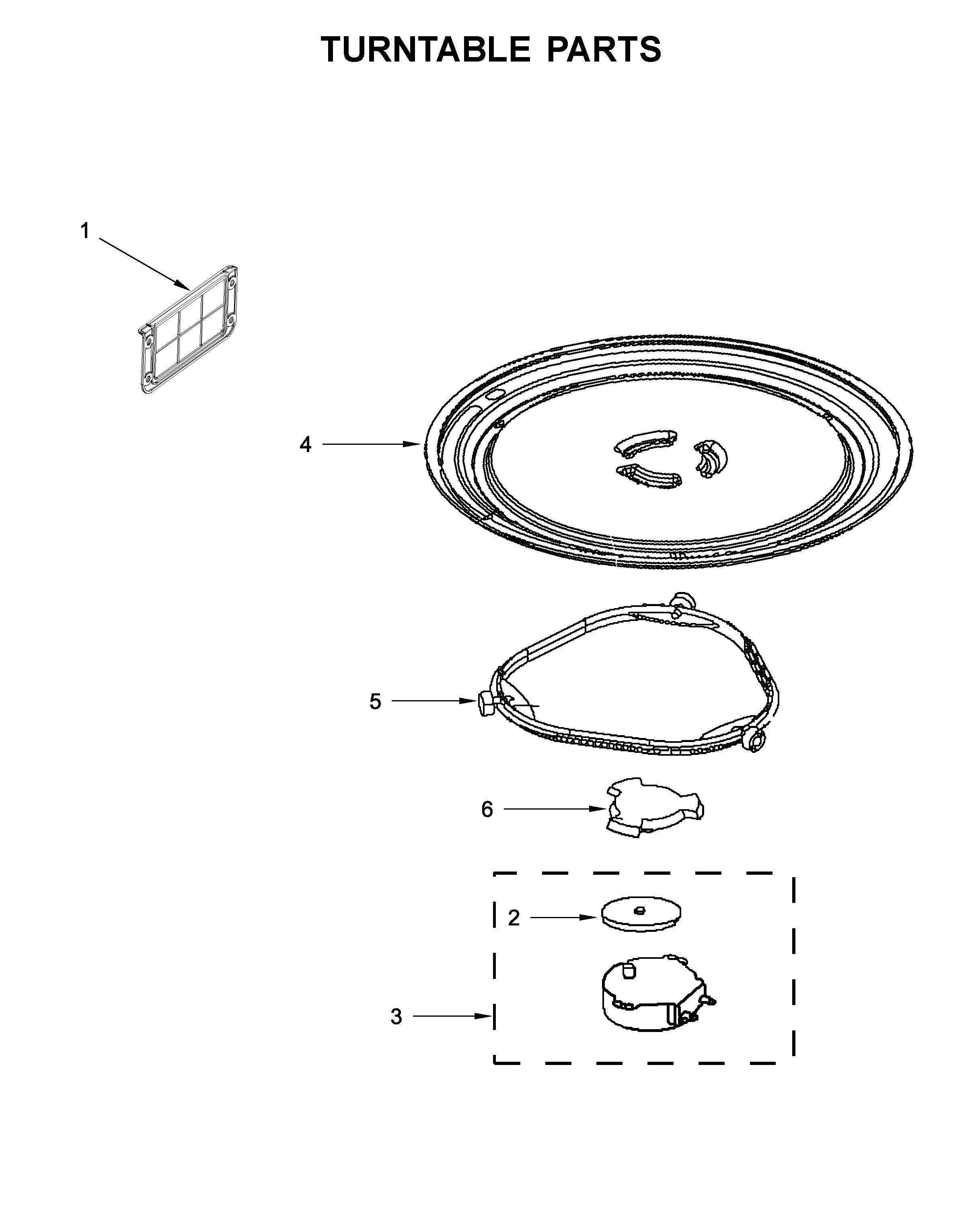

Turntable parts diagram

Microwave glass turntable tray

Part #W10337247

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W10337247. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Microwave Magnetron Thermostat W10832024
#15

Air flow parts diagram

Microwave magnetron thermostat

Part #W10832024

$38.87 |
13% OFF Phone Price : $44.87
In Stock
Microwave Noise Filter W10422269
#12

Air flow parts diagram

Microwave noise filter

Part #W10422269

$23.21 |
21% OFF Phone Price : $29.21
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

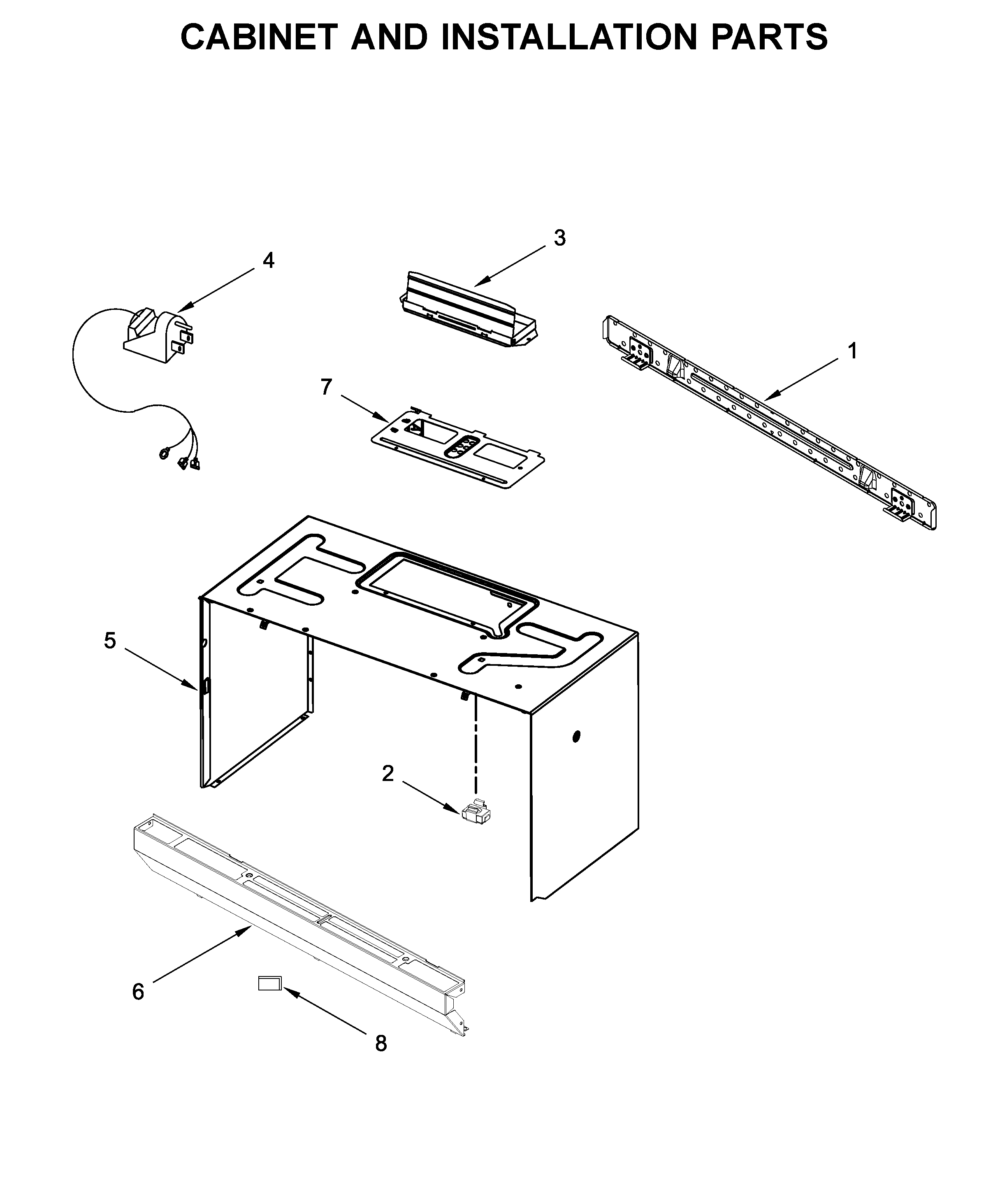

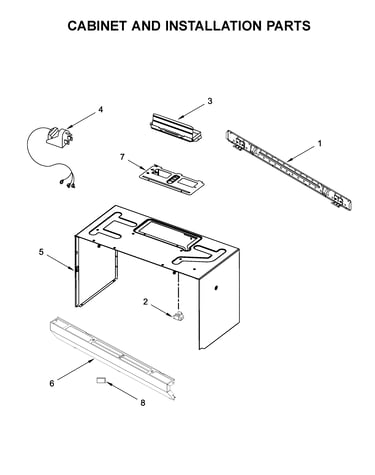

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$52.18 |
10% OFF Phone Price : $58.18
In Stock
