Kenmore
Upright Vacuum

Model # 1753116080 Official Kenmore upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1753116080 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Bulb 20-5248
#6

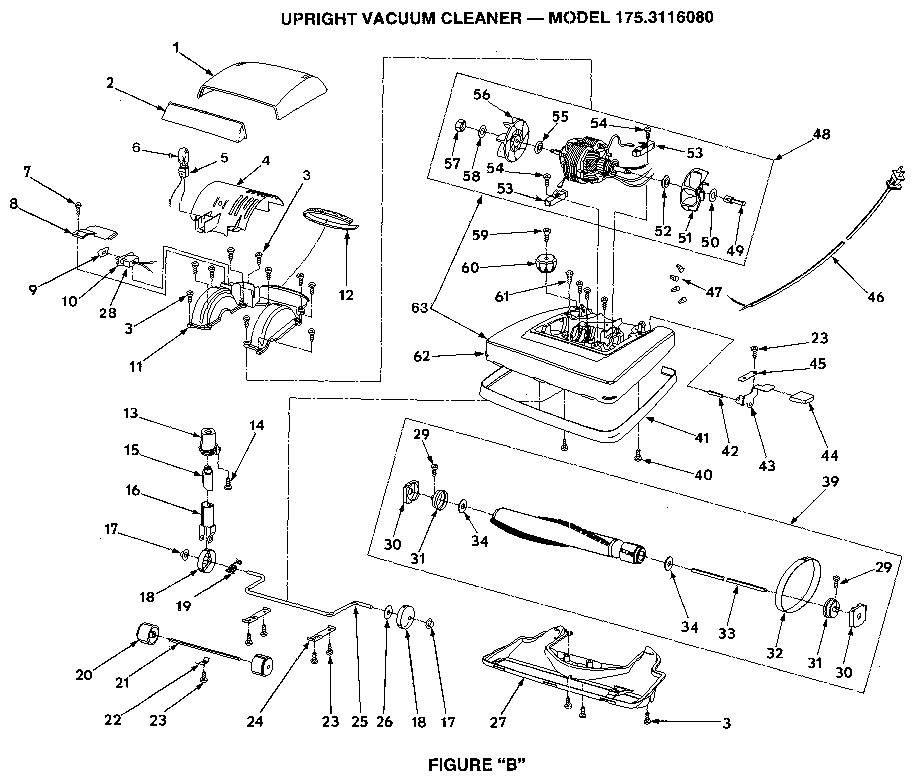

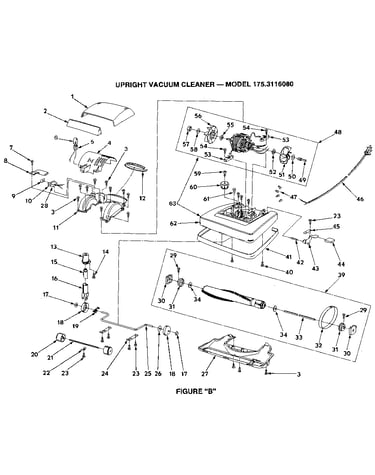

Figure "b" diagram

Bulb

Part #20-5248

The manufacturer no longer makes this part, and there's no substitute part

Wiring Cover 643040-000
#8

Figure "b" diagram

Wiring cover

Part #643040-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 643015-000
#22

Figure "b" diagram

Retainer plate

Part #643015-000

The manufacturer no longer makes this part, and there's no substitute part

Mounting Screw 643146-001
#59

Figure "b" diagram

Mounting screw

Part #643146-001

The manufacturer no longer makes this part, and there's no substitute part

Wood Dowel 640997-001
#12

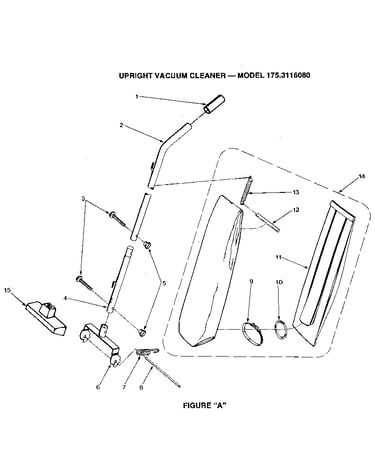

Figure "a" diagram

Wood dowel

Part #640997-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 640033-010
#3

Figure "a" diagram

Screw

Part #640033-010

The manufacturer no longer makes this part, and there's no substitute part

Wheel Cap 966763-001
#17

Figure "b" diagram

Wheel cap

Part #966763-001

The manufacturer no longer makes this part, and there's no substitute part

Bag Strap 641895-001
#9

Figure "a" diagram

Bag strap

Part #641895-001

The manufacturer no longer makes this part, and there's no substitute part

End Cap 641887-001
#30

Figure "b" diagram

End cap

Part #641887-001

The manufacturer no longer makes this part, and there's no substitute part

Belt 20-5270
#32

Figure "b" diagram

Belt

Part #20-5270

The manufacturer no longer makes this part, and there's no substitute part
