KitchenAid
Wall Oven/Microwave Combo

Model # KEMS308GSS1 Official KitchenAid wall oven/microwave combo

Here are the diagrams and repair parts for Official KitchenAid KEMS308GSS1 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

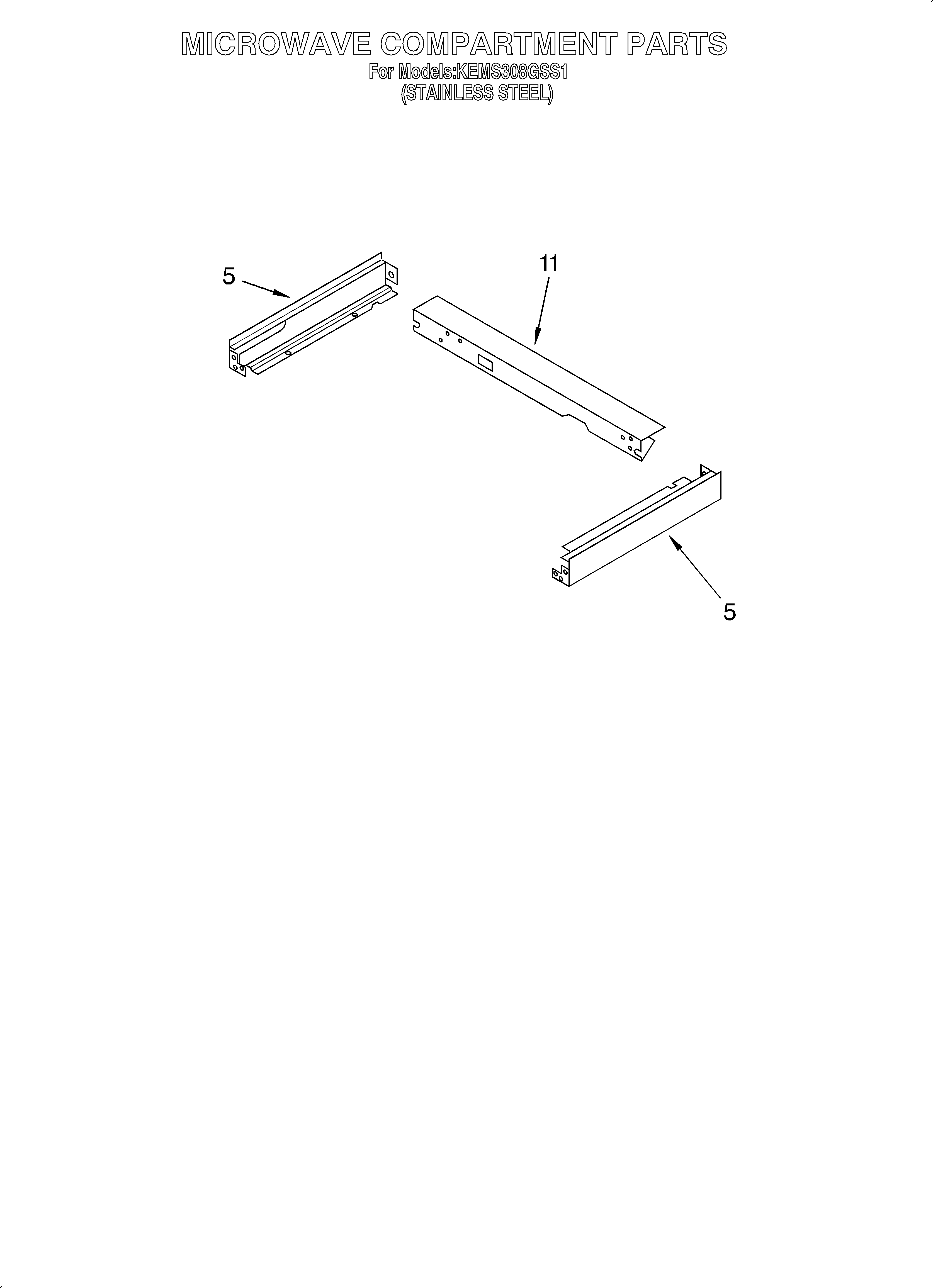

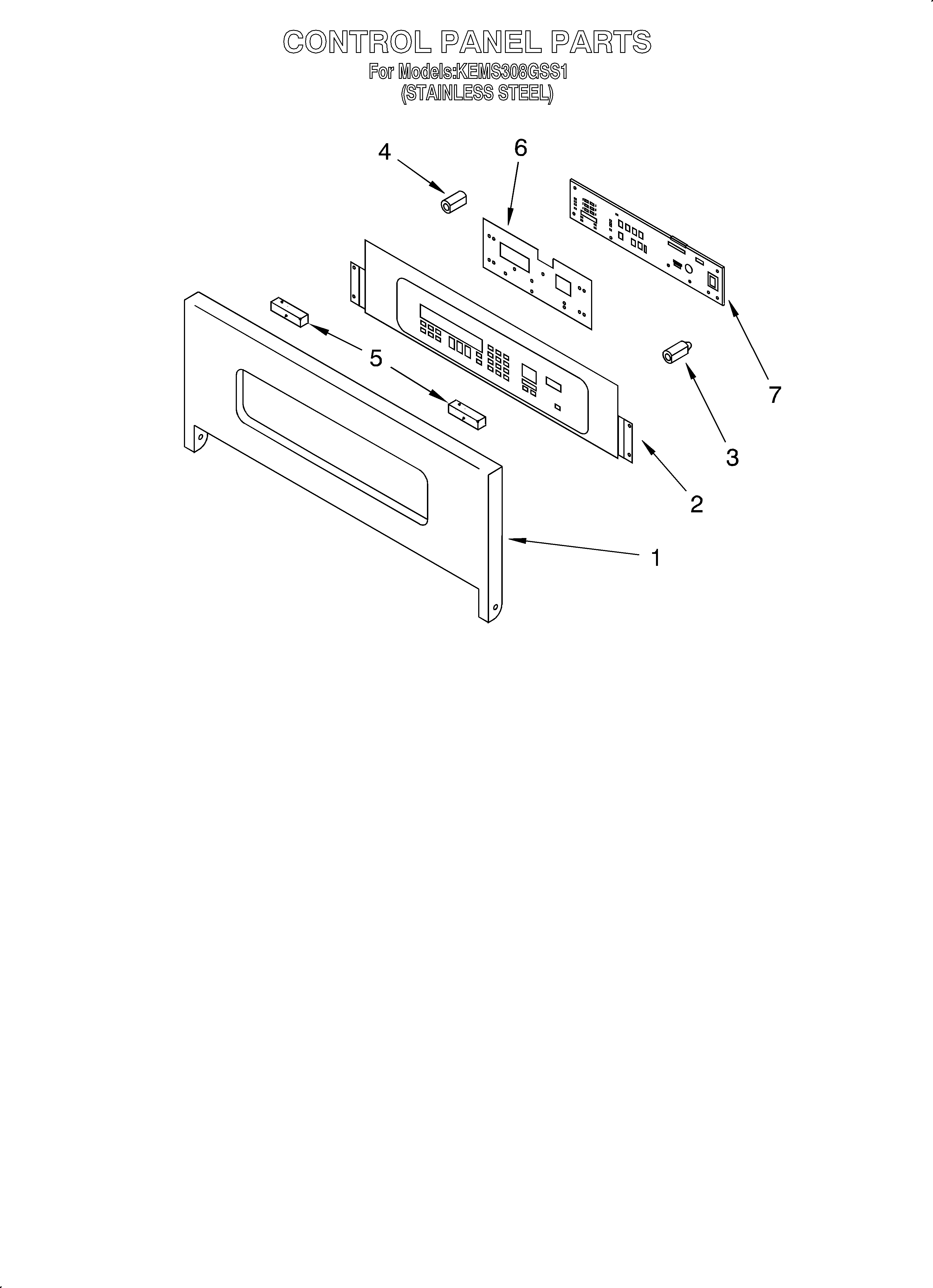

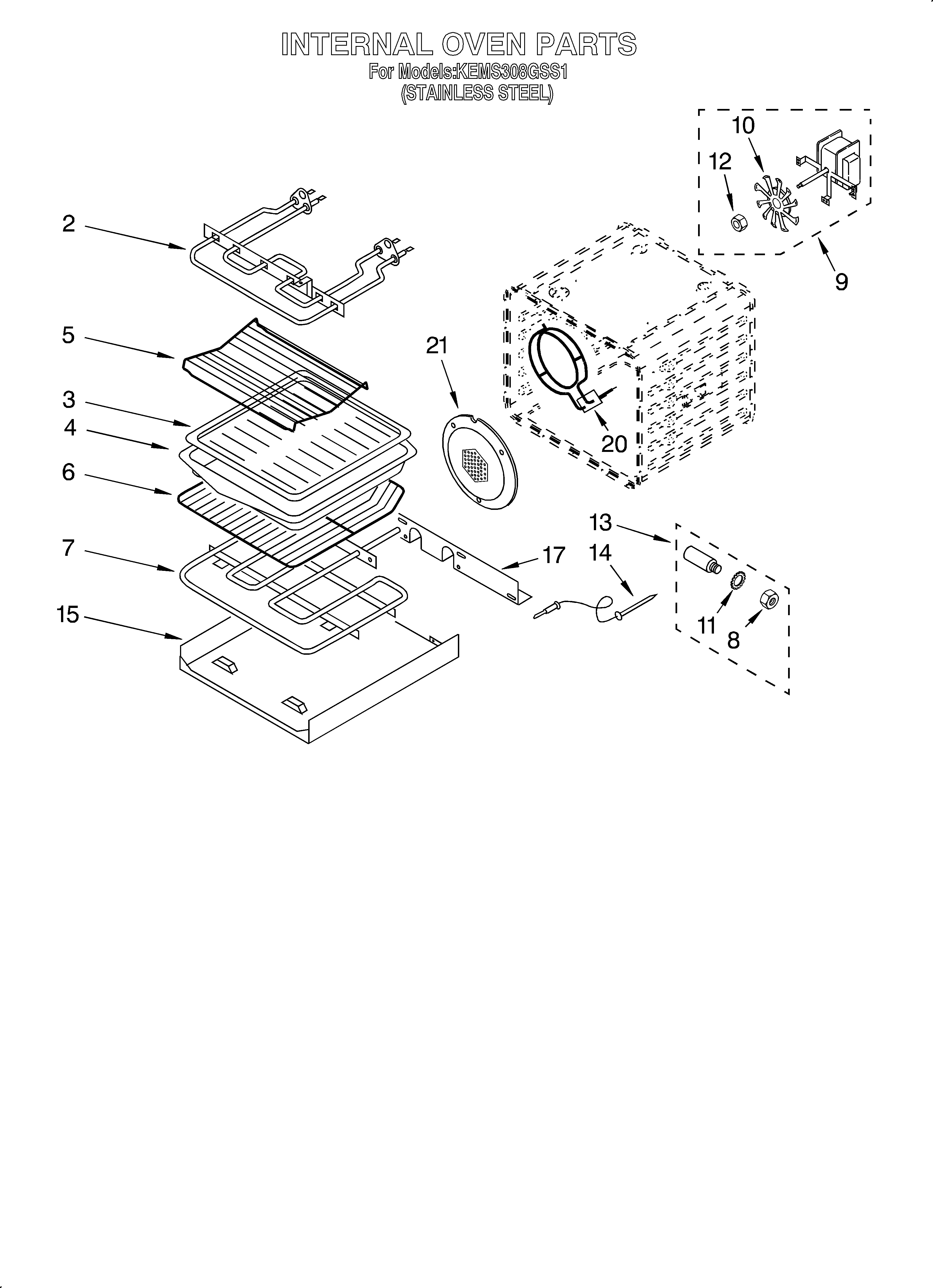

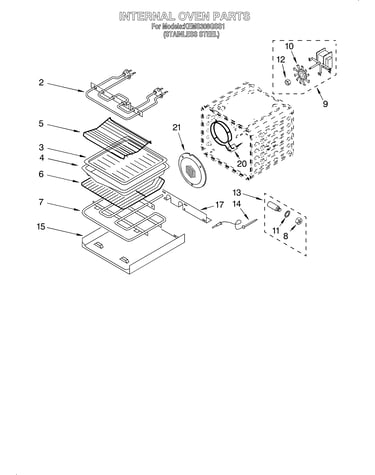

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Microwave Door Interlock Switch 4375346
#73

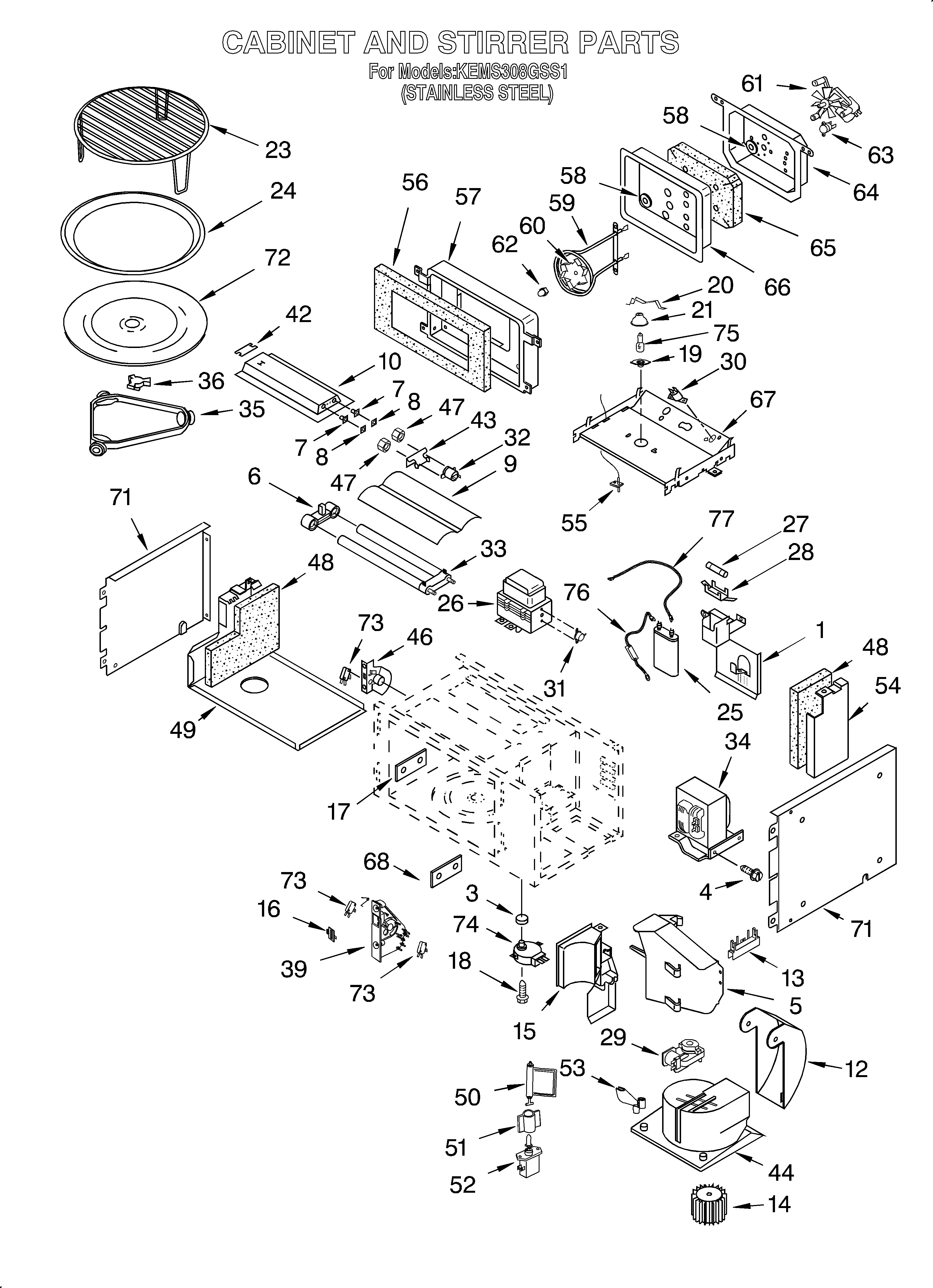

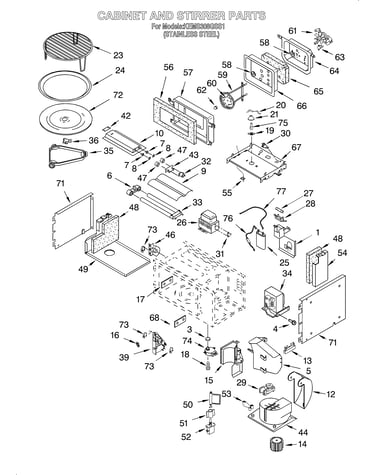

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Wall Oven Door Inner Glass 4449259
#3

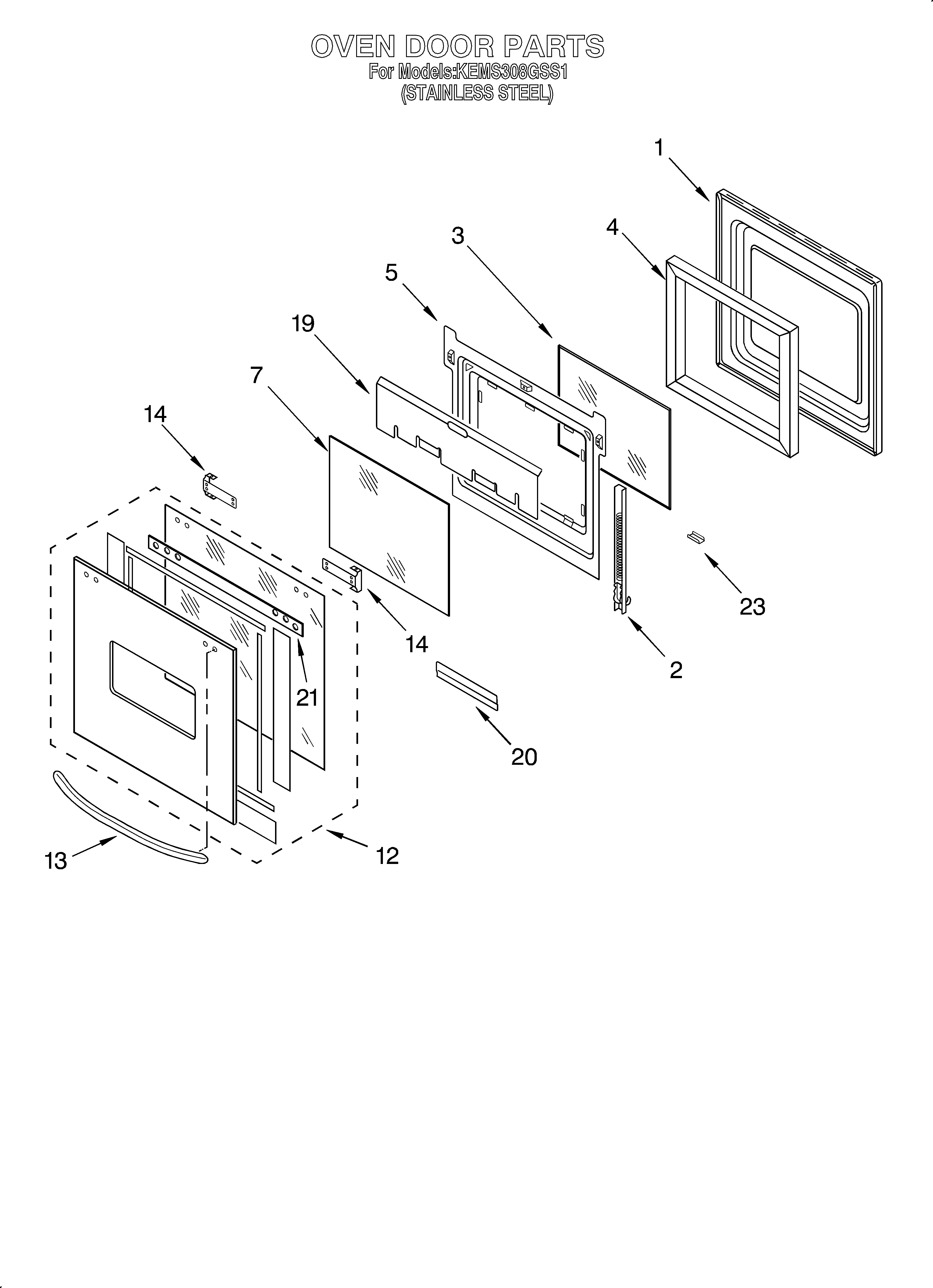

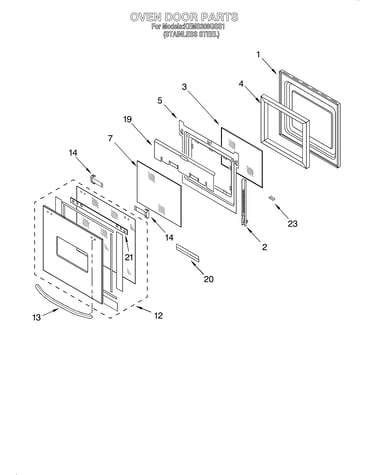

Oven door diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$80.39 |
7% OFF Phone Price : $86.39
In Stock
Oven Baseless Lamp 4375348
#75

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Diode 4375349
#76

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Range High-limit Thermostat 4451442
#37

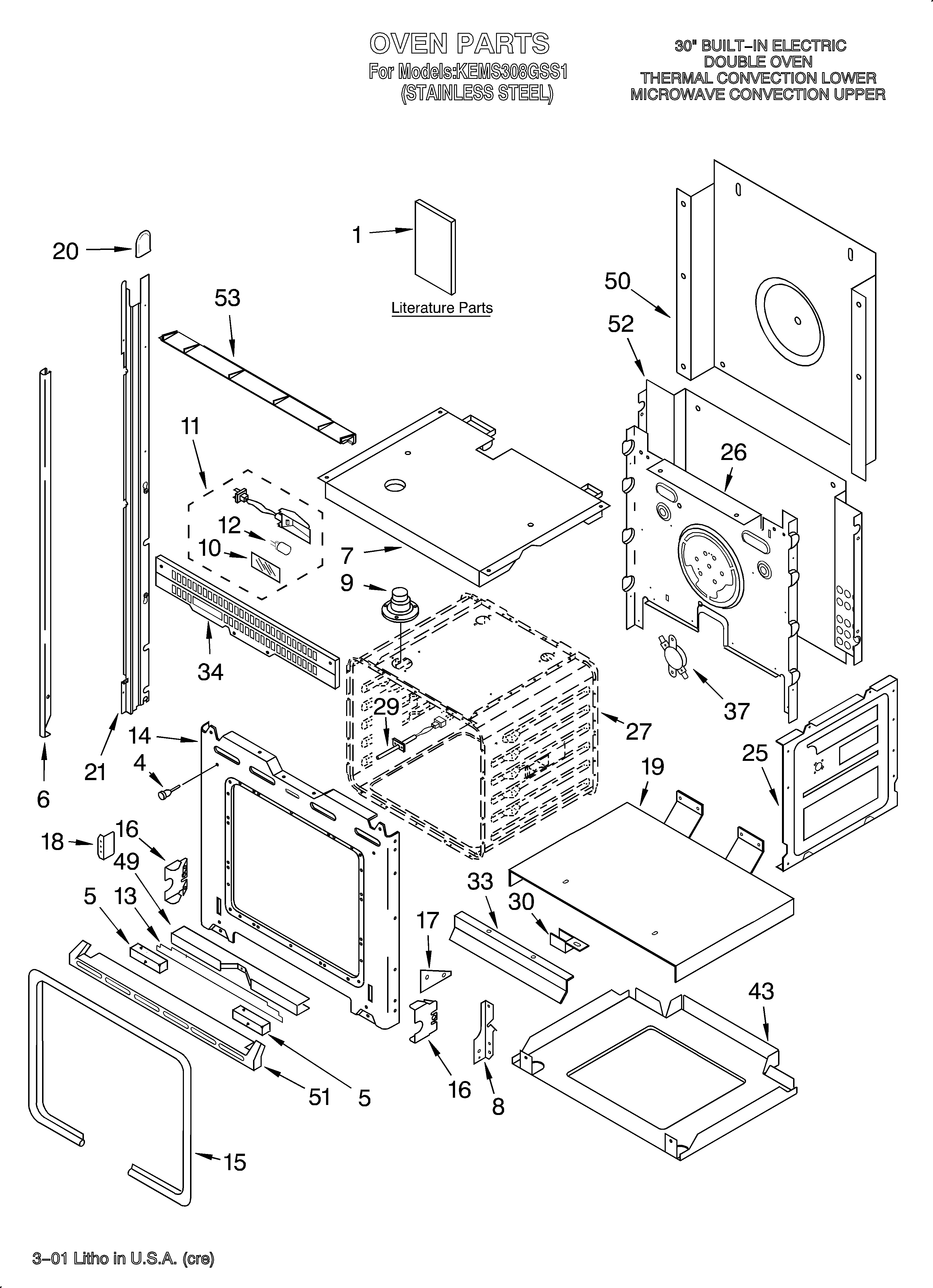

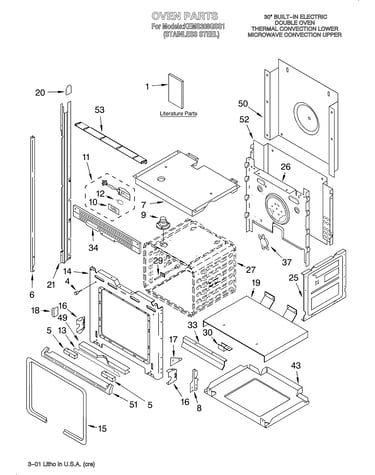

Oven/literature diagram

Range high-limit thermostat

Part #4451442

Replaced by #WP9759243

?
Manufacturer substitution
This part replaces 4451442. Substitute parts can look different from the original.
BEST SELLER
$45.89 |
12% OFF Phone Price : $51.89
In Stock
Capacitor 4375436
#25

Cabinet and stirrer diagram

Capacitor

Part #4375436

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375436. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Blower 4451744
#16

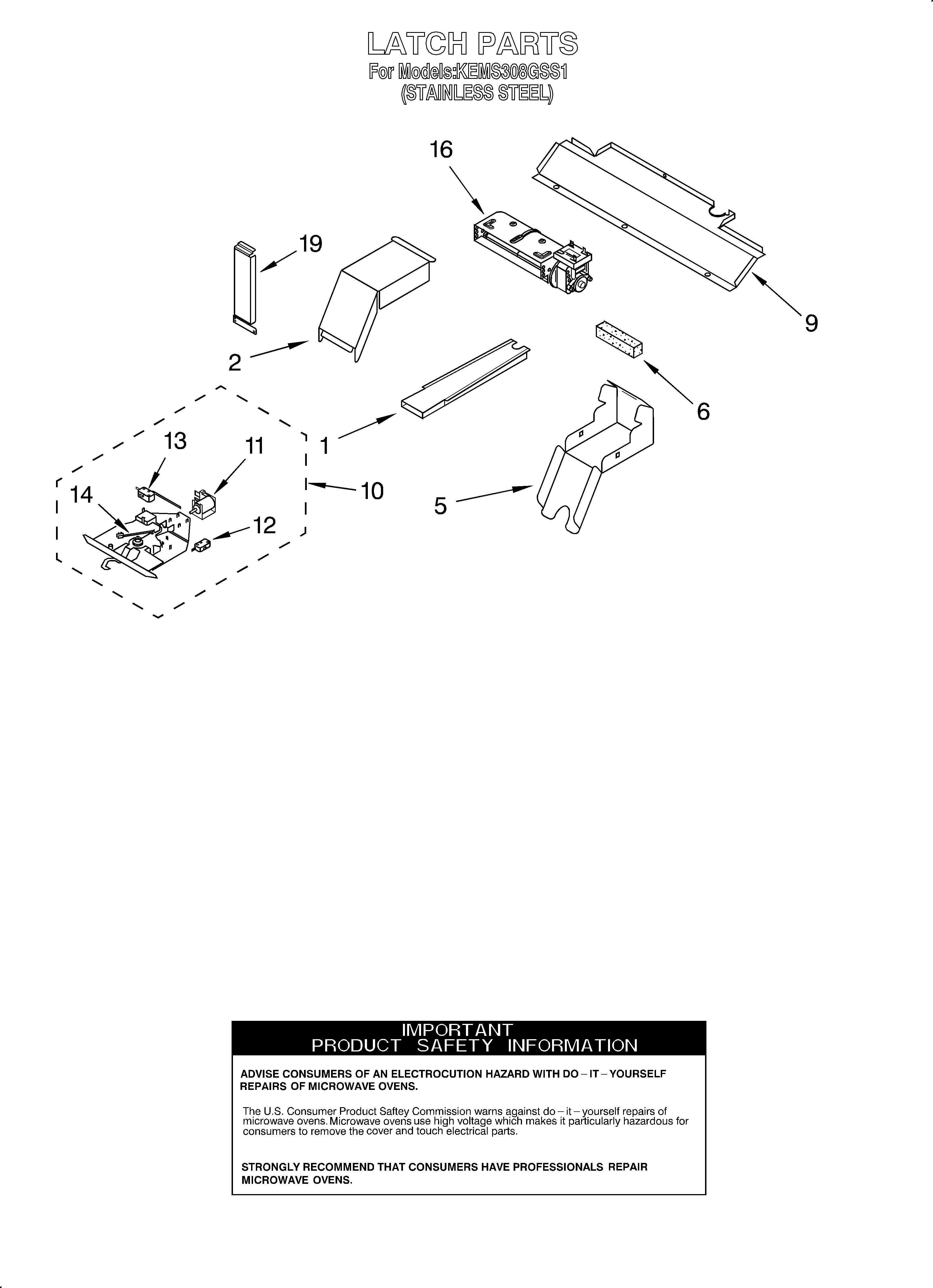

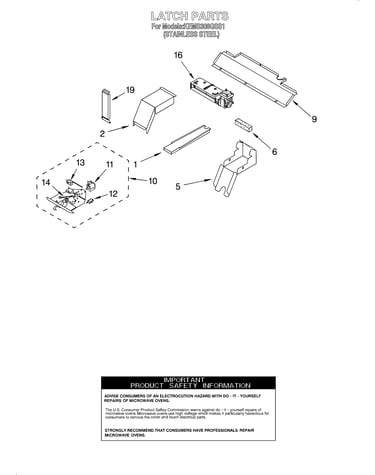

Latch diagram

Blower

Part #4451744

Replaced by #WPW10016550

?
Manufacturer substitution
This part replaces 4451744. Substitute parts can look different from the original.
BEST SELLER
$146.16 |
8% OFF Phone Price : $158.16
In Stock
Touch-up Paint (black) 72032
#NI

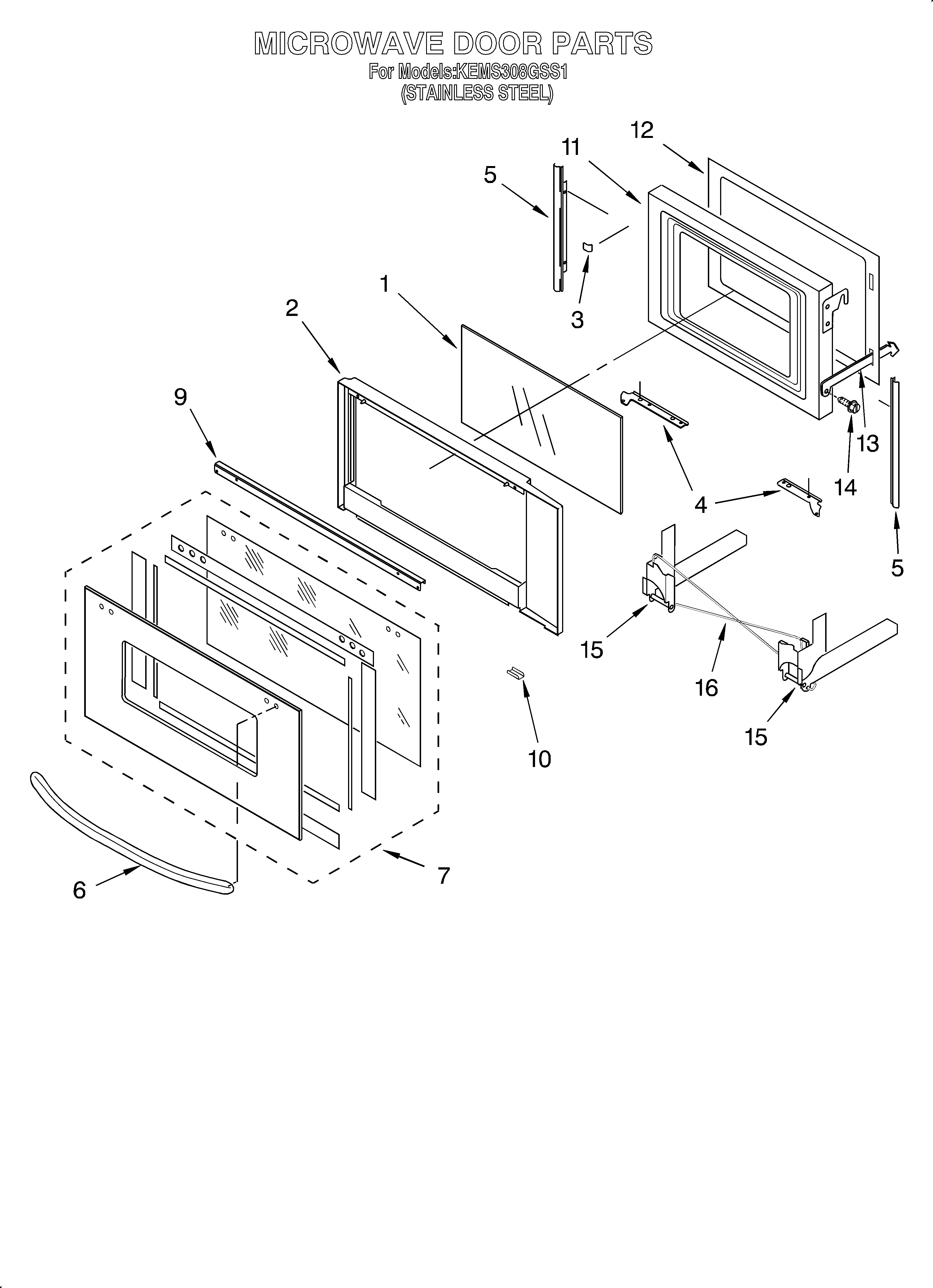

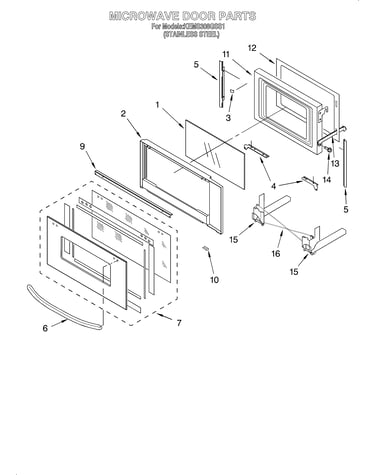

Microwave door diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Fuse (black) 4375321
#27

Cabinet and stirrer diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$14.13 |
12% OFF Phone Price : $16.13
In Stock
Thermal Fuse 4454976
#10

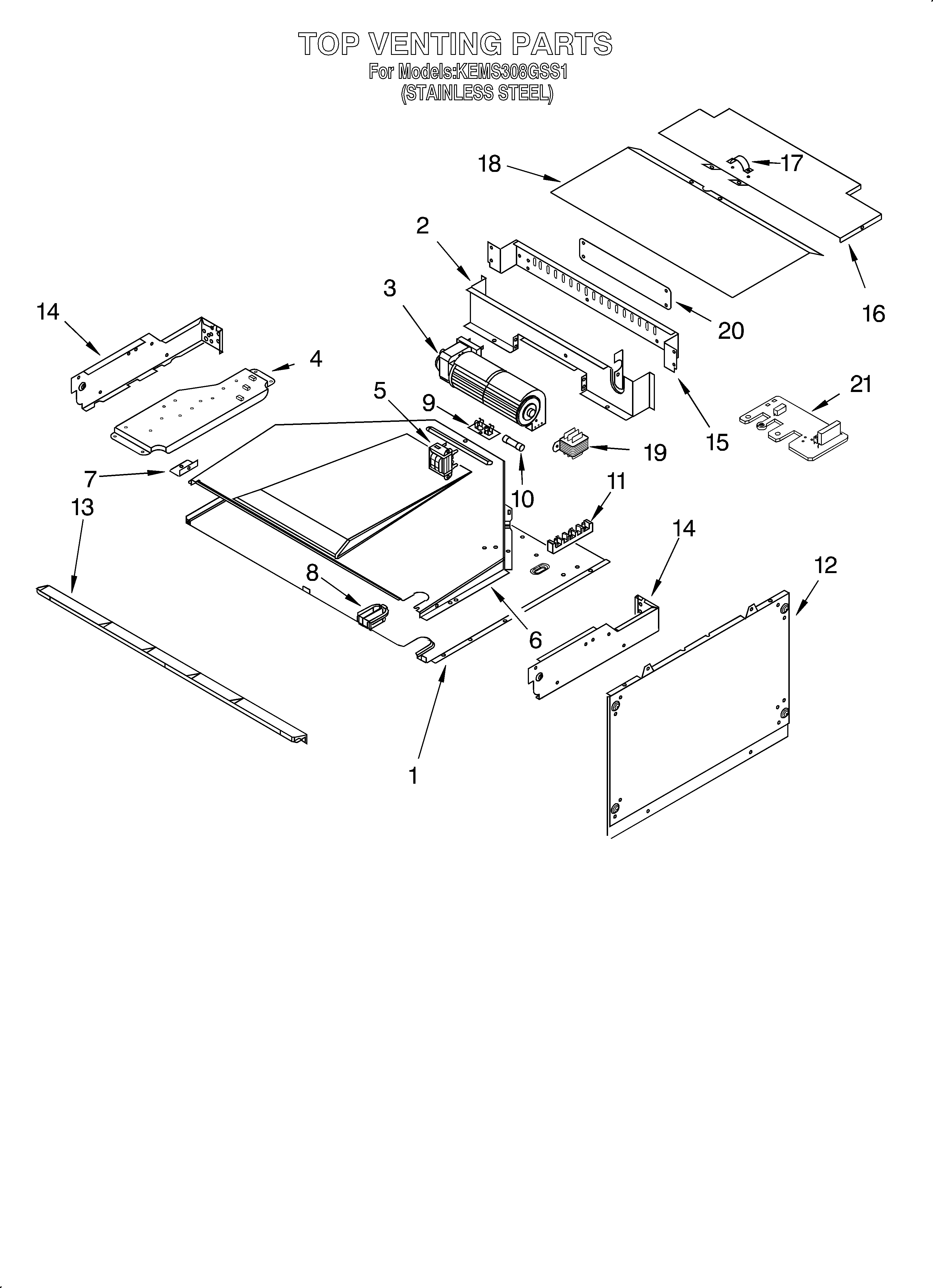

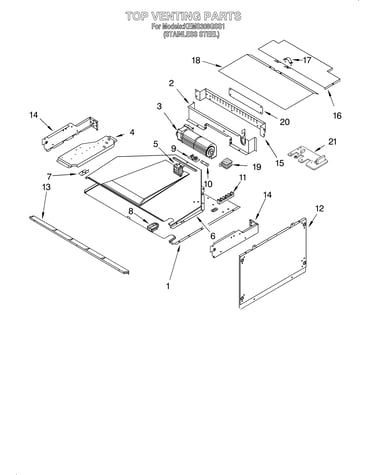

Top venting diagram

Thermal fuse

Part #4454976

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces 4454976. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
