Model # GSA22KEPCFBB Official GE refrigerator - p series

Here are the diagrams and repair parts for Official GE GSA22KEPCFBB refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

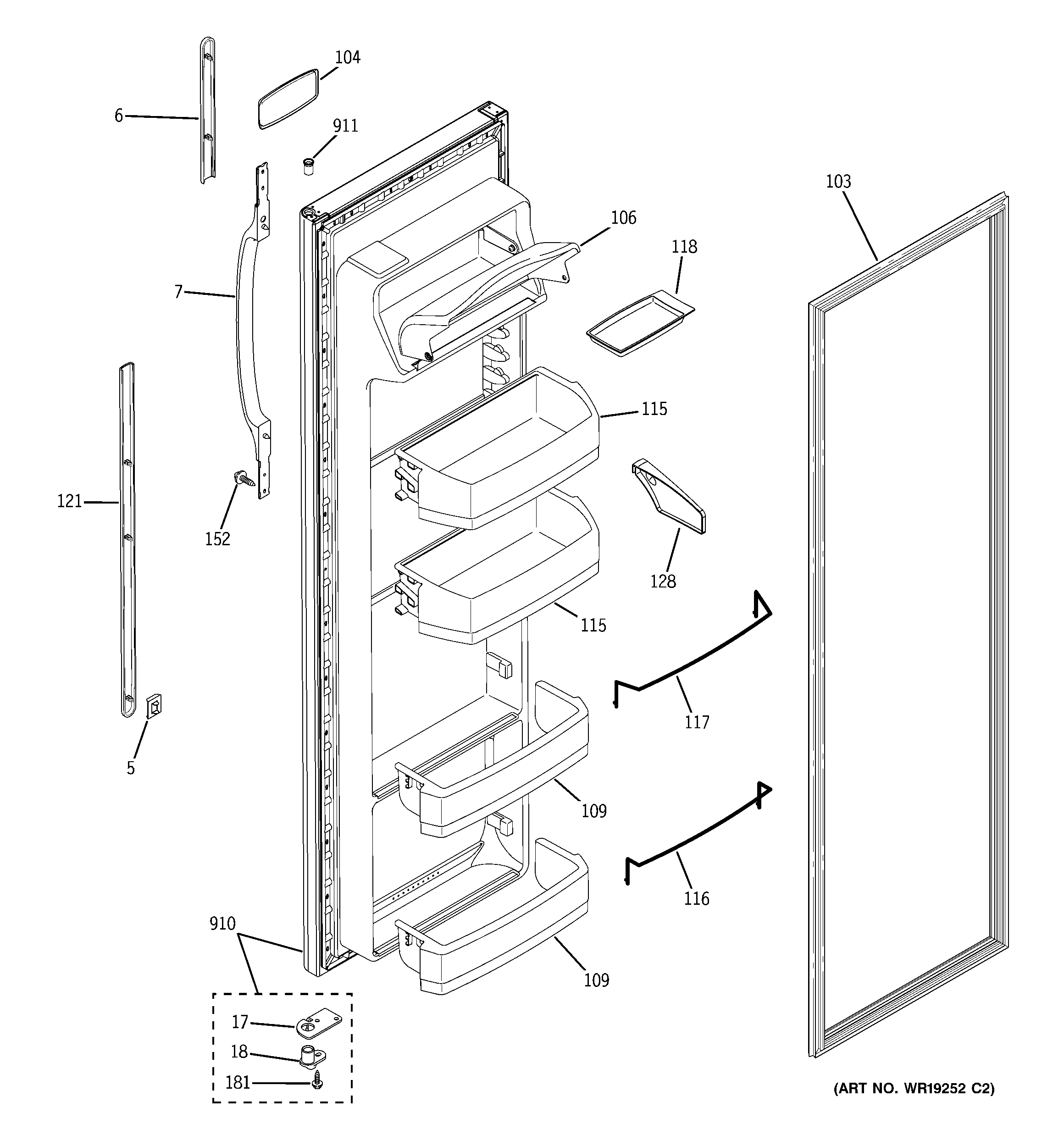

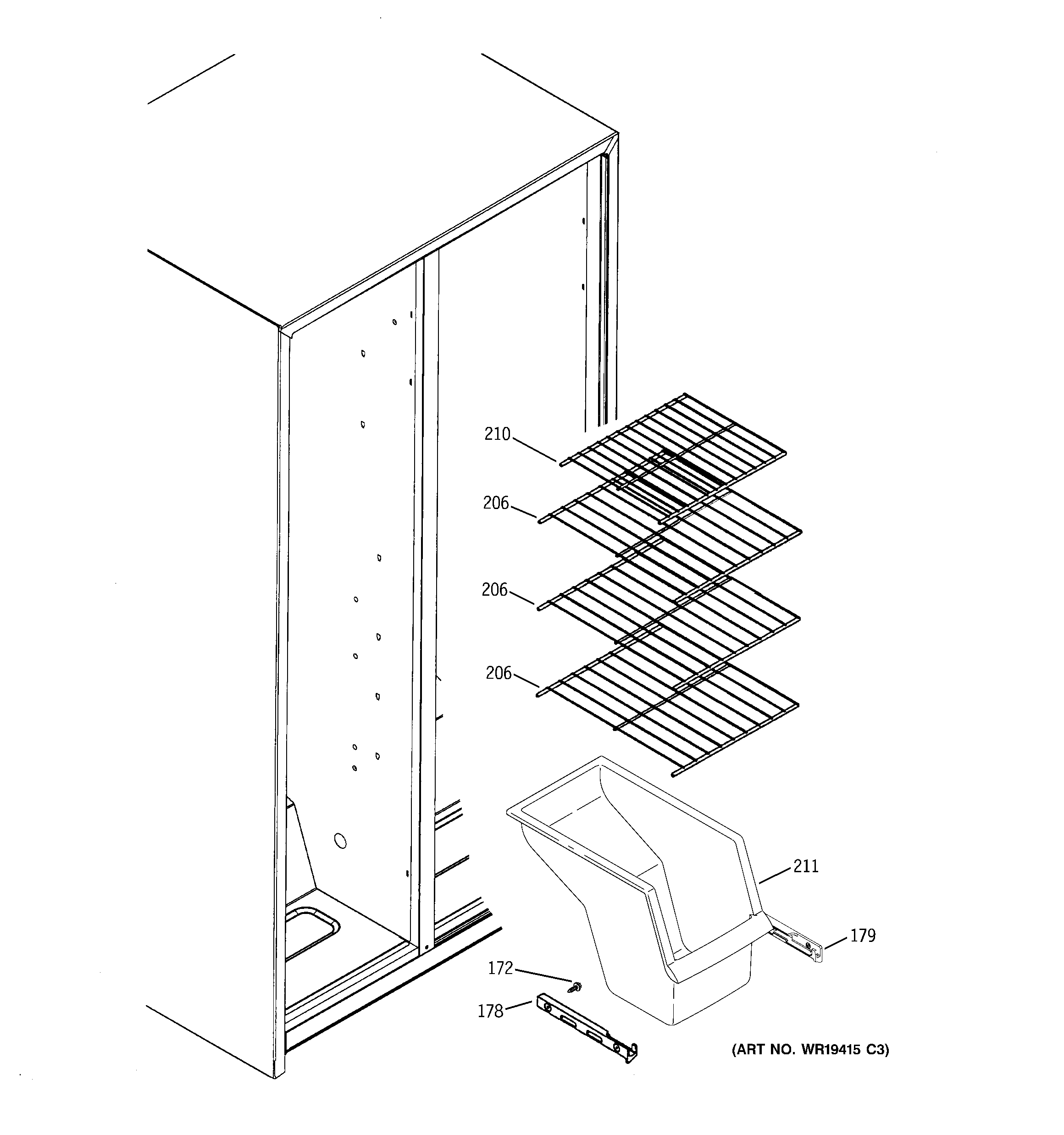

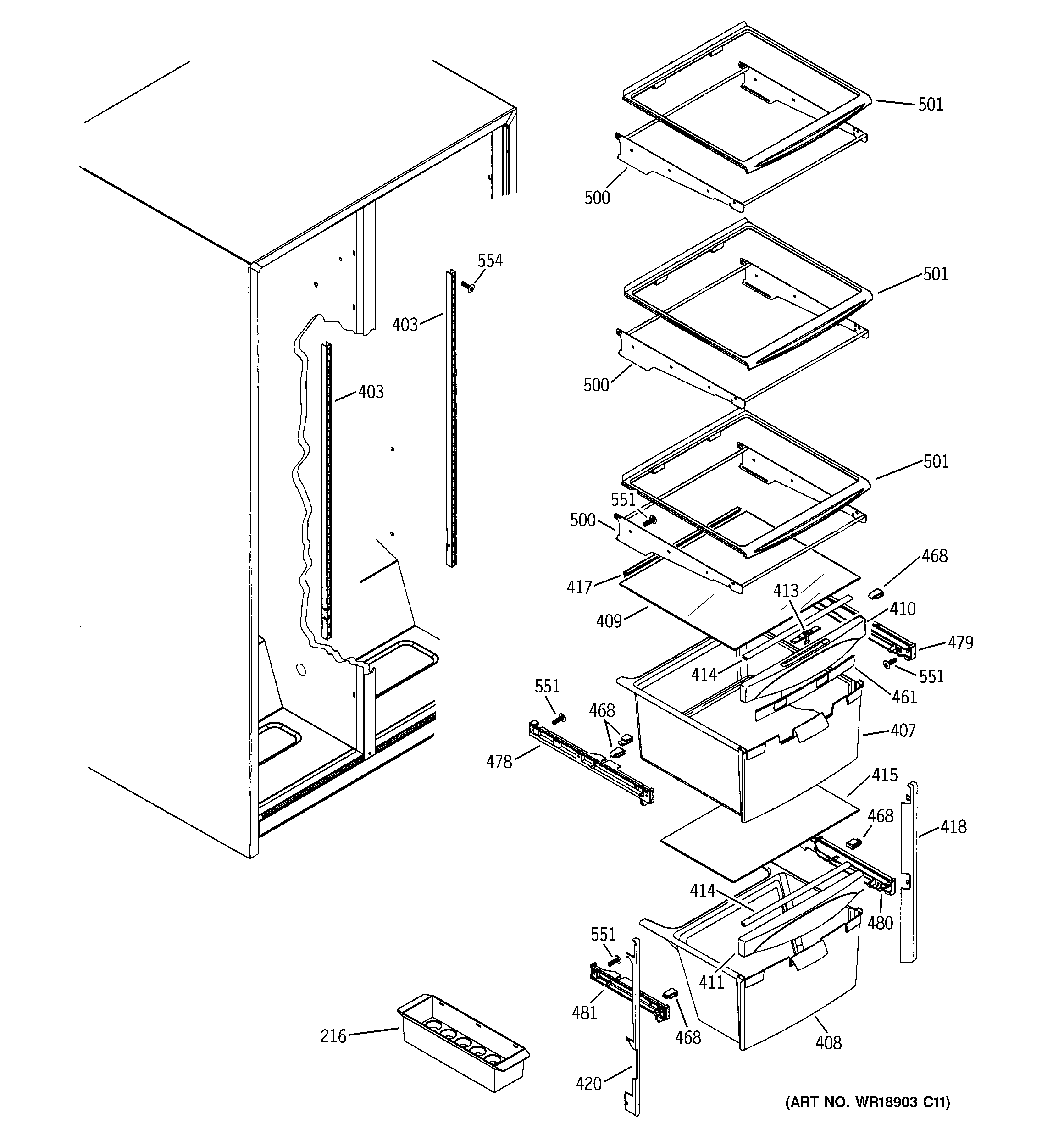

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Refrigerator Filter Dryer WR86X96
#740

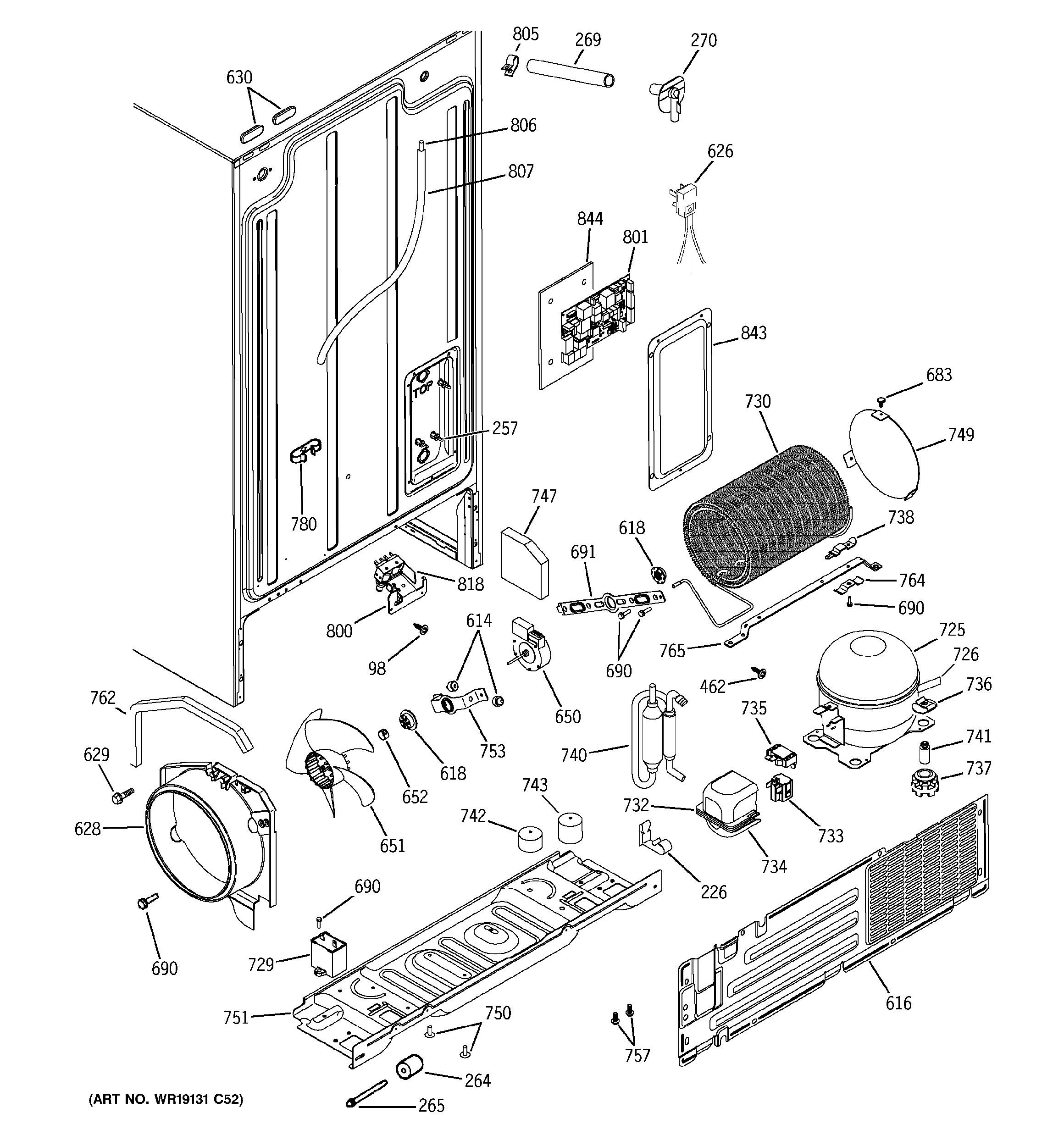

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Thermostat WR50X10015
#240

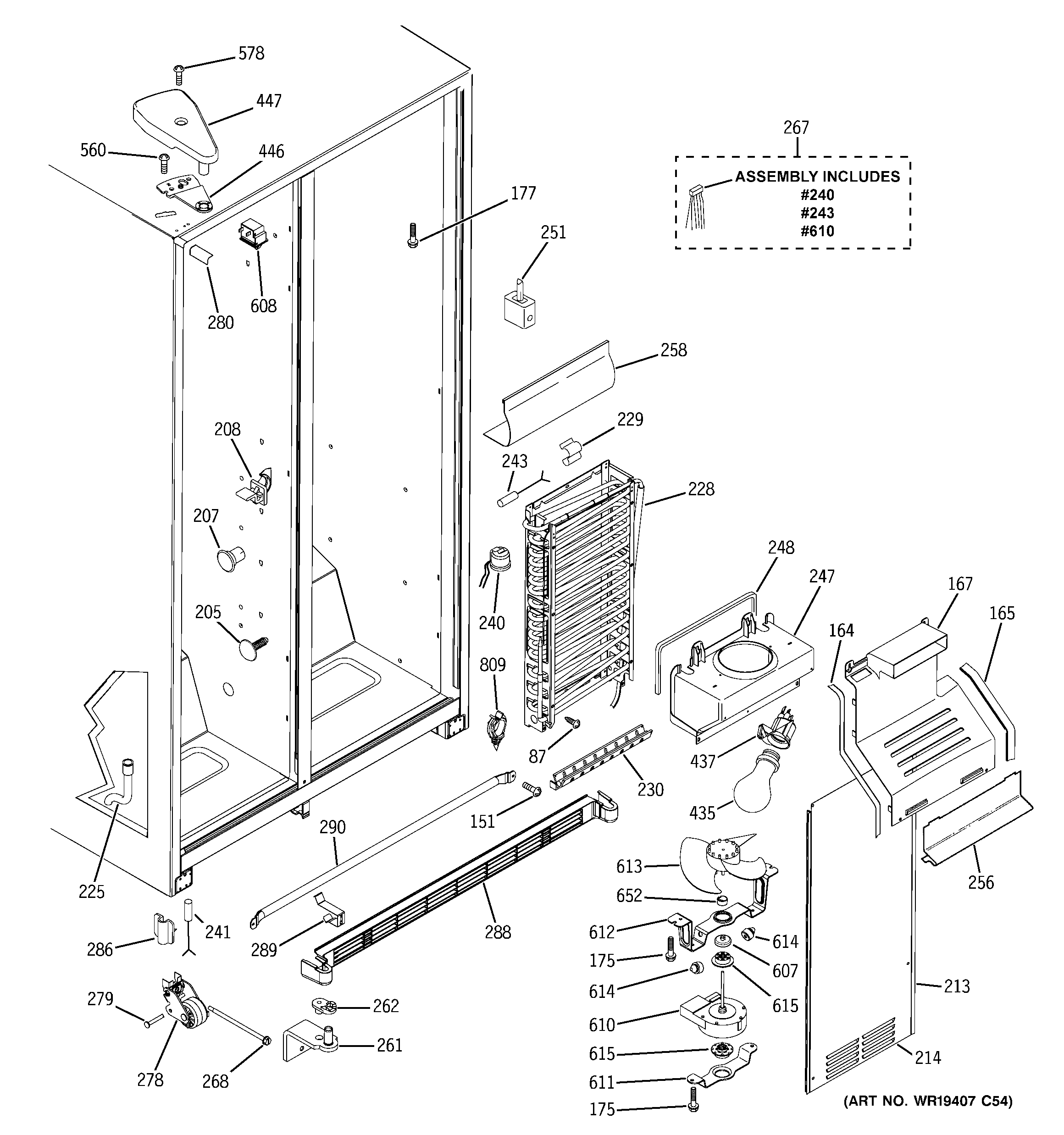

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93 |
22% OFF Phone Price : $26.93
In Stock
Dr Reces Asm WR17X3093
#62

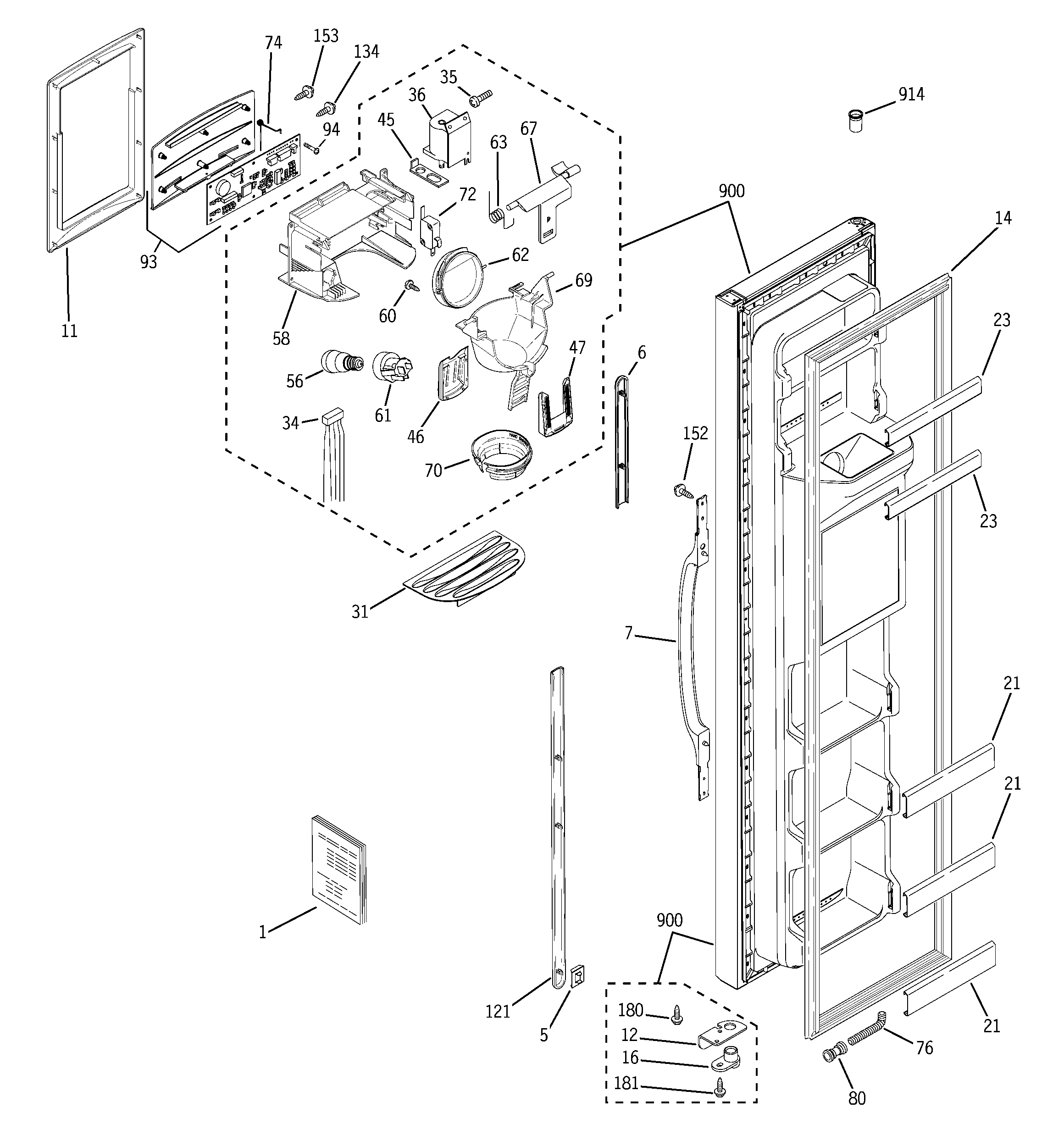

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Comp Rep Kit WR87X10044
#725

Sealed system & mother board diagram

Comp rep kit

Part #WR87X10044

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10044. Substitute parts can look different from the original.
BEST SELLER
$626.82 |
$12.00 OFF Phone Price : $638.82
In Stock
Ge Profile Refrigerator Dispenser Lever Spring WR02X10585
#63

Freezer door diagram

Ge profile refrigerator dispenser lever spring

Part #WR02X10585

BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Motor Dc Con WR60X10080
#650

Sealed system & mother board diagram

Motor dc con

Part #WR60X10080

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10080. Substitute parts can look different from the original.
BEST SELLER
$59.27 |
9% OFF Phone Price : $65.27
In Stock
Refrigerator Switch WR23X10224
#72

Freezer door diagram

Refrigerator switch

Part #WR23X10224

Replaced by #WR23X10783

?
Manufacturer substitution
This part replaces WR23X10224. Substitute parts can look different from the original.
BEST SELLER
$57.84 |
9% OFF Phone Price : $63.84
In Stock
Refrigerator Drive Auger WR02X10565
#365

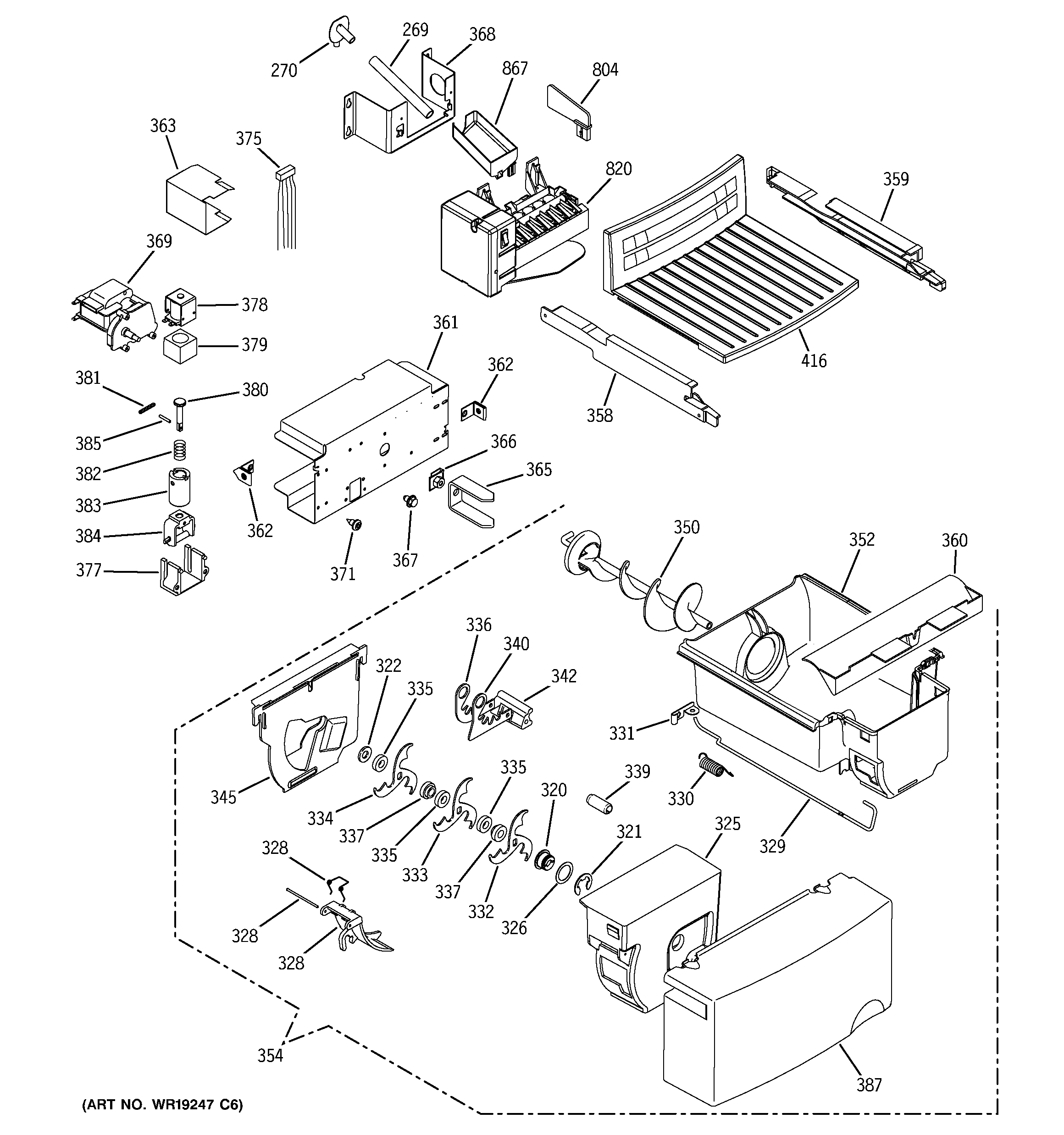

Ice maker & dispenser diagram

Refrigerator drive auger

Part #WR02X10565

Replaced by #WR02X11941

?
Manufacturer substitution
This part replaces WR02X10565. Substitute parts can look different from the original.
BEST SELLER
$10.85 |
16% OFF Phone Price : $12.85
In Stock
Condenser Fan Blade WR60X10049
#651

Sealed system & mother board diagram

Condenser fan blade

Part #WR60X10049

Replaced by #WR60X24484

?
Manufacturer substitution
This part replaces WR60X10049. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$26.55 |
18% OFF Phone Price : $32.55
In Stock
Damper & The WR60X10079
#426

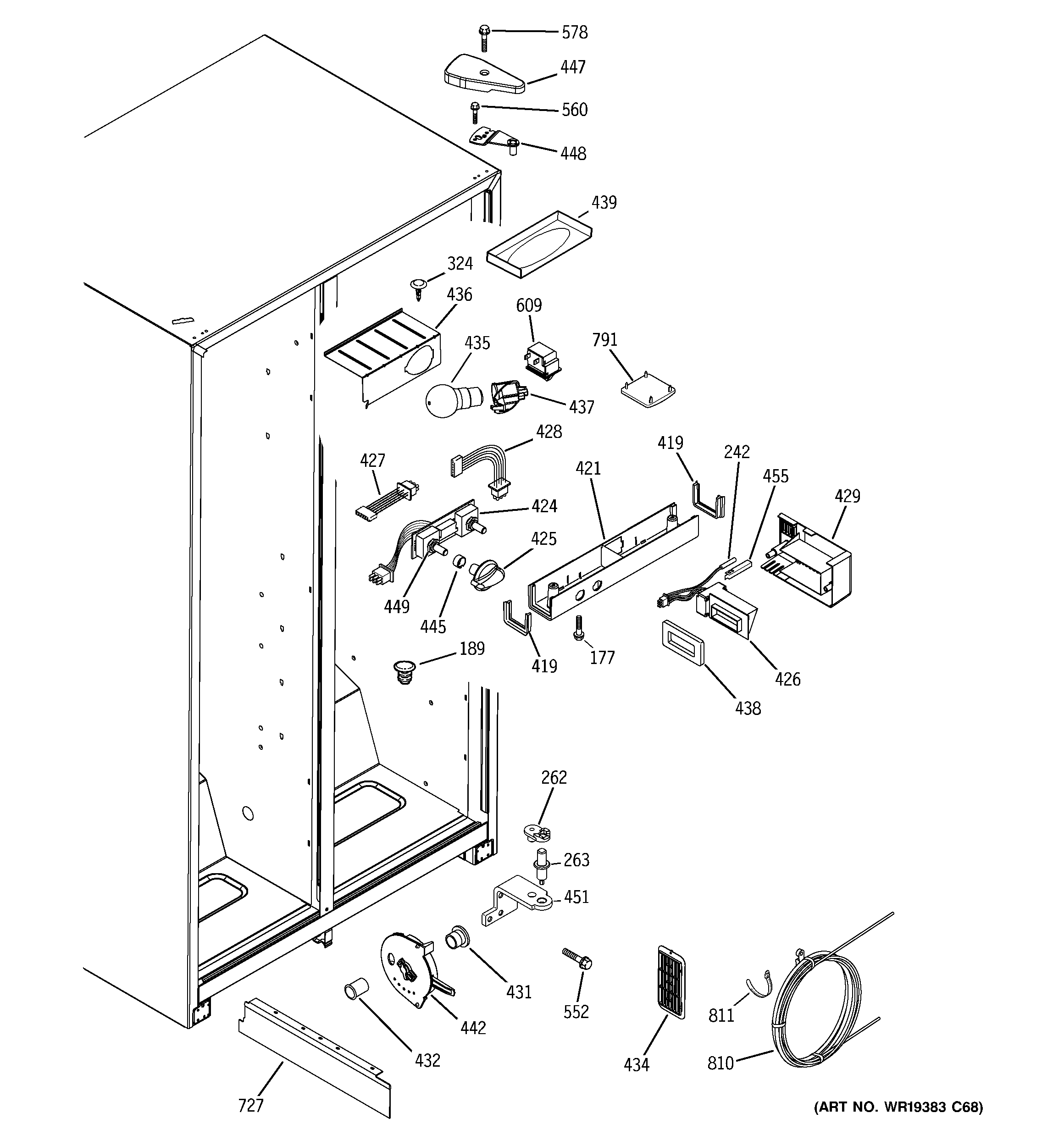

Fresh food section diagram

Damper & the

Part #WR60X10079

Replaced by #WR09X10050

?
Manufacturer substitution
This part replaces WR60X10079. Substitute parts can look different from the original.
BEST SELLER
$83.83 |
7% OFF Phone Price : $89.83
In Stock
