Amana
Electric Cooktop

Model # AK2H30HRW-P1119911S Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana AK2H30HRW-P1119911S electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

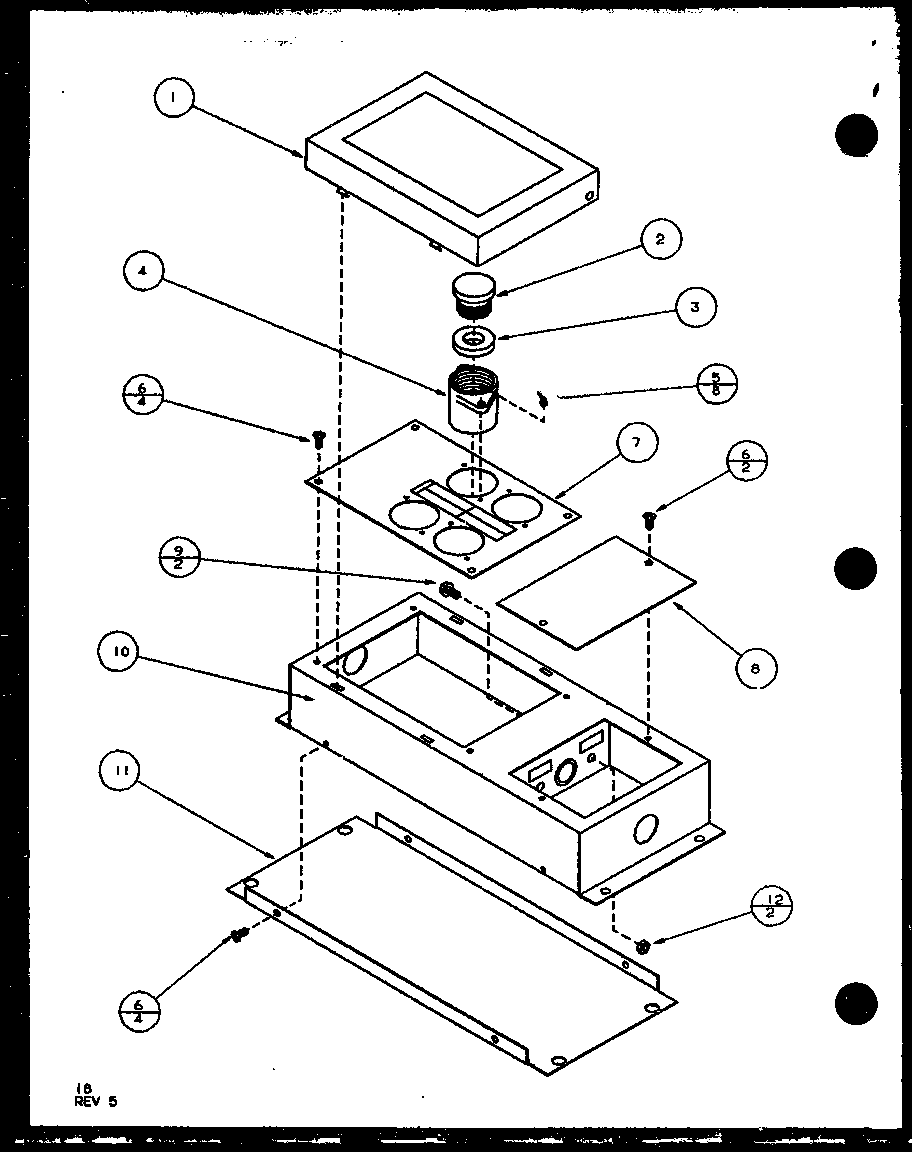

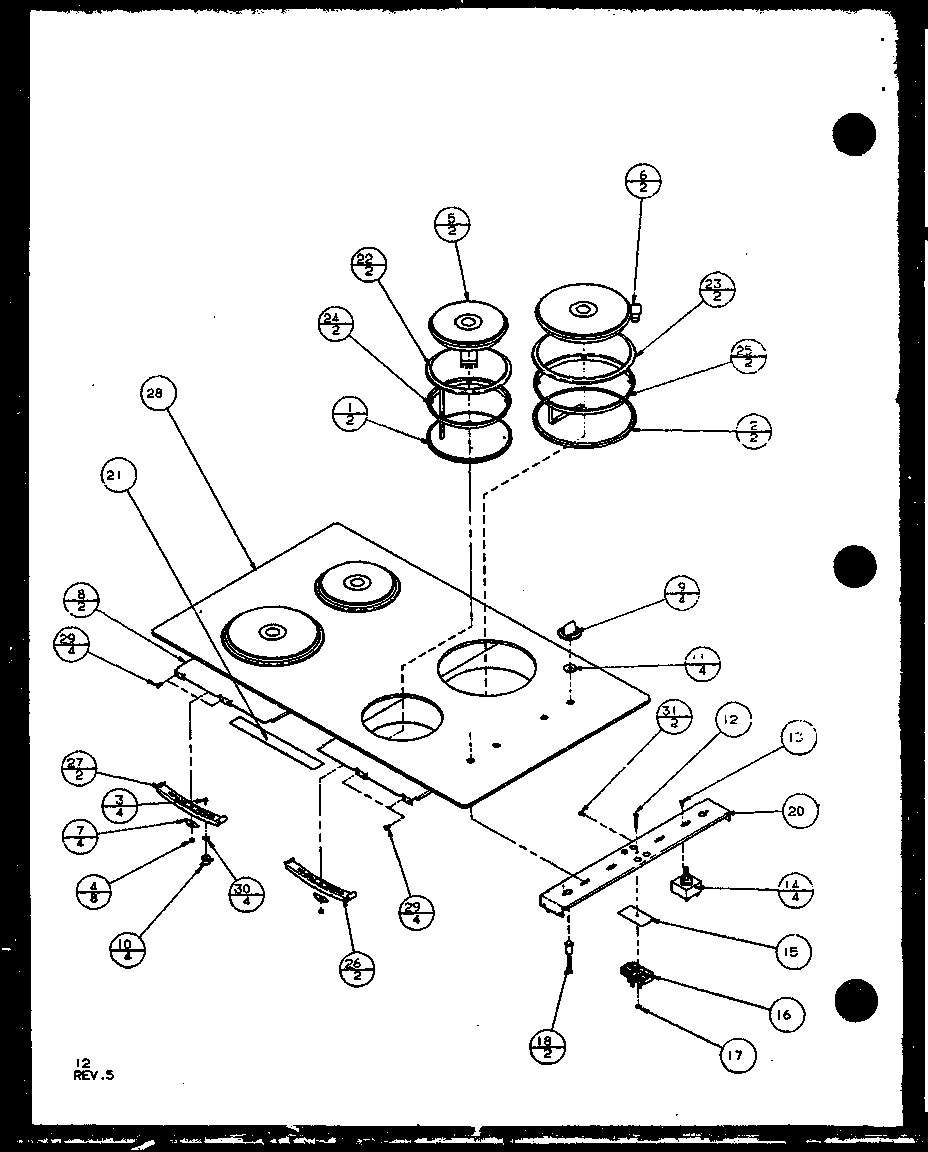

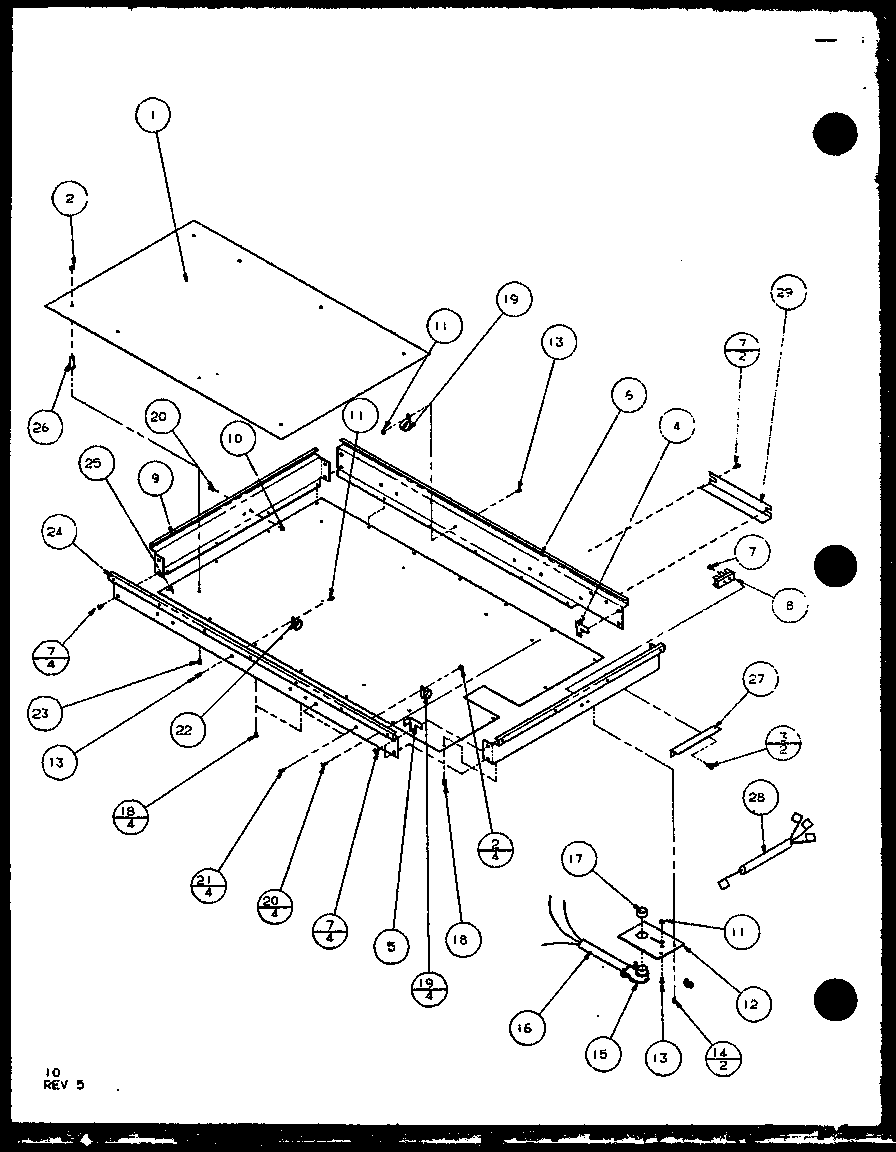

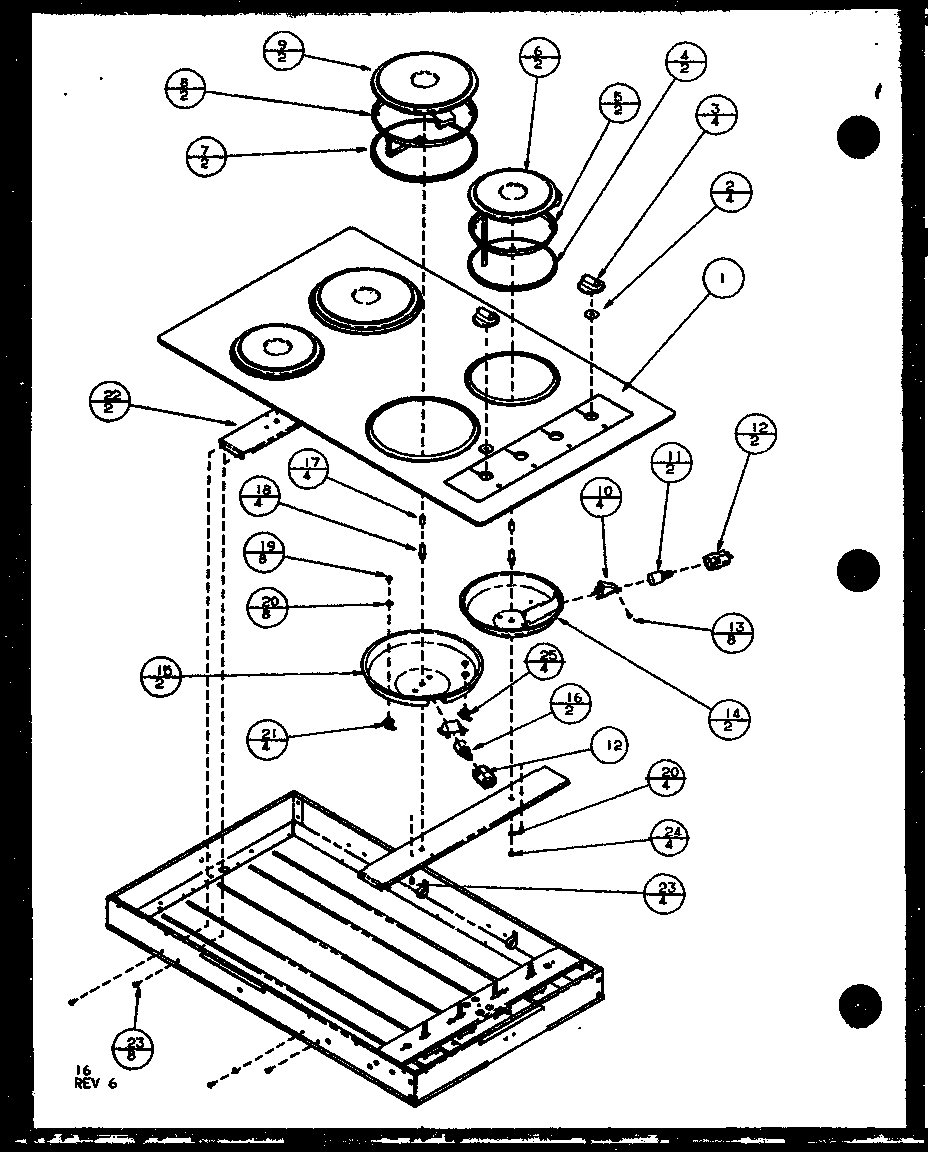

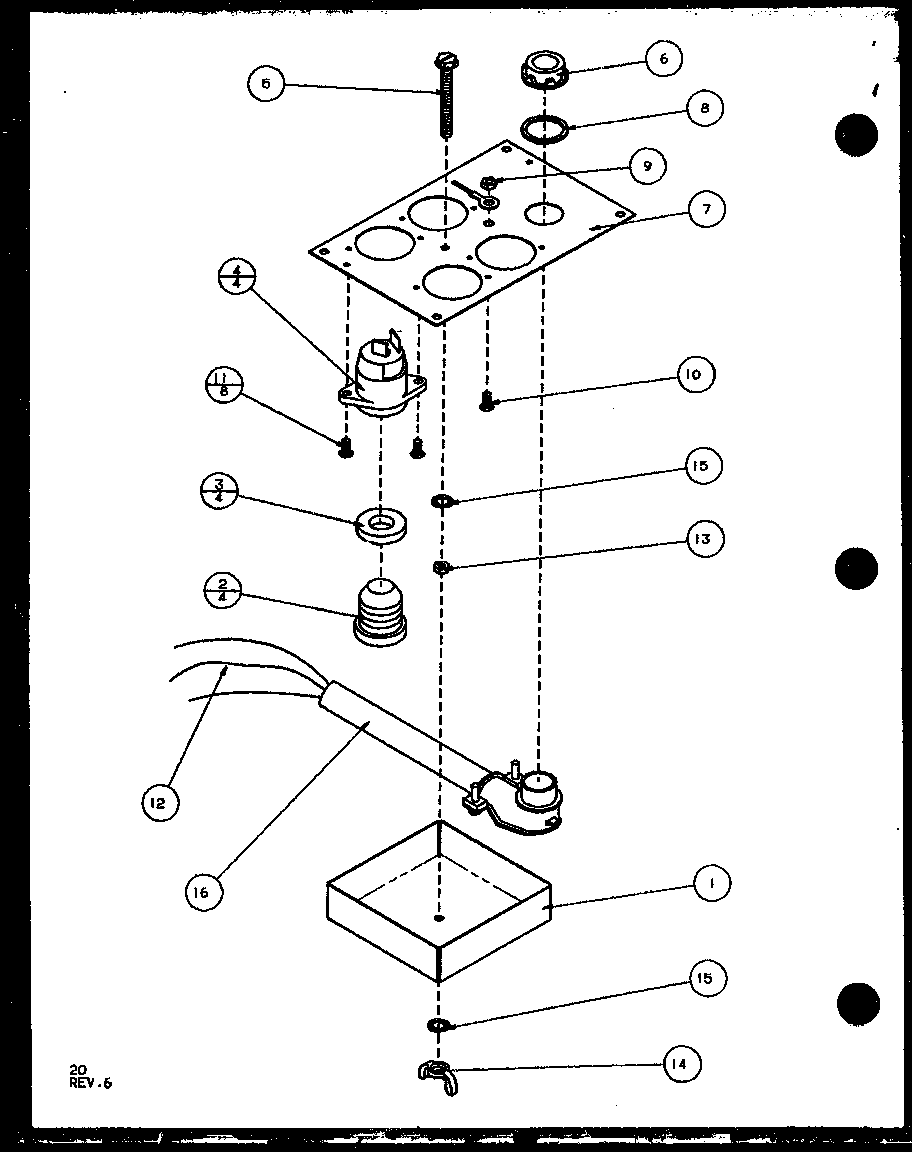

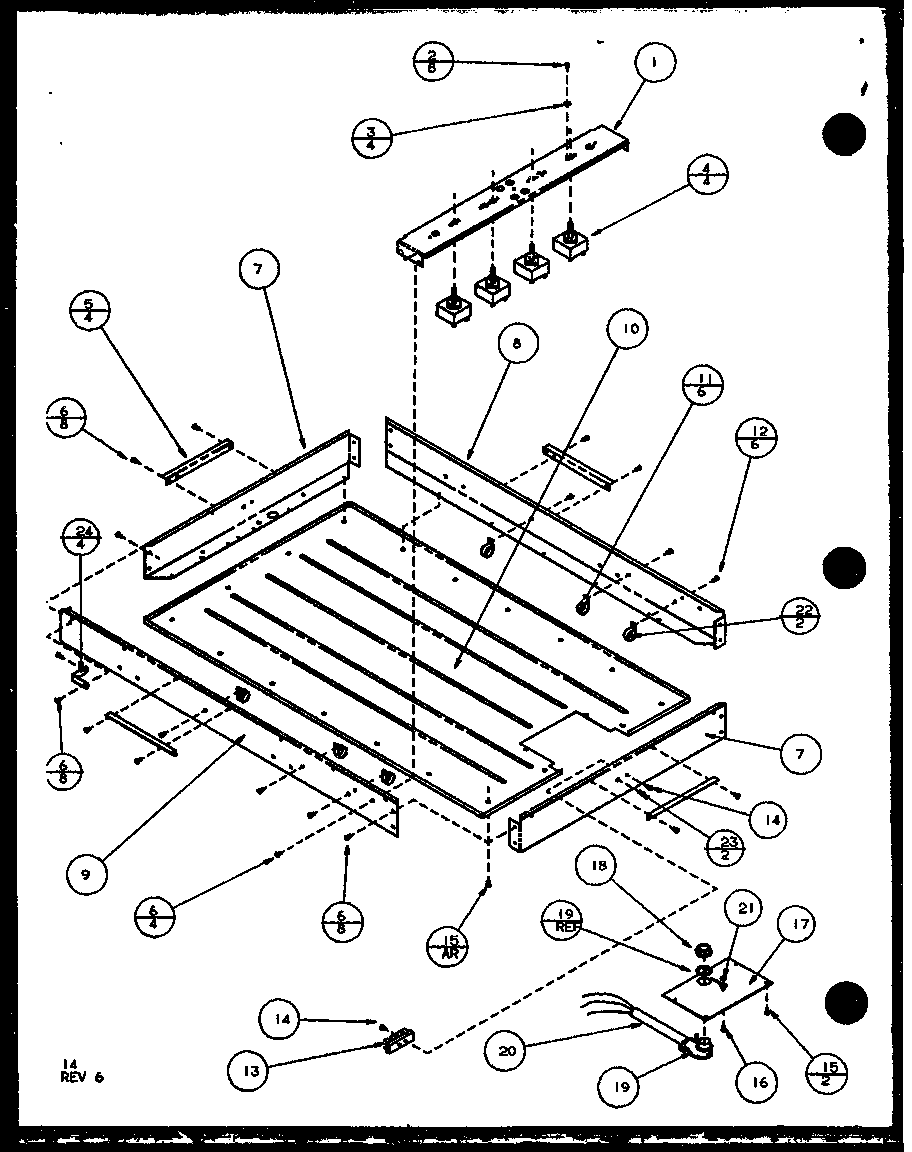

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Dual Heater 10008402
#5B

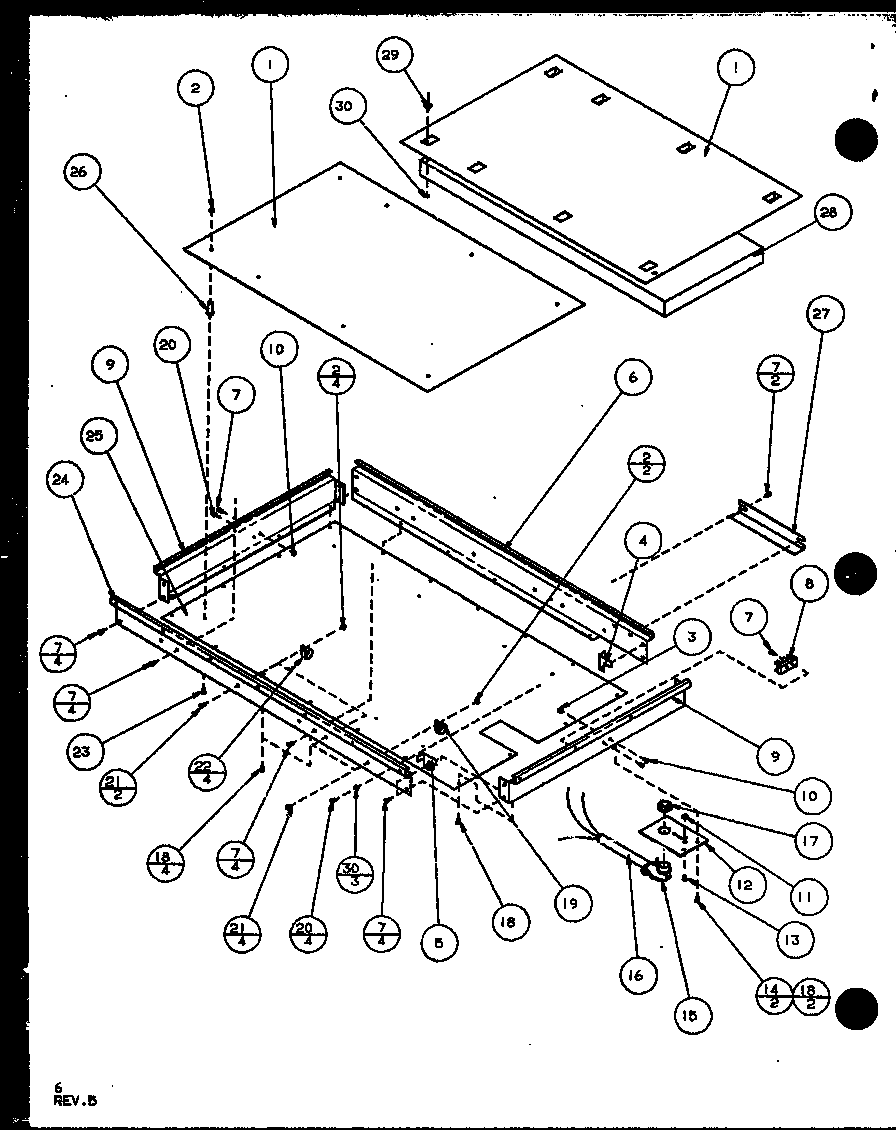

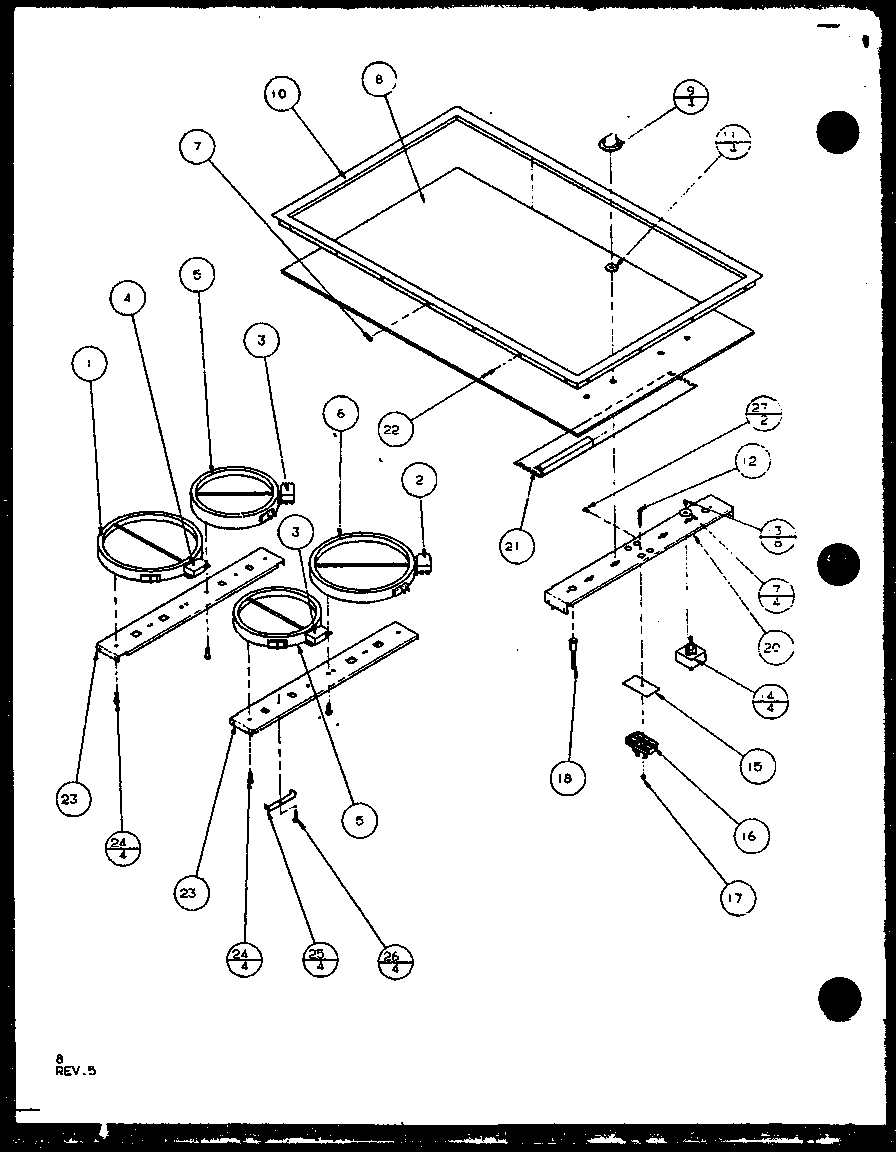

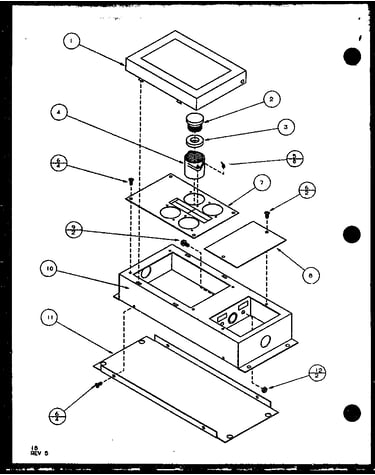

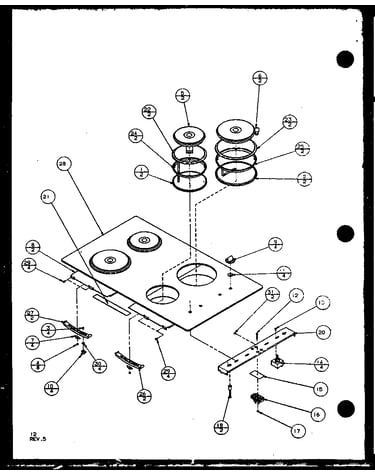

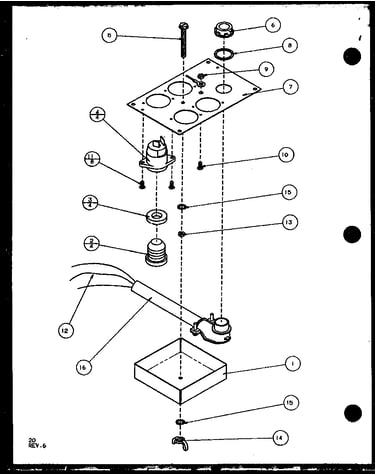

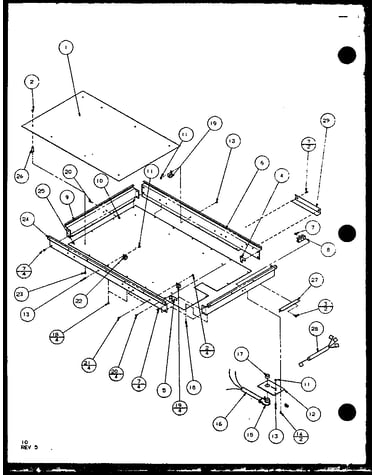

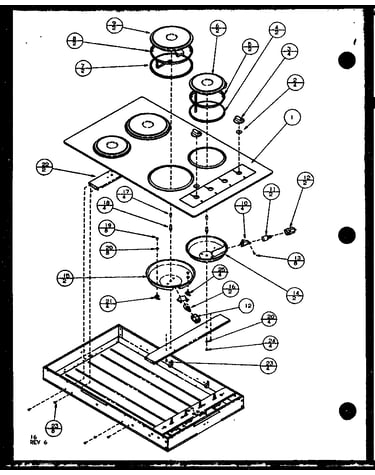

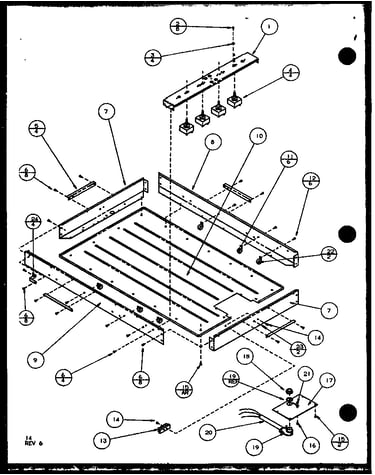

(ak2h30hrw/p1119911s) diagram

Dual heater

Part #10008402

Replaced by #W10823694

?
Manufacturer substitution
This part replaces 10008402. Substitute parts can look different from the original.
$168.65 |
7% OFF Phone Price : $180.65
In Stock
Nut M0282005
#2

(ak2h30hrw/p1119911s) diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0234422
#20

(ak2h30hrw/p1119911s) diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Terminal Block B5677203
#8

(ak2h30hrw/p1119911s) diagram

Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0216703
#18

(ak2h30hrw/p1119911s) diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0234029
#7

(ak2h30hrw/p1119911s) diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Quick Star D8598805
#5A

(ak2h30hrw/p1119911s) diagram

Quick star

Part #D8598805

The manufacturer no longer makes this part, and there's no substitute part

Surface Control 10027906
#14C

(ak2h30hrw/p1119911s) diagram

Surface control

Part #10027906

Replaced by #W11122012

?
Manufacturer substitution
This part replaces 10027906. Substitute parts can look different from the original.
$93.70 |
6% OFF Phone Price : $99.70
In Stock
Screw M0202321
#13

(ak2h30hrw/p1119911s) diagram

Screw

Part #M0202321

Replaced by #W11214483

?
Manufacturer substitution
This part replaces M0202321. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0210417
#22B

(ak2h30hrw/p1119911s) diagram

Screw

Part #M0210417

Replaced by #W11245710

?
Manufacturer substitution
This part replaces M0210417. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
