Model # LX-10GIRLS Official Kent 24" girls' mtb bicycle

Here are the diagrams and repair parts for Official Kent LX-10GIRLS 24" girls' mtb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

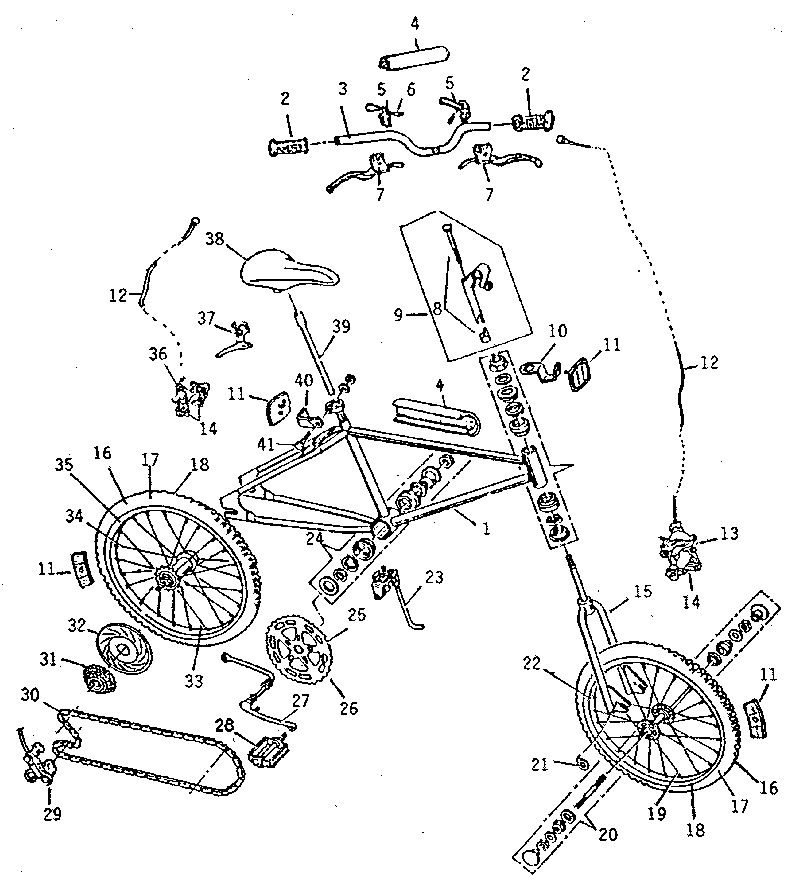

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Bolt Nut 117007

#NI

All parts diagram

Bolt nut

Part #117007

The manufacturer no longer makes this part, and there's no substitute part

Sears Pad Set 105040
#4

Unit parts diagram

Sears pad set

Part #105040

The manufacturer no longer makes this part, and there's no substitute part

Kent Frnt Brk Arc 023020
#13

Unit parts diagram

Kent frnt brk arc

Part #023020

The manufacturer no longer makes this part, and there's no substitute part

Kent Pedal 070021
#28

Unit parts diagram

Kent pedal

Part #070021

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Tube 041029
#17

Unit parts diagram

Craftsman tube

Part #041029

The manufacturer no longer makes this part, and there's no substitute part

Sears Rr Brk Arch 023528
#36

Unit parts diagram

Sears rr brk arch

Part #023528

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 076008
#23

Unit parts diagram

Kickstand

Part #076008

The manufacturer no longer makes this part, and there's no substitute part

Huffy Grip, 2-pack (black) 015034
#2

Unit parts diagram

Huffy grip, 2-pack (black)

Part #015034

The manufacturer no longer makes this part, and there's no substitute part

Bca Tool 103017

#NI

All parts diagram

Bca tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

Spoke/nipple 049514
#35

Unit parts diagram

Spoke/nipple

Part #049514

The manufacturer no longer makes this part, and there's no substitute part
